P0756 on 2001-2005 Chevrolet Silverado: Shift Solenoid 'B' Causes and Fixes

What's Unique About the 2001-2005 Chevrolet SILVERADO

The 2001-2005 Silverado (GMT800 platform) primarily uses the 4L60-E or the heavy-duty 4L80-E automatic transmission. A defining issue for these transmissions is that debris from normal wear accumulates in the fluid, causing precision-machined valves within the valve body to stick in their bores. This means a P0756 code is frequently caused not by an electrical failure of the solenoid, but by a mechanical blockage preventing the 2-3 shift valve from moving. GM even issued a TSB (01-07-30-034B) clarifying that P0756 is a mechanical performance code, not an electrical one.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission fails to shift gears, often stuck in 2nd or 3rd
• Harsh or erratic shifting
• Vehicle enters 'limp mode'
• Sluggish acceleration from a stop
• Transmission slipping
• Transmission overheating
• Failure to engage reverse [MANUFACTURER TSB #PIP4379K]
• Shifting works correctly for the first drive after clearing codes, but the fault returns after the vehicle cools down and is restarted.

Most Likely Causes

1. Low or Dirty Transmission Fluid 🔴 High Probability → Shop Transmission Assembly Debris from normal clutch and torque converter wear can contaminate the fluid, which is a known issue in the 4L60-E/4L80-E transmissions that leads to sticking components.
   How to confirm: Check the transmission fluid dipstick when the engine is running and the transmission is warm. The fluid should be bright red and clear, not brown, black, or smelling burnt. The level should be in the correct cross-hatch range. 🎬 Watch: 4L80E transmission pan removal and solenoid service guide.
   Typical fix: Perform a transmission fluid and filter change. This is often the first and most effective step, and sometimes resolves the issue if it was minor.
   Est. part cost: $40-$80
2. Stuck 2-3 Shift Valve in Valve Body 🔴 High Probability → Shop Transmission Valve Body This is the most common point of failure for this code on the 4L60-E/4L80-E. Debris in the fluid causes the precision-machined 2-3 shift valve to get stuck in its bore, preventing the solenoid from directing fluid flow. Many owners replace the solenoid only to have the code return because the stuck valve was the true cause.
   How to confirm: This is diagnosed after dropping the pan. After removing the 2-3 shift solenoid, the valve behind it should be able to be moved gently with a small pick or screwdriver. If it is seized or does not move freely, it is the source of the problem. 🎬 Watch: How to free a stuck 2-3 shift valve.
   Typical fix: Remove the valve body, disassemble it, and carefully clean the valve and its bore with solvent and compressed air to ensure it moves freely. In some cases, the bore may need to be reamed and an oversized valve installed.
   Est. part cost: $0 (if cleaning) - $300 (for a remanufactured valve body)
3. Failed 2-3 Shift Solenoid ('B') 🟡 Medium Probability → Shop Transmission Valve Body While less common than a stuck valve, the solenoids in these transmissions can fail electrically (open or shorted coil) or mechanically (stuck plunger). It is often replaced as the first step, but may not be the root cause.
   How to confirm: After dropping the transmission pan, the solenoid can be tested with a multimeter. Resistance should be between 20-40 ohms (typically 20-25 ohms when tested). An open circuit (infinite resistance) or short circuit (near-zero resistance) indicates a failed solenoid. You can also apply a 9V or 12V source to listen for an audible 'click'.
   Typical fix: Replace the 2-3 shift solenoid. On 4L60-E and 4L80-E transmissions, the 1-2 ('A') and 2-3 ('B') solenoids are identical and often replaced as a pair. The ACDelco part number is 24230298. 🎬 See this walkthrough for replacing the A and B solenoids.
   Est. part cost: $25-$60
4. Damaged Internal Wiring Harness ⚪ Low Probability The wiring inside the transmission is constantly submerged in hot fluid, which can make connectors and insulation brittle over time, leading to cracks or poor connections.
   How to confirm: Visually inspect the wiring harness leading to the shift solenoid for broken wires or a damaged connector once the pan is removed. Check for continuity from the solenoid connector to the main case connector.
   Typical fix: Repair the damaged wire or replace the internal transmission wiring harness.
   Est. part cost: $50-$100

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) or Powertrain Control Module (PCM): → Shop Transmission Assembly This is extremely rare and should only be considered after all other possibilities (fluid, solenoid, wiring, valve body) have been completely ruled out. TSB 01-07-30-034B specifically notes that P0756 is a mechanical, not electrical, fault.

Diagnosis Steps

1. Check the transmission fluid level and condition. If it is low, dark, or smells burnt, a fluid and filter change is the necessary first step.
2. Scan the TCM for any other transmission-related codes to get a broader picture of the issue. Note if P0700 or P0751 are also present.
3. Drop the transmission oil pan to access the internal components.
4. Visually inspect the fluid in the pan and the magnet for excessive metal shavings or clutch material. A small amount of fine gray paste on the magnet is normal; large flakes are not.
5. Locate the 2-3 Shift Solenoid ('B'). On a 4L60-E/4L80-E, it is one of two identical solenoids near the manual valve.
6. Test the solenoid's resistance with a multimeter. A reading between 20-40 ohms is expected. Readings outside this range confirm a bad solenoid.
7. CRITICAL: If the solenoid tests good, remove it and inspect the 2-3 shift valve in the valve body bore. Gently probe it to see if it moves freely. If it is stuck, this is your problem.
8. If the valve is stuck, the valve body must be removed for a thorough cleaning.
9. If all components test good, inspect the internal wiring harness for damage before considering a rare PCM/TCM fault.

Parts You'll Likely Need

• A/B Shift Solenoid (1-2 and 2-3) (OEM #ACDelco 24230298) — This solenoid is the component directly implicated by the code, though it may not be the root cause. On 4L60-E/4L80-E transmissions, the 'A' and 'B' solenoids are identical and interchangeable.
  Trusted brands: ACDelco, Bosch, Dorman
  OEM price range: $40-$70
  Aftermarket price range: $25-$50
• Transmission Filter and Pan Gasket Kit (OEM #ACDelco 24208576 (for 4L60-E deep pan)) — This is required anytime the transmission pan is removed. A clogged filter is a primary cause of fluid pressure issues that can trigger various transmission codes.
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Automatic Transmission Fluid — The system must be refilled with 5-7 quarts of fresh fluid after dropping the pan. GM specifies DEXRON-VI fluid for these transmissions, which is backward-compatible with the original DEXRON-III.
  Trusted brands: ACDelco DEXRON-VI, Valvoline DEX/MERC, Castrol Transmax

Related Codes That Often Appear With This One

• P0751 — This code is for Shift Solenoid 'A' Performance/Stuck Off. Seeing both codes together strongly points to a widespread hydraulic issue caused by dirty/contaminated fluid or a clogged filter affecting multiple valve body circuits.
• P0700 — This is a generic code that simply means the Transmission Control Module (TCM) has stored a fault code and requested the check engine light. It will almost always be present with P0756.
• P0894 — This code indicates 'Transmission Component Slipping'. A malfunctioning shift solenoid can cause clutches to engage or disengage improperly, leading to slippage that is detected by the TCM. [MANUFACTURER TSB #PIP4379K]

Technical Service Bulletins (TSBs) & Recalls

• PIP4379K: Lists P0756 among codes that can cause no reverse or range inhibit, pointing to internal transmission issues.
• 01-07-30-034B: Specifically addresses P0756 on 4L60-E/4L65-E transmissions, stating it is a mechanical performance code (like a stuck valve) and not an electrical issue.

Platform-Specific Known Issues

• Technical Service Bulletin PIP4379K lists P0756 among a group of codes that can be caused by internal transmission issues, presenting symptoms like no reverse or a range inhibit.
• On the 4L60-E/4L80-E transmission, the most common failure is not the solenoid itself, but the 2-3 shift valve getting stuck in its bore within the valve body due to debris. This is a critical diagnostic step that is often missed.
• Technical Service Bulletin 01-07-30-034B for the 4L60-E explicitly states that P0756 is a mechanical performance code and is NOT caused by electrical issues like a bad harness, which would set a P0758 instead.

Mechanic-Grade Diagnostic Values

• 2-3 Shift Solenoid 'B' Resistance — expected: 20-40 Ohms. A healthier, more specific range is 20-25 Ohms.. Failure: A reading of infinite resistance (open circuit) or near-zero resistance (short circuit) indicates a failed solenoid.
• 2-3 Shift Solenoid 'B' Actuation Test — expected: An audible 'click' from the solenoid when 9V or 12V is applied to its two terminals.. Failure: No click indicates the solenoid's internal plunger is mechanically stuck.
• Voltage at Transmission Case Connector — expected: With the key on, there should be 12V+ power at Pin E (power feed for both shift solenoids). The PCM provides a ground path to Pin B to energize the 2-3 shift solenoid.. Failure: No power at Pin E indicates a wiring issue before the transmission. No ground signal at Pin B when a 2-3 shift is commanded by a scan tool points to a PCM or wiring issue.

Scan Tool Commands That Help

• Tech2 / Professional Scan Tool: Output Control / Commanded Gear — A technician can command the transmission to shift into different gears while monitoring live data. When 3rd gear is commanded, the tool should show the 2-3 solenoid ('B') as 'On'. If the transmission fails to shift and the P0756 code sets, it confirms the PCM's command was not successfully carried out by the transmission's mechanical or hydraulic systems.

Wiring & Ground Locations

• Transmission Case Connector — The main round, 20-pin electrical connector on the passenger side of the 4L60-E transmission case.. This is the primary interface for all internal electronics. Pin B is the control (ground) wire from the PCM for the 2-3 Shift Solenoid 'B'. Pin E is the 12V+ power feed for both shift solenoids. Testing for voltage, ground, and resistance at these pins can diagnose the entire circuit from the PCM to the solenoid without dropping the pan.
• G103 — A primary engine ground bolted to the left front (driver's side) of the engine block, as part of the main negative battery cable harness.. While not specific to the transmission circuit, a poor engine-to-chassis ground can cause a host of intermittent and difficult-to-diagnose electrical issues, including erratic sensor readings and improper module behavior. Ensuring this ground is clean and tight is a crucial step in ruling out vehicle-wide electrical problems.

Real Owner Repair Stories

• GMTNation Forum user 'sniderjr1' (GMC vehicle with 4L60-E (specific year/model not stated, but thread is relevant to GMT800 platform)) — P0756 code, sluggishness, loss of power in first gear.
  ❌ Tried (didn't work) Replacing both shift solenoids ('A' and 'B')., Clearing the code (it returned immediately upon driving).
  ✅ What actually fixed it The user removed the valve body and found the 2-3 shift valve was physically stuck in its bore due to a piece of metal debris. After disassembling the valve body, cleaning the valves and bores, and reassembling, the problem was resolved.

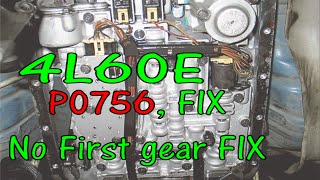

• YouTube channel 'Scotties Hobbies' (2001 Chevrolet Tahoe with 4L60-E) — P0756 code, no first gear.
  ❌ Tried (didn't work) Replacing both shift solenoids., Resetting the computer by disconnecting the battery.
  ✅ What actually fixed it The creator removed the new solenoids and found the valves behind them in the valve body were not moving at all. He was able to carefully wiggle the valves out, clean them and the bores, and blow out the passages with compressed air. This restored function and cleared the code.

"I Checked Everything" — The Actual Cause

• This code is internal to the transmission, so a smoke test is not a standard diagnostic. However, a common parallel is when the solenoid itself tests perfectly fine electrically (correct resistance, clicks with voltage) but the code persists. In these cases, the actual cause is almost always a mechanical issue within the valve body, such as a 2-3 shift valve that is physically stuck in its bore due to debris, preventing hydraulic fluid from flowing correctly.

OEM Part Supersession History

• 10478131, 24236521 → 24230298 — Standard part evolution and consolidation by GM/ACDelco.
  Heads up: The current part number, 24230298, is the correct service replacement for the 1-2 and 2-3 shift solenoids on 2001-2005 Silverados with the 4L60-E/4L80-E. Some GM literature states the part requires special programming, but this is a generic disclaimer and is not typically required for a simple solenoid replacement on this platform.

Model Year Variations Within This Range

• 2005 only: In mid-2005, some 4L60-E transmissions were updated with an Input Speed Sensor (ISS). A transmission from a 2005+ vehicle with an ISS can be installed in an earlier 2001-2004 truck; the older PCM will simply ignore the extra sensor and the transmission will function correctly. This does not affect the diagnosis or repair of P0756.
