P0758 on 2011-2014 Kia Optima Hybrid: Shift Solenoid 'B' Electrical Fault Causes and Fixes

What's Unique About the 2011-2014 Kia OPTIMA HYBRID

For this specific generation of Kia Optima Hybrid, the P0758 code is a well-documented issue. Kia released Technical Service Bulletin #TSBTRA051R1 directly addressing this and other solenoid electrical faults. The bulletin's key instruction is to replace the individual faulty solenoid rather than the entire transaxle, which can save owners a significant amount of money compared to a full transmission replacement. This issue is common across other Kia and Hyundai models that share the A6-series 6-speed automatic transmission, such as the Hyundai Sonata Hybrid.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission stuck in one gear (limp mode), often 3rd gear
• Harsh, jerky, or delayed shifts
• Failure to shift into or out of certain gears
• Inability to shift between 2nd and 3rd gear
• Poor acceleration from a stop
• Transmission warning light may be illuminated
• Reduced fuel efficiency

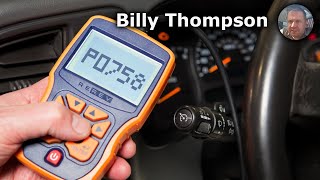

🎬 Watch: A breakdown of P0758 symptoms and troubleshooting tips.

Most Likely Causes

1. Failed Shift Solenoid 'B' 🔴 High Probability → Shop Transmission Valve Body This is a known failure point acknowledged by Kia's TSB #TSBTRA051R1. The internal coil windings of the solenoid can fail from heat and age, causing an open or short circuit. The plastic color of the solenoid socket may vary and should not be used for identification.
   How to confirm: Test the solenoid's resistance with a multimeter; it should be within a specific range. For the on/off type solenoids like 'B' in the A6MF1 transmission, the resistance should be around 10-11 ohms. A reading of infinity (open) or near-zero (short) confirms failure. A professional scan tool can also command the solenoid on/off to check for a response, which should produce an audible click. 🎬 Watch: How to test and clean your A6MF1 solenoids.
   Typical fix: Replace the faulty shift solenoid. This involves draining the fluid, removing the transmission pan and valve body cover to access and swap the solenoid. 🎬 See this walkthrough for removing and replacing the shift solenoid.
   Est. part cost: $60-$120
2. Wiring or Connector Issue 🟡 Medium Probability The internal transmission wiring harness is constantly submerged in hot fluid, which can make the insulation brittle and lead to cracks, shorts, or open circuits over time. Metal shavings in the fluid can also accumulate on connectors and cause shorts.
   How to confirm: Visually inspect the internal harness for damage when the pan is off. Perform a continuity test on the wires from the main transmission connector to the solenoid connector. For Solenoid 'B', this is often tested between pins 5 and 11 on the main external connector.
   Typical fix: Repair the damaged section of wiring or replace the entire internal transmission wiring harness. Many technicians recommend replacing the harness (OEM Part #46307-3B650) as a preventative measure when replacing a solenoid.
   Est. part cost: $70-$120
3. Low or Dirty Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: Check the transmission fluid level and condition. The fluid should be at the correct level, bright red, and not smell burnt. Burnt fluid or excessive metal shavings on the pan magnet indicate more severe internal wear.
   Typical fix: Perform a transmission fluid drain and fill. This is unlikely to fix a purely electrical code like P0758 but is necessary maintenance when replacing the solenoid and can resolve issues if the fluid is extremely contaminated or low.
   Est. part cost: $75-$150

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly This is rare and should only be considered after all other possibilities (solenoid, wiring, fluid) have been thoroughly ruled out. A faulty TCM might send incorrect signals or fail to read correct ones. On the Optima Hybrid, the TCM is part of the Hybrid Power Control Unit (HPCU) in the engine bay.

Diagnosis Steps

1. Confirm the code P0758 is present using an OBD-II scanner, and check for any other codes.
2. Check the transmission fluid level and condition. Ensure it is full and not burnt or contaminated.
3. Inspect the external transmission wiring harness and main connector for any visible signs of damage, corrosion, or loose connections.
4. Using a multimeter set to Ohms, test the resistance of Shift Solenoid 'B' through the pins on the main transmission connector (often pins 5 and 11) to see if it's within the manufacturer's specified range of approximately 10-11 Ohms.
5. If the external test points to a solenoid or internal harness failure, the next step is to gain access to the valve body.
6. Drain the transmission fluid and remove the transmission oil pan. Inspect the pan magnet for excessive metal shavings.
7. Disconnect the main connector from the internal wiring harness. Visually inspect the harness for any signs of cracking, brittleness, or damage.
8. Locate and replace Shift Solenoid 'B' (2-6 Brake). It is often recommended to replace the internal harness at the same time.
9. Reassemble, install a new pan gasket, and refill the transmission with the correct type of fluid (Kia SP-IV).
10. Clear the codes and perform a test drive, monitoring shifts to ensure the repair was successful. A transmission adaptive values reset may be required.

Parts You'll Likely Need

• Automatic Transmission Shift Solenoid 'B' (2-6 Brake) (OEM #46313-2F200) — This is the component that most commonly fails and triggers the P0758 code, as confirmed by Kia's TSB.
  Trusted brands: Kia (OEM), Hyundai (OEM)
  OEM price range: $60-$120
  Aftermarket price range: $40-$80
• Automatic Transmission Internal Wire Harness (OEM #46307-3B650) — The internal harness is a common secondary failure point due to heat and fluid exposure. It is often replaced as a preventative measure along with the solenoid. This part number fits a wide range of Kia/Hyundai vehicles with the 6-speed automatic.
  Trusted brands: Kia (OEM), Hyundai (OEM)
  OEM price range: $70-$140
  Aftermarket price range: $50-$90
• Automatic Transmission Fluid (SP-IV) — Fluid must be drained to access the solenoids and must be replaced with new fluid meeting Kia's SP-IV specification.
  Trusted brands: Kia/Hyundai (OEM), Idemitsu, Valvoline
  OEM price range: $15-$25 per quart
  Aftermarket price range: $10-$18 per quart
• Transmission Oil Pan Gasket (OEM #45285-3B810 (example, verify by VIN)) — A new gasket is required to prevent leaks when reinstalling the transmission oil pan.
  Trusted brands: Kia (OEM), Fel-Pro, Mahle
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0700 — P0700 is a general code indicating the TCM has detected a fault. It acts as a 'heads-up' that a more specific transmission code, like P0758, is stored.
• P0763, P0753, etc. — If other shift solenoid electrical codes appear with P0758, it could point to a larger problem, such as a failing internal wiring harness or an issue with the TCM's power supply affecting multiple solenoids.

Technical Service Bulletins (TSBs) & Recalls

• TSBTRA051R1: Advises on the replacement of various shift solenoids, including for DTC P0758, on 6-speed automatic transaxles. It explicitly states not to replace the entire transaxle for this issue.

Platform-Specific Known Issues

• Kia issued Technical Service Bulletin #TSBTRA051R1 for 6-speed automatic transaxles, which specifically addresses DTC P0758. The bulletin advises technicians to replace the individual solenoid(s) rather than the entire transaxle assembly, confirming this is a known issue with a targeted fix.
• Owners on forums frequently discuss this exact issue, often resolving it by replacing both the solenoid and the internal wiring harness together. The consensus is that doing both at once prevents a repeat repair if the harness is the next point of failure.

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'B' (On/Off type) resistance — expected: 10-11 Ohms at 68°F (20°C).. Failure: A reading of infinity (open circuit) or near-zero (short circuit). Resistance may also go out of spec when the transmission is hot (thermal failure).
• Voltage at transmission main connector, Pin 5 to ground — expected: Battery voltage (~12V) with ignition on.. Failure: Low or no voltage points to a problem with the power supply from the TCM/HPCU or a wiring issue upstream of the transmission.

Scan Tool Commands That Help

• Kia GDS (or equivalent professional scanner like Autel): Actuation Test / Solenoid Test — This bidirectional command allows the technician to manually cycle Shift Solenoid 'B' with the engine off. A successful test produces an audible 'click' from the transmission, confirming the solenoid is mechanically responding and the wiring from the TCM is functional.
• Kia GDS (or equivalent professional scanner like Autel): Resetting Auto T/A Values / Reset Adaptive Values — This function MUST be performed after replacing a shift solenoid or the internal wiring harness. It clears the TCM's learned shift parameters. Failure to reset adaptations can result in continued harsh shifting or erratic behavior even after the hardware is fixed, as the TCM is still trying to use values learned from the old, faulty part.

Wiring & Ground Locations

• Transmission Main Connector (12-pin) — On the top/side of the transmission case, where the main vehicle harness connects.. This is the primary external test point. Resistance for Shift Solenoid 'B' (2-6 Brake) can be measured between Pin 5 (Solenoid Power Supply) and Pin 11 (Solenoid 'B' Control). This allows for a quick test of the solenoid and internal harness without removing the transmission pan.
• TCM (within HPCU) — The Transmission Control Module (TCM) is integrated into the Hybrid Power Control Unit (HPCU), located in the engine bay.. This is the source of the command signal and power for the solenoid. Advanced diagnosis for a suspected TCM fault would involve testing for proper signal output directly at the HPCU connectors.
• TCU Fuse — There is a fuse labeled 'TCU' (20A) in the engine compartment fuse box that supplies power to the transmission control circuits.. While a blown fuse would likely cause multiple solenoid codes and a no-shift condition, it's a fundamental check for any electrical transmission fault.

Real Owner Repair Stories

• Forum user on a Hyundai forum with the same A6MF2H transmission (Hyundai Sonata Hybrid (similar powertrain to Optima Hybrid)) — Car went into limp mode (stuck in 3rd gear) with code P0758.
  ❌ Tried (didn't work) Initially just clearing the code, but it returned immediately.
  ✅ What actually fixed it The owner replaced both the Shift Solenoid 'B' and the internal wiring harness (46307-3B650). After the parts were replaced, the car still shifted poorly. The final fix required using a capable scan tool to perform the 'Reset Adaptive Values' procedure. After the reset, the transmission shifted perfectly.

OEM Part Supersession History

• 46307-3B610, 46307-3B620 → 46307-3B650 — Standard part revision and consolidation by the manufacturer.
  Heads up: The newer 46307-3B650 harness is the correct service part and is backward compatible with vehicles that originally used the -3B610 or -3B620 harnesses.
