P0761 on 2002-2003 Chevrolet Silverado 1500 HD: Shift Solenoid 'C' Causes and Fixes

What's Unique About the 2002-2003 Chevrolet SILVERADO 1500 HD

The 2002-2003 Silverado 1500 HD is equipped with the robust GM 4L80-E automatic transmission, a heavy-duty unit designed for significant loads. While durable, a code like P0761 on this specific transmission often points directly to an electrical or mechanical failure of the 2-3 shift solenoid ('B') or the internal wiring harness 🎬 Watch: How to install a new internal wiring harness., which can become brittle over time. The provided TSB (PIP4379M) groups P0761 with many other transmission codes, suggesting that a single electrical fault, such as a bad ignition switch or poor ground, can sometimes manifest in various ways and should be investigated.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Harsh or delayed shifting, particularly the 2-3 shift
• Transmission gets stuck in one gear (often 2nd or 3rd gear)
• Failure to shift into certain gears
• Vehicle enters 'limp mode'
• Check Engine Light is on
• No engagement into reverse (as noted in TSB PIP4379M)
• Transmission fails to downshift when coming to a stop
• Increased fuel consumption

Most Likely Causes

1. Failed 2-3 Shift Solenoid ('B') 🔴 High Probability → Shop Transmission Valve Body Solenoids are wear items that can fail electrically (coil shorts/opens) or mechanically (plunger sticks) after many years and heat cycles. Debris in the fluid can also cause them to jam.
   How to confirm: After dropping the transmission pan, test the solenoid's resistance with a multimeter. For a 4L80-E, the resistance for shift solenoids A and B should be between 20 and 40 ohms (some sources specify 20-22 ohms). A reading outside this range indicates failure. You can also test from the main external connector to avoid dropping the pan initially.
   Typical fix: Replace the faulty shift solenoid. Since the pan is already off, many owners choose to replace both shift solenoids (A and B) at the same time, as they are the same part and have experienced the same wear.
   Est. part cost: $40-$80
2. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly Over time, fluid can break down, become contaminated with clutch material, or leak. Dirty fluid can clog the small passages in the solenoid and valve body, causing it to stick.
   How to confirm: Check the transmission fluid dipstick with the engine running and transmission warm. The fluid should be reddish-pink and not smell burnt. Dark, gritty, or low fluid indicates a problem.

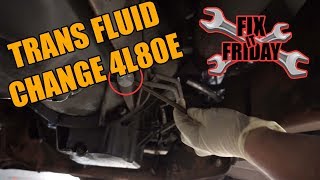

   Typical fix: Perform a transmission fluid and filter change. If the fluid is extremely contaminated or contains metal shavings, it may signal a more severe internal failure, such as from the torque converter.
   Est. part cost: $60-$120
3. Damaged Internal Transmission Wiring Harness 🟡 Medium Probability → Shop Transmission Assembly The wiring inside the transmission is constantly submerged in hot fluid, which can make the insulation brittle and prone to cracking over time. The pass-through connector on the case is a known failure point, where fluid can leak through the pins, causing poor connections.
   How to confirm: Visually inspect the wiring harness for cracks, bare wires, or burnt connectors after removing the transmission pan. Check for continuity from the main transmission connector to the solenoid connector. Inspect the main round connector on the passenger side of the transmission for fluid intrusion.
   Typical fix: Replace the internal wiring harness. Early models (1991-2003) use a specific harness.
   Est. part cost: $80-$150

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) or Ignition Switch: → Shop Transmission Assembly This is rare for a single code. A faulty TCM usually triggers multiple, often erratic codes. However, a failing ignition switch can cause low voltage to the transmission solenoids, triggering multiple circuit codes including P0753, P0758, and P2761, which could be misinterpreted as a P0761.
• Clogged Passage in Valve Body: → Shop Transmission Valve Body Debris from worn clutches or a failing torque converter can block the hydraulic passages within the valve body, preventing the solenoid from functioning even if it's electrically sound. This usually requires a more intensive transmission repair or cleaning.

Diagnosis Steps

1. Check the transmission fluid level and condition using the dipstick. Note the color, clarity, and smell.
2. Scan the computer for any other stored trouble codes. The presence of multiple solenoid codes (e.g., P0753, P0758) points towards a shared electrical issue.
3. Inspect the main external wiring harness connector on the transmission (round, passenger side) for damage, corrosion, or fluid intrusion.
4. Using a multimeter, test the resistance of the shift solenoids from the external connector pins to ground. For a 4L80-E, pins 'A' and 'B' are for the shift solenoids and should read 20-40 ohms.
5. If you have an advanced scan tool, command Shift Solenoid 'B' (2-3) on and off to listen for a click from inside the transmission pan.
6. Safely drain the transmission fluid and remove the transmission pan.
7. Visually inspect the fluid in the pan for excessive metal shavings or clutch material, which would indicate a serious mechanical failure.
8. Locate the 2-3 Shift Solenoid ('B') on the valve body. It is one of two identical solenoids at the rear of the valve body.
9. Disconnect the solenoid and test its resistance directly with a multimeter. It should be between 20-40 ohms. An open or shorted reading confirms a bad solenoid.
10. If the solenoid tests good, inspect the internal wiring harness for any signs of damage, especially brittleness or cracking near the connectors.
11. If both the solenoid and wiring are good, the problem may lie within the valve body (blockage) or the TCM itself.

Parts You'll Likely Need

• Automatic Transmission Shift Solenoid (A/B) (OEM #24230298) — This is the most common component to fail. The 4L80-E uses two identical solenoids for 1-2 ('A') and 2-3 ('B') shifts. P0761 points to the 2-3 solenoid.
  Trusted brands: ACDelco, Bosch, Rostra
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• Transmission Filter and Pan Gasket Kit (OEM #24236799) — This is required for any repair that involves removing the transmission pan. A new filter ensures clean fluid flow, and a new gasket prevents leaks.
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $30-$50
  Aftermarket price range: $20-$40
• DEXRON Automatic Transmission Fluid — The transmission must be refilled with the correct type and amount of fluid. The 4L80-E typically requires about 7.5 quarts for a pan drop and uses DEXRON-VI fluid (which is backward compatible with DEXRON-III).
  Trusted brands: ACDelco, Valvoline, Castrol
  OEM price range: $8-$12 per quart
  Aftermarket price range: $7-$10 per quart
• Internal Transmission Wiring Harness (91-03) (OEM #24222798) — Often replaced as a preventative measure or if inspection shows cracking or fluid leaking through the main connector.
  Trusted brands: ACDelco, Rostra
  OEM price range: $100-$150
  Aftermarket price range: $70-$100

Related Codes That Often Appear With This One

• P0700 — This is a generic code indicating the TCM has stored a fault. It acts as a 'heads-up' that a more specific transmission code, like P0761, is present.
• P0751 — This code is for Shift Solenoid 'A' (1-2 Shift). Since Solenoids A and B are identical parts and subjected to the same conditions, it's not uncommon for them to fail around the same time.
• P0756 — This code is for Shift Solenoid 'B' (2-3 Shift). This is the more accurate code for a 2-3 solenoid fault. Seeing P0761 may be a scanner-specific interpretation of the P0756 fault.
• P0753 — This indicates an electrical circuit fault (short/open) for Shift Solenoid 'A', often pointing to a shared power supply or ground issue.
• P0758 — This indicates an electrical circuit fault for Shift Solenoid 'B'. If seen with other solenoid circuit codes, it strongly suggests a power supply problem (like a bad ignition switch) or a harness issue, not individual solenoids.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379M: Notes that codes like P0761 can be associated with conditions like no reverse engagement or a range inhibit, and advises following published diagnostics.

Platform-Specific Known Issues

• The NHTSA Technical Service Bulletin #PIP4379M lists P0761 among a large group of other transmission codes that can be caused by a single electrical fault, such as a failing ignition switch or a poor ground connection. This suggests that when P0761 appears, especially with other codes, a thorough electrical diagnosis should be performed before condemning internal transmission parts.

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'A' (1-2) and 'B' (2-3) Resistance — expected: 20-22 ohms. Failure: A reading significantly higher or lower than the specified range, or an open/infinite reading, indicates a failed solenoid coil.
• Electronic Pressure Control (EPC) Solenoid Resistance — expected: 4.0-5.5 ohms. Failure: A reading outside this range suggests a faulty EPC solenoid, which can cause widespread pressure and shifting issues.
• TCC PWM (Lock-Up) Solenoid Resistance — expected: 9-11 ohms. Failure: An out-of-spec reading indicates a problem with the torque converter clutch solenoid.
• Voltage at Transmission Connector Pin E (Ignition On) — expected: ~12 Volts. Failure: Low or no voltage at this pin indicates a power supply problem to the transmission, often caused by a faulty ignition switch or wiring.

Scan Tool Commands That Help

• Tech 2 / GDS2 or equivalent professional scan tool: Solenoid Test or Output Control for Shift Solenoid B — This bidirectional command allows the technician to manually activate and deactivate the 2-3 shift solenoid with the engine on (or sometimes off). Listening for an audible 'click' from the transmission pan can confirm if the solenoid is mechanically actuating, helping to distinguish between an electrical fault, a stuck solenoid, or a wiring issue without immediately dropping the pan.

Wiring & Ground Locations

• Transmission Case Connector — Round, multi-pin connector on the passenger side of the 4L80-E transmission case.. This is the primary test point for all internal transmission electronics without removing the pan. Pin 'E' is the 12V+ power feed. Pin 'A' is the ground-side control for Shift Solenoid 'A' (1-2) and Pin 'B' is for Shift Solenoid 'B' (2-3). Testing resistance between Pin E and Pin B checks the entire circuit for the 2-3 shift solenoid.
• G103 & G104 — G103 is on the right rear of the engine block. G104 is on the left rear of the engine block.. These are critical engine-to-chassis ground points. A corroded or loose ground at these locations can cause a voltage drop and erratic behavior in the PCM and TCM, leading to phantom transmission codes like P0761. These grounds are often implicated in widespread electrical issues on GMT800 trucks.

Real Owner Repair Stories

• The Truck Stop forum user 'vegtech' (1995 GM Truck (similar platform/electronics)) — Transmission doing similar things to the original poster's P0756/P0761 issue.
  ❌ Tried (didn't work) The user suspected a transmission replacement was needed.
  ✅ What actually fixed it The user found and fixed a bad ground connection, which resolved the transmission problems. Another user in the same thread specifically mentioned checking the ground on the passenger side rear of the cylinder head.

OEM Part Supersession History

• 10478131, 24236521 → 24230298 — Part consolidation and design updates for reliability.
  Heads up: The current part number 24230298 is the correct service replacement for the 1-2 and 2-3 shift solenoids on 1991-2009 4L80-E transmissions. No major incompatibility issues are noted for this application.
• N/A → 24222798 (also cross-references to 24241218) — Service replacement part.
  Heads up: The internal wiring harness 24222798 is specified for 1994-2003 models. Some aftermarket kits state they work for 1991-2003, but may require updating the external connector on 1991-1993 models.
