P0761 on 2001-2008 Chevrolet Silverado 2500: Causes and Fixes for Shift Solenoid 'C' Issues

What's Unique About the 2001-2008 Chevrolet SILVERADO 2500

The 2001-2008 Silverado 2500 used robust transmissions like the GM 4L80-E and the Allison 1000. While durable, each has unique failure points for P0761. The 4L80-E is sensitive to electrical issues; problems with the internal or external wiring harness are common and can mimic solenoid failure. The Allison 1000, particularly in later models as noted in TSB PIP5060, can suffer from the shift solenoid armature physically binding in its bore, causing it to stick. In both transmissions, debris in the valve body can clog passages and prevent the solenoid from functioning correctly, even if it's electrically sound.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the first generation (GMT800, 2001-2007 Classic) and the start of the second generation (GMT900, 2007-2008). While the P0761 code has the same meaning, the specific transmission (e.g., 4L80-E vs. Allison 1000) and internal components will differ. Diagnosis remains similar, but part numbers and specific solenoid locations will vary. The wiring harness connectors also differ between early (99-02) and later (03-07) GMT800 models.

Symptoms You May Notice

• Harsh, erratic, or delayed shifting, particularly the 2-3 shift.
• Transmission slipping or failing to engage a gear.
• Vehicle enters "limp mode" (stuck in a single gear, often 2nd or 3rd).
• Check Engine Light is on.
• Increased fuel consumption.
• Transmission overheating.
• Transmission refuses to shift out of first or second gear.

Most Likely Causes

1. Low or Dirty Transmission Fluid 🔴 High Probability → Shop Transmission Assembly Heavy-duty use for towing and hauling degrades fluid faster. Leaks from pan gaskets, cooler lines, or the main connector seal are also common over time.
   How to confirm: Check the transmission fluid level and condition using the dipstick. The fluid should be reddish-pink and not smell burnt. Dark, brown, or gritty fluid indicates a problem that needs immediate attention.
   Typical fix: Perform a transmission fluid and filter change. If the fluid is very dirty or contains metal shavings, it may indicate a deeper mechanical failure.
   Est. part cost: $50-$100
2. Faulty Shift Solenoid 'C' 🔴 High Probability → Shop Transmission Valve Body Solenoids can fail electrically (open or shorted coil) or mechanically. In Allison transmissions, the solenoid's internal armature can physically bind, causing it to stick off. In any transmission, debris can jam the solenoid's plunger.

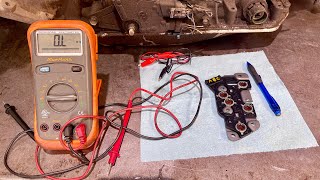

   How to confirm: After confirming fluid is good, the solenoid is the next suspect. A mechanic can command the solenoid on/off with a scan tool. It can also be tested for resistance with a multimeter after removing the pan. 🎬 See how to test solenoids and sensors with a multimeter For a 4L80-E, the shift solenoids should read between 20-22 ohms. For an Allison 1000 (2001-2005), Solenoid 'C' should read 22-24.5 ohms.

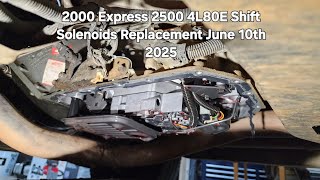

   Typical fix: Replace the faulty shift solenoid. This requires dropping the transmission pan. 🎬 Watch: Step-by-step Allison shift solenoid replacement guide It is often recommended to replace the entire solenoid pack or kit while the pan is off.
   Est. part cost: $40-$120
3. Wiring or Connector Issues 🟡 Medium Probability The main transmission harness runs along the chassis and is exposed to heat, moisture, and road debris, which can lead to corrosion or breaks. A common failure point is the main round connector on the transmission case, where fluid can leak past the internal seal and contaminate the pins.
   How to confirm: Visually inspect the wiring harness for damage. Unplug the main connector and check for corrosion or transmission fluid. Check for continuity from the TCM to the solenoid connector with a multimeter.
   Typical fix: Repair the damaged section of wiring or clean/replace the connector. If fluid is found in the connector, the internal transmission wiring harness assembly must be replaced.
   Est. part cost: $20-$200
4. Internal Transmission Issues ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: If new fluid and solenoids don't fix the issue, the problem is likely deeper, such as a clogged valve body or a failing transmission pump. This is often indicated by significant metal shavings in the transmission pan. Diagnosis requires pressure testing and disassembly by a professional.
   Typical fix: This can range from a valve body cleaning and inspection to a complete transmission rebuild or replacement.
   Est. part cost: $500-$4000+

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) or Powertrain Control Module (PCM): → Shop Transmission Assembly This is rare. The module's internal driver for the solenoid circuit can fail. This should only be considered after all other possibilities (fluid, solenoid, wiring) have been exhaustively ruled out.

Diagnosis Steps

1. Check the transmission fluid level and condition. Top off or change the fluid and filter if necessary.
2. Use an OBD-II scanner to check for other related transmission codes. Note if P0700 is present.
3. Inspect the external transmission wiring harness and the main round connector for any visible damage, corrosion, or loose connections. Check for fluid inside the connector, which indicates a failed internal harness seal.
4. If possible, use a high-end scan tool like a GM Tech 2 to command Shift Solenoid 'C' on and off to check its response.
5. If the solenoid does not respond, drop the transmission pan to access the internal components.
6. Test the resistance of Shift Solenoid 'C' with a multimeter. For the 4L80-E, it should be between 20-22 ohms. For the Allison 1000 (2001-2005), it should be 22-24.5 ohms. Compare the reading to the manufacturer's specifications for your specific transmission.
7. If the solenoid tests bad, replace it. It's often wise to replace the filter and pan gasket at the same time.
8. If the solenoid tests good, the issue may be in the valve body (blockage) or the internal wiring harness. For Allison transmissions, physically check if the solenoid armature is binding in its bore.
9. If all else fails, the problem may lie with the Transmission Control Module (TCM) or an upstream electrical issue like a failing ignition switch causing voltage drop.

Parts You'll Likely Need

• Transmission Shift Solenoid 'C' (2-3 Shift Solenoid for 4L80-E 🎬 Watch: How to replace shift solenoids on a 4L80E transmission) (OEM #ACDelco 24230298 (This is a common A/B solenoid for related transmissions; verify exact part for 'C' solenoid or kit)) — This is the component directly identified by the code as having a performance issue or being stuck.
  Trusted brands: ACDelco, Delphi, Rostra
  OEM price range: $60-$150
  Aftermarket price range: $40-$100
• Transmission Fluid and Filter Kit — Low or dirty fluid is a primary cause, and the pan must be removed for solenoid replacement, making a fluid and filter change a necessary part of the repair.
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $70-$120
  Aftermarket price range: $40-$80
• Internal Transmission Wiring Harness — Often replaced if the external connector seal has failed and allowed fluid to contaminate the pins, or if the internal wiring has become brittle and cracked.
  Trusted brands: ACDelco, Rostra
  OEM price range: $100-$180
  Aftermarket price range: $70-$120

Related Codes That Often Appear With This One

• P0700 — This is a generic transmission fault code that indicates the TCM has requested the Check Engine Light to be turned on. It's an umbrella code that is almost always present with any specific transmission code like P0761.
• P0762 — This code means 'Shift Solenoid C Stuck On', which is the opposite fault for the same component. They can sometimes appear together if the solenoid's performance is intermittent or erratic.
• P0751, P0756, P0776 — These are codes for other shift solenoids (A, B, D). Seeing multiple solenoid codes together, as noted in TSB PIP4379N, often points to a larger electrical issue, a problem with the valve body, or severe fluid contamination rather than multiple individual solenoid failures. A failing ignition switch has also been documented to cause multiple solenoid codes due to voltage drop.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379N: Mentions P0761 in a list of DTCs that can occur with reverse engagement issues or range inhibit problems.
• PIP5060: Describes P0761 on Allison transmissions as potentially being caused by a binding shift solenoid armature, recommending solenoid replacement and, if necessary, valve body cleaning.

Platform-Specific Known Issues

• TSB PIP5060: Binding Solenoid Armature in Allison Transmissions: → Shop Transmission Assembly For Allison transmissions (though the TSB is for slightly later models, the principle applies), this code can be set due to the shift solenoid armature physically binding. The recommended fix is to replace the affected solenoid. If the condition returns, the valve body should be removed, disassembled, and cleaned.

Mechanic-Grade Diagnostic Values

• 4L80-E Shift Solenoid A/B Resistance — expected: 20 to 22 ohms. Failure: A reading outside this range (open or shorted) indicates a failed solenoid.
• Allison 1000 Shift Solenoid 'C' (SSC) Resistance (2001-2005) — expected: 22 to 24.5 ohms. Failure: A reading significantly outside this range points to a faulty solenoid.
• Shift Solenoid Power Supply Voltage — expected: 11.8-12.5 V with ignition on. Failure: Low or no voltage indicates a problem in the wiring or power supply (e.g., ignition switch) upstream from the transmission.

Scan Tool Commands That Help

• GM Tech 2 or equivalent professional scanner: Transmission Output Control / Solenoid Test — This function allows a technician to command a specific solenoid (e.g., Shift Solenoid C) on and off while the vehicle is stationary. Listening for an audible click from the transmission pan can help confirm if the solenoid is mechanically actuating, helping to isolate an electrical vs. mechanical failure.

Wiring & Ground Locations

• 4L80-E Main Connector (pre-2003) — The large, round, twist-lock connector on the passenger side of the transmission case.. Pin 'B' is the ground control for the 2-3 Shift Solenoid ('B'). Pin 'C' is the +12V power feed for both shift solenoids. A technician can test resistance between pins 'C' and 'B' to check the solenoid coil without dropping the pan.
• G103 / G104 — These are primary engine-to-chassis grounds. On GMT800 trucks, a key ground is located on the side of the engine block, near the power steering pump or oil pan rail.. A poor engine ground can cause a host of electrical issues, including erratic sensor readings and improper voltage for transmission solenoids. Cleaning these grounds is a crucial step in diagnosing any electrical fault.

Real Owner Repair Stories

• YouTube channel diagnosing a 2006 Silverado 2500 HD (2006 Chevrolet Silverado 2500 HD with 4L80-E) — Multiple transmission solenoid codes including P0753 (Shift Solenoid A), P0758 (Shift Solenoid B), and P2761 (TCC Solenoid).
  ❌ Tried (didn't work) The technician first tested the solenoids directly with a heat gun to check for temperature-related failures; they all tested within spec. The internal wiring harness was also replaced as a preventative measure, but the codes returned intermittently.
  ✅ What actually fixed it The root cause was a failing ignition switch. A burnt contact inside the switch was causing an intermittent voltage drop on the power feed circuit (Circuit 1020) that supplies power to all the transmission solenoids. Replacing the ignition switch restored proper voltage and resolved all codes.

OEM Part Supersession History

• 10478143 → 24230289 (ACDelco) — Updated design for reliability.
  Heads up: The part number 24230298 is for the 'A' (1-2/3-4) solenoid, not the 'B' (2-3) solenoid. Using the wrong solenoid will cause shifting problems.
• Varies by year → 24224906 (for 2004+ 4L80-E) — Updated internal wiring harness assembly.
  Heads up: The main connector for the 4L80-E changed around 2003/2004. The harness for early models (pre-04) is different from later models. Ensure the correct harness is used for the vehicle's model year.

Model Year Variations Within This Range

• 2001-2005 (Allison 1000): These are 5-speed transmissions. The solenoid configuration is specific to this generation.
• 2006-2008 (Allison 1000): In 2006, the Allison became a 6-speed. The pressure control solenoids were changed, and the neutral start switch was moved inside the transmission. This changes the diagnosis and parts required compared to the earlier 5-speed models.
• 2001-2003 (4L80-E): Uses an earlier style main transmission connector and internal wiring harness compared to the 2004 and later models.
