P0761 on 2012-2013 Mazda MAZDA3: Shift Solenoid 'C' Causes and Fixes

What's Unique About the 2012-2013 Mazda MAZDA3

For the 2012-2013 Mazda3, this code is not always a straightforward solenoid failure. This model year spans two different automatic transmissions: the 5-speed automatic (FS5A-EL) in non-Skyactiv models and the 6-speed Skyactiv-Drive automatic in Skyactiv models. Mazda issued Technical Service Bulletins (TSBs) like #05-003-14-2898A that group P0761 with a host of other transmission codes under a general 'shift shock/slip' malfunction. The TSB indicates the root cause is often contamination causing oil pressure switches to stick or a faulty control valve body, for which a 'new programmed valve body has been established' as the official fix. This points to a known systemic issue rather than an isolated component failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• AT (Automatic Transaxle) warning light is on
• Check Engine Light is on
• Harsh, delayed, or erratic shifting, especially into 3rd or 4th gear
• Transmission slipping between gears
• Failure to shift into or out of a specific gear
• Vehicle may enter 'limp mode' (stuck in one gear)
• Decreased fuel economy
• Clunking noises when shifting

Most Likely Causes

1. Low or Contaminated Automatic Transmission Fluid (ATF) 🔴 High Probability → Shop Transmission Assembly Fluid is the lifeblood of the transmission; low levels or fluid contaminated with clutch material or metal shavings can impede solenoid and valve body function. The correct fluid type is critical and differs by transmission.
   How to confirm: Check the transmission fluid dipstick (if equipped) for level and inspect the fluid's color and smell. Healthy fluid is bright red (M-V) or blue (FZ); dark brown or burnt-smelling fluid indicates a problem.
   Typical fix: Perform a transmission fluid drain-and-fill or a complete fluid exchange. If the fluid is heavily contaminated, the transmission pan should be dropped to inspect for debris and replace the filter. 🎬 See this step-by-step guide for replacing solenoids and the filter Use ONLY the specified fluid type.
   Est. part cost: $60-$200 for fluid and filter
2. Faulty Control Valve Body 🔴 High Probability → Shop Transmission Valve Body Mazda TSB #05-003-14-2898A explicitly states that for a group of codes including P0761, 'a new programmed valve body has been established' as the solution, indicating this is a very common failure point. Forum users frequently report that replacing the valve body is the ultimate fix after fluid changes and individual solenoid swaps fail.
   How to confirm: After ruling out fluid and wiring, a technician can perform line pressure tests. Diagnosis often requires professional scan tools to monitor solenoid commands vs. actual hydraulic pressures. In many cases, it's a process of elimination that points to the valve body.
   Typical fix: Replacement of the entire control valve body assembly. For Skyactiv models, this part often integrates the TCM and requires programming by a dealer or specialized shop.
   Est. part cost: $700-$1500 for the part alone, with one owner quoted $1800 for parts and labor at a dealer.
3. Failed Shift Solenoid 'C' 🟡 Medium Probability → Shop Transmission Valve Body
   How to confirm: After accessing the solenoid (by removing the transmission oil pan), its resistance can be tested with a multimeter and compared to the manufacturer's specifications. A professional scan tool can also attempt to actuate the solenoid directly to check for a response.

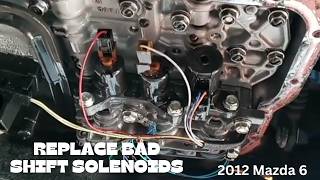

   Typical fix: Replace the individual shift solenoid. 🎬 Watch: How to access and change a Mazda shift solenoid Solenoids for the 5-speed FS5A-EL are often sold in a pack. However, due to the known valve body issues, this may not be a permanent fix.
   Est. part cost: $50-$150 for a single solenoid or a solenoid pack
4. Wiring or Connector Issue ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness leading to the transmission for any signs of damage, corrosion, or loose connections. Check for continuity and voltage at the solenoid connector with a multimeter.
   Typical fix: Repair the damaged section of wiring or replace the connector.
   Est. part cost: $10-$100
5. Faulty Powertrain/Transmission Control Module (PCM/TCM) ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: This is typically a last resort after all other possibilities have been ruled out. On Skyactiv models, the TCM is often part of the valve body, so they are replaced together. A diagnostic scan showing no communication with the TCM after a PCM replacement points to a bad TCM/valve body.
   Typical fix: Replace and reprogram the control module. Often this means replacing the entire valve body assembly on Skyactiv models.
   Est. part cost: $400-$1000 (if separate), or included in valve body cost

Rare But Worth Checking

• Clogged internal transmission fluid passages or a failing transmission pump can mimic solenoid failure by preventing correct hydraulic pressure from reaching the clutches.

Diagnosis Steps

1. Check for other stored trouble codes. The presence of codes like P0780, P1738, or other solenoid codes makes a valve body issue more likely.
2. CRITICAL: Identify the transmission. Check if the vehicle is a Skyactiv model (6-speed auto) or non-Skyactiv (5-speed auto). This determines the fluid and parts needed.
3. Inspect the automatic transmission fluid (ATF) level and condition. For non-Skyactiv, look for Mazda M-V fluid. For Skyactiv, look for Mazda FZ fluid. Top off or replace if low, dirty, or burnt.
4. Visually inspect the transmission wiring harness and connectors for any obvious signs of damage, corrosion, or loose pins.
5. If fluid and wiring are good, the next step is to suspect an internal issue. This requires removing the transmission oil pan.
6. Inspect the transmission filter and pan for excessive metal shavings or debris, which would indicate a severe internal failure requiring a rebuild or replacement.
7. If the pan is clean, the focus shifts to the control valve body. A technician can test the resistance of Shift Solenoid 'C' with a multimeter. However, given the TSBs, replacing the entire valve body assembly is the manufacturer-recommended and most reliable repair.
8. If replacing the valve body, ensure the new part is programmed to the vehicle's VIN, especially on Skyactiv models.
9. If all other steps fail, investigate the main PCM for potential faults, though this is the least likely cause.

Parts You'll Likely Need

• Automatic Transmission Fluid (OEM #Mazda ATF M-V (Type M5) for 5-speed non-Skyactiv; Mazda ATF-FZ (0000-FZ-113E-01) for 6-speed Skyactiv.) — Low or degraded fluid is a primary cause of shifting problems. Using the correct type is mandatory for proper transmission function.
  Trusted brands: Mazda Genuine ATF FZ (blue color), Mazda Genuine ATF M-V (red color), Ravenol, Idemitsu (for FZ), Valvoline MaxLife ATF (compatible with M-V)
  OEM price range: $15-$25 per quart
  Aftermarket price range: $10-$20 per quart
• Transmission Control Valve Body — Mazda TSBs identify this as the most common root cause for a cluster of shift codes including P0761. It contains all solenoids and hydraulic channels and is often replaced as a pre-programmed assembly.
  Trusted brands: Mazda (OEM), Rostra (Aftermarket)
  OEM price range: $700-$1500
  Aftermarket price range: $500-$1000 (Remanufactured)
• Shift Solenoid 'C' (OEM #FN11-21-1F1 (part of a kit for) — While often not the root cause, the solenoid itself can fail. On the 5-speed FS5A-EL, it is a replaceable component within the valve body.
  Trusted brands: Mazda (OEM), ATP, WVE
  OEM price range: $70-$150
  Aftermarket price range: $40-$100

Related Codes That Often Appear With This One

• P0751, P0756, P0766 — These are codes for other shift solenoids (A, B, D). When multiple solenoid codes appear together, it strengthens the diagnosis of a widespread electrical issue, a bad TCM, or a systemic hydraulic problem like a faulty valve body, as suggested by the TSBs.
• U0401 — This code indicates invalid data received from the ECM/PCM. The TSBs specifically mention that P0761 can appear with or without U0401, indicating a potential communication breakdown between control modules.
• P0780, P1738 — These codes for 'Gear Shifting Malfunction' and 'Automatic Transaxle Internal Malfunction' are the primary codes mentioned in TSB 05-003-14-2898A, with P0761 being one of the possible secondary codes. Their presence strongly points to the valve body issue.

Technical Service Bulletins (TSBs) & Recalls

• 05-003-14-2898A: Groups P0761 with numerous other transmission codes related to shift malfunctions and points to a valve body replacement as the official repair.
• 05-003-14-2898: An earlier version of the same bulletin, indicating the same known issue.
• 05-005/14: A related TSB for Skyactiv models that addresses oil pressure switch failures due to contamination, which can cause similar symptoms and codes. The fix involves replacing the switches or the valve body.

Platform-Specific Known Issues

• Mazda Technical Service Bulletin #05-003-14-2898A lists P0761 as a potential DTC related to a primary fault of P0780 or P1738. The bulletin explicitly states the fix is to install a 'new programmed valve body'. This is the most critical piece of vehicle-specific information for this code.
• A clear distinction must be made between the 5-speed automatic (FS5A-EL) on non-Skyactiv 2.0L/2.5L MZR engines and the 6-speed automatic (FW6A-EL) on Skyactiv engines. They use different fluids (M-V vs FZ), have different valve bodies, and different potential failure points.

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'C' (SSPC) resistance on 5-speed FS5A-EL/FNR5 transmission — expected: 1.0 - 4.2 ohms. Failure: Resistance is outside of this range (open circuit or short).

Scan Tool Commands That Help

• Professional Scan Tool (e.g., Mazda IDS, FORScan): Solenoid Actuator Test / Command On-Off — After checking fluid and external wiring, use this to command Shift Solenoid 'C' on and off with the engine running (in park/neutral). A healthy solenoid will produce an audible click from the transmission pan. This helps verify the electrical circuit from the TCM to the solenoid and the solenoid's mechanical function without removing the pan.
• Multimeter and Battery: Manual Operating Inspection (Bench Test) — This is a direct test of the solenoid itself. With the transmission connector disconnected, apply battery positive voltage to terminal 'G' and negative to 'GND' for the 5-speed FS5A-EL. A functioning solenoid will make an audible click. Do not apply voltage for more than 3 seconds. This definitively confirms if the solenoid coil and plunger are working.

Wiring & Ground Locations

• Transmission Connector (FS5A-EL) — Main electrical connector on the transmission housing, accessible after removing the air cleaner assembly.. This is the primary point for testing the solenoid circuit externally. Shift Solenoid 'C' is tested between terminal 'G' and a chassis ground.
• Valve Body Ground Strap — A specific bolt holding the main valve body to the transmission case also secures the internal wiring harness ground strap.. A loose or corroded ground strap bolt can cause intermittent and multiple solenoid codes, including P0761, due to an unstable ground reference for all solenoids. This is often overlooked during a valve body service.
• TCM (non-Skyactiv) — Bolted to the top of the transmission case, underneath the battery and battery tray.. This location makes the TCM susceptible to heat and vibration, which can lead to failure. Access requires removing the battery and its tray.
• TCM (2012 Skyactiv) — Integrated into the Powertrain Control Module (PCM/ECU) which is mounted to the side of the battery box.. This is a critical variation. Technicians accustomed to the older setup may waste significant time searching for a separate TCM under the battery that does not exist on this specific model. A fault requires diagnosis of the combined PCM/TCM unit.

Real Owner Repair Stories

• ATRA Technical Bulletin #1597 (Ford/Mazda with FNR5 (FS5A-EL) 5-speed transmission) — Code P0735 (5th gear ratio error) or P0778 (Pressure Control Solenoid 'B' stuck off), which often appear under the same conditions as other solenoid performance codes like P0761, especially when the transmission fluid is hot.
  ❌ Tried (didn't work) Replacing the individual pressure control solenoid., Replacing the entire secondary valve body.
  ✅ What actually fixed it The root cause was identified as bore wear in the *main* valve body. This wear caused low line pressure output, which then starved the secondary valve body of the pressure needed to operate the clutch, triggering the code. The fix is to address the main valve body wear, typically by replacing the entire valve body assembly with an updated or remanufactured unit.

"I Checked Everything" — The Actual Cause

• While not a smoke test, a common diagnostic dead-end occurs when the individual solenoid tests good (correct resistance, clicks with voltage) and the fluid is clean, yet the P0761 code persists, especially when hot. The actual cause, as documented by transmission specialists, is often hydraulic, not electrical. Wear in the main valve body bores can cause internal pressure leaks that prevent the solenoid's action from having the correct effect, even though the solenoid itself is functioning perfectly. This leads the TCM to report a performance fault because the expected gear ratio change does not occur.

OEM Part Supersession History

• Varies (Early FNR5/FS5A-EL Valve Bodies) → Updated OEM Part / Remanufactured Units (e.g., Sonnax F025) — The original TSB #05-003-14-2898A notes 'a new programmed valve body has been established', indicating an official part update. Remanufacturers like Sonnax specifically address design flaws like valve body bore wear that cause solenoid performance codes and shift quality issues.

Model Year Variations Within This Range

• 2012: The location of the Transmission Control Module (TCM) is a major point of difference. Non-Skyactiv models typically have a separate TCM located on the transmission housing under the battery. However, on the 2012 Mazda3 with a Skyactiv engine, the TCM functions are integrated into the main PCM/ECU, which is mounted to the battery box.
