P0763 on 2011-2014 Kia Sedona: Shift Solenoid 'C' Causes and Fixes

What's Unique About the 2011-2014 Kia SEDONA

The 2011-2014 Sedona uses a 6-speed automatic transmission (the A6MF2) that is common across many Kia and Hyundai models from this era, including the Sorento, Optima, and Santa Fe. This transmission family has a well-documented history of shift solenoid failures. Kia acknowledged this by issuing Technical Service Bulletin (TSB) #TSBTRA051R1, which specifically instructs technicians to replace the faulty solenoid(s) for code P0763 rather than performing a costly and unnecessary transmission replacement.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission gets stuck in one gear (limp mode, often 3rd gear)
• Harsh, delayed, or erratic shifting
• Inability to shift into 3rd, 5th, or Reverse gear

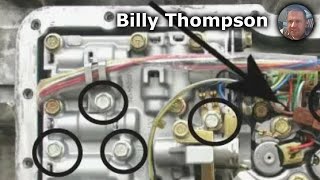

🎬 Watch: Troubleshooting tips and symptoms for the P0763 error code.
• Vehicle jolts hard when shifting from Park to Reverse or Drive
• Reduced fuel economy
• Transmission slipping

Most Likely Causes

1. Failed Shift Solenoid 'C' 🔴 High Probability → Shop Transmission Valve Body This is a widely known failure point for this family of Kia/Hyundai 6-speed transmissions, as documented in TSB #TSBTRA051R1. The internal coil of the solenoid can short out or break over time, causing an electrical fault.
   How to confirm: After accessing the solenoid, test its resistance with a multimeter. 🎬 See how to diagnose and test solenoids on Kia transmissions. A healthy on/off solenoid in this transmission should read between 10-11 ohms. An open circuit (infinite resistance) or a short (near zero resistance) confirms failure. An advanced scan tool like Kia GDS can also perform an actuation test to listen for a 'click'.
   Typical fix: Replace the individual Shift Solenoid 'C'. It is located on the valve body inside the transmission oil pan. 🎬 Watch: How to clean and test your A6MF series solenoids.
   Est. part cost: $40-$150
2. Internal Transmission Wiring Harness Issue 🟡 Medium Probability → Shop Transmission Assembly The internal wiring harness is a flexible 'ribbon' style cable that is constantly submerged in hot transmission fluid. Over time, it can become brittle, leading to cracks that cause an open or short circuit. This is a very common point of failure and can mimic a bad solenoid. It is especially suspect if a solenoid has been replaced and the code returns.
   How to confirm: Visually inspect the harness for cracks or brittleness once the pan is off. Perform a continuity test on the wires leading to Shift Solenoid 'C' from the main transmission connector to the solenoid itself. Wiggle the harness during testing to check for intermittent faults, as this is a common failure mode.
   Typical fix: Replace the internal transmission wiring harness. Many technicians recommend replacing this harness anytime a solenoid is replaced as a preventative measure.
   Est. part cost: $50-$100
3. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly While P0763 is an electrical code, extremely dirty or low fluid can cause overheating and operational issues that may stress electrical components. Contaminated fluid can also cause solenoids to stick, though this would typically present as a performance code, not a primary electrical fault code.
   How to confirm: Check the transmission fluid level and condition using the dipstick (if equipped) or check plug. The fluid should be red and clear, not brown, black, or burnt-smelling.
   Typical fix: Perform a transmission fluid drain and fill with the correct Kia SP-IV specification fluid. If the fluid is very contaminated, a full flush may be considered, but the underlying electrical fault must still be addressed.
   Est. part cost: $60-$120

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly This should be the last item to consider. The TCM driver circuit for the solenoid can fail, but it is much less common than the solenoid or wiring itself. All other possibilities, especially the internal harness and solenoid, must be ruled out with 100% certainty before condemning the TCM.

Diagnosis Steps

1. Read trouble codes with an OBD-II scanner to confirm P0763 is active or stored in history.
2. Check the transmission fluid level and condition. Ensure it is at the proper level and not burnt or dirty.
3. Inspect the external transmission wiring harness and main connector for any visible damage, corrosion, or loose pins.
4. If you have an advanced scan tool, command Shift Solenoid 'C' on and off. Listen for a faint click from the transmission pan area using a mechanic's stethoscope. Lack of a click points to a bad solenoid or wiring.
5. Drain the transmission fluid and remove the transmission oil pan to access the valve body.
6. Visually inspect the internal wiring harness for any signs of cracking, brittleness, or damage. Pay close attention to bends and connector points.
7. Disconnect the connector for Shift Solenoid 'C' and measure its resistance with a multimeter. Compare the reading to the factory specification, which is typically 10-11 ohms for this on/off solenoid. A reading outside the 5-15 ohm range, or showing an open or shorted circuit, indicates a failed solenoid.
8. If the solenoid tests good, perform a continuity test on the wiring between the main transmission connector and the solenoid connector to rule out a harness fault. Wiggle the harness while testing.
9. If both the solenoid and wiring are confirmed to be good, the issue may lie with the Transmission Control Module (TCM), which should be the final diagnostic step.

Parts You'll Likely Need

• Automatic Transmission Shift Solenoid 'C' (3-5-R) (OEM #46313-3B762) — This is the most common failure part for code P0763 on this vehicle, as confirmed by Kia's TSB. It is responsible for controlling the 3rd, 5th, and Reverse gears.
  Trusted brands: Kia/Hyundai (OEM), Rostra, Mopar (for compatible transmissions)
  OEM price range: $80-$150
  Aftermarket price range: $40-$90
• Internal Transmission Wiring Harness (OEM #Varies, often sold as aftermarket kit) — This harness is a very common failure point that causes P0763. It becomes brittle from heat and fluid exposure, leading to electrical shorts or opens. It is often replaced preventatively during a solenoid job.
  Trusted brands: Kia/Hyundai (OEM), Aftermarket kits on eBay/Amazon
  OEM price range: $70-$120
  Aftermarket price range: $40-$80
• Automatic Transmission Fluid (OEM #SP-IV) — The fluid must be drained to access the solenoid and should be replaced with new fluid that meets Kia's SP-IV specification.
  Trusted brands: Kia OEM, Idemitsu, Valvoline MaxLife Full Synthetic
  OEM price range: $15-$25 per quart
  Aftermarket price range: $8-$15 per quart
• Transmission Oil Pan Gasket — The gasket is a one-time use item and must be replaced whenever the transmission pan is removed to prevent leaks.
  Trusted brands: Kia/Hyundai (OEM), Fel-Pro, Mahle
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0758 — This is an electrical fault code for Shift Solenoid 'B'. If both codes appear together, it strongly suggests a common problem like a faulty internal wiring harness, a bad ground, or a failing TCM.
• P0741 — This code for the Torque Converter Clutch circuit is also mentioned in TSB #TSBTRA051R1. Its presence could indicate a related hydraulic or electrical issue within the valve body or wiring harness.
• P0748, P0753, P0768, P0773 — These are electrical fault codes for other shift solenoids (A, B, D, E). Seeing multiple solenoid codes at once makes a single solenoid failure less likely and points towards a systemic issue like the wiring harness or TCM.

Technical Service Bulletins (TSBs) & Recalls

• TSBTRA051R1: Addresses multiple shift solenoid diagnostic trouble codes, including P0763, and advises replacing the individual solenoids rather than the entire transaxle. This TSB covers all Kia models with the 6-speed automatic transmission.

Platform-Specific Known Issues

• The 6-speed automatic transmission (A6MF2) in the 2011-2014 Sedona is known for shift solenoid failures, which prompted Kia to issue TSB #TSBTRA051R1.
• This issue is not unique to the Sedona; it is a systemic problem across the entire platform of Kia and Hyundai vehicles that use the A6MF/A6LF family of transmissions from this era.

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'C' (On/Off type) coil resistance — expected: 10 - 11 ohms. Failure: A reading of infinity (open circuit) or near zero (short circuit).
• Variable Force Solenoid (VFS) coil resistance — expected: 5.1 - 5.3 ohms. Failure: A reading significantly outside this range. Note: Solenoid 'C' is an on/off type, but this value is useful for diagnosing other solenoids if multiple codes are present.
• TCM Ground Circuit Resistance — expected: Below 1.0 Ω. Failure: Resistance higher than 1.0 Ω indicates a poor ground connection, which can cause various electrical faults.

Scan Tool Commands That Help

• Kia GDS (Global Diagnostic System): Actuation Test — Use this function to command the TCM to activate specific solenoids. A 'Success' message confirms the TCM sent the request. The technician must then use a stethoscope to listen for the solenoid's physical click, confirming it's not mechanically stuck and the wiring is intact at that moment. A 'Failure' message points to a communication issue or a problem within the TCM itself.
• Kia GDS (or equivalent professional scan tool): Reset Adaptive Values — After replacing a solenoid, valve body, or the entire transmission, the TCM's learned adaptive values must be reset. This forces the TCM to relearn shift points and clutch apply pressures with the new components, ensuring smooth operation.

Wiring & Ground Locations

• Main Solenoid Connector — External, on the top or side of the transmission case, typically accessible from under the hood after removing the air cleaner assembly.. This is the primary point for testing the solenoid circuits externally. A technician can perform resistance checks for all solenoids from this single connector without dropping the transmission pan, helping to quickly determine if the fault is internal (solenoid, internal harness) or external (main harness, TCM).
• TCM Ground — The TCM is located under the hood, typically near the battery and under the air cleaner assembly. The ground circuit can be tested at the TCM harness connector.. A poor ground connection to the TCM can cause erratic behavior and incorrect voltage readings, potentially triggering false solenoid electrical codes like P0763. Verifying the ground integrity (less than 1.0 ohm) is a critical step before condemning the TCM itself.

Real Owner Repair Stories

• AliExpress technical guide/review for A6MF series solenoids (2014 Kia Forte with 6-speed automatic (A6MF1, same family)) — Delayed shifts and a sudden drop in fuel economy.
  ❌ Tried (didn't work) Checking fluid level and condition (was good)., Clearing codes (they returned immediately).
  ✅ What actually fixed it The technician tested the solenoid resistance and found it to be within spec (12.4 ohms). They also confirmed the TCM was sending a 5V signal. Despite the solenoid testing electrically okay, they replaced the solenoid with a new aftermarket unit, which resolved the codes and restored smooth shifting. This highlights that a solenoid can sometimes fail functionally even if its resistance is within the acceptable range.

OEM Part Supersession History

• 46313-3B762 → No clear supersession found, this part number remains active. — N/A
  Heads up: This is the OEM part number for the 3-5-R / OD / UD solenoid. While many solenoids in the valve body look similar, they are not all interchangeable. Ensure the correct part number is used for the specific solenoid being replaced.

Model Year Variations Within This Range

• 2011-2014: While the A6MF2 transmission is used across this range, there can be minor differences in valve body and solenoid design between early and later production years. It is critical to verify parts compatibility using the vehicle's VIN. Some parts vendors note that valve bodies are not always interchangeable without modification, even if they look identical.
