P0776 on 2003-2007 GMC Sierra Denali: Pressure Control Solenoid 'B' Causes and Fixes

What's Unique About the 2003-2007 Gmc SIERRA DENALI

This year range covers two distinct platforms. The 2003-2006 and '07 'Classic' (GMT800) models use a 4-speed 4L65-E transmission, where P0776 often relates to the 2-3 Shift Solenoid 'B'. The new 2007 (GMT900) models introduced the 6-speed 6L80 transmission, where all solenoids are part of a complex, integrated control module called the TEHCM (Transmission Electro-Hydraulic Control Module). On the 6L80, this code often leads to the replacement of the entire valve body/TEHCM assembly rather than an individual solenoid, and the new module must be programmed to the vehicle's VIN.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2003-2007 range includes the first generation GMT800 (2003-2006 and 2007 'Classic') and the second generation GMT900 (2007 new body style). The GMT800 typically has a 4L65-E 4-speed transmission. The GMT900 introduced the 6L80 6-speed. The diagnostic approach and parts needed differ significantly between them, with the 4L65-E allowing individual solenoid replacement while the 6L80 requires a full TEHCM assembly swap.

Symptoms You May Notice

• Harsh, jerky, or delayed gear shifts.
• Transmission slipping, where the engine RPMs flare up between shifts.
• Vehicle gets stuck in a single gear (often 2nd or 3rd) and won't upshift.
• Inability to shift into higher gears.
• Check Engine Light is illuminated.
• Transmission enters 'limp mode', limiting vehicle speed.
• Reduced fuel economy.
• Transmission overheating.

Most Likely Causes

1. Low or Dirty Transmission Fluid 🔴 High Probability → Shop Transmission Assembly High mileage and hard use, such as towing, can degrade fluid, and leaks can develop over time, leading to low levels. Dirty fluid can clog solenoid passages.
   How to confirm: Check the transmission fluid dipstick (if equipped on 4L65-E) for level and color. The fluid should be bright red and not smell burnt. Dark brown or black fluid indicates a problem and may contain clutch material.
   Typical fix: Perform a transmission fluid and filter change. If the fluid is very burnt or contains debris, it's a sign of internal wear that a fluid change alone won't fix.
   Est. part cost: $50-$150
2. Faulty Pressure Control Solenoid or Shift Solenoid 🔴 High Probability → Shop Transmission Clutch Pressure Control Solenoid Solenoids are electro-mechanical parts that wear out over time from heat and constant use. They are a very common failure point in GM automatic transmissions.
   How to confirm: A professional scan tool can command the solenoid on and off to test its response. Resistance can also be checked with a multimeter once the transmission pan is removed; for the 4L65-E shift solenoids, the reading should be 20-40 ohms. For the 6L80, the equivalent PC solenoid should be 3-8 ohms.
   Typical fix: For 4L65-E transmissions, replace the faulty 2-3 Shift Solenoid 'B'. It is identical to the 1-2 Shift Solenoid 'A' and often replaced as a pair. For 6L80 transmissions, the entire TEHCM assembly which houses all solenoids is typically replaced.
   Est. part cost: $30-$100 for a single 4L65-E solenoid, $300-$700 for a 6L80 TEHCM/valve body assembly.
3. Clogged or Defective Transmission Valve Body 🟡 Medium Probability → Shop Transmission Valve Body Metallic debris from normal clutch wear can accumulate in the small passages of the valve body, causing pressure regulation issues or causing valves to stick.
   How to confirm: This is typically diagnosed after solenoids and fluid have been ruled out. A visual inspection of the valve body for scoring or debris is necessary after removal. A technician may also check for a sticking clutch select valve 2 on 6L80 models.
   Typical fix: The valve body can sometimes be cleaned and rebuilt with updated components (e.g., from Sonnax), but it is often replaced with a new or remanufactured unit, especially on 6L80 models where it is integrated with the TEHCM.
   Est. part cost: $300-$800
4. Damaged Internal Wiring Harness ⚪ Low Probability → Shop Transmission Wiring Harness The wiring inside the transmission is submerged in hot fluid and can become brittle and crack over many years, leading to intermittent shorts or open circuits between the TCM and the solenoid.
   How to confirm: Visually inspect the harness for cracks, brittleness, or damage when the transmission pan is removed. Check for continuity between the main connector and the solenoid connectors with a multimeter.
   Typical fix: Replace the internal transmission wiring harness. On 6L80 models, the wiring is part of the TEHCM assembly.
   Est. part cost: $70-$150 for 4L65-E harness.

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) / Powertrain Control Module (PCM): → Shop Transmission Assembly This is uncommon, but possible. For 6L80 transmissions, the TCM is integrated into the TEHCM, so a TEHCM replacement is the fix. For 4L65-E models, the external TCM/PCM driver circuit for the solenoid can fail. This should only be considered after all other transmission-related components and wiring have been thoroughly checked.

Diagnosis Steps

1. Check the transmission fluid level and condition. Top off or change if necessary.
2. Use an advanced OBD-II scanner to read freeze frame data and check for other related transmission codes.
3. Clear the codes and test drive the vehicle under the conditions noted in the freeze frame data to see if P0776 returns.
4. If the code returns, check the transmission's main electrical connector for corrosion or damage.
5. Drop the transmission oil pan and visually inspect the fluid and pan magnet for excessive metal debris.

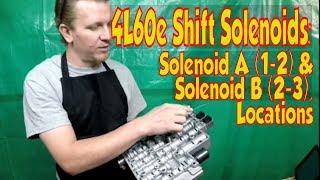

6. For 4L65-E: Identify and test the resistance of the 2-3 shift solenoid 🎬 Watch: How to locate the A and B shift solenoids. ('B'). It should be between 20-40 ohms. Inspect the wiring harness for brittleness or damage.
7. For 6L80: Diagnosis points toward a faulty TEHCM. A professional scan tool can perform a 'Control Solenoid Valve and Transmission Control Module Assembly Solenoid Performance Test' to confirm the solenoid is stuck off.
8. If solenoids and wiring test good on a 4L65-E, the issue is likely in the valve body or, in rare cases, the TCM/PCM.
9. If replacing the TEHCM on a 6L80, the new module MUST be programmed to the vehicle's VIN using a J2534 pass-through device or similar tool.
🎬 See how to program a new transmission module with SPS2.

Parts You'll Likely Need

• Transmission Shift Solenoid Kit (A & B) (OEM #24230298) — For 4L65-E models, this is the most common cause. The 'B' solenoid is for the 2-3 shift. It's best practice to replace both 'A' and 'B' solenoids at the same time as they are identical and have the same amount of wear.
  Trusted brands: ACDelco, Rostra, Sonnax
  OEM price range: $60-$120
  Aftermarket price range: $40-$80
• Transmission Filter and Gasket Kit — This must be replaced anytime the transmission pan is removed for service.
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $40-$70
  Aftermarket price range: $20-$50

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code indicating the Transmission Control Module (TCM) has requested the Check Engine Light be turned on. It almost always accompanies more specific transmission codes like P0776.
• P0751 — This code relates to Shift Solenoid 'A' Performance/Stuck Off. On a 4L65-E, seeing P0751 and P0776 together strongly suggests a common failure of the shift solenoids, wiring, or fluid pressure problem.
• P0894 — This code indicates Transmission Component Slipping. It can be a direct result of the pressure control failure indicated by P0776, as the clutch packs are not receiving the correct hydraulic pressure to hold firmly.
• P0777 — This code is for 'Clutch Pressure Control (PC) Solenoid 2 - Stuck On', the opposite of P0776. Seeing either code points directly to a problem with this specific solenoid circuit in the 6L80 transmission.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379M: Mentions a wide range of transmission DTCs including P0776, and advises following diagnostics for P0701 first, indicating a potential systemic fault.

Platform-Specific Known Issues

• The provided NHTSA TSB #PIP4379M lists P0776 among a large group of transmission codes that can occur together, suggesting a potential for a common point of failure like a wiring harness or control module issue, which should be investigated if multiple codes are present.
• 4L65-E vs 6L80 Distinction is Critical: The 2007 model year is a split year. 'Classic' models (GMT800) use the 4L65-E, while the new body style (GMT900) uses the 6L80. The repair for P0776 is completely different between the two. 4L65-E involves replacing individual shift solenoids, while the 6L80 requires replacing the entire TEHCM assembly.
• 6L80 TEHCM Failure Mode: → Shop Transmission Valve Body On the 6L80, the solenoids are not serviceable separately as they are integrated into the TEHCM. Debris in the fluid or simple electronic failure inside the sealed module can cause P0776. The only reliable fix is to replace the entire TEHCM and program it to the vehicle.

Mechanic-Grade Diagnostic Values

• 4L65-E Shift Solenoid 'A' or 'B' Resistance — expected: 20-40 Ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• 4L65-E EPC (Electronic Pressure Control) Solenoid Resistance — expected: 3.5-8.0 Ohms. Failure: A reading outside this range points to a failure in the main pressure regulating solenoid.
• 6L80 Clutch Pressure Control (CPC) Solenoid Resistance — expected: 3-8 Ohms (or 5-6 Ohms per some sources). Failure: An out-of-spec reading indicates an electrical failure within the non-serviceable TEHCM, requiring module replacement.
• 6L80 Shift Solenoid (On/Off type) Resistance — expected: 20-40 Ohms (or 20-24 Ohms per some sources). Failure: An incorrect reading points to a TEHCM internal fault.
• 6L80 Line Pressure at Idle (in Park/Neutral) — expected: 45-80 PSI. Failure: Significantly lower pressure could indicate a weak pump, major leak, or a stuck-open pressure control solenoid.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Solenoid Performance Test / Output Controls — This function allows a technician to command specific solenoids on and off while monitoring pressure data to confirm if a solenoid is mechanically stuck or electrically unresponsive. This is a primary diagnostic step before removing the transmission pan.
• J2534 Pass-Through Device with GM SPS: Transmission Control Module Programming and Setup — This is mandatory after replacing the TEHCM on a 6L80 transmission. The new module must be programmed with the vehicle's VIN and the latest software calibrations to function correctly. Failure to program can result in a no-start condition or the transmission being locked in limp mode.

OEM Part Supersession History

• 10478131, 24236521 → 24230298 — Part consolidation and design updates for the 1-2 and 2-3 shift solenoids used in the 4L60-E/4L65-E family.
• Various (e.g., 24239647, 24243178) → Various (e.g., 24256939, 24275873) — GM has released multiple hardware and software revisions of the 6L80 TEHCM to address reliability issues with pressure switches and solenoids.
  Heads up: It is critical to match the TEHCM to the specific model year and vehicle. Using the wrong TEHCM can result in programming failure, no-start conditions, or incorrect transmission operation. The part must be programmed to the vehicle's VIN after installation.

Model Year Variations Within This Range

• 2003-2006, 2007 'Classic': These models use the 4L65-E transmission. The P0776 code typically relates to an individual, serviceable shift or pressure control solenoid within the valve body. Diagnosis involves testing individual components.
• 2007 'New Body Style': These models use the 6L80 transmission. The P0776 code relates to 'Clutch Pressure Control Solenoid 2', which is an integral, non-serviceable part of the TEHCM. The entire TEHCM assembly must be replaced and programmed.
