P0827 on 2025-2026 Ram 3500: Up/Down Shift Switch Circuit Low Explained

What's Unique About the 2025-2026 Ram 3500

For this specific generation of Ram 3500, the manufacturer has issued several Technical Service Bulletins (TSBs) that directly address P0827, often appearing with codes P0826 and P085F. This indicates a known pattern where the issue is frequently related to the Transmission Control Module (TCM) software calibration being too sensitive, rather than a physical part failure. Therefore, a software update at the dealership is a primary and critical diagnostic step before any parts are replaced. The TSBs involve reprogramming the TCM with updated software to resolve the issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle. 👇

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp or MIL) is illuminated
• Manual shift mode (+/- buttons) is inoperative
• Transmission may be stuck in 'limp mode' in some rare cases
• Rough/bumpy 2-3 power on upshifts and/or 3-2 coast down shifts may be experienced.

Most Likely Causes

1. Software Calibration Issue 🔴 High Probability Multiple manufacturer TSBs (#21-044-25, #21-001-26, #21-028-25 REV. B) have been issued for this specific code on this vehicle, indicating a known software-related problem that requires a flash update.
   How to confirm: A Ram dealer or a qualified shop with OEM tools (like wiTECH) can check the current Transmission Control Module (TCM) software version against the latest available version referenced in the TSBs.
   Typical fix: Reprogramming the Transmission Control Module (TCM) with the latest software as per the TSB.
   Est. part cost: $0
2. Faulty Up/Down Shift Switch Assembly 🟡 Medium Probability This is a physical switch that the driver interacts with, making it susceptible to wear and tear or damage from things like spilled liquids. The switch is typically located on the gear shifter or steering wheel.
   How to confirm: Test the switch's resistance and voltage output with a multimeter while operating it. Compare readings to the service manual specifications.

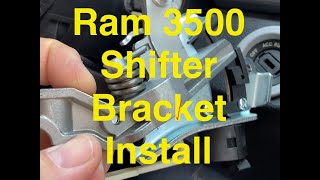

   Typical fix: Replace the shift switch assembly. 🎬 See this walkthrough for repairing a 5th Gen Ram shifter.
   Est. part cost: $50-$150
3. Wiring or Connector Damage ⚪ Low Probability Wires in the steering column or shifter area can flex and eventually fray or short out, causing a 'Circuit Low' condition. This can also be caused by loose or corroded connectors.
   How to confirm: Visually inspect the wiring harness for damage. Perform a continuity test and check for a short to ground between the switch and the control module.
   Typical fix: Repair the damaged wire or replace the affected connector/harness section.
   Est. part cost: $5-$100

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Transmission Control Module (TCM): → Shop Transmission Assembly This is a rare cause and should only be considered after all other possibilities, including software, wiring, and the switch itself, have been exhaustively ruled out.

Diagnosis Steps

1. Scan the vehicle for all DTCs using a tool like wiTECH. Note if P0826 and/or P085F are present with P0827, as this is common.
2. Check for applicable Technical Service Bulletins (TSBs) for your vehicle's VIN. TSBs #21-044-25, #21-001-26, and #21-028-25 REV. B specifically address this code for your vehicle.
3. If a TSB recommends a software update, this should be the first step. Have a Ram dealership or qualified shop update the Transmission Control Module (TCM) software.
4. If the software is already up to date or the problem persists, use a diagnostic scanner to view live data from the up/down shift switch. Alternatively, use a multimeter to test the switch's operation according to the factory service manual.
5. Inspect the wiring harness between the shift switch and the control module. Pay close attention to wiring in the steering column or gear selector area for any signs of chafing, pinching, or damage.
6. Test the circuit for a short to ground, which is the most direct cause of a 'Circuit Low' code.
7. If the switch and wiring are confirmed to be good, the control module (PCM/TCM) may be at fault, but this is rare and should be the final component to be considered for replacement.

Parts You'll Likely Need

• Up/Down Shift Switch Assembly (OEM #68368377AG (Note: This is for a 2019-2024 Ram 2500 and is for reference; the 2025-2026 part number may differ)) — If the fault is not software-related, the physical switch that the driver interacts with is the most likely component to fail from wear or damage.
  Trusted brands: Mopar
  OEM price range: $75-$200
  Aftermarket price range: $40-$120

Related Codes That Often Appear With This One

• P0826 - Up and Down Shift Switch Circuit — This is a general fault code for the same circuit and is explicitly mentioned in the same TSBs as being triggered by the same underlying issue.
• P085F - Up and Down Shift Switch Circuit Range/Performance — This code indicates the signal is out of its expected operating range, which is closely related to a 'Circuit Low' fault and is mentioned in the same TSBs.

Technical Service Bulletins (TSBs) & Recalls

• 21-044-25: Addresses Malfunction Indicator Lamp (MIL) illumination with DTC P0827-00 - Up and Down Shift Switch Circuit Low.
🎬 Watch: A quick overview of the P0827 diagnostic code.
• 21-001-26: Also addresses MIL illumination for P0827-00 - Up/down Shift Switch Circuit Low among other related codes and customer symptoms like rough shifts.
• 21-028-25 REV. B: A revised bulletin also pointing to P0827-00 Up and Down Shift Switch Circuit Low as a potential DTC when the MIL is on.

Platform-Specific Known Issues

• For the 2025-2026 model years, Ram has released multiple Technical Service Bulletins (TSBs) for P0827, often accompanied by P0826 and P085F. This indicates a known issue, frequently resolved by a software update to the Transmission Control Module (TCM).

Mechanic-Grade Diagnostic Values

• Up/Down Shift Switch Signal Wire Voltage — expected: The switch typically operates on a 5-volt reference circuit. When the switch is not pressed (open), the signal wire voltage should be near 5.0V. When the up or down button is pressed (closed), the voltage should drop to near 0V.. Failure: A P0827 'Circuit Low' code is set when the PCM sees a constant or unexpected voltage near 0V, suggesting a short to ground or a stuck switch.

Scan Tool Commands That Help

• wiTECH 2.0: Live Data PID for 'Up/Down Shift Switch State' — This is the first step after checking for TSBs. Monitor this data PID while operating the shift buttons. The state should change from 'Inactive' or 'Open' to 'Up' or 'Down'. If it's stuck on a value or doesn't change, it confirms a fault in the switch or circuit.
• wiTECH 2.0: Loss of Comm Test — If the problem is intermittent, run the 'Loss of Comm Test' while performing a 'wiggle test' on the shifter and steering column wiring harness. This function pings all modules repeatedly and will flag if communication with the relevant module (BCM or TCM) is lost, helping to pinpoint an intermittent open or short in the wiring.

Wiring & Ground Locations

• Steering Column / Shifter Harness Connector — The connector for the shift switch is located at the base of the steering column or on the gear shift assembly, depending on the shifter type (column or console).. This is the primary connector to test for voltage, ground, and signal. It is also a common point for damage from friction or spilled liquids.
• Primary Dash Ground Point — A common ground location for Ram trucks is a grounding stud located behind the driver's side kick panel, near the A-pillar. Multiple circuits related to the instrument panel and driver controls often terminate here.. A loose or corroded ground at this location can cause a floating ground or low voltage condition for multiple components, including the shift switch circuit, leading to a P0827 code.
