P0840 on 2020-2021 Ford Escape: Transmission Sensor Circuit Fault Causes and Fixes

What's Unique About the 2020-2021 Ford ESCAPE

For the 2020-2021 Ford Escape, P0840 is frequently a collateral code set due to a larger, documented electrical problem. Ford's Technical Service Bulletins (TSBs) SSM 50116 and SSM 50245 indicate that a wiring harness (part of the 14290 harness assembly) located near the steering shaft is prone to chafing. The TSB specifically notes the chafe point is "directly above the steering shaft u-joint near the upper brake pedal mount". Rotation of the steering wheel can cause the shaft to rub through the harness insulation, causing a short circuit in the Voltage Reference (VREF) circuit. This circuit supplies power to multiple sensors, and a short often results in a blown fuse (specifically Fuse 44) and a cascade of trouble codes, including P0840, even though the transmission sensor itself may be perfectly fine.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp) illuminated
• Powertrain Malfunction (Wrench) Light illuminated
• Engine runs rough
• Harsh or erratic shifting
• Transmission slipping or failing to shift
• Loss of reverse gear
• Vehicle enters 'limp mode' (limited power and gear selection)
• Blown Fuse 44 in the fuse box
• Multiple, seemingly unrelated trouble codes stored simultaneously

Most Likely Causes

1. Chafed or Damaged Wiring Harness (VREF Circuit) 🔴 High Probability As documented in Ford TSBs SSM 50116 and SSM 50245, the 14290 harness is routed in a way that it can rub against the steering shaft u-joint during normal steering operation. This constant friction wears away the wire insulation, leading to a short.
   How to confirm: Check if Fuse 44 in the interior fuse panel is blown. Visually inspect the wiring harness located directly above the steering shaft u-joint, near the upper brake pedal mount under the driver's side dash, for signs of chafing, exposed copper wires, or other damage. This will require removing lower dash panels for access.
   Typical fix: Disconnect the battery. Carefully repair the damaged wires using solder and heat-shrink tubing or OEM-approved butt connectors. Wrap the repaired section in high-quality electrical tape (such as Tesa cloth tape) for abrasion resistance. Securely reroute the harness away from the steering shaft to prevent future contact, using zip ties or re-positioning clips. Replace the blown fuse.
   Est. part cost: $10-$50 for repair materials, $300-$600+ for a new harness section if damage is severe.
2. Failed Transmission Fluid Pressure Sensor (TFPS) 🟡 Medium Probability → Shop Transmission Assembly While the wiring issue is more common on this platform, sensor failure is always a possibility. A forum user with an 8F35 transmission reported P0840 codes were resolved by replacing the internal TFPS due to a manufacturing defect (a piezo element had detached internally).
   How to confirm: If the wiring harness inspection reveals no issues and Fuse 44 is intact, the sensor circuit should be tested with a multimeter for proper voltage and resistance according to the factory service manual. This involves testing at the sensor connector and potentially at the PCM connector.
   Typical fix: Replace the Transmission Fluid Pressure Sensor. This sensor is located inside the transmission on the valve body, requiring removal of the transmission oil pan and fluid. The part number may be JM5P-9D290-AE for the 8F35 transmission.
   Est. part cost: $70-$150
3. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: Check the transmission fluid level and condition according to the manufacturer's procedure. The fluid should be at the correct level, red in color, and not smell burnt or metallic.

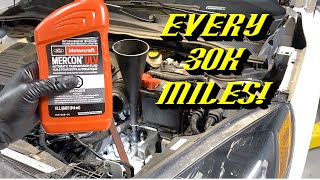

   Typical fix: Top off or perform a transmission fluid drain-and-fill using the correct specification fluid (Motorcraft MERCON® ULV or equivalent 🎬 Watch: Quick overview of the 8F35 transmission fluid service procedure.).
   Est. part cost: $60-$150 for fluid.

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is a rare cause and should only be considered after all other possibilities, especially wiring and sensor issues, have been exhaustively ruled out with a multimeter.
• Internal Transmission Mechanical Failure: → Shop Transmission Assembly While possible, a specific circuit code like P0840 is more likely to be electrical. Internal failures usually present with more severe symptoms like grinding noises or complete loss of movement.

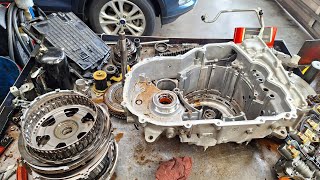

🎬 Watch: A teardown showing major internal failure in the 8F35.

Diagnosis Steps

1. Use an OBD-II scanner to confirm P0840 and document all other stored codes. A long list of unrelated codes strongly suggests the VREF short.
2. Check Fuse 44 in the interior fuse panel. If it is blown, it is a very strong indicator of the wiring harness short described in TSBs SSM 50116 and SSM 50245.
3. Disconnect the vehicle's 12V battery.
4. Remove the lower driver-side dash panels to gain access to the steering column and pedals.
5. Carefully inspect the 14290 wiring harness in the area directly above the steering shaft u-joint, near the brake pedal support. Look for any signs of rubbing, chafing, melted insulation, or bare copper wires.
6. If damage is found, repair the affected wires using appropriate splicing techniques (solder and heat shrink preferred). Wrap the repaired area and surrounding harness with abrasion-resistant cloth tape. Secure the harness away from the steering shaft using zip ties to prevent recurrence.
7. If no harness damage is found and Fuse 44 is intact, proceed with standard diagnostics.
8. Check the transmission fluid level and condition. Ensure it is clean, full, and of the correct type (MERCON® ULV).
🎬 See this step-by-step walkthrough for a Ford 8-speed transmission service.
9. Using a wiring diagram for the vehicle, test the TFPS 'A' circuit for correct voltage (typically 5V reference), ground, and signal integrity with a digital multimeter.
10. If the circuit tests good at the transmission connector, the Transmission Fluid Pressure Sensor itself is the most likely suspect and should be replaced.
11. After any repair, reconnect the battery, clear all DTCs, and perform a thorough test drive including multiple steering-wheel turns and gear shifts to ensure the issue is resolved.

Parts You'll Likely Need

• Wiring Harness Repair Supplies — The most probable cause is a chafed harness per Ford TSBs. Repair often involves wire, tape, and loom.
  Trusted brands: Motorcraft, 3M, Tesa (for cloth tape)
  OEM price range: $10-$50
  Aftermarket price range: $10-$30
• Transmission Fluid Pressure Sensor/Switch (OEM #JM5P-9D290-AE) — This is the component indicated by the code definition and is the next logical part to replace if the wiring is confirmed to be intact.
  Trusted brands: Motorcraft
  OEM price range: $80-$150
  Aftermarket price range: $50-$100
• Engine Compartment Wiring Harness (OEM #PZ1Z-14290-C (example, varies by trim)) — In cases of severe, irreparable damage to the 14290 harness, a section or the entire harness may need replacement. Part number is highly specific to the vehicle's options.
  Trusted brands: Motorcraft
  OEM price range: $300-$600+
  Aftermarket price range: Not Recommended

Related Codes That Often Appear With This One

• P06A7 — Sensor Reference Voltage 'B' Circuit Range/Performance. Shares the same Voltage Reference (VREF) circuit that is prone to shorting, as noted in TSB SSM 50116.
• P0842 — Relates to another transmission pressure sensor circuit ('A' Circuit Low), often triggered by the same VREF electrical fault.
• P0845 — Relates to transmission pressure sensor circuit 'B', often triggered by the same VREF electrical fault.
• P2122 — Throttle/Pedal Position Sensor/Switch 'D' Circuit Low. This sensor is also on a VREF circuit and can be affected by the harness issue.
• P0340 — Camshaft Position Sensor 'A' Circuit Malfunction. This is another sensor that can be affected by the VREF circuit short described in the TSBs.
• P0365 — Camshaft Position Sensor 'B' Circuit (Bank 1). Also listed in the TSBs as a potential collateral code from the VREF short.

Technical Service Bulletins (TSBs) & Recalls

• SSM 50116: Loss Of VREF, Possible Fuse 44 blown With Various Diagnostic Trouble Code (DTC) Or Without DTC's. Points to the 14290 harness chafing on the steering shaft u-joint near the upper brake pedal mount.
• SSM 50245: Similar to SSM 50116, lists P0840 as a possible DTC resulting from an electrical system issue related to a blown fuse and rough running. This TSB confirms the same chafe point and list of affected codes.

Platform-Specific Known Issues

• TSB SSM 50116 / SSM 50245: These bulletins are the most critical piece of information for this code on this vehicle. They identify a specific wiring harness (part of the 14290 assembly) that can chafe on the steering shaft, causing a loss of

Mechanic-Grade Diagnostic Values

• Transmission Fluid Pressure (TFP) Sensor 'A' Voltage Range — expected: 0.5V to 4.5V. Failure: Voltage below 0.2V (short to ground) or above 4.8V (open circuit) will trigger the code.
• TFP Sensor 'A' Signal Voltage at Idle (in gear) — expected: 0.5V - 1.2V. Failure: A reading outside this range at idle suggests a sensor or circuit fault.
• TFP Sensor 'A' Signal Voltage at Wide Open Throttle (WOT) — expected: 3.5V - 4.5V. Failure: Failure of the voltage to rise with engine load and RPM indicates a problem.
• Sensor 5V Reference Supply — expected: 4.9V - 5.1V. Failure: No voltage or low voltage indicates a wiring fault between the sensor and the PCM/TCM.
• Transmission Line Pressure at Idle (in Drive) — expected: 55 - 90 psi. Failure: Pressure that is significantly lower or higher than spec can indicate an internal hydraulic issue or a faulty sensor.

Hidden / Shadow Codes Worth Checking

• Mode 6 Data (e.g., MID/CID): Mode 6 is a diagnostic function that displays results from the PCM's self-tests on components that are not continuously monitored, like the TFPS. Before a hard fault code like P0840 is permanently set, failing test results can appear in Mode 6, giving an early warning of an intermittent or emerging problem. A technician can use a scan tool to view the test values for the specific Monitor ID (MID) and Component ID (CID) corresponding to the TFPS 'A' circuit and compare them to the manufacturer's acceptable limits. (see via Advanced OBD-II scan tool with Mode 6 capability (such as Ford IDS, FORScan, or high-end professional scanners).)
• P0841 (related internal code): While a generic scanner may only show P0840 for a circuit range/performance issue, Ford's internal diagnostics may log more specific codes. For example, internal documentation may differentiate between an 'Open load or short circuit to supply' (P0840) and a 'Difference to request / drift too high' (P0841), which points more towards a sensor performance issue rather than a pure electrical fault. (see via Ford Integrated Diagnostic System (IDS) or equivalent dealer-level scan tool.)

Scan Tool Commands That Help

• Ford IDS (or equivalent): PCM Reprogramming — For some 8F35 transmission issues, such as shudders or harsh shifts, Ford has issued TSBs that require reprogramming the Powertrain Control Module (PCM) to the latest software level as the primary fix. This could potentially resolve erroneous P0840 codes if they are caused by software calibration errors.
• Ford IDS (or equivalent): Transmission Strategy Download / Main Control Replacement — After replacing a valve body or in response to certain TSBs, the transmission's adaptive strategy must be reprogrammed into the PCM/TCM. This procedure ensures the controller has the correct characterization data for the solenoids, which is critical for proper pressure control and shifting.

Wiring & Ground Locations

• 14290 Harness Chafe Point — Under the driver's side dash, inspect the wiring harness located directly above the steering shaft u-joint, near the upper brake pedal mount.. This is the specific location identified in Ford TSBs SSM 50116 and SSM 50245 where the harness can rub through, causing a short in the VREF circuit that triggers P0840 and numerous other codes.
• Chassis Ground Stud — Behind the driver's side rear trim panel, accessible by removing the panel. It is secured with an 8mm nut.. While not directly for the TFPS circuit, this is a known, accessible chassis ground point. Poor grounds can cause a multitude of floating voltages and erratic sensor readings, making ground integrity an important check in any complex electrical diagnosis.
• 12V Battery Location — For Hybrid models, the 12V battery is located in the cargo compartment, within the spare tire well.. Knowing the battery location is essential for safely disconnecting power before performing any wiring repairs, such as fixing the TSB-related harness chafe.

Real Owner Repair Stories

• Bronco Sport Forum user 'Ibrahimsy' (2021 Ford Taurus (Saudi Arabia market) with 8F35 transmission (shared with Escape)) — Sudden loss of reverse gear (R light blinking), transmission stuck in 3rd gear, and codes P0840, P0843, P0845, P0848.
  ❌ Tried (didn't work) Visual inspection of the external transmission wiring harness, which appeared to be in good condition.
  ✅ What actually fixed it The problem was resolved by replacing the internal transmission fluid pressure sensor (part number JM5P-9D290-AE), which is mounted on the valve body inside the transmission.

"I Checked Everything" — The Actual Cause

• In the context of this electrical code, the equivalent of a 'smoke test clean' scenario is when the primary suspect—the external wiring harness—is inspected and found to have no signs of chafing or damage. In one documented case involving the 8F35 transmission, the harness was confirmed to be good, but the P0840 code (and others) persisted. The actual cause was a failed internal transmission fluid pressure sensor located on the valve body, which required transmission pan removal to replace.

When the Usual Fixes Don't Work

• While the TSBs pointing to the chafed wiring harness are the most common cause for P0840 on this platform, it should not be assumed to be the only cause. A documented repair case for the same 8F35 transmission showed that after a thorough harness inspection revealed no faults, the problem was ultimately a failed internal pressure sensor on the valve body. This highlights the importance of performing full circuit diagnostics if the initial visual inspection of the harness does not reveal the obvious chafe damage.

OEM Part Supersession History

• JM5P-9D290-AE (Transmission Fluid Pressure Sensor) → JM5Z-9D290-A — Part number update or revision by the manufacturer.
  Heads up: JM5Z-9D290-A appears to be the current service part for 8F35 transmissions from 2019-2025. Always confirm the correct part number with a dealer using the vehicle's VIN before ordering.

Model Year Variations Within This Range

• 2020-2021: The underlying cause of the P0840 code as described in TSBs SSM 50116 and SSM 50245 (harness chafing) applies to both 2020 and 2021 model years, indicating the design issue was not corrected between these years. However, there were minor changes to option packages and standard features on different trims, such as the introduction of a 'Convenience Package' on the 2021 SE model.
