P0841 on 2018-2020 Ram ProMaster: L/R Pressure Switch Rationality Explained

What's Unique About the 2018-2020 Ram PROMASTER

The Ram ProMaster in this year range uses the 62TE automatic transmission, which is common across many Chrysler, Dodge, and Ram vehicles and is known for solenoid pack issues. The pressure switches are integrated into this solenoid pack and are not sold separately. A key differentiator for the 2018-2020 ProMaster is FCA's Technical Service Bulletin (TSB) 08-076-20, which specifically addresses P0841 and other codes by reprogramming the Anti-lock Brake System (ABS) module with updated software. This suggests the issue can sometimes be electronic logic rather than a purely mechanical failure, making the software update a crucial first diagnostic step.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is illuminated
• Transmission warning light may be on
• Vehicle enters 'limp mode' (stuck in one gear, often starting in 2nd).
• Harsh or erratic shifting
• Delayed engagement when shifting into Drive or Reverse
• Inability to use 1st gear or achieve torque converter lockup.
• Decreased fuel economy.
• Vehicle may stall when shifted into gear.

Most Likely Causes

1. Faulty L/R Pressure Switch / Solenoid Pack 🔴 High Probability The 62TE transmission has a known history of solenoid pack failures. The pressure switches are integrated into this assembly, and failures are a common source of rationality codes.
   How to confirm: A technician will use a scan tool to monitor the L/R pressure switch data in real-time. If the switch state does not change correctly when commanded, the pack is faulty. This is done after ruling out the software issue addressed by TSB 08-076-20. A resistance check can also be performed at the main connector.
   Typical fix: Replace the entire Transmission Solenoid/TRS Assembly (solenoid pack). Many available packs are remanufactured and tested, which is considered an acceptable repair.
   Est. part cost: $250-$400
2. Outdated ABS Module Software 🔴 High Probability FCA issued TSB 08-076-20 specifically for 2018-2020 ProMasters to correct false triggers of P0841 and other codes.
   How to confirm: A dealer or qualified shop with a wiTECH scan tool can check the current software version of the ABS module and compare it to the latest available version specified in the TSB.
   Typical fix: Reprogram (flash) the ABS module with the updated software. This should be the first step in diagnosis before replacing any hardware.
   Est. part cost: $0 (if under warranty) - $200 (dealer labor for flashing)
3. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly Neglected maintenance can lead to fluid breakdown and low levels, causing widespread hydraulic pressure issues that can trigger rationality codes.
   How to confirm: Check the transmission fluid level and condition using the special dipstick tool 9336 and a temperature chart, as there is no traditional dipstick. The fluid should be at the correct level, red in color, and not smell burnt. A clogged filter can also starve the pump and cause low pressure.
   Typical fix: Perform a transmission fluid and filter change using the correct Mopar ATF+4 fluid. If the pan is dropped, a significant amount of fluid (8-10 quarts) may be needed.
   Est. part cost: $100-$200
4. Wiring or Connector Issues ⚪ Low Probability The main transmission connector is exposed to the elements and can become corroded or damaged, leading to an open or short in the L/R pressure signal circuit.
   How to confirm: Visually inspect the wiring harness and connector leading to the transmission for any signs of corrosion, damage, or loose pins. A multimeter can be used to check for continuity and shorts to ground on the (T50) L/R Pressure Signal circuit.
   Typical fix: Repair the damaged wiring or clean/replace the connector.
   Est. part cost: $20-$100

Rare But Worth Checking

• Internal Transmission Mechanical Failure: → Shop Transmission Assembly While rare, issues like a sticking valve in the valve body, a leak in a hydraulic circuit, or a failing internal seal can cause this code. This usually presents with more severe symptoms like slipping or whining noises.
• Faulty Powertrain Control Module (PCM): This is very uncommon. The PCM should only be considered as the cause after all other possibilities (software, fluid, solenoid pack, wiring) have been exhaustively ruled out.

Diagnosis Steps

1. Connect a professional scan tool (ideally wiTECH) to read all DTCs and check the current ABS module software version.
2. Crucial First Step: Check if TSB 08-076-20 applies. If the software is outdated, perform the ABS module reprogram as directed by the bulletin before any other repairs.
3. If the code returns after the software update, check and verify the transmission fluid level and condition. Ensure it is clean, full, and of the correct type (Mopar ATF+4).
4. Monitor the state of the L/R pressure switch in the scan tool's live data while shifting gears (with the engine running).
5. If the switch state does not change as expected, the problem is likely internal to the transmission.
6. Inspect the main transmission wiring harness and connector for any visible damage, corrosion, or loose connections. Test the (T50) L/R Pressure Signal circuit for opens (resistance > 5.0 Ohms) or shorts to ground/voltage.
7. If fluid, software, and wiring are good, the next step is to drop the transmission oil pan to inspect the internal components.

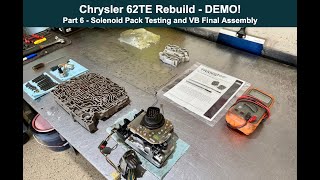

8. Visually inspect the solenoid pack and its connector for any issues. Check valve body bolts for proper torque, 🎬 Watch: How to properly assemble the solenoid pack and valve body. as loose bolts have been reported by owners.
9. The most common repair at this stage is to replace the solenoid/switch assembly (solenoid pack).
10. After replacement, refill with new fluid, install a new filter, and perform a transmission 'Quick Learn' procedure with the scan tool.

Parts You'll Likely Need

• Transmission Solenoid & Switch Assembly (Solenoid Pack) (OEM #68164257AA (verify for specific VIN, may be superseded by remanufactured part numbers starting with 'RL')) — This assembly contains the L/R pressure switch that is the most common point of hardware failure for code P0841 in the 62TE transmission.
  Trusted brands: Mopar, ATP, Rostra, Sunbelt (remanufactured)
  OEM price range: $350-$450
  Aftermarket price range: $250-$350
• Automatic Transmission Fluid (ATF+4) — Fluid must be replaced when the oil pan is dropped to service the solenoid pack. Using the correct Mopar ATF+4 is critical. A pan drop and solenoid replacement can require 8-10 quarts.
  Trusted brands: Mopar, Valvoline, Castrol
  OEM price range: $15-$25 per quart
  Aftermarket price range: $8-$15 per quart
• Transmission Filter Kit — The filter should always be replaced whenever the transmission pan is removed. Some models may have a secondary spin-on filter that should also be checked.
  Trusted brands: Mopar, Wix, Fram
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0868 — This code for 'Line Pressure Low' often appears with P0841. Low overall hydraulic pressure can cause erratic readings from individual pressure switches, and both codes are listed together in TSB 08-076-20 as being potentially resolved by a software update.
🎬 Watch: Understanding how these pressure switch rationality codes are fixed.
• P0731 — This code for 'Gear Ratio Error In 1st' can be triggered if the L/R pressure switch fails, as the PCM cannot confirm the hydraulic circuit for 1st gear is properly engaged. TSB 08-076-20 also lists this code.
• P0944 — This code indicates a 'Loss of Hydraulic Pump Prime'. Diagnostic procedures for P0841 often recommend checking for and addressing P0944 first, as a lack of prime will cause widespread pressure issues. A clogged filter is a common cause.
• P083B — This code for 'LC Pressure Switch Rationality' is a sister code to P0841, pointing to a problem with a different pressure switch within the same transmission assembly. TSB 08-076-20 lists them together.

Technical Service Bulletins (TSBs) & Recalls

• 08-076-20: Flash: Anti-lock Brake System (ABS) Module Updates. Involves reprogramming the ABS module with the latest software to resolve several transmission-related DTCs, including P0841.

Platform-Specific Known Issues

• TSB 08-076-20: ABS Module Software Update — For 2018-2020 ProMaster models, FCA issued a technical service bulletin to address falsely set P0841, P0868, P0731, and other codes. The fix is to reprogram the ABS module with updated software. This should always be the first diagnostic step before replacing any hardware, as it can resolve the issue without physical repair.

Mechanic-Grade Diagnostic Values

• L/R Pressure Switch Resistor Resistance — expected: Approx. 300 Ohms. Failure: An open circuit (OL) or significantly different resistance value.
• Low/Reverse Clutch Solenoid Resistance — expected: 1.6 - 2.0 Ohms at approx. 72°F. Failure: An open circuit (OL), short to ground (0 Ohms), or resistance far outside the specified range.
• (T50) L/R Pressure Signal Circuit Continuity Test — expected: Below 5.0 Ohms. Failure: A reading above 5.0 Ohms indicates an open or high resistance in the circuit.
• (T50) L/R Pressure Signal Circuit Short to Voltage Test — expected: Below 0.5 Volts. Failure: A reading above 0.5 Volts indicates a short to voltage in the circuit.

Scan Tool Commands That Help

• wiTECH, Autel, Snap-on (or equivalent professional scanner): Quick Learn — This procedure is required after replacing the transmission, valve body, or solenoid pack. It allows the TCM to relearn the hydraulic and mechanical characteristics (clutch fill volumes, shift timing) of the new components to ensure smooth shifting.
• wiTECH, Autel, Snap-on (or equivalent professional scanner): View Live Data: L/R Pressure Switch State — Used during initial diagnosis to see if the switch is reporting an open or closed state that is illogical for the current gear. For example, if it shows 'Closed' in Park or 'Open' in 1st gear, it indicates a fault.

Wiring & Ground Locations

• T50 Circuit — The L/R Pressure Signal circuit wire running between the Powertrain Control Module (PCM) C4 connector and the main transmission solenoid/TRS assembly connector.. This is the specific signal wire for the L/R pressure switch. Any open, short to ground, or short to voltage on this wire will directly cause a P0841 code.
• Transmission Ground Strap — A braided ground strap that connects from a bolt on the side of the transmission case to a bolt on top of the driver-side transmission mount. It is often accessible by removing the driver-side headlight assembly.. This is a primary ground for the transmission and engine. A corroded or loose strap can cause inconsistent sensor readings and data corruption for the TCM/PCM, potentially leading to false rationality codes like P0841.

Real Owner Repair Stories

• Reddit user in r/AskAMechanic (2017 Dodge Grand Caravan (uses same 62TE transmission)) — Initially had clunky, jerky shifting and a P0758 code. After replacing the solenoid pack, developed new symptoms: RPM flare on shifts and failure to shift into 5th gear, with codes P0735 (Gear 5 Ratio Error) and P0868 (Trans Pressure Low).
  ❌ Tried (didn't work) The initial solenoid pack replacement fixed the original code but introduced new problems.
  ✅ What actually fixed it Adding more transmission fluid temporarily resolved the new symptoms and codes, indicating the fluid level was low after the repair. However, the problem returned a day later with only the P0868 code, suggesting the replacement solenoid pack might be faulty or there is an underlying hydraulic pressure leak that was not resolved. This highlights the critical importance of verifying fluid level correctly and the possibility of receiving a defective replacement part.
