P0843 on 2003-2007 Chevrolet C-Series with Allison Transmission: TFP Sensor Circuit High Causes and Fixes

What's Unique About the 2003-2007 Chevrolet C SERIES

The 2003-2007 Chevrolet C-Series trucks (Kodiak/TopKick) are medium-duty commercial vehicles equipped with robust Allison 1000 or 2000 series automatic transmissions. Unlike passenger cars, these transmissions have their pressure sensors integrated into a single component called the Pressure Switch Manifold (PSM) located on the valve body. A failure here often sets code P0843. The GM TSB PIP4379M groups P0843 with over a dozen other codes that can cause symptoms like 'no reverse' or 'shift range inhibit', indicating a complex diagnostic path where multiple codes can appear for a single electrical fault.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light or Transmission Warning Light is on
• Harsh, erratic, or delayed gear shifts
• Transmission stuck in one gear (limp mode)
• Inability to engage Reverse
• Delayed engagement when shifting from Park or Neutral into Drive or Reverse
• "Shift Range Inhibited" message on the Driver Information Center (DIC)
🎬 See what actually fixed this Range Shift Inhibited message.
• Transmission overheating

Most Likely Causes

1. Faulty Transmission Fluid Pressure (TFP) Switch Manifold 🔴 High Probability → Shop Transmission Assembly The pressure switch manifold is an electronic component submerged in hot transmission fluid. Over time, heat cycles and contaminants can cause internal seals to fail, leading to shorts. It's common for fluid to leak through the body of the sensor itself and into the electrical connector, which is a definitive sign of failure.
   How to confirm: A technician can use a scan tool to monitor the voltage from the sensor. If the voltage is stuck high (typically near 5 volts) regardless of gear, the sensor has failed. Visually inspecting the disconnected sensor for transmission fluid inside the electrical pins also confirms failure.

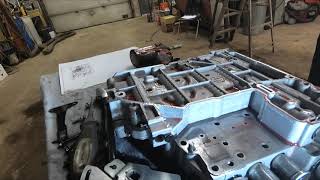

   Typical fix: Replace the entire pressure switch manifold assembly. This requires removing the transmission oil pan and valve body to access it. 🎬 Watch: Step-by-step guide for replacing internal transmission switches.
   Est. part cost: $100-$250
2. Wiring Harness or Connector Issue 🟡 Medium Probability As commercial work trucks, C-Series vehicles are exposed to harsh conditions. The transmission wiring harness can become saturated with oil, or chafe against the transmission case or chassis, leading to a short to power.
   How to confirm: Visually inspect the wiring harness leading to the main transmission connector for any signs of melting, chafing, or corrosion. A multimeter is used to check for a short to voltage on the signal wire. A 'jumper wire test' can also be performed: with the sensor unplugged and key on, jumping the signal wire in the harness to a good ground should make the code change from 'Circuit High' to 'Circuit Low' on a scan tool, proving the wiring is good.
   Typical fix: Repair the damaged section of the wiring harness and secure it away from heat sources or sharp edges. Replace the connector if it is corroded or damaged.
   Est. part cost: $10-$100
3. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly While P0843 is an electrical code, extremely low, overfilled, or dirty fluid can cause erratic hydraulic behavior or transmission overheating. This is unlikely to be the primary cause for a 'Circuit High' fault but can contribute to component failure.
   How to confirm: Check the transmission fluid level and condition according to the manufacturer's procedure. Allison transmissions have specific hot and cold check procedures.
   Typical fix: Perform a fluid and filter change with Allison-approved fluid (e.g., TES-295 synthetic). This is unlikely to fix a P0843 code on its own but is essential for overall transmission health.
   Est. part cost: $100-$300 for fluid and filter

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly This is a rare cause. The TCM is the computer that controls the transmission. It should only be considered after all other possibilities, including the pressure manifold and wiring, have been thoroughly ruled out.
• Broken Trim Springs in Valve Body: → Shop Transmission Valve Body In some cases, particularly if other shifting issues are present, small 'trim springs' within the valve body can break. This is a deeper mechanical issue that can sometimes accompany electrical codes. A user on BigMackTrucks.com suggested checking these springs if the valve body is already removed for sensor replacement.

Diagnosis Steps

1. Check for other stored trouble codes. If P0700 or P0701 are present, follow the diagnostic procedures for those codes first, as recommended by TSB PIP4379M.
2. Check the transmission fluid level and condition. Ensure it is clean, full, and does not smell burnt. Use the Allison-specific dipstick procedure.
3. Perform a thorough visual inspection of the main transmission wiring harness and its round connector. Look for any signs of damage, chafing against the frame, or fluid contamination.
4. Use a professional scan tool to observe the live data stream for the Transmission Fluid Pressure Sensor 'A'. The voltage should change with engine RPM and gear selection. If it is stuck high (e.g., 4.8V - 5.0V), it confirms the 'Circuit High' condition.
5. Perform a 'Jumper Wire Test': Disconnect the main transmission harness connector. With the ignition on (engine off), use a jumper wire to ground the pin corresponding to the TFP 'A' signal wire. If the scan tool data changes from 'High' to 'Low', the wiring and TCM are likely good, and the fault is internal to the transmission (the pressure manifold).
6. If the high voltage remains even with the sensor disconnected (and the jumper test fails), there is a short to power in the wiring harness that must be located and repaired.
7. If the wiring and external tests are inconclusive, drop the transmission pan and visually inspect the pressure switch manifold connector for fluid intrusion.
8. If the valve body is removed to replace the pressure manifold, it is a good opportunity to inspect the small trim springs for breakage, as this is a known, albeit less common, failure point.

Parts You'll Likely Need

• Transmission Pressure Switch Manifold Assembly (OEM #29546972) — This is the most common cause of a P0843 fault. The assembly, which includes the TFP sensor, fails internally, creating a short that sends a constant high voltage signal to the TCM. It is replaced as a single unit.
  Trusted brands: ACDelco, Allison (Genuine), Rostra
  OEM price range: $150-$250
  Aftermarket price range: $100-$180

Related Codes That Often Appear With This One

• P0700 — P0700 is a general transmission fault code that simply indicates the TCM has detected a problem and has requested the main engine computer (ECU) to turn on the Check Engine Light. It will almost always be present with any specific transmission code like P0843.
• P0701 — As noted in TSB PIP4379M, this code can appear alongside P0843. The TSB specifically advises diagnosing P0701 first, suggesting it may be related to the root cause or provide better diagnostic clues.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379M: Mentions P0843 in a list of codes related to transmission issues like no reverse or range inhibit, and advises to diagnose P0701 first.

Platform-Specific Known Issues

• Per TSB #PIP4379M, this code is part of a larger group of transmission codes that can be set due to various issues, possibly leading to no reverse or a 'range inhibit' condition. The bulletin advises diagnosing code P0701 first if it is present.
• Owners on forums have specifically reported seeing the 'Shift Range Inhibited' message on the dash display in conjunction with code P0843, confirming the symptoms described in the TSB.

Mechanic-Grade Diagnostic Values

• Transmission Fluid Pressure Sensor (TFPS) 'A' Voltage — expected: Typically 0.5V to 4.5V, changing with gear and load. The pressure switches will read either 'High' (Open) or 'Low' (Closed) on a scan tool depending on the gear commanded.. Failure: A signal voltage stuck high, near 5V, regardless of operating conditions, which sets the P0843 code.
• TCM Ground Circuit Resistance — expected: Less than 0.5 Ohms between the TCM ground pins and a known good chassis ground.. Failure: High or infinite resistance, indicating a poor ground connection which can cause various erratic electronic faults.

Scan Tool Commands That Help

• Tech 2 / GDS2 or equivalent professional scan tool: Solenoid Test / Output Control — To individually command each shift solenoid on and off to verify its mechanical 'click' and electrical integrity, helping to isolate a faulty solenoid from a wiring or switch problem.
• Tech 2 / GDS2 or equivalent professional scan tool: Live Data - TFP Switch State — While commanding the transmission through each forward gear, monitor the state (High/Low) of TFP Switches 1/C, 2/D, and 3/E. Compare the live data to the Allison Pressure Switch Manifold Logic chart to see if a switch is stuck in one state, which would confirm a fault in the switch manifold or its circuit.

Wiring & Ground Locations

• TCM Ground Pins (5-Speed) — Pins 1 and 5 (both Black/White wires) on the clear 32-way connector at the Transmission Control Module (TCM).. A poor ground at the TCM can cause erratic behavior and incorrect readings from any sensor, including the pressure switch manifold, potentially triggering false codes.
• G105 / Engine Block Ground — The main ground point for the TCM (via splice S103) is on the engine block. There are ground points on both the left (driver) and right sides of the block, just above the upper oil pan.. A loose or corroded engine block ground is a confirmed cause for Allison transmission electrical issues. This should be checked before replacing expensive components.
• TCM Location — For this vehicle range, the Allison TCM is typically mounted on the driver's side of the fan shroud in the engine bay.. Knowing the physical location is critical for inspecting the main connectors for backed-out pins or corrosion, which is a known issue.

Real Owner Repair Stories

• Reddit user in r/Duramax (Duramax with Allison Transmission) — Shift Range Inhibited message.
  ❌ Tried (didn't work) Many other more costly suggestions.
  ✅ What actually fixed it The ignition switch had an internal failure, providing low voltage to the TCM. Replacing the $35 ignition switch resolved the problem, even though the truck started perfectly fine.
• Reddit user in r/Duramax (Duramax with Allison Transmission) — Shift Range Inhibited message.
  ✅ What actually fixed it Unplugged the two main harness connections at the transmission, cleaned them with brake cleaner, dried them, applied dielectric grease, and reconnected them. This simple cleaning fixed the issue.
• DuramaxDiesels.com user 'bonomax' (2001 Duramax with 5-speed Allison) — TCM grounding issue, specific symptoms not detailed but required tracing ground wires.
  ❌ Tried (didn't work) Checking frame grounds.
  ✅ What actually fixed it Found and tightened a loose ground wire on the driver's side of the engine block.

When the Usual Fixes Don't Work

• While the most common causes for P0843 are the pressure switch manifold or the main harness, several real-world repairs show the problem can be further afield. In one confirmed case, a failing ignition switch was providing low voltage to the TCM, causing a 'Shift Range Inhibited' message without setting this specific code, but illustrating the system's sensitivity to electrical supply issues. In another case, the fix was simply cleaning transmission fluid out of the main harness connector. For 5-speed models, a known issue is the pins backing out of the TCM connector itself due to harness strain, a problem that is often misdiagnosed as a failed TCM. These examples show that a thorough electrical diagnosis, including power and ground sources external to the transmission, is critical before replacing the common internal parts.

OEM Part Supersession History

• 29542825 (Potentially older 6-switch design) → 29546972 (Current 4 or 5-switch design) — Design update and consolidation. Some vendors note that a 4-switch manifold replaces the earlier 6-switch design used in 2000-2005 models.
  Heads up: The newer part number 29546972 appears to be backward compatible for all 5-speed and 6-speed Allison 1000 series transmissions from 2001-2018.

Model Year Variations Within This Range

• 2003-2005 (5-Speed Allison): These models use a 5-speed Allison 1000 which has an external, bolt-on Neutral Safety Back-up (NSBU) switch on the selector shaft. The TCM connectors are also prone to pins backing out due to harness tension.
• 2006-2007 (6-Speed Allison): Starting mid-2006 with the LBZ engine, a 6-speed Allison was used. In this version, the neutral safety/range switch function was moved to an Internal Mode Switch (IMS) inside the transmission, eliminating the external NSBU switch.
