P0848 on 2001-2008 Chevrolet Silverado 2500: TFP Sensor 'B' Circuit High Causes and Fixes

What's Unique About the 2001-2008 Chevrolet SILVERADO 2500

The 2001-2008 Silverado 2500 models were commonly equipped with either the Allison 1000 (often paired with the Duramax diesel) or the 4L80-E (with gas engines). Both are susceptible to this code, but for different reasons. On the Allison transmission, P0848 is frequently linked to a failing internal wiring harness that becomes brittle and shorts out. On the 4L80-E, the issue is more often the pressure switch manifold (PSM) itself. In both cases, the components are located inside the transmission pan and require its removal for service.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This year range covers two generations of the Silverado 2500: the first-gen GMT800 (2001-2007 Classic) and the second-gen GMT900 (2007-2008). Both generations can experience this code, often related to the Allison 1000 or 4L80-E transmissions. While the causes are similar, part numbers for sensors and harnesses may differ. For example, the Allison 5-speed (2001-2005) and 6-speed (2006-2008) have different internal harnesses and TCM logic.

Symptoms You May Notice

• Harsh, delayed, or erratic shifting
• Transmission stuck in one gear (limp mode)
• Check Engine Light or Transmission Warning Light illuminated
• Transmission slipping or failing to engage
• Reduced fuel economy
• "Shift Inhibited" message on the driver information center
• Vehicle suddenly shifts to neutral while driving

Most Likely Causes

1. Faulty Transmission Fluid Pressure (TFP) Switch Manifold 🔴 High Probability → Shop Transmission Assembly The pressure switch assembly is located inside the transmission, where it is exposed to constant heat and fluid, leading to eventual electrical failure. This is a very common failure on the 4L80-E transmission. 🎬 Watch: How to test the 4L80E pressure switch and solenoids.
   How to confirm: After confirming the wiring is intact, the most reliable method is to replace the pressure switch manifold, as testing the individual switch can be inconclusive without specialized tools.
   Typical fix: Replace the entire pressure switch manifold, which is located on the valve body inside the transmission.
   Est. part cost: $60-$150
2. Damaged Internal or External Wiring/Connectors 🔴 High Probability The internal transmission harness, especially in the Allison 1000, is subjected to hot transmission fluid which can make the wire insulation brittle and cause it to flake off, leading to shorts. The external pass-through connector can also leak fluid, causing connection issues.
   How to confirm: Visually inspect the external wiring harness for damage. Test for continuity and shorts on the circuit between the TCM and the transmission. Inspect the internal harness for brittle or exposed wires after dropping the pan.

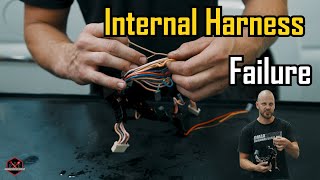

   Typical fix: Replace the internal wiring harness. 🎬 See this walkthrough on replacing the Allison internal wiring harness. In some cases, the external connector pigtail needs repair.
   Est. part cost: $100-$300
3. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly Neglecting fluid changes can lead to sludge and debris that can interfere with sensor operation or clog hydraulic passages, causing erratic pressure readings.
   How to confirm: Check the transmission fluid level and condition. If the fluid is dark, burnt-smelling, or low, it indicates a problem.
   Typical fix: Perform a transmission fluid and filter change. If the fluid is very contaminated, a full flush may be needed, but this can sometimes cause more issues on high-mileage transmissions.
   Est. part cost: $75-$200
4. Faulty Transmission Control Module (TCM) ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: This should be the last resort after all other possibilities (sensor, wiring, fluid) have been ruled out. A professional shop can perform advanced diagnostics to confirm a faulty TCM. This is less common but can happen.
   Typical fix: Replace and program the Transmission Control Module.
   Est. part cost: $300-$800

Rare But Worth Checking

• Sticking Shift Solenoid or Valve Body Issues: → Shop Transmission Valve Body A mechanical issue within the valve body, such as a sticking solenoid, can cause pressure readings that don't align with the computer's commands, indirectly triggering a pressure switch code.

Diagnosis Steps

1. Check the transmission fluid level and condition. Address any low or burnt fluid.
2. Use a scan tool to check for other transmission-related codes. If P0700 or P0701 are present, address the specific codes like P0848 first.
3. Inspect the external transmission wiring harness and the main round connector at the transmission 🎬 Watch: How to inspect your Allison connector for fluid leaks. for visible damage, corrosion, or fluid intrusion.
4. Using a wiring diagram and a multimeter, test the 'B' pressure switch circuit for a short to voltage between the TCM and the transmission connector. A high voltage reading (near 5V or 12V) with the sensor disconnected indicates a short in the harness.
5. If external wiring is good, drop the transmission pan to access the internal components.
6. Visually inspect the internal wiring harness for brittle, cracked, or flaking insulation, especially on Allison models. Look for exposed copper wires touching each other or the valve body.
7. Inspect the pressure switch manifold for cracks or signs of damage.
8. If the internal harness is damaged (common on Allison), replace it. If the harness looks good (common on 4L80-E), the next step is to replace the pressure switch manifold.
9. After reassembly, fill with the correct type and amount of new transmission fluid, clear the codes, and perform a test drive to verify the repair.

Parts You'll Likely Need

• Transmission Pressure Switch Manifold (OEM #24229595 (ACDelco, for 4L80-E with 17-bolt pan)) — This is the most common point of failure for this code on the 4L80-E transmission. It contains the electronic switches that monitor hydraulic pressure.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $100-$180
  Aftermarket price range: $60-$120
• Internal Transmission Wiring Harness (Allison) (OEM #29543336 (Allison PN for 6-speed)) — The most common failure point for this code on the Allison 1000 transmission due to insulation breakdown.
  Trusted brands: Allison (OEM), ACDelco
  OEM price range: $150-$250
  Aftermarket price range: $80-$150
• Transmission Pan Gasket and Filter Kit — Required for any repair that involves dropping the transmission oil pan.
  Trusted brands: ACDelco, ATP, Wix
  OEM price range: $40-$70
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code indicating the TCM has detected a fault. It is very common to see this code alongside any specific transmission code like P0848.
• P0756 — This code relates to Shift Solenoid 'B'. A service manual notes that when P0756 and P0848 are set together, it may indicate an open circuit or a stuck valve.
• P0875 — This code is for the 'D' pressure switch. A forum user on DuramaxDiesels.com reported P0848 and P0875 appearing together, causing the truck to shift into neutral, suggesting a widespread electrical issue internally.
• P0701 — As noted in TSB #PIP4379N, this is another general TCM malfunction code that should be diagnosed first if present.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379N: Mentions P0848 in a list of DTCs that can occur due to internal transmission issues and advises diagnosing P0701 first if present.
• 27-010: While for a newer Peterbilt with an Allison, this NHTSA bulletin shows that P0848 can be caused by an incorrectly pinned transmission harness from the factory, highlighting the sensitivity of this circuit to wiring faults.

Platform-Specific Known Issues

• Allison Internal Harness Failure: On Silverado 2500s with the Duramax engine and Allison transmission, the internal wiring harness is a notorious failure point. The insulation on the wires becomes brittle from heat and fluid exposure, cracks, and flakes off, causing wires to short together or to ground on the valve body. This can trigger P0848 and other seemingly random transmission codes. A user on DuramaxDiesels.com detailed replacing a leaking and faulty internal harness and pressure switch manifold to resolve shifting issues. A YouTube video by Duramax Service Center shows a failed aftermarket harness causing multiple codes due to shorting wires.
• 4L80-E Pressure Switch Manifold (PSM) Failure: For gas-powered Silverado 2500s with the 4L80-E transmission, the pressure switch manifold is the more likely culprit. These manifolds, which contain multiple pressure switches on a single plastic and metal substrate, are known to fail electrically. The part is often distinguished by the pan bolt count (16-bo

Mechanic-Grade Diagnostic Values

• Transmission Fluid Pressure (TFP) Sensor Signal Voltage — expected: Either 5V or 12V reference signal, depending on the specific model year and transmission.. Failure: A reading that is significantly different from the expected reference voltage, or a voltage that does not change when it should, indicates a fault in the sensor or wiring.
• 4L80-E Shift Solenoid A & B Resistance — expected: 20-30 Ohms. Failure: A reading outside this range suggests a faulty solenoid.
• 4L80-E Electronic Pressure Control (EPC) Solenoid Resistance — expected: 3.5-8.0 Ohms. Failure: A reading outside this range indicates a faulty EPC solenoid.
• Allison Pressure Switch Manifold Logic (with Scan Tool) — expected: The scan tool should show the TFP switch parameters (e.g., TFP Switch 1/C, 2/D, 3/E) change state (High/Low or On/Off) as the transmission is commanded through gears.. Failure: If a switch parameter does not change according to the service manual's logic table, it points to a stuck switch or a circuit fault.

Scan Tool Commands That Help

• Allison DOC®: Data Monitor for TFP Switches — To observe the real-time state (High/Low, On/Off) of each pressure switch while commanding gears. This helps verify if the switch is responding correctly to hydraulic pressure changes, which is critical for diagnosing P0848.
• Tech 2 / GDS2: Transmission Output Controls — Allows a technician to command individual solenoids on and off to see if the corresponding pressure switches change state. If a solenoid is commanded but the switch state doesn't change, it helps isolate the fault to the solenoid, switch, or a hydraulic issue.
• Allison Push-Button Shifter: On-Board Diagnostics (Code Check & Clear) — For trucks equipped with the Allison push-button selector, codes can be checked and cleared without a scan tool by pressing the up and down arrows simultaneously twice with the key on, engine off. This is useful for quick field diagnosis.

Wiring & Ground Locations

• TCM Connector (2009+ 80-way) — The main 80-pin connector at the Transmission Control Module.. For diagnosing, Pin 17 (Pink wire) is the signal circuit for Fluid Pressure Switch 1. Testing for voltage and continuity here is essential. Pin 9 (Black/White wire) is a ground connection for the TCM.
• G103 — Located at the left rear of the engine compartment on the cowl, often above the brake booster.. This is a major ground point that serves the Body Control Module (BCM) and Instrument Panel Cluster (IPC). A poor connection here can cause various communication errors and erratic behavior from modules, including the TCM.
• G101 / G106 — G101 is on the left rear of the engine block. G106 is on the front center of the frame cross rail, under the crank pulley. They are often jumpered together.. These are the primary engine and transmission control module grounds. A loose or corroded connection here can directly cause TCM power issues and fault codes like P0848.
• TCM Fuse (Underhood Fuse Block) — In the underhood fuse block on the driver's side.. For GMT900 models (2007+), fuses #14 and #19 are typically for the TCM. Checking these fuses is a primary step if the TCM is unresponsive or throwing codes.

OEM Part Supersession History

• 29543336 → 29543336-DF (DmaxStore) or other aftermarket equivalents — The original Allison part has been discontinued.
  Heads up: The original part 29543336 for the 6-speed Allison (2006-2010) has been discontinued. Aftermarket replacements are available, but quality can vary.

Model Year Variations Within This Range

• 2001-2005 (Allison 5-Speed): These models use a different internal wiring harness (e.g., Allison PN 29541371 for 2001-2003) than the later 6-speed models. The 2004-2005 LLY models have a specific harness that includes a 'G' solenoid, though this harness can reportedly be used on 2001-2003 models by tying the unused plug out of the way.
• 2006-2008 (Allison 6-Speed): These models use a 6-speed Allison 1000 transmission with a different internal wiring harness (PN 29543336) and TCM logic compared to the earlier 5-speed.
• Pre-1994 (4L80-E): While outside the main vehicle range, it's notable that early 4L80-E transmissions (pre-1994) had different internal harnesses and EPC solenoids. Swapping parts from later models requires modifications. This is relevant for anyone swapping an older 4L80-E into a newer truck.
