P0868 on 2008-2020 Dodge Grand Caravan: Transmission Pressure Low Causes and Fixes

What's Unique About the 2008-2020 Dodge Grand Caravan

The 2008-2020 Dodge Grand Caravan primarily uses the 62TE 6-speed automatic transmission. This transmission is notoriously sensitive to fluid level and condition. Code P0868 is a very common issue on these vans, often stemming from neglected fluid service intervals, which leads to a clogged internal filter and starves the system of pressure. Many later models lack a traditional transmission dipstick, requiring a special service tool and a specific temperature-based procedure to check the fluid level, which contributes to service neglect. While the code points to low pressure, the root cause is frequently related to fluid maintenance rather than an immediate hard part failure like the pump itself.

Symptoms You May Notice

• Vehicle stuck in "limp mode" 🎬 Watch: How to reset limp mode and pressure codes. (will not shift past 2nd gear).
• Harsh or delayed gear shifting, sometimes described as a "bump" or "slam" into gear.
• Transmission slipping between gears.
• Inability to shift into gear, or no movement in Drive.
• A whining or grinding noise from the transmission area, which may increase with engine RPM.
• Transmission overheating, which may be indicated by a warning light or a noticeable burning smell.
• Illuminated Check Engine Light.

Most Likely Causes

1. Low or Dirty Transmission Fluid 🔴 High Probability → Shop Transmission Assembly The 62TE transmission is sensitive to fluid volume and cleanliness. Leaks from cooler lines or the pan gasket are common, and old, degraded fluid loses its hydraulic properties, causing pressure loss.
   How to confirm: On models with a dipstick, check the level with the engine running in Park after warming up. On models without a dipstick, a special tool (Miller tool 9336A or Dorman 917-327) is inserted into the cap-sealed service port, and the level is measured against a temperature chart. The fluid should be bright red and clear, not brown, black, or burnt-smelling.
   Typical fix: Top off the fluid if low and inspect for leaks. If the fluid is dirty or old (typically every 60,000 miles), perform a transmission fluid and filter change. Use only the specified Mopar ATF+4 fluid. A pan drop and filter change requires approximately 5.5 quarts. 🎬 Watch: Step-by-step transmission fluid and filter change guide.
   Est. part cost: $60-$160
2. Clogged Transmission Filter 🔴 High Probability → Shop Transmission Assembly Normal wear of internal clutch materials creates debris that is caught by the filter. If not changed at the recommended 60,000-mile interval, the filter can become clogged, restricting fluid flow and starving the oil pump.
   How to confirm: This is typically diagnosed when the fluid level is confirmed to be correct but symptoms persist. A whining noise from the transmission is a strong indicator of a starved pump due to a clogged filter. The filter's condition is confirmed upon removal during a service.

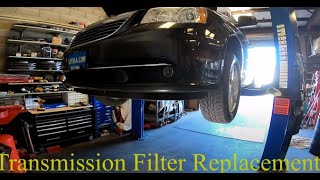

   Typical fix: Replace the transmission filter and fluid. This is done by dropping the transmission pan.
   Est. part cost: $75-$160
3. Faulty Transmission Fluid Pressure Sensor/Switch 🟡 Medium Probability → Shop Transmission Assembly
   How to confirm: A professional scan tool can monitor the pressure sensor's live data. The monitored voltage should always be between 0.35 and 4.75 volts. If the sensor reading is erratic, stuck on a single value, or doesn't change with engine RPM, it is likely faulty. This requires testing the sensor's circuit as well.
   Typical fix: Replace the transmission fluid pressure sensor. This sensor is located on the valve body, requiring removal of the transmission pan to access it.
   Est. part cost: $50-$150
4. Failing Valve Body or Solenoid Pack ⚪ Low Probability → Shop Transmission Valve Body Debris from old, dirty fluid can cause solenoids within the valve body to stick or fail, leading to incorrect pressure regulation and erratic shifting. This is a known weak point of the 62TE.
   How to confirm: This is diagnosed by a transmission specialist after ruling out fluid, filter, and sensor issues. Specific solenoid-related trouble codes may also be present. A user on Reddit replaced their valve body but the issue persisted, indicating the complexity of diagnosis. Resistance for most solenoids should be 1.6-1.8 ohms, while the line pressure solenoid should be around 4.9-5.1 ohms.
   Typical fix: Replace the solenoid pack or the entire valve body assembly. This repair requires a TCM quick-learn procedure afterward. 🎬 See how to replace the 62TE solenoid pack yourself.
   Est. part cost: $300-$700

Rare But Worth Checking

• Failing Transmission Oil Pump: → Shop Transmission Assembly While less common, a failing pump directly causes low hydraulic pressure. A recall (NHTSA Campaign ID 16V529) was issued for some 2015-2016 models for transmission pumps that could fail, leading to a loss of propulsion. A whining noise that increases with engine RPM is a key symptom. NHTSA ODI #11339425 describes an owner's belief that their pump failed at 121,000 miles after encountering code P0868.
• Faulty Powertrain Control Module (PCM): In rare cases, the PCM itself can be the source of the problem, either by misinterpreting sensor data or failing to command the transmission correctly. This should only be considered after all other mechanical and electrical possibilities have been exhausted.

Diagnosis Steps

1. Check the Check Engine Light with an OBD-II scanner to confirm P0868 and note any other codes.
2. Check the transmission fluid level and condition. For models without a dipstick, this requires warming the transmission to a specific temperature (checked with a scan tool), then using a special service tool (e.g., Miller 9336A or Dorman 917-327) in the fill tube to check the level against a chart. The fluid should be bright red. If it is low, brown, or smells burnt, this is a key indicator.
3. If the fluid is low, top it off with Mopar ATF+4, clear the codes, and test drive to see if the code returns. If it doesn't, search for the source of the leak (e.g., pan gasket, cooler lines).
4. If the fluid level is correct but the fluid is old and dirty, perform a transmission fluid and filter change. One owner on a forum noted this temporarily fixed their issue.
5. If the problem persists, use an advanced scan tool to monitor the transmission fluid pressure sensor data in real-time to check for erratic or stuck readings. The voltage should be between 0.35 and 4.75 volts.
6. Inspect the wiring and connector at the transmission pressure sensor for any damage or corrosion.
7. If the sensor and wiring are good, the issue is likely internal. A professional may need to perform a Variable Line Pressure (VLP) counter reset and quick learn procedure with a bidirectional scan tool, especially after replacing parts like the valve body.
8. If all else fails, the issue may be a failing valve body, solenoid pack, or, in rarer cases, the transmission pump itself, requiring professional diagnosis.

Parts You'll Likely Need

• Transmission Filter Kit (Filter and Pan Gasket) (OEM #68018555AA) — A clogged filter is a primary cause of low fluid pressure in the 62TE transmission. This is a routine maintenance item that often gets neglected.
  Trusted brands: Mopar, Wix, ATP
  OEM price range: $40-$80
  Aftermarket price range: $20-$40
• Mopar ATF+4 Automatic Transmission Fluid (OEM #68218057AC (replaces 68218057AA, 5013457AA)) — The 62TE transmission requires this specific fluid type. Using incorrect fluid can cause shifting problems and internal damage.
  Trusted brands: Mopar, Valvoline ATF+4, Castrol Transmax ATF+4
  OEM price range: $10-$18 per quart
  Aftermarket price range: $8-$12 per quart
• Transmission Fluid Pressure Sensor (OEM #5078708AC (replaces 5078708AA)) — The sensor can fail and send incorrect low-pressure signals to the computer, triggering the code even if the pressure is adequate. It is located on the valve body and is separate from the main solenoid pack.

Related Codes That Often Appear With This One

• P1745 — This code indicates 'Transmission Line Pressure Too High For Too Long'. It can appear with P0868 when the system is struggling to regulate pressure, causing both high and low spikes, often pointing to a faulty sensor or sticking regulator valve.
• P0732 — Indicates 'Gear 2 Incorrect Ratio'. This and other gear ratio codes (like P0733 for 3rd gear) often accompany P0868 because low fluid pressure prevents the clutches for a specific gear from engaging properly, causing a slip.
• P0944 — Indicates 'Loss of Hydraulic Pump Prime'. This is closely related to P0868 and points directly to the pump being starved of fluid, often due to a clogged filter or a very low fluid level. NHTSA ODI #11683914 notes an instance where a dealership retrieved both P0944 and P0868 while the transmission was slipping in first gear.

Technical Service Bulletins (TSBs) & Recalls

• TSB 21-016-14: Involves a flash reprogram of the Transmission Control Module (TCM) for 2014 models with the 8-speed transmission, not the 62TE. It addresses shift quality and a specific output shaft speed correlation code (P215C), not P0868 directly.
• TSB 21-004-09: An older TSB that involves a software update for the 62TE to address harsh 2-1 downshifts when coasting to a stop. While it improves drivability, it is not a direct fix for a P0868 code caused by a mechanical or hydraulic fault.
• General TSBs for shift quality: Many TSBs exist for the 62TE that involve software updates to improve shift feel and response. A dealer can check if any apply, but they typically do not resolve P0868 if the root cause is low/dirty fluid or a failing part.

Platform-Specific Known Issues

• Owner Experience: Fluid and Filter Change Fix: A user on DodgeForum.com with a 2014 Grand Caravan experiencing limp mode and multiple codes, including P0868, performed a fluid and filter change. This initially cleared the limp mode and allowed the van to shift through all gears, although the P0868 code eventually returned, pointing towards a deeper issue like a faulty sensor.
• Owner Experience: Valve Body Replacement: → Shop Transmission Valve Body A Reddit user with a 2015 Grand Caravan and code P0868 attempted a DIY valve body replacement. After the repair, reverse worked better, but the vehicle would no longer move in drive, and the P0868 code returned. This highlights the complexity and risk of DIY internal transmission work.
• Platform-Mate Experience: Overheating with P0868: An owner of a 2014 Dodge Journey, which shares the 62TE transmission, reported that code P0868 appeared along with transmission overheating on a road trip. This indicates that low pressure can quickly lead to dangerous operating temperatures.

Mechanic-Grade Diagnostic Values

• Solenoid Pack Resistance (at case connector) — expected: Most solenoids (LR, UD, OD, DC, 2/4): 1.6-1.8 Ohms. Line Pressure Solenoid: 4.8-5.1 Ohms. Pressure Switch Resistors: ~300 Ohms.. Failure: A reading that is significantly different from the others for the same type of solenoid, or an open/shorted reading (OL or 0 ohms). For example, a reading of 7.2 ohms on a solenoid specified for 1.8 ohms indicates a failure.
• Line Pressure Sensor (LPS) Voltage — expected: Continuously between 0.35 and 4.75 volts with the engine running.. Failure: A monitored voltage less than or equal to 0.35 volts or greater than 4.75 volts will set a fault code (like P0934 or P0935).
• Transmission Temperature Sensor Resistance — expected: Resistance changes with temperature. Test by probing pins 22 and 23 on the case connector.. Failure: An open or shorted reading, or a resistance value that does not correspond to the current fluid temperature.

Scan Tool Commands That Help

• Appcar DiagFCA, CGSULIT SC530, Autel, or dealer WiTech: Clear VLP Counters — This function resets the learned values and counters related to Variable Line Pressure. It is often required after replacing transmission components or to clear limp mode caused by companion code P1745 (Line Pressure Too High).
• Appcar DiagFCA, Autel, or dealer WiTech: Quick Learn Procedure — After replacing the valve body, solenoid pack, or the entire transmission, this procedure is necessary to allow the TCM to learn the hydraulic and mechanical characteristics of the new components for smooth shifting.
• Miller Tool #8333 (Transmission Simulator): Pressure Switch Test — This is a professional diagnostic tool used to isolate the transmission from the vehicle's wiring and PCM. It allows a technician to manually activate circuits and monitor sensor responses to determine if a fault is internal to the transmission (solenoid, switch) or external (wiring, PCM).

Wiring & Ground Locations

• Powertrain Control Module (PCM) — Located on the driver's side front fender, behind the plastic fender liner toward the front bumper.. The PCM is the brain that receives data from the transmission pressure sensor and controls the solenoids. A bad ground or faulty PCM can cause or mimic P0868.
• Transmission Solenoid/TRS Assembly Connector — On the left (driver's) side of the transmission case.. This is the main electrical interface for the transmission. All voltage and resistance tests for the internal solenoids and sensors are performed at the pins of this connector. Debris or a bent pin in this connector can cause incorrect readings and codes.
• Transmission Control Relay — Located within the Totally Integrated Power Module (TIPM), which is the fuse and relay box in the engine compartment on the driver's side.. This relay supplies power to the transmission solenoids. A faulty relay can cut power, leading to low pressure and limp mode. Pin 10 at the transmission connector is the power feed from this relay.

Real Owner Repair Stories

• DodgeForum.com user (2014 Dodge Grand Caravan) — Vehicle in 2nd gear limp mode with codes P0732, P0733, P0868, P1745, P0792.
  ❌ Tried (didn't work) A transmission fluid and filter change temporarily resolved the issue, but the limp mode and codes returned.
  ✅ What actually fixed it The user did not post a final resolution, but the next diagnostic step recommended by another forum member was to test the resistance of the solenoid pack and pressure sensor circuits at the transmission connector, implying a likely electrical or sensor failure rather than a mechanical one.
• Reddit user in r/transmissionbuilding (2015 Chrysler Town and Country (same 62TE transmission)) — Limp mode (stuck in 2nd), rough 2-3 shift, P0868 present on and off, new P1745 code triggered limp mode.
  ❌ Tried (didn't work) Shop replaced torque converter solenoid., Shop replaced torque converter under warranty., Shop supposedly replaced the valve body.
  ✅ What actually fixed it The user was still in the process of diagnosing after losing faith in the transmission shop. The story highlights how multiple part replacements (solenoid, torque converter, valve body) failed to fix the underlying issue, pointing towards the diagnostic complexity and the possibility of repeated misdiagnosis or incorrect repairs by the shop. The owner suspected chronic overfilling of fluid by the shop.
• NHTSA ODI #11580539 — An owner reported that their transmission went bad after experiencing a cluster of codes including P0868, P1790, P083B, P0736, and P0733.
• NHTSA ODI #11502443 — A mechanic diagnosed a vehicle with codes P083B, P0868, P084B, and P0944, determining the failure was related to a known campaign involving the powertrain.

OEM Part Supersession History

• Unknown, multiple prior revisions → 68018555AA — Updated design. This part number is the current OEM filter that fits the 62TE from 2006/2007 through its entire production run.
  Heads up: This part number is widely compatible across Dodge, Chrysler, and even Volkswagen models using the 62TE.

Model Year Variations Within This Range

• 2008-2010 vs 2011-2020: The primary engine changed from the 3.3L/3.8L/4.0L V6 engines to the 3.6L Pentastar V6 in 2011. While they all use the 62TE transmission, the TCM software calibration and torque converter specifications are different to match the engine's powerband. However, the common causes and diagnostic approach for P0868 remain largely the same.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Totally Integrated Power Module (TIPM) Failure 🔴 High — Common across 2008-2014 models. Can cause a wide range of electrical issues, including no-start, fuel pump staying on, or random horn/wiper activation.
• Cracked 3.6L Pentastar Oil Filter Housing 🟠 Medium — Very common on models with the 3.6L V6. The plastic housing can crack from heat cycles or over-tightening during oil changes, leading to significant oil leaks onto the engine and transmission.
• Premature Brake Wear 🟠 Medium — Widespread owner complaints of rapid wear of brake pads and rotors, often attributed to undersized components for the vehicle's weight and sticking caliper pins.
• Heater Core / HVAC Blend Door Actuator Failure 🟠 Medium — Commonly results in issues like hot air blowing on one side and cold on the other, or coolant leaks under the dashboard.
• Sliding Door Wire Harness Failure 🟡 Low — The wiring harness for the power sliding doors can fatigue and break from repeated opening and closing, causing the door to become inoperative.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, obtaining a used part is generally not recommended for the key electronic components. The cost savings on a used solenoid pack or pressure sensor are minimal compared to the labor required to install them, and their failure rate is high. A used part carries a significant risk of being faulty or having a short remaining lifespan.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If considering a used valve body or solenoid pack, source it from a vehicle with the lowest possible mileage.
• Ensure the donor vehicle was not in a severe front-end collision that could have damaged the transmission.
• Ask for a vehicle history report to check for prior transmission issues or neglect.

OEM-only on this vehicle (don't cheap out):

• Solenoid Pack / Valve Body: While aftermarket options exist, OEM (Mopar) or professionally remanufactured units with upgraded components are highly recommended due to the sensitivity of the 62TE.
• Transmission Fluid Pressure Sensor: Given the critical role and relatively low cost, using an OEM Mopar sensor is the safest bet to avoid inaccurate readings that could lead to a misdiagnosis.

Aftermarket brands forum-validated for this vehicle:

• Fluid: Valvoline ATF+4, Castrol Transmax ATF+4 (Must be licensed ATF+4)
• Filter: Wix, ATP

Brands owners have reported issues with on this vehicle:

• Universal or 'multi-vehicle' transmission fluids that are not specifically licensed as ATF+4 should be strictly avoided.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P07XX — General transmission solenoid codes. A failing solenoid pack is a known cause of P0868 on the 62TE transmission. A specific solenoid fault code may be stored alongside the general line pressure code (P0868).
• P0711 — Transmission Fluid Temperature Sensor code. Low line pressure (P0868) can cause the transmission to overheat due to clutch slippage. This overheating can trigger a fault in the temperature sensor circuit.
• P076A — Shift Solenoid 'H' fault. This code was reported by an owner alongside P0868, pointing to a complex internal issue, likely related to the valve body or solenoid pack, which controls both individual gear shifts and overall line pressure.
• P0944 — Hydraulic Pressure Unit Loss of Pressure. While P0868 indicates low line pressure, P0944 is a more direct code for a loss of pressure from the transmission oil pump itself. In the rare case of a failing pump, both codes could appear.

Frequently Asked Questions
