P1066 on 2016 Fiat 500X: Cylinder 1 Solenoid Fault Causes and Fixes

What's Unique About the 2016-2016 Fiat 500X

The Fiat 500X's MultiAir engine technology is the key differentiator. This system is entirely dependent on clean, full synthetic SAE 0W-20 engine oil at the correct pressure and viscosity to function. As a result, simple issues like a low oil level, often exacerbated by the 2.4L engine's tendency to consume oil, or using the wrong type of oil can trigger serious-sounding trouble codes like P1066. Additionally, Fiat released a specific software update (TSB #08-010-16 REV. D) because the original programming was too sensitive, making a software glitch a very common cause for this code on the 2.4L engine.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Rough idle, especially when the engine is cold
• Hesitation or lack of power during acceleration
• Engine misfires, which may cause a flashing check engine light
• Vehicle may enter a reduced-power 'limp mode'
• Illuminated Check Engine Light
• Increased fuel consumption

Most Likely Causes

1. Low, Dirty, or Incorrect Engine Oil 🔴 High Probability The MultiAir system is hydraulic and extremely sensitive to oil level, quality, and viscosity. The 2.4L Tigershark engine is known for excessive oil consumption, making low oil levels a frequent problem that can trigger this code. Using anything other than full synthetic SAE 0W-20 can also cause issues.
   How to confirm: Check the engine oil dipstick on level ground with the engine cold. The oil should be at the full mark, clean (light amber color), and of the manufacturer-specified viscosity (SAE 0W-20 for the 2.4L).
   Typical fix: Perform an oil and filter change using the exact OEM-specified oil (full synthetic SAE 0W-20 meeting Chrysler MS-6395 spec) and a quality filter. A Reddit user confirmed this simple fix resolved their P1066 code after finding the oil level was 'wayyyyyy too low'.
   Est. part cost: $50-$100
2. Outdated Powertrain Control Module (PCM) Software 🔴 High Probability → Shop Engine Control Module (ECM) Fiat issued Technical Service Bulletin #08-010-16 REV. D to specifically address this and other false codes on the 2016 500X with the 2.4L engine by updating the PCM, TCM, and BCM software. This is a well-documented issue across the entire FCA lineup using this engine.
   How to confirm: A Fiat dealer or a qualified independent shop with a wiTECH scan tool can check the vehicle's current software version against the latest available from the manufacturer. The presence of P1066, especially with codes like U1424 or P0335, is a strong indicator the TSB is needed.
   Typical fix: Reprogram (flash) the Powertrain Control Module and other related modules (TCM, BCM) to the latest software version as specified in the TSB. This is a dealer or specialty shop repair. Out of warranty, this service typically costs between $150 and $280.
   Est. part cost: $0 (if under warranty), $150-$280 (dealer labor)
3. Failed MultiAir Actuator Assembly ('Brick') 🟡 Medium Probability The oil supply solenoid is integrated into the MultiAir actuator assembly, which is a known failure point, especially if oil changes are neglected. The solenoid itself is not individually serviceable, requiring replacement of the entire 'brick'.
   How to confirm: This is a diagnosis of exclusion. If the oil is correct, the software is up-to-date, and wiring is intact, the actuator itself is the likely point of failure. A technician may use an advanced scan tool to command the solenoid and observe its response or use an in-cylinder pressure transducer 🎬 See how to test the MultiAir actuator solenoid yourself. to analyze valve operation.

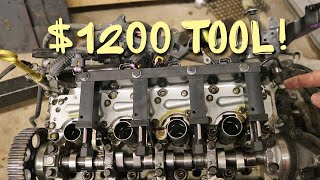

   Typical fix: Replace the entire MultiAir actuator assembly. This is a complex and expensive repair that requires special tools to compress the valve springs. 🎬 Watch: Removing the actuator assembly using the required special tool.
   Est. part cost: $600-$1400

Rare But Worth Checking

• Clogged MultiAir Oil Filter Screen: → Shop Engine Oil Filter Adapter The MultiAir unit has its own small, replaceable filter screen (Part #68189847AA) that can become clogged with sludge from infrequent oil changes, starving the solenoids of oil pressure. It's worth cleaning or replacing this before condemning the entire actuator, though access can be difficult.
• Wiring Harness or Connector Issue: Damage or corrosion on the wiring or connector to the MultiAir actuator can interrupt the signal to the solenoid. A visual inspection is recommended before replacing expensive parts.
• Failing Body Control Module (BCM): In rare cases, water ingress into the cabin can cause corrosion and failure of the BCM, which is located under the glove box. This can lead to a variety of electrical issues, including starting problems and communication faults that may be related to engine management codes.

Diagnosis Steps

1. Check the engine oil level and condition. If low, top it off. If the oil is old, dirty, or of an unknown type, perform a full oil and filter change with full synthetic SAE 0W-20 oil and a new filter.
2. Contact a Fiat dealer or use a professional database to check if TSB #08-010-16 REV. D applies to your vehicle's VIN and if the update has been performed. This is a critical and highly common fix.
3. Visually inspect the wiring harness and electrical connector going to the MultiAir actuator. Look for any signs of corrosion, chafing, or loose pins.
4. If accessible, inspect and clean the small oil filter screen for the MultiAir unit. This is a low-cost part that can become clogged.
5. If the oil is correct, the software is updated, and the wiring is good, the MultiAir actuator assembly is the most likely failed component. This diagnosis should be confirmed by a professional.

Parts You'll Likely Need

• MultiAir Actuator Assembly (OEM #5047980AE (supersedes 5047980AC, AD, etc.)) — This assembly, often called the 'brick', contains the non-serviceable solenoid that triggers the code. When the solenoid fails internally, the entire unit must be replaced.
  Trusted brands: Mopar
  OEM price range: $600-$1400
  Aftermarket price range: $450-$700
• Engine Oil and Filter — The MultiAir system is highly sensitive to oil level and quality. An oil change with the correct full synthetic 0W-20 oil is the first and most important diagnostic step and often resolves the issue.
  Trusted brands: Mopar, Pennzoil, Valvoline
  OEM price range: $70-$120
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• P0301 — This is a misfire code for cylinder 1. If the P1066 fault prevents the intake valves from operating correctly, it will directly cause a misfire in that cylinder.
• P1068, P106A, P106C — These are the same solenoid fault codes for cylinders 2, 3, and 4. Seeing multiple of these codes together strongly points to a systemic issue like low/bad oil, a software glitch, or a failing MultiAir brick.
• P2610, P1607, U1424, P0335 — These codes are all mentioned in TSB #08-010-16 REV. D alongside P1066, indicating they can all be caused by the same software issue in the PCM and are often resolved with the same multi-module update.

Technical Service Bulletins (TSBs) & Recalls

• 08-010-16 REV. D: Flash: Diagnostic And System Improvements. This bulletin involves updating the PCM, TCM, and BCM with new software to address a list of potential DTCs, including P1066, for the 2016 Fiat 500X 2.4L.

Platform-Specific Known Issues

• The 2016 Fiat 500X with the 2.4L engine is subject to Technical Service Bulletin #08-010-16 REV. D, which involves a comprehensive software update for the PCM, TCM, and BCM to fix numerous diagnostic trouble codes, including P1066. This applies to vehicles built on or before October 16, 2015.
• The 2.4L Tigershark MultiAir engine has a documented tendency to consume oil, which can lead to low oil levels that trigger P1066 and other MultiAir faults. Some vehicles were covered under a warranty extension (XB1) for this issue.
• The MultiAir system across the Fiat/Chrysler family is known to be very sensitive to oil maintenance. Using the wrong oil (not SAE 0W-20 synthetic) or extending oil change intervals is a common trigger for MultiAir-related faults.

Mechanic-Grade Diagnostic Values

• MultiAir Solenoid Coil Resistance — expected: 0.2 - 1.0 Ohms. Failure: An open circuit (infinite resistance) or a reading significantly outside the expected range.
• Engine Oil Pressure (2.4L MultiAir) — expected: Minimum 4 PSI at hot idle; 25-80 PSI at 3000 RPM.. Failure: Pressure below the minimum at idle or pressure that does not rise with RPM can indicate a weak oil pump or clogged passages.

Scan Tool Commands That Help

• wiTECH or equivalent (e.g., Autel, AlfaOBD): Active Test: VVT Solenoid 1-4 — This allows a technician to individually command each solenoid in the MultiAir brick with the key on, engine off. An audible click from the correct solenoid confirms the wiring and the solenoid coil are functional, helping to isolate a mechanical vs. electrical failure before replacing the entire actuator.
• wiTECH or equivalent: Clear Flood Mode — After replacing the MultiAir actuator, the system may be difficult to prime with oil. Holding the accelerator pedal to the floor while cranking the engine for 15-second intervals can help build oil pressure and start the engine without flooding it.

Wiring & Ground Locations

• PCM Connector — The Powertrain Control Module (PCM) is located in the engine bay. The specific pin for the Cylinder 1 solenoid would be found in the vehicle's wiring diagram for the main engine harness connector to the PCM.. A loose or corroded female pin in the PCM connector for the cylinder 1 solenoid circuit can cause high resistance and heat, triggering a P1066 code even when the MultiAir actuator itself is good. This is a rare but critical check before replacing the expensive actuator.

Real Owner Repair Stories

• Go-Parts Diagnostic Case File (Jeep Renegade with 2.4L MultiAir engine (same powertrain as Fiat 500X)) — P1068 (same fault, different cylinder)
  ❌ Tried (didn't work) Taken to five different mechanics, Spark plugs replaced
  ✅ What actually fixed it A technician found high resistance on the solenoid circuit. The cause was a loose female pin in the main PCM connector for that solenoid's circuit. Repairing the pin tension at the connector resolved the code without replacing the MultiAir actuator.
• Reddit user on r/dodgedart (Dodge Dart with MultiAir engine) — P1067 (same fault, different cylinder), stumbling, dead cylinder, rough running
  ✅ What actually fixed it Replaced the entire MultiAir actuator ('brick') with one from a donor engine. The user noted that the special spring compressor tool (SST 10259B) was not strictly necessary if the last two bolts were loosened carefully and evenly to control the ascent of the brick off the head.

OEM Part Supersession History

• 5047980AA, 5047980AB, 5047980AC, 5047980AD → 5047980AE — Revisions to improve reliability and address failures in the MultiAir actuator assembly.
  Heads up: While all versions may physically fit, it is critical to use the latest available part number (5047980AE) for any replacement to ensure all design improvements are included.
• 10259A → 10259B — This is the special tool required to compress the valve springs for removal and installation of the MultiAir actuator. The 'B' revision is the updated version.
  Heads up: This tool is required for by-the-book service. While some have bypassed it, using the tool prevents damage to the head or actuator. It is compatible with both 1.4L and 2.4L MultiAir engines.

Model Year Variations Within This Range

• 2016 models built on or before October 16, 2015: These vehicles are specifically called out in TSB #08-010-16 REV. D as potentially having overly sensitive software from the factory. The TSB involves a multi-module (PCM, TCM, BCM) software update to correct this and other potential false codes. Vehicles built after this date likely have the updated software from the factory.
