P1101 on 2024 Chevrolet Trax: Intake Air Flow System Performance Causes and Fixes

What's Unique About the 2024-2024 Chevrolet TRAX

The 2024 Trax uses a 1.2L 3-cylinder turbo engine (RPO: LIH), which is also found in the Buick Encore GX, Buick Envista, and Chevrolet Trailblazer. For this specific new model and engine, GM has issued a Technical Service Bulletin (PIP5947C) that directly links code P1101 to an internal failure of the engine camshaft cover, which can cause excessive oil consumption and idle surges at very low mileage (under 2,000 miles). This points to a potential early-life component failure in the integrated PCV system, making it a primary suspect over more generic causes like a dirty MAF sensor. The PCV system on this engine also features a crankcase pressure sensor, which is a change from previous designs.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or surging idle
• Reduced engine power or sluggish acceleration
• Engine stalling
• Poor fuel economy
• Blue smoke from the exhaust (related to the camshaft cover issue)
• Hissing sound from the engine bay (indicative of a vacuum leak)

Most Likely Causes

1. Faulty Engine Camshaft Cover 🔴 High Probability → Shop Engine Camshaft A specific TSB (PIP5947C) was issued for the 2024 Trax 1.2L engine, identifying an internal PCV system failure within the camshaft cover. This is a known issue causing oil consumption, idle surge, and setting code P1101, often at very low mileage (under 2,000 miles).
   How to confirm: Check for signs of excessive oil consumption (blue smoke, low oil level). Per the TSB, a technician would confirm by removing all spark plugs and checking for evidence of oil fouling across all cylinders, not just one. High crankcase vacuum is another sign.
   Typical fix: Replace the engine camshaft cover assembly. The repair should be covered under the vehicle's powertrain warranty.
   Est. part cost: $85-$250
2. Dirty or Faulty Mass Airflow (MAF) Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter The MAF sensor is sensitive to contamination from dirt, debris, or oil vapor, which can skew its readings. While less likely than the camshaft cover on a new vehicle, it's a common cause for P1101 on GM vehicles in general.
   How to confirm: Remove and visually inspect the sensor's wires for contamination. Clean with a dedicated MAF sensor cleaner. If cleaning doesn't resolve the issue, monitor sensor readings (g/s) with a scan tool to check if they are logical for the engine speed and load.
   Typical fix: Clean the MAF sensor with a specialized cleaner. If it's faulty, replace the sensor.
   Est. part cost: $80-$150
3. Vacuum Leak 🟡 Medium Probability Leaks can occur from cracked hoses, loose clamps, or a poorly seated air filter housing, allowing unmetered air to enter the engine after the MAF sensor. TSB PIP5240F on other Chevy models links P1101 to an incorrect or improperly installed air cleaner housing. On this engine, the PCV tube uses serviceable spring clamps and is a potential leak point.
   How to confirm: Perform a visual inspection of all intake hoses and connections between the MAF sensor and the throttle body. A smoke test is the most effective way to pinpoint the source of a leak. 🎬 See how to easily find and fix a vacuum leak. Listening for a hissing sound at idle can also reveal large leaks.
   Typical fix: Tighten loose clamps or replace the cracked hose or faulty gasket that is causing the leak.
   Est. part cost: $10-$100
4. Clogged or Improperly Installed Air Filter ⚪ Low Probability → Shop Air Cleaner Assembly A severely clogged filter can restrict airflow, causing the ECM to detect a discrepancy. An improperly installed filter or housing can create an air leak. This is a simple but often overlooked cause.
   How to confirm: Inspect the engine air filter. Ensure it is clean and correctly seated in the airbox with no gaps.
   Typical fix: Replace the dirty air filter and ensure the airbox is sealed correctly.
   Est. part cost: $20-$50

Rare But Worth Checking

• Crankshaft Oil Leak: → Shop Engine Crankshaft TSB #20-NA-047, while for older models, links P1101 to front or rear crankshaft oil leaks. A significant leak could potentially affect crankcase pressure and the PCV system, indirectly causing an airflow rationality code.
• Dirty Throttle Body: → Shop Fuel Injection Throttle Body On many GM vehicles, a dirty throttle body can cause airflow issues at idle, leading to a P1101 code. While less documented on the new 1.2L engine, it's a known cause on the previous generation Trax and other similar engines.
🎬 Watch: Diagnosing P1101 on a previous generation Trax model.

Diagnosis Steps

1. Read all stored fault codes with an OBD-II scanner. Note any other codes that appear with P1101, as they can point to the root cause (e.g., P0300, P0521).
2. Given the vehicle's age and TSB PIP5947C, immediately check the engine oil level and look for signs of excessive consumption or blue exhaust smoke.
3. Inspect the engine air filter to ensure it is clean and properly installed in the airbox.
4. Visually inspect the entire air intake tract from the airbox to the throttle body for any cracks, loose connections, or disconnected hoses. Pay attention to the PCV tube clamps.
5. With the engine warm and at idle, use a scan tool to monitor live data. Check the throttle position; a reading below 8-9% can indicate a vacuum leak.
6. Remove and inspect the Mass Airflow (MAF) sensor. Clean it using a dedicated MAF sensor cleaner and reinstall.
7. If the code persists, perform a smoke test to check for vacuum leaks in the intake manifold, PCV hoses, and valve cover.
8. If a smoke test reveals no leaks and symptoms of oil consumption are present, the issue is very likely the camshaft cover per TSB PIP5947C. The dealer diagnostic procedure involves checking all spark plugs for oil fouling.
9. If all else fails, test the MAF sensor wiring for proper voltage and ground.

Parts You'll Likely Need

• Engine Camshaft Cover (OEM #55514967) — A known issue documented in TSB PIP5947C for the 2024 Trax 1.2L engine directly links an internal failure of this part to code P1101. This part supersedes previous numbers 55512061 and 55486073.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $85-$130
  Aftermarket price range: $150-$250
• Mass Airflow (MAF) Sensor (OEM #12714453) — This sensor is responsible for measuring airflow. If it becomes dirty or fails, it is a direct cause of P1101. Cleaning is often attempted before replacement. 🎬 Watch this successful P1101 repair walkthrough for more tips.
  Trusted brands: ACDelco, Bosch, Denso
  OEM price range: $120-$180
  Aftermarket price range: $70-$120

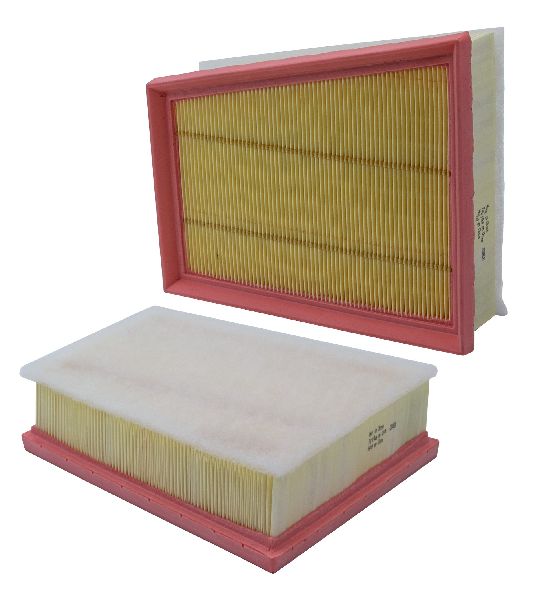

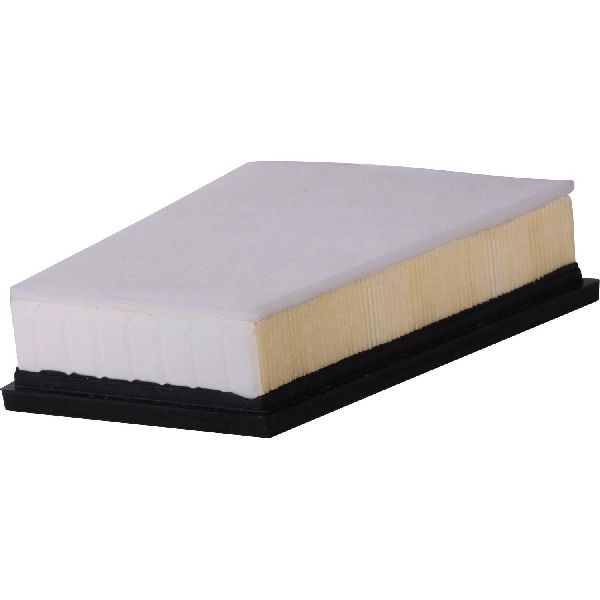

• Engine Air Filter — A clogged filter can restrict airflow, and an improperly installed one can cause a leak, both of which can trigger P1101. It's an inexpensive and easy first check.
  Trusted brands: ACDelco, WIX, Fram
  OEM price range: $30-$50
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0171 — This code for 'System Too Lean' is common with P1101 because a vacuum leak allows unmetered air into the engine, creating a lean air-fuel mixture.
• P0300 — A 'Random Misfire' code can be triggered alongside P1101, especially if the root cause is the camshaft cover issue leading to oil-fouled spark plugs, as noted in TSB PIP5947C.
• P050D — 'Cold Start Rough Idle' can be set with P1101 as part of the camshaft cover failure scenario described in TSB PIP5947C.
• P0521 — 'Engine Oil Pressure Sensor Performance' is another code listed in TSB PIP5947C that can appear with P1101 due to the internal camshaft cover failure.
• P06DE — 'Engine Oil Pressure Control Solenoid Valve Stuck On' is also mentioned in TSB PIP5947C as a related code.

Technical Service Bulletins (TSBs) & Recalls

• PIP5947C: Excessive Oil Consumption / Blue Smoke from Exhaust, possible idle surge, and codes including P1101, caused by an internal engine camshaft cover failure on 2024 Trax 1.2L engines.
• 20-NA-047: (For older models, but relevant context) Links P1101 to high crankcase pressure from a plugged PCV orifice or, in some cases, crankshaft oil leaks.
• PIP5240F: (For older models, but relevant context) Connects P1101 to an incorrect

Platform-Specific Known Issues

• TSB PIP5947C: Documents an issue on 2024 Trax, Trailblazer, Encore GX, and Envista models with the 1.2L engine where an internal failure of the engine camshaft cover can cause excessive oil consumption, blue exhaust smoke, idle surges, and set code P1101 (among others), often with less than 2,000 miles on the vehicle.

Mechanic-Grade Diagnostic Values

• Short-Term Fuel Trim (STFT) at idle — expected: Close to 0% (+/- 5%). Failure: Consistently high positive values (e.g., over +10%, sometimes as high as +30%) indicate the ECM is adding fuel to compensate for unmetered air (a vacuum leak).
• Mass Airflow (MAF) Sensor reading at idle (engine warm) — expected: Approximately 1.5-2.5 g/s for the 1.2L engine.. Failure: Readings that are illogical or do not increase smoothly with engine RPM suggest a faulty sensor.
• Mass Airflow (MAF) Sensor reading with Key On, Engine Off (KOEO) — expected: 0 g/s. Failure: Any reading above 0 g/s indicates a faulty MAF sensor or a wiring issue.

Scan Tool Commands That Help

• GDS2 (GM Dealer Software): Fuel Trim Reset — After replacing a component that caused a vacuum leak (like the camshaft cover or an intake hose), resetting the fuel trims forces the ECM to relearn the baseline air-fuel mixture immediately, rather than waiting for a long drive cycle. This can confirm the fix more quickly.
• GDS2 (GM Dealer Software): Throttle/Idle Learn Reset — If the throttle body was cleaned or replaced during diagnosis, this function should be used to reset its learned idle and off-idle positions. Failure to do so can cause an unstable idle.
• GDS2 (GM Dealer Software): Control Functions — A technician can use bidirectional controls to command specific components, like solenoids or the throttle motor, to verify their operation without having to remove them. This helps isolate a faulty component from a wiring or ECM issue.

Wiring & Ground Locations

• G103 — Typically located on the engine block or cylinder head, often on the passenger side. On some GM platforms, it's near the front of the passenger side cylinder head.. This is a primary ground point for the Engine Control Module (ECM) and multiple sensors. A poor connection at G103 can cause erratic sensor readings, including from the MAF and MAP sensors, leading to incorrect airflow calculations and a P1101 code.
• X125 Connector — This is the main connector between the engine wiring harness and the body wiring harness.. Damage to this large connector, often from an accident, can interrupt signals from critical sensors like the MAF, MAP, and throttle position sensor to the ECM, directly causing a P1101 code. A Reddit user troubleshooting a salvage 2024 Trax identified this specific connector as a point of failure.

Real Owner Repair Stories

• YouTube channel "Fixing the Infamous GM / Chevy P1101 MAF Code on my Buick Encore 1.4L" (Buick Encore 1.4L Turbo (engine family with similar PCV/intake design principles)) — Check Engine Light with code P1101, apparent lack of turbo boost.
  ❌ Tried (didn't work) Replaced valve cover (camshaft cover), Installed an external PCV valve kit, Cleaned the throttle body, Cleaned the Mass Airflow sensor, Replaced oil fill and dipstick gaskets
  ✅ What actually fixed it The final root cause was a cracked intercooler hose (charge air pipe). This allowed boosted air to escape after the MAF sensor but before the engine, creating a massive discrepancy in calculated vs. measured airflow that set the P1101 code.
• Reddit user on r/MechanicAdvice (2021 Chevy Trailblazer 1.3L (similar platform to the 2024 Trax)) — P1101 (Intake airflow system performance) and P1507 (high idle).
  ❌ Tried (didn't work) Replaced MAF sensor, Replaced MAP sensor, Replaced throttle body, Checked wiring harness resistance from sensors to ECM
  ✅ What actually fixed it The user's post was a request for help and did not have a final resolution posted, highlighting the difficulty of this code even after replacing all common components.

"I Checked Everything" — The Actual Cause

• In cases involving turbocharged engines like the 1.2L LIH, a standard low-pressure smoke test may not reveal leaks in the charge air cooler (intercooler) or its piping. These leaks often only open up under boost pressure while driving. If a smoke test of the intake and PCV system comes back clean but P1101 persists, the charge air system (from the turbo to the throttle body) is the next place to inspect for cracks or loose connections.

OEM Part Supersession History

• 55486073, 55512061 → 55514967 — Part revision to address the internal PCV system failure causing oil consumption and setting code P1101.
• 12671620, 12711405, 12714359 → 12714453 — Standard part evolution and supplier changes for the Mass Airflow sensor used on the 1.2L LIH engine.
