OBD-II Code P1184: Engine Oil Temperature Out of Range

What Does P1184 Mean?

Code P1184 indicates the Powertrain Control Module (PCM) detected an engine oil temperature reading outside the expected normal range during a diagnostic self-test. The PCM requires accurate oil temperature data to optimize fuel delivery, adjust ignition timing, and prevent engine damage.

Technical definition: The official SAE definition is "Engine Oil Temperature (EOT) Sensor Out of Self-Test Range." This means the EOT sensor reported an illogical temperature during a PCM diagnostic check. On Ford vehicles, this specifically flags a failed Key-On-Engine-Running (KOER) test, which aborts if the oil temperature is below 68°F (20°C).

Can I Drive With P1184?

⚠️Yes, But With Caution. Yes, but schedule a repair within a few weeks. The engine computer relies on oil temperature to adjust fuel mixtures and ignition timing. Driving with a faulty reading forces the engine to run rich, reducing fuel economy and eventually destroying the catalytic converter—an $800 to $2,500 repair. Furthermore, the computer cannot protect the engine if a genuine overheating event occurs.

Common Causes

• Faulty Engine Oil Temperature (EOT) Sensor (Very Common) — The sensor itself is the most frequent point of failure. Internal thermistor components degrade from age and heat stress, sending incorrect, erratic, or dead signals to the computer.
• Engine Not Warmed Up Before Self-Test (Ford Specific) (Very Common) — Running a KOER (Key-On-Engine-Running) diagnostic test on a Ford before the engine reaches operating temperature triggers P1184. The EOT must reach a minimum threshold (usually 68°F) for the test to proceed.

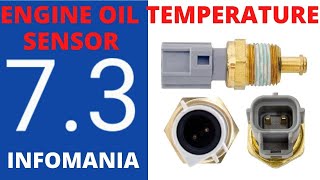

🎬 Watch: Locating and testing the 7.3 Powerstroke EOT sensor.
• Low Engine Oil Level (Common) — Insufficient oil volume prevents proper heat absorption and dissipation. The sensor reads air instead of oil, reporting a temperature outside the normal operating range.
• Wiring or Connector Issues (Common) — Wires routing to the EOT sensor degrade, corrode, or melt from contact with hot exhaust components. This creates a short or open circuit, corrupting the temperature signal.
• Faulty Engine Coolant Thermostat (Common) — A thermostat stuck open prevents the engine from reaching operating temperature. The PCM compares oil and coolant warm-up rates; if the oil temperature fails to rise as expected, it sets the code.
• Incorrect Oil Viscosity (Less Common) — Using oil significantly thicker or thinner than the manufacturer's specification alters heat circulation, causing abnormal temperature readings at the sensor.
• Blocked Oil Passages or Failing Oil Cooler (Rare) — Engine sludge blocks oil passages, or a dedicated oil cooler thermostat fails. This prevents oil from reaching normal operating temperature or causes localized overheating.
• Faulty Powertrain Control Module (PCM) (Rare) — The engine computer suffers an internal circuit board failure on the specific pin that reads the EOT sensor. This requires professional diagnosis after ruling out all other hardware.

Symptoms

• Check Engine Light is On — The Malfunction Indicator Lamp (MIL) illuminates on the dashboard immediately after the PCM detects the out-of-range signal.
• Inaccurate Oil Temperature Gauge — Vehicles equipped with a dedicated oil temperature gauge display unusually high readings, low readings, or erratic needle movements.
• Poor Fuel Economy — The PCM defaults to a rich air-fuel mixture to protect the engine from perceived overheating, burning excess fuel and lowering MPG by 5-15%.
• Reduced Engine Performance (Limp Mode) — The vehicle enters a fail-safe mode, restricting engine RPM and transmission shifting to prevent mechanical damage.
• Failure to Complete Emissions Monitors (scan-tool only — no driver-felt sign) — The EOT reading is a prerequisite for EVAP and Catalyst self-tests. This code blocks readiness monitors from completing, resulting in an automatic emissions test failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Engine Oil Temperature (EOT) Sensor — Parts: $25-$100, Labor: $75-$150, ~1.0 hr book time (DIY)
• Correct Engine Oil Level (Top-Off or Change) — Parts: $10-$50, Labor: $0, ~0.5 hr book time (DIY)
• Repair Wiring or Connector — Parts: $5-$25, Labor: $100-$250, ~1.5 hr book time (Intermediate)
• Replace Engine Thermostat — Parts: $20-$100, Labor: $150-$300, ~2.0 hr book time (Intermediate)
• Replace Fuel Pressure Regulator (Hyundai/Kia) — Parts: $50-$150, Labor: $100-$200, ~1.5 hr book time (Intermediate)
• PCM Reprogram or Replacement — Parts: $300-$1000, Labor: $150-$300, ~1.5 hr book time (Professional)

DIY vs Professional

• Correct Engine Oil Level — Beginner: Yes
  Tools: Rag, funnel, correct specification engine oil.
• Replace EOT Sensor — Beginner: Yes
  Tools: Socket set, wrench, drain pan, replacement sensor, extra oil.
• Replace Engine Thermostat — Beginner: No
  Tools: Socket set, drain pan, gasket scraper, replacement thermostat, fresh coolant.
• Repair Wiring or Connector — Beginner: No
  Tools: Multimeter, wire strippers, crimpers, heat shrink tubing, wiring diagrams.
• Replace Fuel Pressure Regulator (Hyundai/Kia) — Beginner: No
  Tools: Basic hand tools, fuel line disconnect tools, safety glasses.
• PCM Reprogram or Replacement — Beginner: No
  Tools: Manufacturer-level diagnostic and flashing software.

Used vs. New Parts: Buying Guide

When a used part is worth it: Never buy a used Engine Oil Temperature sensor. It is a low-cost, high-wear electronic component. A used sensor carries a high risk of immediate failure.

Donor-vehicle mileage cap: roughly under 10000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• If forced to buy used for an obsolete vehicle, source from a reputable recycler offering a 90-day warranty.
• Reject any sensor with corroded pins, stripped threads, or brittle plastic connectors.

Decision logic:

• If A new OEM or premium aftermarket sensor costs less than $100 → Buy new. The minimal savings of a used part do not justify the risk of repeating the labor.
• If The sensor is buried behind other engine components requiring hours of labor → Buy a brand-new OEM sensor to guarantee you only do the job once.
• If Only used parts exist for your specific classic or rare vehicle → Purchase two used sensors simultaneously, as one is likely dead on arrival.

Warranty tradeoff: Used sensors offer 30-day warranties at best. New aftermarket sensors include 1-year to lifetime warranties. New OEM parts carry standard 1-2 year manufacturer warranties.

Worst-case if a used part fails: $150-$300 in repeat labor costs if a used sensor fails immediately after installation.

What Happens If You Wait — Timeline

1. 0-1 month: Check Engine Light illuminates. PCM defaults to a rich fuel strategy as a precaution. No drivability symptoms are noticeable. (MPG impact: 0-5%% · Added cost: $0-$25 in wasted fuel.)
2. 1-4 months: Engine consistently runs rich. Fuel economy drops noticeably. The excess fuel stresses the catalytic converter, causing it to run hotter than normal. (MPG impact: 5-15%% · Added cost: $50-$150 in wasted fuel.)
3. 4-12 months: Catalytic converter substrate begins to melt from prolonged exposure to high temperatures. You notice a rotten egg smell and reduced engine power. (MPG impact: 10-20%% · Added cost: $1,000-$2,500 for catalytic converter replacement.)
4. 12+ months / Ongoing Risk: Complete catalytic converter meltdown causes a major exhaust blockage, rendering the car undrivable. Separately, the PCM cannot protect the engine during a true overheat event. (MPG impact: 20-50% (due to exhaust blockage)% · Added cost: $3,000-$8,000 for engine repair or replacement.)

Cost of Not Fixing It

• 0-1 month: Fuel economy drops by 5-10% as the PCM defaults to a rich fuel mixture. The vehicle fails state emissions testing. (Added cost: $20-$50 in wasted fuel.)
• 1-6 months: Running consistently rich causes severe carbon buildup and overheats the catalytic converter, permanently reducing its efficiency. (Added cost: $0, but the risk of a four-figure repair increases daily.)
• 6+ months: The catalytic converter substrate melts from prolonged exposure to unburned fuel, causing a major exhaust blockage and severe power loss. (Added cost: $1200-$2800 for catalytic converter replacement.)
• Ongoing Risk: The PCM cannot accurately monitor oil temperature, disabling its ability to trigger fail-safe modes during a genuine engine overheating event. (Added cost: $3000-$8000 for catastrophic engine replacement.)

Diagnosis Steps

1. Check Engine Oil Level and Condition
   Pull the dipstick and verify the engine oil is at the correct level. Low or heavily sludged oil causes erratic temperature readings. Top off or change the oil if necessary.
   Tools: Rag or paper towel (Beginner)
2. Scan for Codes and Analyze Freeze Frame Data
   Connect an OBD-II scanner. Look for companion codes like P0128 (stuck thermostat). Review the Freeze Frame data for P1184 to see the exact engine temperature and RPM when the fault occurred.
   Tools: OBD-II Scanner (Beginner)
3. Visually Inspect the Sensor and Wiring
   Locate the EOT sensor on the oil pan or engine block. Inspect the wiring harness for melted insulation, chafing, or severe corrosion inside the connector plug.
   Tools: Flashlight (Beginner)
4. Analyze Live Data with a Scan Tool
   With a cold engine, compare the EOT, Engine Coolant Temperature (ECT), and Intake Air Temperature (IAT) on your scanner. They must read within 5 degrees of each other. If EOT is stuck at -40°F or 280°F, the sensor or circuit is dead.
   Tools: OBD-II Scanner with Live Data (Intermediate)
5. Perform a 'Wiggle' Test for Intermittent Faults
   Start the engine and monitor the live EOT data on your scanner. Firmly wiggle the wiring harness and connector at the sensor. If the temperature reading spikes or drops out, repair the damaged wiring harness.
   Tools: OBD-II Scanner with Live Data, Gloves (Intermediate)
6. Check the Sensor Circuit at the Connector
   Turn the key ON (engine off). Disconnect the sensor. Use a multimeter to verify a 5-volt reference signal and a solid ground at the harness connector. Missing voltage indicates a broken wire or bad PCM.
   Tools: Multimeter, vehicle-specific wiring diagram (Intermediate)
7. Test the Sensor's Internal Resistance
   With the sensor disconnected and engine cold, measure resistance across the sensor pins. A typical NTC sensor reads 2.2kΩ to 10kΩ at 68°F (20°C). An infinite reading (open) or zero reading (short) means the sensor is destroyed.
   Tools: Multimeter, vehicle-specific repair manual (Intermediate)
8. Validate Sensor Voltage Signal (Advanced)
   Backprobe the signal wire with the sensor connected and engine running. Voltage must decrease smoothly as the engine warms. A cold engine shows ~3.5V, dropping to ~1.0V at operating temperature. Static voltage confirms a fault.
   Tools: Multimeter (with backprobe pins), OBD-II Scanner with Live Data (Advanced)
9. Test Signal Wire Integrity to PCM
   If the sensor and connector test perfectly, check continuity on the signal wire between the sensor plug and the PCM harness. This isolates a break deep inside the vehicle's wiring loom.
   Tools: Multimeter, vehicle-specific wiring diagram (Advanced)
10. Hyundai/Kia Specific: Test Fuel Pressure
    If diagnosing a Hyundai or Kia, P1184 indicates a fuel pressure fault. Connect a mechanical gauge to the fuel rail. Verify idle pressure matches spec (e.g., 49-51 psi). Test the fuel pressure regulator resistance.
    Tools: Fuel pressure gauge, Multimeter, vehicle-specific repair manual (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Oil Temp (EOT): <68°F (20°C) or >280°F (138°C) (Triggers when the EOT reads illogically low for a running engine (especially compared to coolant temp) or implausibly high.)
• Engine Coolant Temp (ECT): Varies; compared to EOT (The PCM compares EOT and ECT. On a cold start, they must match within a few degrees. If ECT warms up but EOT stays cold, the code sets.)
• RPM: 0 (KOER test) or 700-2500 (driving) (Sets at 0 RPM during a failed Ford KOER self-test, or during steady-state driving if the sensor signal drops out completely.)
• Time Since Engine Start: < 5 minutes (Often sets shortly after a cold start, proving the oil temperature failed to rise at the programmed rate due to a stuck thermostat or dead sensor.)

Related Codes

• P0196 — 'EOT Sensor Range/Performance'. This is the generic OBD-II equivalent to P1184. They point to the exact same hardware failure, though P1184 is often tied to a specific failed self-test.
• P0128 — 'Coolant Temperature Below Thermostat Regulating Temperature'. If present with P1184, a stuck-open thermostat is the root cause. The engine fails to warm up, triggering both coolant and oil rationality codes.
• P0117 — 'Engine Coolant Temperature Sensor Circuit Low'. Indicates a short circuit. If seen alongside P1184, suspect a major wiring harness melt or shared ground failure rather than a thermostat issue.
• P0118 — 'Engine Coolant Temperature Sensor Circuit High'. Indicates an open circuit. Live data will show ECT stuck at -40°F, differentiating it from a slow-warming thermostat issue.

Climate & Environmental Factors

• Cold Weather: Sub-freezing temperatures drastically increase engine warm-up times. On Ford vehicles, initiating a KOER self-test before the oil reaches 68°F (20°C) triggers a false P1184 code.
• High Humidity / Heavy Rain: Moisture penetrates aging wiring connectors, causing rapid pin corrosion. This increases electrical resistance, corrupting the EOT sensor signal and triggering the code (common on Land Rovers).
• Extreme Heat: High ambient temperatures accelerate the degradation of the plastic sensor housing and surrounding wire insulation, leading to brittle, cracked wiring and short circuits.

How to Talk to a Mechanic About This Code

Say this: "I have a P1184 code. For my specific make, I know this can mean different things. Can you perform a diagnosis that starts by looking at the live data for the EOT and ECT sensors from a cold start? If it's a Hyundai, Kia, or VW, please focus on fuel pressure or O2 sensor circuits as appropriate for that brand."

This signals you understand the code's complexity. It directs the mechanic to the most efficient diagnostic path (live data, brand-specific quirks) and prevents them from blindly replacing the oil temperature sensor based on a generic definition.

Avoid saying:

• 'Just fix whatever's wrong'
• 'My check engine light is on, can you look at it?'
• 'I used Google and I think it's the oil temperature sensor'
• 'Whatever you recommend'

Questions to ask before authorizing the repair:

• Will you provide a printout of the freeze-frame data and the live data graph showing the fault?
• What were the resistance and voltage readings from the sensor circuit?
• If you're recommending a thermostat, is that because P0128 was also present or because the oil temp failed to rise with the coolant temp?
• What is the warranty on this specific repair, including parts and labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Highly recommended if you drive a Hyundai, Kia, VW, Audi, or BMW to avoid misdiagnosis. Also the best choice for complex wiring problems.
  Best for: Vehicles still under powertrain or emissions warranty., Diagnosing manufacturer-specific quirks on Hyundai, Kia, VW, Audi, or BMW where P1184 is not an oil code., Complex electrical issues requiring proprietary software.
  Downsides: Labor rates are $150-$250 per hour, significantly higher than independent shops., May recommend replacing an entire assembly when only a small component failed. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most common EOT-related faults on domestic and Japanese vehicles. Ensure the shop has experience with electrical diagnosis.
  Best for: Out-of-warranty vehicles requiring a standard EOT sensor or thermostat replacement., Owners who have a trusted relationship with an ASE-certified local mechanic., Cost-sensitive repairs.
  Downsides: Quality varies widely; vet shops via reviews and certifications., May not be aware of the brand-specific definitions for P1184, leading to misdiagnosis. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosing P1184. The risk of misdiagnosis is very high. Only use if you have already diagnosed the problem yourself and it requires a simple EOT sensor swap.
  Best for: Simple, clear-cut part replacements like an oil change or battery test.
  Downsides: Technician diagnostic skill varies dramatically., High pressure to upsell services like fluid flushes., Least likely to correctly diagnose a nuanced or brand-specific code like P1184. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, it is time to seriously consider selling or trading it in.

• Car worth $5000, fix is $250: Fix it. This is a low-cost repair well below the threshold.
• Car worth $4000, fix is $1800: Borderline. This assumes the P1184 fault was ignored and destroyed the catalytic converter. The repair cost is 45% of the car's value. Get a second opinion before authorizing.
• Car worth $2500, fix is $1800: Walk away. The repair cost is over 70% of the vehicle's value. It is not financially sound to proceed.

What Scan Tool You Need for This Code

Minimum: A scanner that reads/clears codes, shows freeze-frame data, and displays live sensor data streams.

A $20 code reader only provides the P1184 code. It cannot display live data, which is essential for seeing if the EOT sensor reading is stuck, dead, or irrational compared to the coolant temperature sensor.

Budget: BlueDriver Pro (~$99.95) — Connects to your phone via Bluetooth. It reads the code, shows freeze-frame data, and graphs live data streams so you can visually compare the EOT and ECT sensor readings as the engine warms up.

Mid-range: Foxwell NT510 Elite (~$180) — A dedicated handheld unit offering manufacturer-specific diagnostics. This is critical for correctly interpreting P1184 on brands like Hyundai or VW where the code means something entirely different.

Professional: Autel MaxiCOM MK808BT (~$450) — A professional tablet scanner providing fast, wireless, all-system diagnostics. It features advanced live data graphing and bi-directional control to actively test sensors and circuits.

Rent vs buy: AutoZone's 'Loan-A-Tool' program allows you to borrow an OBD-II scanner for a fully refundable deposit. This is ideal for a one-time diagnosis. If you perform your own maintenance, buying a tool like the BlueDriver is a mandatory investment.

How to Clear the Code After You Fix It

1. Connect an OBD-II scan tool and clear the P1184 code.
2. Perform a complete drive cycle to reset the vehicle's readiness monitors.
3. Re-scan the vehicle after the drive cycle to confirm the code remains clear.

Drive cycle (~30 minutes): Start with a cold engine (coolant below 122°F). Idle for 3 minutes, drive 15 minutes in mixed city/highway conditions (holding 55 mph steadily for 5 minutes), and coast to a complete stop without braking heavily.

Readiness monitors affected: Catalyst Monitor, Oxygen (O2) Sensor Monitor, EGR System, EVAP System

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Disconnecting the battery clears the code but resets all readiness monitors to 'Not Ready', guaranteeing an instant emissions test failure.
• Failing to drive at steady highway speeds prevents the Catalyst monitor from running.
• The code returns immediately upon startup if the wiring short or sensor failure was not actually repaired.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active P1184 triggers an automatic failure. After repair, you must complete a full drive cycle to set all readiness monitors before the state machine allows a re-test.
• New York: Vehicles displaying an active P1184 code and illuminated Check Engine Light automatically fail the OBD-II plug-in inspection.
• Texas: In emissions-testing counties, P1184 results in immediate failure. The vehicle's EVAP and Catalyst monitors must read 'Ready' to pass.

Most Commonly Affected Vehicles

• Ford F-150 (2004-2010) — Extremely common on the 5.4L V8. Often triggered by running a KOER self-test before the engine is fully warmed up, indicating a procedural error rather than a failed part.
• Ford Power Stroke Diesel (F-250/F-350) (1999-2011) — Critical code on 7.3L and 6.0L engines. The EOT sensor must read above 68°F (approx. 3.82 volts) for diagnostic self-tests to run successfully.
• Hyundai Elantra, Santa Fe, Tucson (2005-2016) — CRITICAL: On Hyundai models, P1184 indicates a 'Fuel Pressure Regulator - Range/Performance' or 'Heated Oxygen Sensor' fault, NOT an oil temperature issue.
• Kia Optima, Sportage (2005-2015) — Shares powertrains with Hyundai. P1184 refers to fuel pressure or oxygen sensor failures. Do not replace the oil temperature sensor.
• Land Rover Discovery (II / LR3) (1999-2009) — Frequently caused by moisture intrusion into wiring connectors after a car wash, or wiring harnesses melting against hot radiator hoses.
• Chevrolet Cruze (2011-2019) — Usually linked to broader engine temperature rationality checks. Often appears alongside faulty thermostats or coolant sensor issues.
• Subaru Outback (2005-2014) — Acts as an early indicator of cooling system problems (like a failing thermostat) that prevent the oil from warming up at the rate the ECU expects.
• Peugeot/Citroen 108, 208 (2014-2021) — Features conflicting definitions. It means 'EOT Out Of Range' on some trims, but points to a 'Braking system vacuum measurement' fault on others.

Manufacturer-Specific Notes

• Ford: P1184 is famous as a Key-On-Engine-Running (KOER) self-test code. It flags that the test was initiated before the engine oil reached 68°F (20°C). Always warm the engine fully before running KOER diagnostics.
• Hyundai / Kia: CRITICAL: P1184 is NOT an oil temperature code on these vehicles. It refers to 'Fuel Pressure Regulator - Range/Performance' or 'Heated Oxygen Sensor No Activity'. Misdiagnosing this leads to expensive, unnecessary sensor swaps.
• Volkswagen / Audi: On VW and Audi models, P1184 means 'Linear O2 Sensor / Common Ground Wire Open Circuit'. This is an exhaust sensor electrical fault, completely unrelated to oil temperature.
• BMW: BMW defines P1184 as an issue with the heated oxygen sensor (HO2S), specifically a 'Voltage Excursion Electrical' fault. Do not inspect the oil system.
• Peugeot / Citroen: This code has conflicting definitions depending on the exact ECU. It can mean an oil temperature fault, or a 'Braking system vacuum measurement' error. Verify with dealer-level software.
• Daewoo: Daewoo defines P1184 as 'O2S (B1/S2) NO SIGNAL', indicating a dead downstream oxygen sensor.

Real Owner Stories

2005 Ford F-150 5.4L with 180K miles

Truck started shaking badly with a lack of power. Initially threw multiple codes including P0303 (misfire).

What they tried:

1. Swapped coils and injectors with no change.
2. Changed all spark plugs and boots.
3. Ran a KOER (Key-On-Engine-Running) test which produced code P1184 along with P1288 (CHT Sensor).
4. Cleared codes and the only one that returned was P0012.

Outcome: The P1184 code was a procedural error, triggered because the KOER test was run on a cold engine. The actual root cause of the shaking was related to cam phasers.

Lesson: On a Ford, P1184 appearing during a KOER test is a flag that the engine wasn't warm enough for the test. Always warm the engine to full operating temperature before running KOER diagnostics.

2010 Hyundai Tucson 2.0L Diesel

Check Engine Light on with code P1184. The vehicle experienced engine shutdown and difficulty starting.

What they tried:

1. Initial diagnosis correctly pointed towards 'Fuel Pressure Regulator - Range/Performance', not oil temperature.
2. Visual inspection of wiring harness and connectors.
3. Tested the resistance of the Fuel Pressure Regulator (FPR).

Outcome: The FPR resistance was out of spec (reading outside the 2.07-2.53 Ω range). Replacing the fuel pressure regulator resolved the starting issues and cleared the P1184 code.

Lesson: For Hyundai and Kia vehicles, P1184 is a fuel system or O2 sensor code. Do not replace the oil temperature sensor; diagnose the component indicated by the manufacturer-specific definition.

2001 Land Rover Discovery II with 180K miles

After a car wash, the transmission went into limp mode and the Check Engine Light came on. Code P1184 was stored.

What they tried:

1. Read codes at an auto parts store.
2. Researched forums and found similar issues related to moisture.
3. Inspected the wiring harness near the radiator hoses for melting or water intrusion.

Outcome: The issue was intermittent, caused by moisture getting into a compromised wiring connector. The code cleared on its own after the vehicle dried out.

Lesson: On Land Rovers, P1184 is often an intermittent electrical fault caused by water intrusion. Inspect the wiring harness and check for corrosion in connectors before replacing parts.

How to Prevent This Code From Triggering

• Perform regular oil changes with manufacturer-specified oil. (Every 5,000-7,500 miles or as per owner's manual.) — Ensures correct oil volume and optimal thermal properties. Low or degraded oil cannot properly manage heat, stressing the EOT sensor.
• Inspect and clean engine sensor connectors. (Every 30,000 miles.) — Prevents corrosion and ensures a solid electrical connection. Use electrical contact cleaner and apply dielectric grease to block moisture.
• Flush and replace engine coolant. (Every 30,000 to 60,000 miles.) — Maintains cooling system efficiency and prevents thermostat failure. A faulty thermostat is a primary cause of P1184.
• Use high-quality OEM or reputable aftermarket sensors for replacements. (When a sensor fails.) — Cheap sensors suffer premature failure. Quality parts from brands like Bosch, Denso, or Motorcraft ensure longevity and accurate readings.
• Keep the engine bay reasonably clean. (Annually.) — Prevents buildup of dirt, oil, and debris that contaminate sensor connections and degrade wiring harnesses.

Frequently Asked Questions

What is an EOT sensor and what does it do?

The Engine Oil Temperature (EOT) sensor is a small thermistor probe that measures the temperature of your engine oil. It sends this data to the Powertrain Control Module (PCM). The PCM uses this reading to adjust the fuel mixture and ignition timing for optimal performance.

How much does it cost to fix code P1184?

Costs range from $10 for a simple oil top-off to $250 for a new EOT sensor. Thermostat replacements run $170 to $600 depending on labor rates. Hyundai or VW owners face different costs, as P1184 on those brands indicates fuel pressure or O2 sensor issues.

Can I replace the Engine Oil Temperature sensor myself?

Yes, replacing the EOT sensor is a straightforward DIY repair on most vehicles. The sensor threads directly into the oil pan or engine block. Keep a drain pan and extra oil nearby, as a small amount of oil will leak out during the swap.

What is a KOER self-test and why does it cause a P1184 code on my Ford?

KOER stands for Key-On-Engine-Running, a diagnostic self-test used on Ford vehicles. Code P1184 triggers if you run this test before the engine oil reaches the 68°F minimum temperature threshold. In this scenario, it indicates a procedural error rather than a failed part.

Why does my scanner say P1184 is an O2 sensor or fuel pressure issue?

Manufacturers like Volkswagen, Audi, BMW, Hyundai, and Kia assign code P1184 to completely different systems. On these vehicles, it indicates a failure in the oxygen sensor or fuel pressure regulator circuits. Always verify the code definition specific to your vehicle's make and model.

Will a simple oil change fix the P1184 code?

An oil change only fixes P1184 if the code stems from a severely low oil level or extremely degraded oil. Restoring the correct volume and viscosity allows the oil to dissipate heat properly. If the sensor, wiring, or thermostat has failed, fresh oil will not clear the code.

My Check Engine Light is on for P1184, but the car drives fine. Can I ignore it?

Ignoring the code forces the engine computer to guess the oil temperature, usually resulting in a rich fuel mixture. This reduces fuel economy and eventually destroys the catalytic converter. Furthermore, the computer cannot trigger fail-safe modes to protect the engine if a genuine overheating event occurs.

Where is the EOT sensor located?

The EOT sensor typically threads directly into the side or bottom of the engine oil pan. On some vehicles, it sits on the engine block near the oil filter housing or on a dedicated oil cooler assembly. Consult a vehicle-specific repair manual to pinpoint the exact location.

Key Takeaways

• Code P1184 triggers when the Engine Oil Temperature (EOT) sensor reads outside its normal 194-221°F operating range, usually due to a failed sensor or low oil level.
• Verify your manufacturer's specific definition before replacing parts; on Hyundai, Kia, VW, Audi, and BMW vehicles, P1184 indicates a fuel pressure or O2 sensor failure, not an oil temperature issue.
• Ford owners running a Key-On-Engine-Running (KOER) self-test will trigger a false P1184 code if the engine oil is below the 68°F minimum testing threshold.
• Check your engine oil dipstick first, as oil levels below the minimum line prevent proper heat dissipation and cause erratic sensor readings.
• Replacing a faulty EOT sensor resolves the code in 80% of cases and costs between $100 and $250 at a repair shop.
