P1233 on 2015-2019 Hyundai Sonata: Causes, Symptoms, and Fixes for Fuel System Faults

What's Unique About the 2015-2019 Hyundai SONATA

The 2015-2019 (LF generation) Sonata is known for a specific defect where the fuel pump's filter housing can crack and leak internally. This isn't a general wear-and-tear issue but a documented component failure, leading Hyundai to issue a Technical Service Bulletin (TSB 23-FL-004H) and extend the warranty for this specific part to 15 years or 150,000 miles. This makes the diagnosis for P1233 on these vehicles more direct than on other cars where the causes might be more varied. The TSB applies to Sonata models with VINs starting in "5NP" produced between May 2014 and September 2019.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Reduced or limited engine power
• Engine cranks but does not start ('Crank/No Start')
• Long crank time before the engine starts
• Engine stalls, especially at idle or low speeds
• Whirring or humming noise from the rear of the car, near the fuel tank
• Intermittent starting issues; may start on the second or third attempt
• Strong fuel smell, potentially indicating a leak

Most Likely Causes

1. Internally Leaking Fuel Pump Filter Housing 🔴 High Probability → Shop Fuel Pump A known defect acknowledged by Hyundai in TSB #23-FL-004H. The plastic housing of the filter assembly is prone to cracking, causing a loss of fuel pressure before it leaves the tank assembly. This is a widespread issue for this platform.
   How to confirm: Confirm the vehicle's VIN is covered by TSB #23-FL-004H. A technician will scan for codes; the presence of P1233 is often sufficient for diagnosis under the TSB. If no code is present but symptoms exist, a fuel pressure test is performed. The pressure should hold above 14.5 PSI for at least one minute after the engine is shut off; if it drops, the housing is likely leaking.
   Typical fix: Replace the fuel filter assembly (part #31112-C2500) inside the fuel tank. This repair is covered by a 15-year/150,000-mile warranty extension at a Hyundai dealer.
   Est. part cost: $0 (if under warranty), otherwise see part cost below.

Rare But Worth Checking

• Failing Fuel Pump Motor: → Shop Fuel Pump While the filter housing is the most common failure point, the electric motor of the fuel pump itself can also wear out, leading to low pressure. This would typically require replacing the entire fuel pump module, which is more expensive than just the filter.
• Fuel Pump Driver Module or Wiring Issue: → Shop Fuel Pump A problem with the module that controls the fuel pump or its wiring could cause it to run improperly or not at all, leading to pressure deviations. This is less common than the mechanical failure of the pump assembly and may be accompanied by communication-related 'U-codes'.

Diagnosis Steps

1. Check for Technical Service Bulletins (TSBs). The first step for any professional will be to check for TSBs. TSB #23-FL-004H directly addresses P1233 on these vehicles.
2. Verify VIN and Warranty Status. Check if your vehicle's VIN (must start with '5NP') and production date (05/01/2014 - 09/30/2019) fall within the range specified in the TSB and if it is within the 15-year/150,000-mile extended warranty period.
3. Scan for Codes. Confirm P1233 is present. If it is, the TSB directs the technician to replace the fuel filter assembly without further testing.
4. Perform Fuel Pressure Test (if needed). If P1233 is not present but symptoms like 'crank/no start' exist, a technician will connect a fuel pressure gauge to the low-pressure system. The TSB outlines a specific procedure to check if the pressure holds, looking for it to remain above 14.5 PSI (100 kPa) for at least one minute after the engine is off. A pressure drop indicates a leak.
5. Inspect Fuel Pump Assembly. If the pressure test fails or P1233 is present, the fuel pump assembly is removed from the tank (located under the rear seat) for replacement of the filter housing.

Parts You'll Likely Need

• Fuel Filter Assembly (OEM #31112-C2500) — This is the specific part identified in Hyundai's TSB as the cause of the internal leak that triggers code P1233. It is described as 'FILTER-FUEL PUMP'.
  Trusted brands: Hyundai (OEM)
  OEM price range: $300-$450
  Aftermarket price range: $250-$400
• Fuel Pump Top Plate O-Ring (OEM #31123-B9000) — This seal should be replaced anytime the fuel pump assembly is removed to ensure the fuel tank is properly sealed and prevent vapor leaks. The TSB recommends replacing it if it is damaged during the repair.
  Trusted brands: Hyundai (OEM)
  OEM price range: $15-$30
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0087 — P0087 means 'Fuel Rail/System Pressure - Too Low'. This code is often triggered alongside P1233 because the low-pressure pump's failure to supply adequate fuel directly causes the high-pressure rail to be under-pressurized.
• P053F — P053F indicates 'Cold Start Fuel Pressure Performance'. This can appear with P1233 because the leak in the filter housing prevents pressure from building correctly, a problem that is especially noticeable during a cold start.

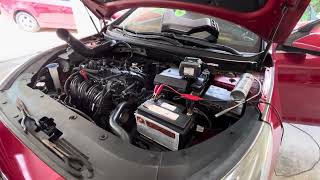

🎬 See how P1233 and P053F codes appear on a scan tool.

Technical Service Bulletins (TSBs) & Recalls

• 23-FL-004H: Describes the P1233 code, symptoms of reduced power and crank/no-start, and identifies the cause as an internally leaking fuel pump filter housing. It also details the 15-year/150,000-mile warranty extension for the repair, including the specific part number (31112-C2500) and diagnostic criteria.

Platform-Specific Known Issues

• Hyundai has issued TSB #23-FL-004H, which extends the warranty on the fuel pump filter assembly to 15 years or 150,000 miles for affected 2015-2019 Sonatas with VINs starting in '5NP'. This means owners experiencing P1233 or related symptoms (crank/no-start, low power) can get the repair done for free at a dealership. The warranty extension is valid for original and subsequent owners.
🎬 Watch: Details on the Sonata fuel pump extended warranty coverage.

Mechanic-Grade Diagnostic Values

• Low-Pressure Fuel System Leak-Down Test — expected: Pressure must remain above 14.5 PSI (100 kPa) for at least one minute after the engine is shut off.. Failure: Pressure dropping below 14.5 PSI within one minute indicates an internal leak, most likely the filter housing.
• Low-Pressure Fuel System Operating Pressure — expected: Approximately 50-60 PSI while the engine is running.. Failure: Significantly lower pressure (e.g., 20-30 PSI) while running points to a weak pump or a significant leak.
• Fuel Pump Relay Pin 30 Voltage — expected: ~12V at all times (battery power).. Failure: No voltage indicates a problem with the power supply to the relay, possibly a fuse.
• Fuel Pump Relay Pin 85 Voltage — expected: ~12V with ignition 'ON' (ignition power).. Failure: No voltage indicates a problem with the ignition signal to the relay.
• Fuel Pump Relay Pin 86 Signal — expected: Ground signal from the PCM when cranking or running.. Failure: No ground signal indicates a PCM or wiring issue.

Scan Tool Commands That Help

• Hyundai GDS / Kia KDS: Actuation Test -> Fuel Pump Relay — To manually command the low-pressure fuel pump on to check its operation without starting the engine. This is part of the official TSB diagnostic procedure if code P1233 is not present but symptoms exist.
• Hyundai GDS / Kia KDS: Data Analysis -> Graph View — Used while performing the 'Fuel Pump Relay' actuation test. The technician monitors the 'Absolute Electrical Fuel Pump Low Pressure Active Value' PID. The graph should show five or more even, continuous bars of pressure. Uneven bars indicate a failing pump/filter assembly.

Wiring & Ground Locations

• Fuel Pump Access Panel — Under the rear seat bottom cushion. The cushion must be removed to access a metal plate on the vehicle floor.. This is the primary access point for inspecting the fuel pump connector and removing the module for filter replacement.
• Fuel Pump Relay — In the engine compartment fuse & relay box (E/R Junction Block).. This relay powers the low-pressure fuel pump. Testing the relay and its socket pins is a key step in diagnosing a no-power situation at the pump.
• Fuel Control Module Power/Ground — The fuel control module is part of the fuel pump assembly, located on the top left side of the in-tank unit. The main power wire is RED, and the ground wire is BLACK.. These are the final points to test for voltage and ground to confirm if power is reaching the pump assembly before condemning the unit itself.

Real Owner Repair Stories

• YouTube channel 'brown mechanics' (Hyundai Sonata (year not specified, but LF generation)) — Stalling at idle, long crank to start.
  ❌ Tried (didn't work) The previous workshop replaced the high-pressure fuel pump (HPFP).
  ✅ What actually fixed it The mechanic diagnosed a low-pressure fault (P1233), removed the in-tank fuel pump, and found the fuel filter housing was cracked and leaking from a bottom joint. Replacing the low-pressure fuel filter assembly resolved all symptoms.
• YouTube channel 'Auto Repair Tips' (2011 Hyundai Sonata (YF generation, similar diagnostic principle)) — Crank, no start.
  ❌ Tried (didn't work) Verified spark and confirmed it would fire on starting fluid, isolating it to a fuel issue.
  ✅ What actually fixed it The mechanic tested the fuel pump relay pins and found the control circuit was working correctly. He then used a relay bypass tool to send power directly to the pump, but it still didn't run. This confirmed the in-tank fuel pump motor itself had failed. Replacing the fuel pump fixed the no-start condition.
• YouTube channel (Arabic language) (2017 Hyundai Avante (Elantra)) — No start, multiple codes including P1233 and P0087.
  ✅ What actually fixed it A fuel pressure test showed only ~20 PSI. Upon inspection, the mechanic found a non-OEM fuel pump had been installed with improper wiring inside the tank. Replacing the pump with a correct, properly wired OEM unit restored fuel pressure and fixed the no-start issue.

OEM Part Supersession History

• 31112-C2500 → N/A — This part number appears to be the consistent and correct number for the fuel filter assembly throughout the 2015-2019 model years, as specified by the TSB and OEM parts dealers.

Model Year Variations Within This Range

• 2015-2019 (LF Generation): The fuel pump access panel is located under the rear seat cushion. This differs from the previous 2011-2014 (YF Generation) Sonata, where the access panel was located in the trunk.
