P1233 on 2016-2020 Kia Optima: Fuel Pump Failure Causes and Fixes

What's Unique About the 2016-2020 Kia OPTIMA

The 2016-2020 Kia Optima (JF generation) and its platform-mate, the 2015-2019 Hyundai Sonata, are highly susceptible to a specific failure point: a cracked fuel pump filter housing. This defect is so well-documented that both Kia and Hyundai issued Technical Service Bulletins (TSBs) and corresponding warranty extension programs to address it. Unlike a generic fuel pump failure, this is a known design or material flaw, making it the number one suspect when a P1233 code appears on these specific vehicles.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Intermittent reduction or loss of engine power.
• Engine stalling while driving, sometimes at highway speeds.
• Engine cranks but will not start ('No Start' condition).
• Check Engine Light is on.
• Delayed or hesitant throttle response.
• Rough idle before stalling.
• Long crank to start.

Most Likely Causes

1. Cracked Fuel Pump Filter Housing 🔴 High Probability → Shop Fuel Pump This is a known defect acknowledged by Kia through TSB FUE061 Rev 1 and warranty extension WTY028. The plastic housing of the in-tank fuel filter is prone to developing cracks, causing an internal loss of fuel pressure before it reaches the engine. This issue affects the 1.6L, 2.0L, and 2.4L engines. Videos of the repair show the filter housing leaking from its bottom joint.
   How to confirm: A technician will confirm by checking for code P1233. Per TSB FUE061, if DTC P1233 is stored, the diagnosis is complete and the filter must be replaced. If no code is present but symptoms exist, a fuel pressure test is performed. If the pressure drops below 14.5 PSI (100 kPa) within one minute after the engine is shut off, it confirms a leak and the part is replaced.
   Typical fix: Replace the fuel filter assembly located inside the fuel tank. This repair is covered under Kia's warranty extension program (WTY028) for 15 years/150,000 miles from the vehicle's original in-service date.
   Est. part cost: $0 (if under warranty), otherwise $50-$100
2. Failed Low-Pressure Fuel Pump Assembly 🟡 Medium Probability → Shop Fuel Pump While the filter housing is the specific weak point, it is part of the complete low-pressure fuel pump module. Sometimes the entire module is replaced, either out of convenience, if the pump motor itself has failed, or if the filter is not available separately.
   How to confirm: A fuel pressure test showing little to no pressure from the in-tank pump points to a failed pump assembly. A technician may also observe the live data on a scan tool and see the actual pressure value drop to near zero, causing the engine to shut off.
   Typical fix: Replace the entire in-tank fuel pump module. This contains the pump, sending unit, and filter assembly.
   Est. part cost: $150-$350

Rare But Worth Checking

• Failed Fuel Pump Control Module (FPCM): → Shop Fuel Pump

Diagnosis Steps

1. Connect an OBD-II scanner to confirm the presence of code P1233.
2. Contact a Kia dealership with your Vehicle Identification Number (VIN). Inquire about the 'Warranty Extension Program WTY028' for the fuel pump filter. This should be your first step to avoid paying for a covered repair. Diagnosis is also covered at no cost to the customer under this program.
3. If proceeding with DIY diagnosis, the Kia TSB provides two diagnostic paths. Path 1: If DTC P1233 is stored, the diagnosis is complete. Proceed to replace the fuel filter assembly.
4. Path 2 (if no code is stored but symptoms are present): Safely connect a fuel pressure gauge to the low-pressure line. Start the engine and then shut it off. The pressure must remain above 14.5 PSI for at least one minute. If it drops, the filter housing is leaking and must be replaced.

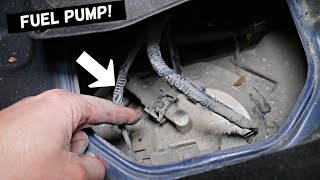

5. To perform the replacement, access the fuel pump module by removing the rear seat bottom cushion 🎬 Watch: How to access and replace the in-tank fuel pump. and the service cover.
6. Carefully disconnect the fuel lines and electrical connectors. A special tool is recommended to remove the lock ring holding the pump module in the tank, though it can be done carefully with a hammer and a brass punch to avoid sparks.
7. Remove the fuel pump module from the tank and disassemble it on a clean workbench to replace the cracked filter housing (the part with P/N 31112-C2500QQK).
8. Reassemble and reinstall the module, ensuring the O-ring seal is properly seated.

Parts You'll Likely Need

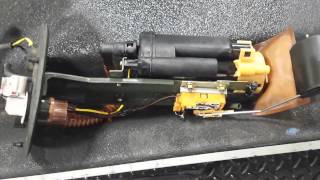

• Fuel Filter Assembly (OEM #31112-C2500QQK) — This is the specific part identified by Kia in TSB FUE061 as the cause of the P1233 code due to a tendency to crack. The Hyundai equivalent part number is 31112-C2500. 🎬 Watch a step-by-step fuel pump replacement on the Sonata platform.
  Trusted brands: Kia OE, Hyundai OE
  OEM price range: $30-$100
  Aftermarket price range: N/A
• Fuel Pump Module Assembly (OEM #31110-D5500) — This is the complete in-tank unit that includes the filter, pump, and fuel level sender. It is often replaced as a complete assembly if the filter is not sourced separately or if the pump motor is also suspected of failure.
  Trusted brands: Kia OE, Delphi, Spectra Premium, Bosch
  OEM price range: $300-$450
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• P0191 — P0191 indicates a problem with the fuel rail pressure sensor circuit. It can be triggered alongside P1233 because the erratic pressure from the failing low-pressure pump causes the high-pressure side to also read incorrectly.

Technical Service Bulletins (TSBs) & Recalls

• WTY028: Details the warranty extension program, extending coverage to 15 years/150,000 miles for the low-pressure fuel pump failure causing stalling and no-start conditions.
• FUE061 Rev 1: The technical service bulletin that provides the specific diagnostic and repair procedures for P1233, linking it directly to the cracked fuel pump filter housing (part 31112-C2500QQK).

Platform-Specific Known Issues

• Kia has a warranty extension program (Campaign WTY028) that covers the replacement of the fuel pump filter assembly for 15 years or 150,000 miles from the vehicle's original service date, whichever comes first. This applies to 2016-2020 Optima vehicles produced from August 28, 2015, through June 23, 2020, and directly addresses the cause of code P1233. Owners who previously paid for this repair may be eligible for reimbursement from Kia. Owners have reported that they may need to specifically ask the dealer to check for this warranty extension, as it may not be offered proactively.

Mechanic-Grade Diagnostic Values

• Low-Pressure Fuel System Bleed-Down Test — expected: Pressure must remain above 14.5 PSI (100 kPa) for at least one minute after engine is shut off.. Failure: Pressure drops below 14.5 PSI within one minute, indicating an internal leak in the fuel pump module.
• Scan Tool Live Data: Low Pressure Fuel System (Engine Running) — expected: Actual pressure should closely match the set point value (e.g., 50-65 PSI). After a cold start with a good pump, pressure was observed at 65 PSI.. Failure: A large deviation where actual pressure is significantly lower than the set point. One example showed a set point of 50 PSI with an actual reading of only 24 PSI. During a stall, pressure can drop to near 0 PSI.

Scan Tool Commands That Help

• Kia KDS (or GDS): Fuel Pump Relay Actuation Test — This is part of the official diagnostic procedure in TSB FUE061 when P1233 is NOT stored but symptoms are present. A technician can force the low-pressure pump to run and observe the pressure graph in the 'Data Analysis' function. A steady graph with 5+ even bars is a pass; an uneven graph indicates a failing pump/filter assembly.

Wiring & Ground Locations

• FUEL PUMP Fuse — Located in the engine compartment fuse/relay box. It is typically a 20A fuse.. While the cracked housing is the primary cause, a blown fuse would result in a complete loss of fuel pressure and a no-start condition. It's a basic check before condemning the pump.
• Fuel Pump Relay — Located in the engine compartment fuse/relay box, often as part of a multi-fuse block.. A faulty relay could cause intermittent power to the fuel pump, leading to pressure loss and stalling. The OEM scan tool can actuate this relay directly to test its function and the pump circuit.

Real Owner Repair Stories

• YouTube channel 'brown mechanics' (Hyundai Sonata (platform mate)) — Stalls at idle, long crank to start, P1233 code.

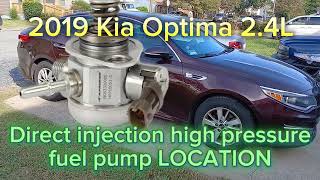

  ❌ Tried (didn't work) The previous workshop had already replaced the engine-mounted high-pressure fuel pump, which did not solve the problem.
  ✅ What actually fixed it The entire in-tank low-pressure fuel pump assembly was replaced. Upon inspection, the old unit's filter housing was found to be leaking from a bottom joint, confirming the internal pressure loss. Scan tool data showed pressure went from a faulty 24 PSI to a healthy 65 PSI after the repair.
• Reddit user 'Tricktrick_' in r/kia (2018 Kia Optima LX 2.4) — Stalling, eligibility for fuel pump replacement.
  ❌ Tried (didn't work) Initially calling the dealer, who only mentioned the engine knock sensor recall.
  ✅ What actually fixed it The owner had to specifically ask the dealer representative about the fuel pump warranty extension (WTY028). After being put on hold, the representative confirmed the owner 'may be eligible'. Taking the car to the dealer confirmed eligibility, and the repair was completed for free, saving a quoted $800-$1000.

Model Year Variations Within This Range

• 2019-2020 (1.6L T-GDI Only): According to TSB FUE061 Rev 1, the diagnostic procedure varies slightly. For the 2016-2018 1.6L and all 2.0L/2.4L models, diagnosis involves a KDS scan tool actuation test if the P1233 code is not present. For the 2019-2020 1.6L models, the procedure directs the technician to perform a manual fuel pressure gauge test if the code is not present, rather than the KDS actuation test. The final repair remains the same.
