P1451 on 1997-2002 Ford Expedition: EVAP Vent Solenoid Circuit Malfunction Causes and Fixes

What's Unique About the 1997-2002 Ford Expedition

On the first-generation Ford Expedition and its F-150 and Navigator siblings, the P1451 code is notoriously caused by specific, well-documented wiring issues. The wiring harness for the vent solenoid, located near the spare tire, is highly susceptible to damage from moisture, road salt, and chafing against the frame. A second, equally common failure point is under the air filter housing in the engine bay, where the harness can rub through on a metal bracket, causing an open circuit in the Red/Yellow power wire. An inspection of these two areas is the critical first step before replacing any parts.

Symptoms You May Notice

• Check Engine Light is on.
• Vehicle will fail an emissions inspection.
• In rare cases, a 'whoosh' sound of pressure or vacuum may be heard when removing the gas cap.
• In rare cases, difficulty refueling (gas pump nozzle clicks off).

Most Likely Causes

1. Damaged or Corroded Wiring to Vent Solenoid 🔴 High Probability The wiring harness is routed in two known problem areas: along the frame rail near the spare tire where it's exposed to road debris and moisture, and under the air filter housing where it can chafe against a metal bracket. Forum users frequently report finding the Red/Yellow power wire severed under the air filter box.
   How to confirm: Visually inspect the wiring harness leading to the vent solenoid connector near the spare tire for breaks, corrosion, or chafing. Also, remove the air filter housing and inspect the harness that runs underneath it for any exposed or broken wires. A low voltage reading (e.g., ~2.6V as reported by a user on Ford-Trucks.com) on the power wire at the solenoid connector is a classic sign of a high-resistance open in the circuit. The power wire is typically Red/Yellow, and the control wire is Violet/White.
   Typical fix: Repair the broken or corroded section of the wire using a weatherproof butt connector or by soldering and sealing with heat shrink tubing.
   Est. part cost: $5-$15

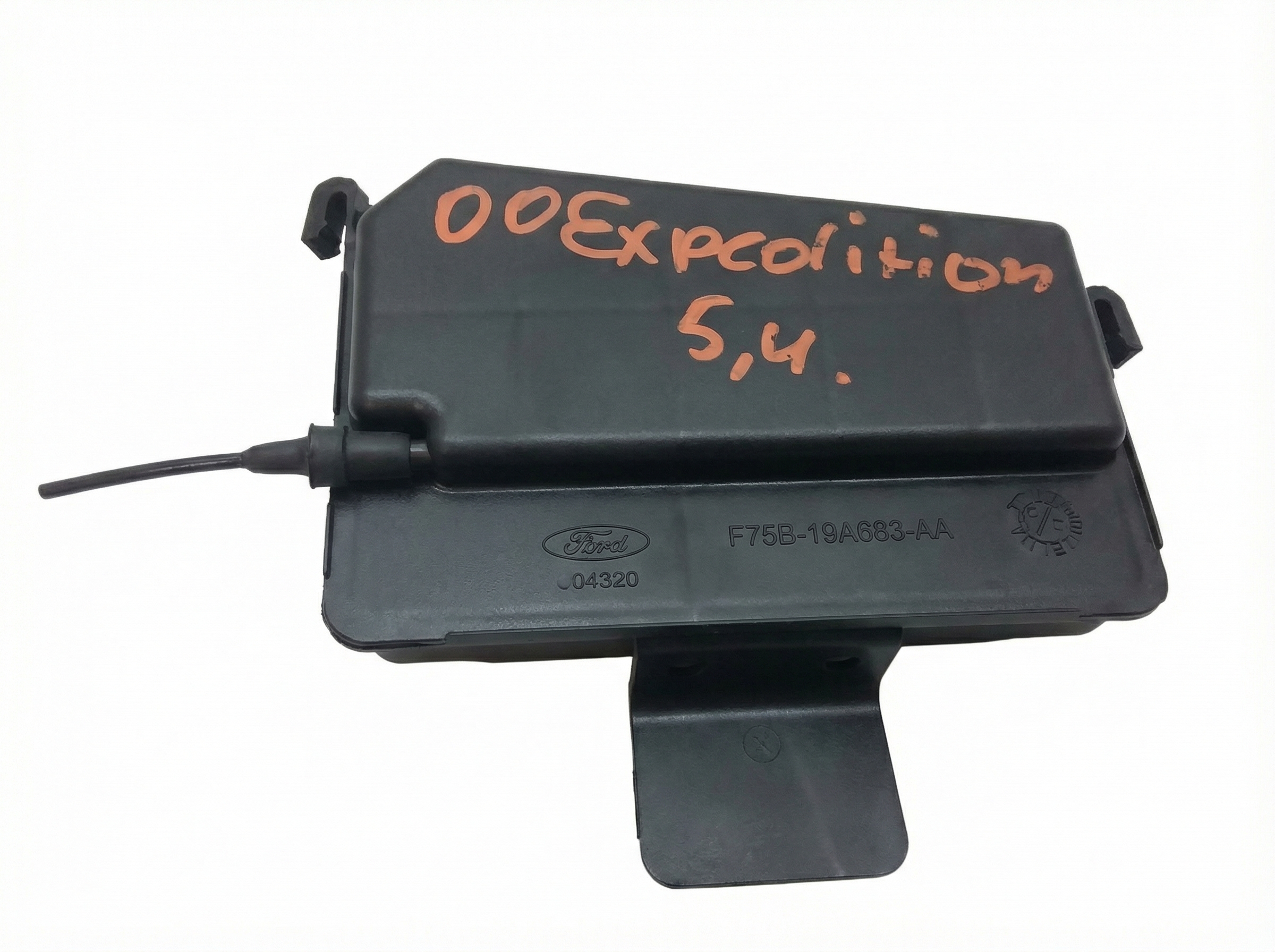

2. Failed EVAP Canister Vent Solenoid 🟡 Medium Probability → Shop Vapor Canister The solenoid is located under the truck near the spare tire, where it is exposed to the elements, leading to corrosion and internal coil failure over time.
   How to confirm: Disconnect the electrical connector and use a multimeter to measure the resistance across the two pins on the solenoid. A good solenoid should have a resistance between 48 and 65 ohms. If the reading is infinite (OL for Open Loop) or zero (shorted), the solenoid has failed. A user on Ford-Trucks.com measured a good solenoid at 54 ohms.
   Typical fix: Replace the EVAP canister vent solenoid. The Motorcraft OEM part number is F75Z-9F945-CA.
   Est. part cost: $25-$75
3. Corroded or Damaged Solenoid Connector ⚪ Low Probability The connector's location under the vehicle makes it prone to moisture and road salt intrusion, which can lead to corrosion of the pins and a poor connection. A YouTube video showed a 1997 F-150 where a completely corroded pin inside the connector was the cause.
   How to confirm: Visually inspect the inside of the electrical connector for green or white corrosion, or any broken plastic tabs. Ensure the pins are making solid contact.
   Typical fix: Clean the connector pins carefully. If heavily damaged, replace the connector pigtail. The Motorcraft pigtail connector is part number WPT-1080.
   Est. part cost: $10-$25

Rare But Worth Checking

• Damaged Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. All other possibilities, especially wiring and the solenoid itself, should be exhaustively ruled out before considering the PCM as the cause.

Diagnosis Steps

1. Verify the P1451 code is present using an OBD-II scanner.
2. Visually inspect the wiring harness leading to the EVAP canister vent solenoid, located near the spare tire. Look for any obvious signs of damage, corrosion, or wires chafing against the frame.
3. Remove the air filter housing and carefully inspect the wiring harness that runs underneath it for any signs of rubbing or broken wires. This is a very common failure point, specifically for the Red/Yellow wire.
4. If no wiring damage is found, disconnect the electrical connector from the vent solenoid.
5. Inspect the connector and solenoid pins for corrosion. Clean as necessary.
6. With the key on, engine off (KOEO), use a multimeter to check for battery voltage (approx. 12V) at the Red/Yellow wire on the harness connector. If voltage is low or absent, the open circuit is in this power wire, likely under the air filter housing.
7. Use a multimeter set to ohms to measure the resistance across the two pins of the vent solenoid itself. The reading should be between 48 and 65 ohms. If it is outside this range, the solenoid is faulty and needs to be replaced.
8. If wiring and the solenoid test good, check for continuity on the control wire (Violet/White) from the solenoid connector back to the PCM. A break in this wire will also set the code.

Parts You'll Likely Need

• EVAP Canister Vent Solenoid (OEM #F75Z-9F945-CA) — This is the component that the P1451 code directly monitors. If its internal coil fails (goes open or shorts) or the wiring to it is broken, this code will be set.
  Trusted brands: Motorcraft, Bosch, Delphi, Dorman
  OEM price range: $50-$90
  Aftermarket price range: $25-$70
• EVAP Vent Solenoid Connector Pigtail (OEM #WPT-1080) — If the electrical connector itself is damaged by corrosion or the locking tabs are broken, a new pigtail will be needed to ensure a solid electrical connection to the new solenoid.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $20-$35
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0443 — P0443 is a circuit fault for the EVAP Purge Solenoid. If a wiring harness is damaged, it's possible for the wires to both the purge and vent solenoids to be affected simultaneously, especially if the damage is near a shared connector or the PCM.
• P0135, P0155 — These codes indicate a fault in the O2 sensor heater circuits. On some Ford models, the power for the O2 heaters and the EVAP vent solenoid is supplied by the same fuse. A short circuit in the vent solenoid wiring can blow the fuse, causing all related codes to appear at once.

Platform-Specific Known Issues

• A common chafe point for the vent solenoid wiring exists under the air filter housing, where the harness can rub against a metal bracket, causing an open circuit.
• The wiring harness near the spare tire is prone to corrosion and physical damage from road debris and moisture.
• A user on Ford-Trucks.com reported finding the red power wire severed under the air filter housing after the code intermittently appeared and disappeared for two weeks. Moving the air filter box had temporarily re-established the connection. URL: https://www.ford-trucks.com/forums/1495919-p1451-driving-me-crazy.html

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Solenoid Resistance — expected: 48 to 65 Ohms. Failure: A reading of infinity (OL - Open Loop) or near-zero Ohms (short circuit).
• Voltage at Vent Solenoid Connector (Power Wire to Ground, KOEO) — expected: Approximately 12 Volts (Battery Voltage). Failure: A reading of 0V indicates a complete open in the power wire or a blown fuse. A low reading, such as 2.6V, indicates high resistance in the circuit, often from a corroded wire or poor connection.
• Voltage Drop on Control Wire (During Scan Tool Actuation) — expected: A minimum drop of 4 volts when the solenoid is commanded closed (100% duty cycle).. Failure: If the voltage does not drop significantly, it indicates the PCM driver is not grounding the circuit or there is an open in the control wire back to the PCM.
• Fuel Tank Pressure (FTP) Sensor Voltage (KOEO, Gas Cap Off) — expected: ~2.6 Volts. Failure: A significantly different voltage could indicate a biased sensor, though this would typically set other codes. This reading establishes a baseline for atmospheric pressure.

Hidden / Shadow Codes Worth Checking

• Mode $06, Test ID $82: This is not a separate DTC, but the specific on-board diagnostic monitor for the Canister Vent Solenoid circuit. A 'FAIL' result for this monitor test is what directly triggers the P1451 trouble code. (see via A professional scan tool or a high-end DIY scanner with the ability to read Mode $06 data.)

Scan Tool Commands That Help

• Ford IDS, FORScan, or other capable bidirectional scanner: Output State Control / Active Command: EVAPCV (EVAP Canister Vent) — This command allows a technician to manually toggle the vent solenoid on and off. It is used to listen for an audible 'click' from the solenoid to confirm mechanical function and to test the electrical circuit's response (voltage drop) without needing to run a full EVAP drive cycle.

Wiring & Ground Locations

• G101 — Right side of the engine compartment, near the battery, on the body.. This is a primary ground point for many components in the engine bay, including the PCM. While not the direct ground for the EVAP solenoid itself, a poor connection here can cause a wide range of difficult-to-diagnose electrical issues and codes.
• Canister Vent Solenoid Connector (e.g., C429) — Connected to the EVAP canister vent solenoid, located under the vehicle near the spare tire and fuel tank.. This is the connector where all circuit tests (voltage, resistance) are performed. The power wire is typically Red/Yellow and the control wire is Violet/White. Damage or corrosion on its pins is a common cause of P1451.

Real Owner Repair Stories

• Ford Truck Enthusiasts Forums user 'nepa-expedition' (Ford Expedition (year not specified, but thread is from 2006)) — P1451 trouble code.
  ❌ Tried (didn't work) Testing the solenoid resistance (measured 54 ohms, which is within the good range).
  ✅ What actually fixed it The diagnostic revealed the true fault: measuring only 2.59 volts on the power wire at the solenoid connector. This pointed to a high-resistance open in the wiring harness, not a failed solenoid.
• YouTube video by 'SpanishGuyGarage' cited on f150forum.com (1997 Ford F-150 5.4L) — P1451 trouble code.
  ❌ Tried (didn't work) Initial assumption was a bad solenoid.
  ✅ What actually fixed it The cause was a completely corroded and broken pin inside the electrical connector for the vent solenoid. The solenoid itself tested good, but the connector was no longer making contact, requiring a new pigtail to be spliced in.
• f150forum.com user report (1999 Ford F-150 4.2L V6) — P1451 code and no voltage at the vent solenoid.
  ❌ Tried (didn't work) Checking for wiring damage near the solenoid at the rear of the truck.
  ✅ What actually fixed it The owner traced the power wire all the way to the engine bay and discovered the red wire was severed where the main harness passes over a metal bracket directly under the air filter housing. Repairing the wire at this known chafe point resolved the code.

"I Checked Everything" — The Actual Cause

• P1451 is an electrical circuit malfunction code, not a system leak code. Performing a smoke test is a common misdiagnosis because it is designed to find physical leaks (which set codes like P0442 or P0455), not electrical faults. A smoke test on a vehicle with only a P1451 code will show no leaks, as the problem lies in the wiring, the solenoid's coil, or the PCM's driver circuit, none of which can be found with smoke.

When the Usual Fixes Don't Work

• While replacing the vent solenoid is a common fix, it should not be the first step. A forum user provided a textbook example of proper diagnosis: they first tested the solenoid and found its resistance was good (54 ohms). Instead of stopping, they proceeded to test the power wire at the connector and found only 2.59V instead of the required 12V. This correctly pointed to a high-resistance wiring issue as the root cause, saving them from replacing a perfectly good part. This proves the importance of following the diagnostic steps and testing the circuit before replacing components.

OEM Part Supersession History

• F75Z-9F945-BA → F75Z-9F945-CA — Standard part revision by the manufacturer.

Model Year Variations Within This Range

• 1999-2002: For the 1999 model year, Ford updated the 5.4L V8 engine, increasing its output from ~230 hp to ~260 hp. The front grille and bumper were also cosmetically changed. The core EVAP system components and wiring locations related to P1451 remained consistent with the earlier 1997-1998 models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Spark Plug Ejection (Blowout) 🔴 High — A widely documented issue for the 2-valve 5.4L engine. The cylinder heads have insufficient threads, causing spark plugs to be ejected, damaging the threads and coil packs. It can happen at any mileage but is more likely if plugs have been replaced without using the updated torque specification. (Ref: Ford issued TSBs (e.g., 08-7-6) with updated torque specs and repair procedures for damaged threads.)
• Cracked Plastic Intake Manifold 🟠 Medium — Very common on 1999-2001 models. The original all-plastic intake manifold is prone to cracking at the front coolant crossover, causing coolant leaks, overheating, and potential misfires. Failure often occurs after 100k miles. (Ref: Ford later released a redesigned manifold with an aluminum crossover to solve the issue.)
• Failing HVAC Blend Door Actuator 🟡 Low — Extremely common. The plastic gears inside the actuator fail, causing a repetitive clicking or tapping sound from behind the dashboard when changing temperature settings. It is an annoyance rather than a critical failure.
• Leaking Valve Cover Gaskets 🟡 Low — Common oil leak point as the vehicle ages. Gaskets become hard and brittle, allowing oil to seep out, most noticeably onto the exhaust manifolds.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used EVAP canister vent solenoid from a junkyard can be a viable, cost-saving option, especially if sourced from a vehicle with lower mileage and from a dry, non-salt-belt climate to minimize the risk of corrosion.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the electrical pins inside the connector port for any green or white corrosion.
• Inspect the plastic housing for cracks or extreme brittleness.
• If you have a multimeter with you, test the resistance across the two pins; it should be between 48 and 65 ohms.
• Ensure the donor vehicle was not in a severe rear-end collision that could have damaged the component.

OEM-only on this vehicle (don't cheap out):

• For this specific P1451 repair, no parts are strictly 'OEM-only'. The solenoid and its connector are relatively simple components.

Aftermarket brands forum-validated for this vehicle:

• Dorman
• Standard Motor Products (SMP)

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P1450 — Often mentioned alongside P1451 in Ford forums, this relates to the EVAP system's ability to control vacuum, whereas P1451 specifically targets the vent solenoid electrical circuit.
