P1451 on 2002-2005 Ford Explorer: EVAP Vent Solenoid Circuit Fault Causes and Fixes

What's Unique About the 2002-2005 Ford Explorer

On this generation of Ford Explorer, the P1451 code is most frequently triggered by a simple wiring failure. The harness for the vent solenoid is routed near the spare tire and along the frame rail, where it is exposed to moisture, road debris, and chafing. Over time, the wires, particularly at the connector, tend to corrode and break, causing an open circuit that triggers the code. This is a well-documented issue on many Ford trucks and SUVs from this era, with many owners on forums confirming that repairing broken wires right at the solenoid connector solved the problem.

Symptoms You May Notice

• Check Engine Light is on
• Inability to pass an emissions inspection
• A 'Check Fuel Cap' light may illuminate on some models, even if the cap is not the issue.

Most Likely Causes

1. Damaged or Corroded Wiring to Vent Solenoid 🔴 High Probability The wiring harness is located in an exposed area under the rear of the vehicle, making it susceptible to damage from road debris, moisture, and chafing against the frame or spare tire carrier. Wires often break right at the connector due to stress and corrosion.
   How to confirm: Visually inspect the entire length of the wiring harness leading to the canister vent solenoid, which is located near the charcoal canister by the spare tire. Pay close attention to the connector for green corrosion or broken wires. Gently tug on the wires (typically a Red/White power wire and a Violet/White control wire) at the connector to see if they are broken internally. With the key on, you should have ~12V at the Red/White wire.
   Typical fix: Repair the broken or corroded section of wire. This often involves splicing in a new piece of wire and sealing the repair with heat-shrink tubing. Replacing the connector pigtail (Dorman P/N 645-212) is necessary 🎬 Watch: How to diagnose and fix a Ford P1451 wiring issue if the corrosion is severe or the wires are broken flush with the connector.
   Est. part cost: $10-$30

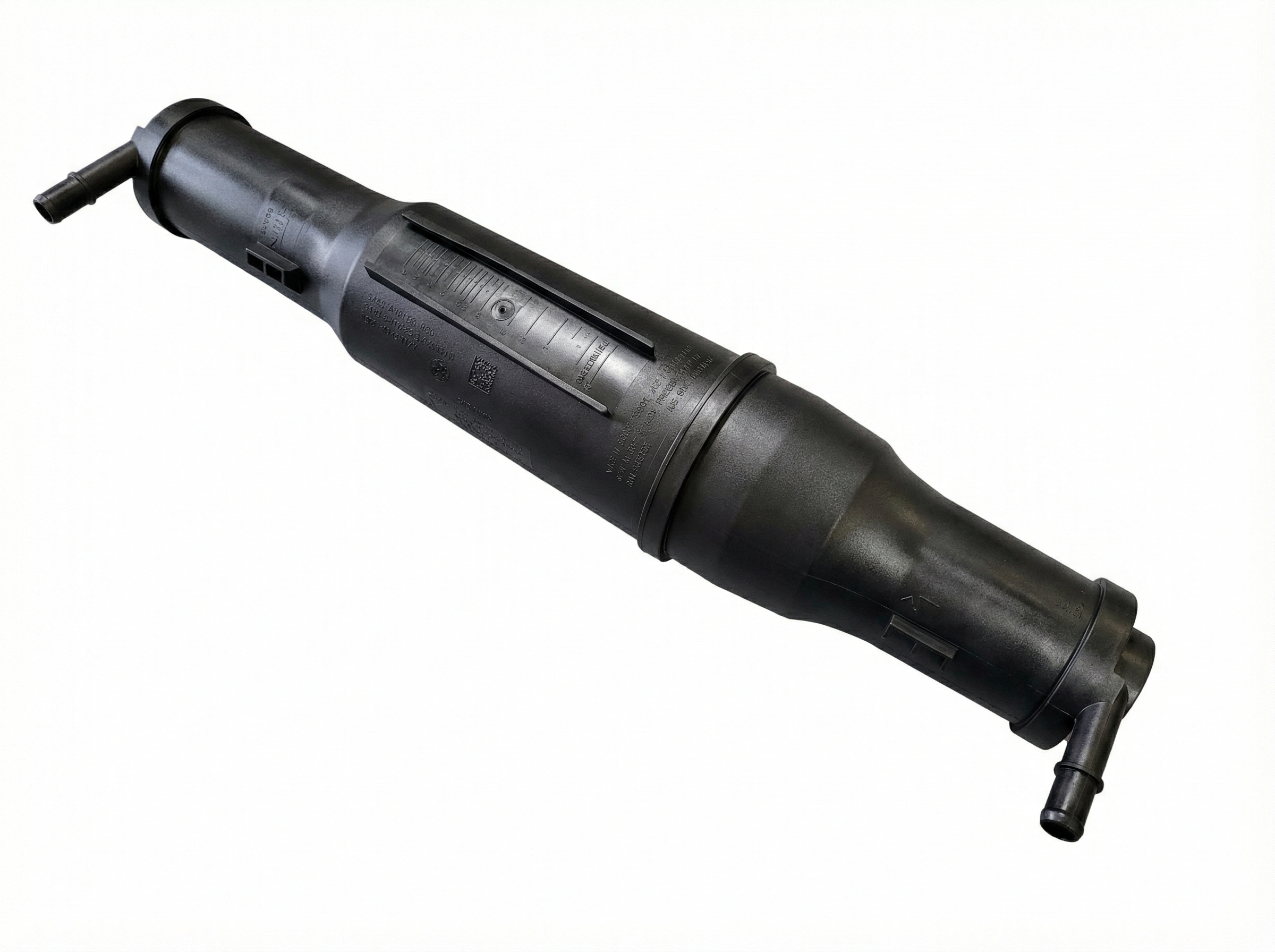

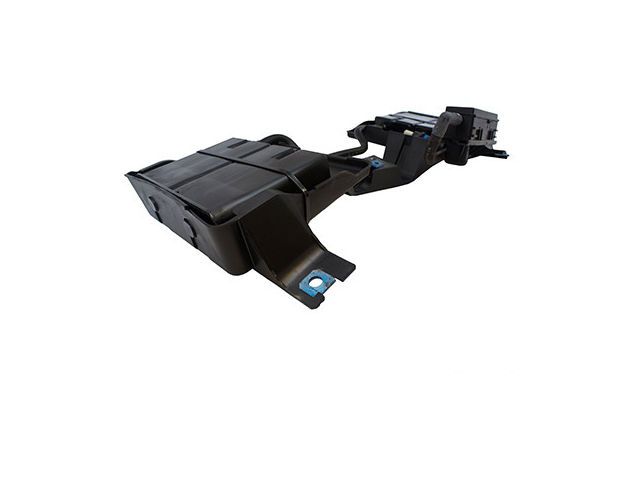

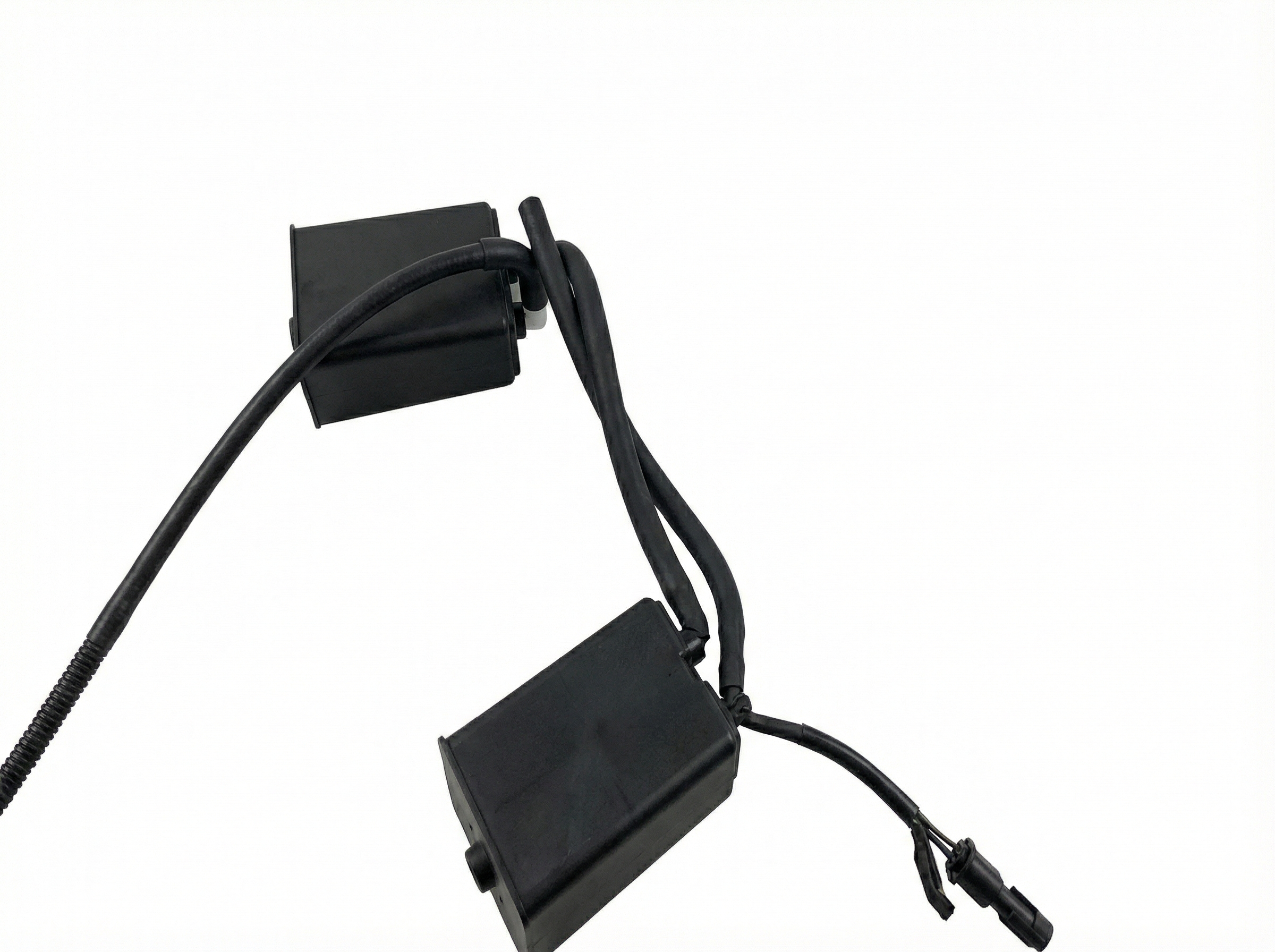

2. Failed EVAP Canister Vent Solenoid 🟡 Medium Probability → Shop Vapor Canister The solenoid is an electromechanical valve that can fail internally over time due to age, heat cycles, and exposure to the elements. The internal coil can develop an open or short circuit.
   How to confirm: After confirming the wiring is intact, test the solenoid's resistance with a multimeter. Disconnect the solenoid and measure the resistance across its two pins. A functional solenoid should measure between 48 and 65 ohms. A reading of infinity (O.L.) indicates an open coil, while a reading near zero indicates a short. You can also try applying 12V and ground directly to the solenoid pins to see if it makes an audible 'click'.
   Typical fix: Replace the canister vent solenoid. It is typically mounted on or near the charcoal canister.
   Est. part cost: $25-$75

Rare But Worth Checking

• Blown Fuse: On some models, the power wire for the vent solenoid shares a fuse with other components, such as the O2 sensor heaters. Check fuse #41 (15A) in the battery junction box.
• Damaged Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare and should only be considered after all wiring and component tests have been exhaustively performed by a qualified technician.

Diagnosis Steps

1. Verify the code with an OBD-II scanner.
2. Check fuse #41 (15A) in the under-hood fuse box (Battery Junction Box).
3. Locate the EVAP canister and vent solenoid near the fuel tank and spare tire.
4. Perform a thorough visual inspection of the wiring harness leading to the vent solenoid. Look for any signs of chafing, breaks, or green corrosion, especially at the connector. Gently pull on the wires at the connector to check for breaks inside the insulation.
5. If wiring appears damaged, repair it and clear the code. Splicing a new connector pigtail is a common and durable fix.
6. If the wiring looks good, disconnect the solenoid and test its internal resistance with a multimeter. The reading should be between 48 and 65 ohms.
7. If the resistance is out of specification, replace the canister vent solenoid.
8. If the resistance is within specification, check for power at the connector. With the key in the 'ON' position (engine off), the Red/White wire should have battery voltage (~12V) when measured to a good chassis ground. If there is no voltage, trace the wire back towards the fuse box to find the break.
9. If power is present and the solenoid tests good, the fault lies in the control wire (often Violet/White) or, in very rare cases, the PCM driver circuit.

Parts You'll Likely Need

• EVAP Canister Vent Solenoid (OEM #6L2Z-9F945-AA) — This solenoid is the component monitored by the P1451 circuit code. If its internal coil fails (tests open or shorted), it must be replaced.
  Trusted brands: Motorcraft, Dorman (911-105), Standard Motor Products (CVS17) 🎬 See this video on common causes and fixes for Ford P1451
  OEM price range: $80-$140
  Aftermarket price range: $25-$75
• Vent Solenoid Connector Pigtail (OEM #Not typically sold by Ford; aftermarket is common.) — Often the wiring fails right at the connector due to corrosion and stress. Replacing the connector pigtail is the most effective repair. A common aftermarket part is Dorman 645-212.
  Trusted brands: Dorman, Standard Motor Products
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0135, P0141, P0155, P0161 — On some Ford models, the power wire (VPWR) for the vent solenoid is on the same fused circuit as the oxygen sensor heaters. A short circuit in the vent solenoid wiring can blow the fuse, causing O2 sensor heater circuit codes to appear simultaneously.

Platform-Specific Known Issues

• Wire Break at Connector: Numerous owners on Ford-trucks.com and Explorerforum.com report finding the wires for the vent solenoid broken right where they enter the plastic connector. One user on Ford Truck Enthusiasts noted, 'Mine is rusty, and neither wiring lead was connected to the solenoid, they were both broken off about 1/4" outside of the connector.' This is the first place to look.
• Difficult Canister Cover Removal: A forum member noted that on their Explorer, the fasteners for the charcoal canister cover were installed from the top, making it very difficult to remove the cover to access the solenoid. They were able to access the solenoid through a hole in the cover without fully removing it.

Mechanic-Grade Diagnostic Values

• Scan Tool PID: EVAPCV (Duty Cycle) — expected: 0% when valve is commanded open; approaches 100% when commanded closed.. Failure: The PCM flags P1451 if the measured circuit voltage doesn't match the expected voltage for the commanded duty cycle.
• Scan Tool PID: EVAPCV (Voltage) — expected: Approximates battery voltage when valve is open (0% duty cycle).. Failure: When the valve is commanded fully closed (100% duty cycle), a voltage drop of less than 4 volts indicates a fault in the control circuit or solenoid.
• Control Wire Voltage (Solenoid Connected, KOEO) — expected: Should read battery voltage (~12V) when the solenoid is inactive, as power passes through the coil.. Failure: A reading of 0V could indicate a short to ground on the control wire or an open solenoid coil.

Scan Tool Commands That Help

• Ford IDS (or equivalent bidirectional scanner): EVAP Canister Vent Solenoid On/Off Command (Output Test Mode) — Use this active command to manually open and close the vent solenoid. You should hear an audible click from the solenoid. This allows you to verify PCM control and solenoid function while monitoring circuit voltage.

Wiring & Ground Locations

• EVAP Canister Vent Valve — Right rear of the vehicle, mounted on or near the charcoal canister, above the spare tire.. This is the primary component and wiring location for diagnosing P1451.
• Powertrain Control Module (PCM) — At the right side engine bulkhead.. The control wire for the vent solenoid terminates here. This is the last place to check for issues if all wiring and components test good.
• G101 / G103 / G104 — G101: Left front of engine compartment. G103: Right front of engine compartment. G104: Right rear of engine compartment.. These are primary engine and chassis ground points. While not directly for the solenoid, a poor ground at these locations can cause various electrical issues and unpredictable behavior in the PCM and its controlled circuits.
• Solenoid Polarity — At the vent solenoid connector.. The vent solenoid is a simple DC coil. It is not polarized, meaning it does not matter which wire is connected to which pin when splicing a new connector pigtail.

Real Owner Repair Stories

• Ford Truck Enthusiasts Forums (2000 Ford Explorer 5.0) — Check Engine Light with code P1451.
  ❌ Tried (didn't work) Initially misdiagnosed and inspected the purge solenoid under the battery tray., Replaced the vent solenoid with a new one, but the code returned immediately after clearing.
  ✅ What actually fixed it The user discovered both wires leading to the vent solenoid connector were broken off about 1/4-inch from the connector itself. The fix was to remove the pins from the connector, re-crimp the wires onto the pins, and reinstall them. The original solenoid tested good at 56 ohms.

"I Checked Everything" — The Actual Cause

• A smoke test is not the correct initial diagnostic step for P1451, as it is an electrical circuit code, not a system leak code. Technicians expect a smoke test to pass (show no leaks). The actual cause is almost always an open or short in the wiring (like a broken wire at the connector) or a failed solenoid coil, which a smoke test cannot detect.

OEM Part Supersession History

• F75Z-9F945-CA → 6L2Z-9F945-AA (Motorcraft CX2082) — Part number consolidation and design updates over vehicle generations.
  Heads up: While the OEM part number listed for the 2002-2005 Explorer is 6L2Z-9F945-AA, the earlier F75Z-9F945-CA from the previous generation Explorer/F-150 is physically similar and may be encountered. Always verify fitment using the vehicle's VIN.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Rear Liftgate Panel 🟠 Medium — Extremely common. The plastic appliqué below the rear window cracks, often starting from the Ford emblem. This can allow water intrusion, damaging the liftgate latch or causing the rear glass to shatter. (Ref: Multiple TSBs issued (e.g., 02-25-6, 04-8-5) and subject of a class-action lawsuit.)
• 4.0L SOHC V6 Timing Chain Cassette Failure 🔴 High — A well-known and feared issue. Plastic timing chain guides wear out or break, typically causing a 'rattling' noise from the engine, especially on startup or at certain RPMs. Failure to repair leads to catastrophic engine damage. Often occurs between 90,000 and 150,000 miles.
• 5R55W/S Transmission Failures 🔴 High — Common around 100,000 miles. Symptoms include harsh shifting, delayed engagement into Drive or Reverse, loss of gears (especially 2nd/5th), and a flashing O/D light. Often caused by a failed solenoid pack or worn servo bores in the transmission case.
• Rear Wheel Bearing Failure 🟠 Medium — Common at higher mileage. Presents as a loud humming or grinding noise from the rear of the vehicle that changes with speed. The hub assembly can be difficult to remove due to corrosion.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used EVAP vent solenoid from a junkyard is a reasonable choice for this repair, as it is a simple, durable electromechanical part. Given the high probability of the issue being wiring-related, it's wise to test the original solenoid before buying a replacement. If the solenoid is indeed bad, a used part is a cost-effective option.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Inspect the plastic housing for cracks or significant heat damage.
• Check the electrical pins inside the connector port for any signs of corrosion (green or white powder) or breakage.
• If possible, bring a multimeter to the junkyard and test the resistance of the donor solenoid. It should be between 48 and 65 ohms.
• Look for a donor vehicle from a dry, non-salt-belt region to minimize the chance of corrosion.

Aftermarket brands forum-validated for this vehicle:

• Dorman
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• No specific brands are consistently reported as problematic for this part, but ultra-low-cost, unbranded parts from online marketplaces may have questionable quality control.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
