P1507 on 1998-2002 Subaru Forester: Idle Control Malfunction Causes and Fixes

What's Unique About the 1998-2002 Subaru Forester

On this generation of Subaru, the P1507 code has a few platform-specific quirks. While a dirty IAC valve is the primary cause, as on many vehicles from this era, manual transmission models have a uniquely high failure rate of the neutral safety switch, which directly inputs to the idle control logic. A faulty switch can trick the ECU into thinking the car is always in gear, leading to stalling when the clutch is depressed. 🎬 Watch: Why your Subaru stalls when shifting or in neutral. Additionally, poor engine ground connections were common enough that a Technical Service Bulletin (TSB) was reportedly issued, making grounding issues a more likely cause on these Foresters than on other vehicles.

Symptoms You May Notice

• Engine stalling when coming to a stop, decelerating, or shifting into neutral
• Rough, unstable, or surging idle
• Very low idle (e.g., ~300 RPM) or a very high, fixed idle (fail-safe mode, often >1000 RPM)
• Jerking or hesitation when lifting off the throttle
• Check Engine Light is on
• Difficulty passing emissions tests due to unset readiness monitors

Most Likely Causes

1. Dirty or Sticking Idle Air Control (IAC) Valve 🔴 High Probability → Shop Idle Air Control Valve The crankcase ventilation system can deposit oil and carbon buildup into the air intake tract over time, causing the rotary shutter inside the IAC valve to stick. This prevents it from making the fine adjustments needed to control idle speed.
   How to confirm: Remove the IAC valve from the throttle body (typically held by two Phillips screws). Manually actuate the internal shutter; it should move freely without sticking. If it's visibly coated in black carbon or feels gummy, this is the likely cause.
   Typical fix: Thoroughly clean the valve's internal components and the port on the throttle body with throttle body cleaner or carburetor cleaner until the shutter moves freely. Use Q-tips to remove heavy deposits. Always replace the metal gasket 🎬 See this step-by-step guide to cleaning your EJ engine IACV. upon reinstallation to prevent vacuum leaks.
   Est. part cost: $5-$15 for cleaner and a new gasket.
2. Faulty Neutral Safety Switch (Manual Transmission Only) 🔴 High Probability The switch, located on the transmission, informs the ECU whether the car is in gear or in neutral to adjust idle strategy. These switches are a known, high-failure point on this platform and can fail without warning.
   How to confirm: The switch can be tested with a multimeter for continuity. When the transmission is in neutral, the switch's internal plunger is depressed, and the circuit should be closed (continuity). When in any gear, it should be open (no continuity). A worn tip or internal failure can prevent it from actuating correctly. The connector is typically brown and located in the engine bay near the firewall, passenger side.
   Typical fix: Replace the neutral safety switch on the transmission. It is located on the right (passenger) side of the transmission, toward the rear. The reverse light switch is nearby, so be sure to identify the correct one (the neutral switch is typically the rear-most of the two).
   Est. part cost: $30-$50 for an aftermarket switch, $50-$70 for an OEM part.
3. Vacuum Leak 🟡 Medium Probability

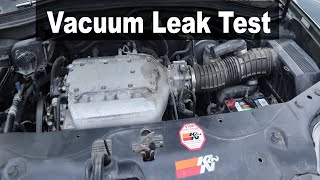

   How to confirm: With the engine running, spray short bursts of brake cleaner or a propane torch (unlit) around vacuum lines, the throttle body base, and intake manifold gaskets. If the engine idle changes, you've found the leak. Pay close attention to the PCV hoses and the small vacuum hose that runs to a sensor near the passenger side strut tower. 🎬 Watch: A quick 6-minute guide to testing for vacuum leaks.
   Typical fix: Replace the cracked or disconnected vacuum hose. If the leak is from a gasket (like the IAC valve or throttle body gasket), the component must be removed and the gasket replaced.
   Est. part cost: $5-$30 for hoses or gaskets.
4. Poor Engine Ground Connection ⚪ Low Probability Corrosion on main engine-to-chassis ground straps can cause a variety of electrical faults, including erratic sensor readings that confuse the ECU. The main ECU ground is on the intake manifold, so a poor connection between the block, manifold, and chassis is a known issue.
   How to confirm: Inspect the main ground straps from the engine to the chassis for corrosion, fraying, or looseness. Key locations are the strap from the battery negative terminal to the chassis and the grounds on the intake manifold. Use a multimeter to check for a voltage drop between the battery negative terminal and the engine block; it should be less than 0.1 volts.
   Typical fix: Remove, clean, and securely re-fasten all main ground points. This may involve sanding the contact points to bare metal. Some owners add supplementary grounding kits to provide a more robust connection.
   Est. part cost: $0-$20 for cleaning supplies or new straps.
5. Failed Idle Air Control (IAC) Valve ⚪ Low Probability → Shop Idle Air Control Valve
   How to confirm: If cleaning the valve does not resolve the issue, test the internal solenoid windings. Using a multimeter, check the resistance between the center pin and each of the outer two pins on the valve's connector. A reading of approximately 9-11 ohms is expected. A reading of infinity (OL) or zero indicates a failed winding.
   Typical fix: Replace the IAC valve and gasket.
   Est. part cost: $60-$150 for an aftermarket valve, $250-$450 for OEM.

Rare But Worth Checking

• Faulty Vehicle Speed Sensor (VSS): This is an uncommon cause, but worth considering if you are also experiencing a non-functional speedometer along with the P1507 code. A failed VSS can confuse the ECU's idle logic, especially during deceleration, as it doesn't know the car is coming to a stop.
• Faulty Engine Control Unit (ECU): This is extremely rare. Before condemning the ECU, all other possibilities (IAC valve, wiring, grounds, vacuum leaks, and other sensors) must be exhaustively ruled out.

Diagnosis Steps

1. Read all stored fault codes. Note if any other codes, like P0507, are present.
2. Clean the IAC Valve: This is the most common fix. Remove the IAC valve from the passenger side of the throttle body (2 Phillips screws). Thoroughly clean the valve and throttle body port with carburetor cleaner and a soft brush or Q-tips. Replace the metal gasket. After reinstallation, you may need to perform an idle relearn procedure (disconnect battery for 30 mins, start and idle for 10 mins).
3. (Manual Transmission Only) Test the Neutral Safety Switch: Locate the brown connector near the passenger side firewall. Disconnect it and test the switch for continuity with a multimeter. It should have continuity only when the shifter is in neutral. If it fails, replace the switch on the transmission.
4. Inspect for Vacuum Leaks: With the engine running, carefully spray starter fluid or brake cleaner around all vacuum hoses, the intake manifold, and throttle body gaskets. Listen for any change in engine RPM, which indicates a leak.
5. Inspect and Clean Grounds: Check the main engine-to-chassis ground straps and the ground points on the intake manifold. Ensure they are tight and free of corrosion. Clean contact points to bare metal if necessary.
6. Test the IAC Valve Electrically: If cleaning didn't work, test the IAC valve's resistance. Check between the center pin and each outer pin on the valve's connector; look for a reading around 9-11 ohms. If it's out of spec, the valve has failed internally.
7. If the speedometer is also malfunctioning, investigate the Vehicle Speed Sensor (VSS) circuit.
8. If all other steps fail, the issue may lie in the wiring harness between the ECU and the IAC valve, or in a very rare case, the ECU itself.

Parts You'll Likely Need

• Idle Air Control Valve Gasket (OEM #22659AA120) — The gasket must be replaced whenever the IAC valve is removed for cleaning or replacement to prevent vacuum leaks. The old one is often deformed and will not seal properly.
  Trusted brands: Genuine Subaru, Fel-Pro, Mahle
  OEM price range: $8-$15
  Aftermarket price range: $3-$10
• Neutral Safety Switch (Manual Transmission) (OEM #32008AA074) — This is a very common failure point on manual transmission models that directly causes code P1507. This part number supersedes older versions like 32008AA071, 32008AA072, and 32008AA073.
  Trusted brands: Genuine Subaru, Standard Motor Products (SMP), Beck/Arnley
  OEM price range: $35-$70
  Aftermarket price range: $30-$50

Related Codes That Often Appear With This One

• P0507 — P0507 means 'Idle Air Control System RPM Higher Than Expected'. This code can appear with P1507 if the ECU's 'fail-safe' response to the P1507 fault is to command a fixed high idle.

Technical Service Bulletins (TSBs) & Recalls

• A TSB for poor engine ground connections has been mentioned by owners in forums as a fix for this code, though the specific TSB number is not widely documented for this generation. A later TSB for 2012-2014 models, 07-96-15, addresses poor grounding from flimsy crimps in the engine harness, showing a history of grounding-related issues in Subarus.

Platform-Specific Known Issues

• Owner Experience: Neutral Switch Fix: Multiple owners report chasing the P1507 code by cleaning the IAC valve multiple times, only to find the true culprit was the neutral safety switch. One detailed guide shows removing the airbox to access the brown connector for the switch, confirming it's a common and often overlooked solution.
• Owner Experience: IAC Cleaning Success: A forum user on UltimateSubaru.org documented their P1507 fix after a head gasket job. They found the IAC valve was gummed up with crankcase crud. After a thorough cleaning with electrical contact cleaner, the valve moved freely and the code was resolved.

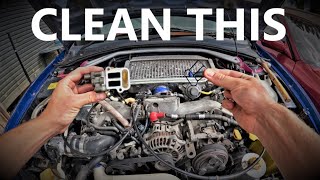

• Video Guide: IACV Cleaning on Impreza RS: A YouTube video for a similar-engine Impreza RS clearly shows the location of the IAC valve, the two screws holding it, and the amount of black carbon buildup inside that causes the code. The video emphasizes cleaning both the valve and the port on the throttle body.

Mechanic-Grade Diagnostic Values

• IAC Valve Solenoid Resistance — expected: ~9-13 Ohms between the center pin (Pin 2) and each outer pin (Pin 1 and Pin 3).. Failure: A reading of infinity (OL) indicates an open coil, while a reading near zero indicates a shorted coil.
• IAC Valve Connector Voltage (Key On, Engine Off) — expected: Battery voltage (~12V) at the center pin (Pin 2).. Failure: No voltage suggests a problem with the power supply from the main relay or a blown fuse.
• Neutral Safety Switch Continuity (Manual Transmission) — expected: Continuity (near 0 Ohms) when the transmission is in neutral. No continuity (OL) when in any gear.. Failure: No continuity in neutral, or continuity when in gear, indicates a faulty switch.

Scan Tool Commands That Help

• Subaru Select Monitor (SSM) or equivalent professional scan tool: Idle Air Control Valve Duty Cycle / Step Count — To observe if the ECU is attempting to command the IAC valve. If the duty cycle percentage or step count changes as the engine warms up or when electrical loads are applied, but the idle RPM does not respond, it points to a stuck/failed valve or a vacuum leak rather than an electrical issue.
• Subaru Select Monitor (SSM) or equivalent professional scan tool: Idle Speed Target vs. Actual RPM — This data display allows a technician to see the ECU's desired idle speed versus the actual speed measured by the crankshaft sensor. A large discrepancy confirms the ECU is aware of the idle control problem and helps differentiate between a control issue (P1507) and other problems causing a rough idle.

Wiring & Ground Locations

• IAC Valve Connector (E7) — On the Idle Air Control Valve, passenger side of the throttle body.. This is the primary connection for testing the IAC valve. Pin 2 is the +12V power supply from the main relay. Pins 1 and 3 are the control lines that the ECU pulses to ground to open and close the valve.
• Neutral Safety Switch Connector — A brown, 2-pin connector located in the engine bay near the passenger-side firewall, often clipped next to the grey reverse light switch connector.. Provides easy access to test the neutral safety switch without raising the vehicle. A fault here directly causes P1507 on manual transmission models.
• Main Engine Ground — The primary engine-to-ECU ground is located on the intake manifold, typically a collection of wires bolted near the pitch stop mount (dog bone).. Corrosion or looseness at this specific point can cause erratic voltage for all engine sensors, including the IAC valve, leading to intermittent and hard-to-diagnose P1507 faults.

Real Owner Repair Stories

• TheDIYGuyDOTnet on YouTube (2001 Subaru Legacy 2.5L (Manual)) — Check Engine Light with P1507, unable to pass emissions because readiness monitors would not set.
  ❌ Tried (didn't work) Previous shops had replaced idle speed control motors and various solenoids.
  ✅ What actually fixed it Replacing the faulty neutral safety switch on the manual transmission. The old switch was failing to signal 'neutral' to the ECU.
• YouTube user comment on "Subaru legacy warm idle fix P1507" (1999 Subaru Legacy 2.2L) — P1507 code, funky idle when warm.
  ❌ Tried (didn't work) Cleaning the IAC valve and replacing the gasket.
  ✅ What actually fixed it Found a small, hard-to-see crack in the vacuum hose running to the IAC valve. Temporarily taping it and adding a clamp fixed the idle, confirming the hose needed replacement.
• NASIOC forum user (Subaru with EJ engine) — P1507 after a head gasket job.
  ❌ Tried (didn't work) Initial inspection of connections.
  ✅ What actually fixed it A thorough cleaning of the IAC valve. The user noted the valve felt slightly resistant when turned by hand before cleaning, and moved completely freely after being cleaned with electrical contact cleaner, which resolved the code.

"I Checked Everything" — The Actual Cause

• In some cases, a smoke test may not reveal a very small crack or split in a vacuum hose, particularly the small diameter hose leading to the PCV system or IAC valve. These leaks may only open up under specific temperature or vibration conditions. A meticulous visual inspection and manual flexing of all vacuum hoses is sometimes required even after a clean smoke test.

OEM Part Supersession History

• 32008AA071, 32008AA072, 32008AA073 → 32008AA074 — Internal design improvements for durability.
  Heads up: The newer part number is a direct replacement for the older versions on the specified models.
• 22650AA181, 22650AA182 → 22650AA18B (and others) — Minor revisions to the internal motor and materials.
  Heads up: While many valves look similar, there were changes to the gasket shape and electrical connector around the 1999-2000 model years. It is critical to order the IAC valve and gasket specific to the vehicle's model year to ensure proper fit and prevent vacuum leaks.

Model Year Variations Within This Range

• 1998-1999 (Phase 1 SOHC EJ25): The early first-generation Foresters used an IAC valve with a specific gasket shape and electrical connector. This may differ from the valve used on the 2000-2002 models with the Phase 2 SOHC EJ25 engine.
• 2000-2002 (Phase 2 SOHC EJ25): The IAC valve and corresponding gasket were updated. Using a valve or gasket from an earlier year will result in a vacuum leak or an incompatible electrical connection. Always verify the part by VIN or specific model year.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Head Gasket Failure 🔴 High — Extremely common, often occurring between 60,000 and 150,000 miles. The SOHC EJ25 engines in these years are notorious for external oil and coolant leaks from the head gaskets. (Ref: Subaru issued a fix involving a "coolant conditioner" which was largely a temporary measure. The permanent fix involves replacing the original single-layer gaskets with multi-layer steel (MLS) gaskets.)
• Wheel Bearing Failure 🟠 Medium — Owners report premature and repeated failure of front and rear wheel bearings, sometimes in as little as 10,000 miles after replacement.
• Transmission & Drivetrain Problems 🟠 Medium — Complaints include clutch chatter in manual models and shifting issues in automatic transmissions. On AWD models, binding in tight turns can indicate a failure of the center differential's viscous coupling.
• Oil Leaks (Oil Separator Plate) 🟡 Low — The plastic oil separator plate on the back of the engine block is known to leak oil. The fix requires removing the transmission to access and replace the plate with an updated metal version.
• Rusting Fuel Filler Neck 🟡 Low — The metal fuel filler neck is prone to rusting through, which can cause a fuel smell, difficulty filling the tank, and an evaporative emissions (EVAP) leak code.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used Neutral Safety Switch is a reasonable choice as it is a simple mechanical switch that can be easily tested for continuity with a multimeter before purchase. Other simple mechanical or electrical components like relays or tested sensors from a low-mileage donor can also be cost-effective.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a Neutral Safety Switch, check that the plunger at the tip is not excessively worn and moves freely.
• Inspect all electrical connectors for corrosion, brittleness, or broken locking tabs.
• Visually inspect vacuum hoses for any signs of cracking or hardening before purchasing.
• Ask for the mileage of the donor vehicle if possible.

OEM-only on this vehicle (don't cheap out):

• Engine Control Unit (ECU)

Aftermarket brands forum-validated for this vehicle:

• Standard Motor Products (SMP) for sensors and switches.
• Beck/Arnley for sensors and switches.
• Denso (often the Original Equipment Manufacturer).

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' Idle Air Control Valves from online marketplaces. Forum consensus indicates a very high rate of out-of-box failure or premature failure within weeks or months.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0507 — A direct companion code mentioned in the diagnostic steps. P0507 (Idle Air Control System RPM Higher Than Expected) is often triggered by the same IAC valve failures or sticking issues that cause P1507.
• P0171 — System Too Lean (Bank 1). This code can be caused by a vacuum leak, which is listed as a medium-probability cause for P1507. Unmetered air from a cracked hose or bad gasket disrupts the air-fuel ratio.
• P0500 — Vehicle Speed Sensor (VSS) Malfunction. The diagnostic steps suggest investigating the VSS circuit if the speedometer is also acting up, indicating its input is related to the idle control strategy that can trigger P1507.
• P0300 — Random/Multiple Cylinder Misfire Detected. A severe vacuum leak or a very unstable idle caused by a faulty IAC valve can lead to misfires as the engine struggles to maintain a consistent RPM.
• P0420 — Catalyst System Efficiency Below Threshold. While not a direct cause, an engine running poorly for an extended period due to issues like vacuum leaks or incorrect idle control can lead to incomplete combustion, eventually damaging the catalytic converter and triggering this code.

Frequently Asked Questions
