P1621 on 2018-2026 Genesis G70: Explaining the Ambiguous Causes & Fixes

What's Unique About the 2018-2026 Genesis G70

The primary challenge with P1621 on the G70 is the lack of a clear definition from the manufacturer, a common issue for P1xxx codes. This ambiguity means a technician must be prepared to investigate three separate systems. While no TSBs directly link P1621 to the G70, the platform has known issues with its fuel delivery system, including recalls for the low-pressure fuel pump and TSBs for the high-pressure fuel pump, which could potentially trigger a general fuel system-related fault like P1621. The G70's close platform mate, the Kia Stinger, shares the same engines, transmissions, and much of its electrical architecture, meaning it can suffer from the same ambiguous faults.

Symptoms You May Notice

• Check Engine Light is on
• Engine may stall or hesitate (if fuel-related)
• Vehicle may not start (if immobilizer-related)
• Flashing security indicator light on the dashboard (if immobilizer-related)
• Air conditioning does not blow cold (if A/C-related)
• Vehicle may enter a reduced power 'limp mode'

Most Likely Causes

1. Immobilizer System Fault 🟡 Medium Probability This is a common definition for P1621 across the modern Hyundai/Kia family. Issues can arise from a dead key fob battery, a faulty smart key, a bad immobilizer antenna, or a communication error with the Smart Key Module (SMK).
   How to confirm: A professional scan tool will explicitly state an immobilizer or smart key error. A flashing security light on the dash is also a strong indicator. Trying a spare key or placing the key fob directly on the start button to bypass a weak signal can also help diagnose the issue.
   Typical fix: Replacing the key fob battery is the first step. If that fails, reprogramming the key, replacing the immobilizer antenna coil around the ignition/start button, or in rare cases, replacing the Smart Key Module may be necessary.
   Est. part cost: $5-$300
2. A/C Relay Circuit Fault 🟡 Medium Probability This is another possible definition for P1621 on Hyundai/Kia vehicles, often pointing to a simple relay failure in the engine bay fuse box.
   How to confirm: The primary symptom will be a non-functional A/C system. A technician can test the A/C relay in the engine bay fuse box and check for power at the A/C compressor clutch. A simple diagnostic step is to swap the A/C relay with an identical relay (like the horn relay) to see if the A/C engages.
   Typical fix: Replacing the A/C relay is the most common fix. If that fails, diagnosis of the wiring or A/C pressure switch is needed.
   Est. part cost: $15-$50
3. Fuel System Malfunction (Fuel Cut Valve or Pump) ⚪ Low Probability The G70 has documented recalls and TSBs related to both low and high-pressure fuel pumps, which can cause stalling or power loss. An ECU might log P1621 as a general fault before a more specific fuel code appears. The high-pressure fuel pump issue on 2.0T models is particularly widespread.
   How to confirm: The primary symptoms are engine stalling or hesitation. A technician would monitor live fuel pressure data with a scan tool to check for inconsistencies. Checking the VIN for open recalls is a critical step.
   Typical fix: Depends on the specific fault found. Could involve replacing the low-pressure fuel pump assembly per recall 21V-160 (Campaign 005G) or replacing the high-pressure fuel pump per recall 23V-771 (Campaign 023G).
   Est. part cost: $150-$600

Rare But Worth Checking

• Low Battery Voltage: → Shop Vehicle Battery A weak or failing battery can cause numerous random communication codes across different modules, including immobilizer faults. Some owners report strange electrical behavior that is resolved with a new battery. The G70's battery is located in the trunk, and water leaks into this compartment are a known issue that can damage the battery or its connections.
• Wiring Harness or Connector Issue: Corrosion or damage to the wiring for any of the potential systems (Immobilizer, A/C, Fuel) can trigger this code. A visual inspection of relevant harnesses is a key diagnostic step. Water intrusion into the transmission harness is a known recall issue on some 2024 models which can cause various electrical shorts.

Diagnosis Steps

1. Connect a professional, Genesis-compatible scan tool (GDS) to read the fault code and, most importantly, the manufacturer-specific description. This will determine if the issue is with the immobilizer, A/C, or fuel system.
2. If Immobilizer-related: Check for other security codes. Test the key fob battery. Inspect the immobilizer antenna and its wiring. Attempt to start the car with a different key or by holding the fob directly against the start button.
3. If A/C-related: Confirm the A/C is not working. Locate the A/C relay in the engine compartment fuse box. Swap the relay with an identical one (e.g., the horn relay) to see if the A/C engages. If it does, the relay is bad. If not, further circuit testing is needed.
4. If Fuel-related: Monitor live fuel pressure data on the scan tool. Check if the vehicle falls under any open recalls (like 21V-160 or 23V-771) or TSBs (like 24-01-076G) related to the fuel system. The recall procedure for the HPFP involves an ECU update first, and then pump replacement if DTC P0088 is present.
5. In all cases, inspect the battery and charging system to ensure stable voltage. A cranking voltage below 9.6V can trigger false codes. Check relevant fuses and visually inspect wiring harnesses for damage or corrosion, paying special attention to the battery area in the trunk for signs of water leaks.

Parts You'll Likely Need

• A/C Compressor Relay (OEM #95224-2D000) — If the fault is diagnosed as A/C related, this is the most common and inexpensive part to fail. This is a widely used relay across the Hyundai/Kia lineup.
  Trusted brands: Hyundai/Genesis OE
  OEM price range: $20-$40
  Aftermarket price range: $15-$30
• Low Pressure Fuel Pump Assembly (OEM #31122-G9000QQH) — A potential cause if the code is fuel-related and the vehicle exhibits stalling. Certain 2021 2.0L models were recalled for this part due to burrs on the jet nozzle obstructing fuel flow.
  Trusted brands: Hyundai/Genesis OE
  OEM price range: $300-$500
  Aftermarket price range: $200-$400
• Immobilizer Antenna Coil (OEM #95420-G9000) — A common failure point if the code is diagnosed as an immobilizer issue, preventing the key from being read. It is located around the ignition or start/stop button.
  Trusted brands: Hyundai/Genesis OE
  OEM price range: $80-$150
  Aftermarket price range: $50-$100
• High Pressure Fuel Pump (OEM #35399-2C333QQH (Kit)) — A very common failure on 2019-2023 2.0T models, causing stalling and loss of power. This is covered by a recall and warranty extension, so diagnosis and replacement should be done at a dealer.
  Trusted brands: Hyundai/Genesis OE
  OEM price range: $500-$700
  Aftermarket price range: N/A (Use OE for recall)

Related Codes That Often Appear With This One

• P0088 — If P1621 is related to a fuel system issue, a more specific code like P0088 (Fuel Rail/System Pressure - Too High) may appear alongside it, especially on 2.0T G70s covered by TSB 24-01-076G. The presence of P0088 is the specific trigger for the dealer to replace the high-pressure fuel pump under the recall.
• P0193 — On other Hyundai vehicles, a P1621 accompanied by stalling has sometimes been a precursor to P0193 (Fuel Rail Pressure Sensor Circuit High), ultimately pointing to a bad fuel rail pressure sensor.
• P0191 — This code (Fuel Rail Pressure Sensor Circuit Range/Performance) is also strongly linked to the failing high-pressure fuel pump on the 2.0T G70 and is mentioned in the context of the associated recall and warranty extension.

Technical Service Bulletins (TSBs) & Recalls

• 24-01-076G / Recall 023G: High Pressure Fuel Pump (HPFP) inspection and replacement for DTC P0088.
• Campaign 005G / NHTSA 21V-160: Fuel pump jet nozzle housing inspection and replacement.
• 25-FL-002G / Warranty Extension Z05G: Extends warranty coverage for the High-Pressure Fuel Pump to 15 years/150,000 miles for issues related to recall 023G.

Platform-Specific Known Issues

• Recall 21V-160 (Campaign 005G): Affects some 2021 G70 2.0L models where a blocked fuel pump jet nozzle can cause stalling.
• TSB 24-01-076G (Recall 023G / NHTSA 23V-771): Affects 2019-2023 G70 2.0T models for a high-pressure fuel pump (HPFP) issue that can cause power loss, often logging P0088 or P0191.

Mechanic-Grade Diagnostic Values

• Battery Voltage (Key Off) — expected: 12.4V - 12.8V. Failure: Below 12.4V indicates a discharged or failing battery that can cause spurious electronic faults.
• Charging System Voltage (Engine Running) — expected: 13.5V - 14.8V. Failure: Voltage outside this range indicates a faulty alternator or regulator, leading to unstable power for modules.
• Cranking Voltage — expected: Above 9.6V. Failure: Dipping below 9.6V during cranking can corrupt module self-tests and trigger false P1621 codes.
• Immobilizer Antenna Coil Resistance — expected: ~6 to 8.5 Ohms. Failure: A reading of 'OL' (Open Loop) or a value significantly outside the expected range indicates a faulty antenna coil.
• A/C Compressor Relay Coil Resistance — expected: 40 - 120 Ohms. Failure: A reading of 'OL' (Open Loop) or near zero ohms indicates a failed relay coil.

Scan Tool Commands That Help

• Genesis GDS: Key Registration / Immobilizer Programming — This function is required after replacing a Smart Key Module or programming new/additional smart keys to the vehicle. It ensures the ECM recognizes the new key's code.
• Genesis GDS: Read Manufacturer-Specific DTC Definition — This is the first and most critical step. The GDS tool will display the specific fault definition for P1621 (e.g., 'Immobilizer - No Response from Smart Key' vs 'A/C Relay Circuit'), which dictates the entire diagnostic path.

Wiring & Ground Locations

• Battery Location — In the trunk, under the floor panel, often near the spare tire well.. This area is prone to water leaks on the G70, which can submerge the battery, corrode terminals, and damage nearby wiring, leading to voltage issues that trigger P1621.
• Immobilizer Antenna Coil — A ring-shaped antenna located around the Engine Start/Stop button.. This is the component that reads the smart key. If the P1621 code is immobilizer-related, the wiring and connector to this coil are a primary point of inspection for damage or looseness.
• ICU Junction Block (Dash Fusebox) — Located in the driver's side dash area, likely behind the kick panel.. This block contains multiple critical connections, including power and CAN bus signals. For example, on a 2022 G70, the +12V source for a remote start system is found at a black 4-pin plug (B) in this block, indicating it's a central power distribution point.

Real Owner Repair Stories

• YouTube user (Hyundai (model not specified, but demonstrating a common Hyundai/Kia pattern)) — Engine kept cutting out while driving. Could restart initially, but the issue became progressively worse.
  ❌ Tried (didn't work) Replaced the ECU kit
  ✅ What actually fixed it The P1621 code eventually appeared alongside a P0193 (Fuel Rail Pressure Sensor Circuit High). Live data showed fuel pressure was extremely high (180,000 on the scanner). Replacing the fuel rail pressure sensor resolved both codes and the stalling issue.

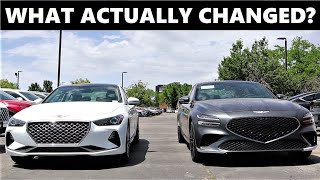

Model Year Variations Within This Range

• 2018-2021 (Pre-Facelift): Features an 8-inch touchscreen infotainment system and a distinct front/rear fascia. The electrical architecture is foundational to this generation.
• 2022-2024 (Post-Facelift): Introduced a major redesign with new 'Quad LED' headlights/taillights and a standard 10.25-inch infotainment screen. This update included significant changes to the interior electronics, CAN bus network, and driver-assist modules, potentially altering how codes like P1621 are triggered and reported.
• 2025+: The base engine was changed from a 2.0L Turbo to a 2.5L Turbo, representing a significant powertrain update.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electronic Wastegate Actuator Rattle/Failure (3.3T) 🟠 Medium — Very common. A squeaking or rattling sound upon engine shutdown is a frequent precursor to failure. Failure can lead to underboost codes (P0299) and limp mode.
• High-Pressure Fuel Pump (HPFP) Failure (2.0T) 🔴 High → Shop Fuel Pump — Widespread on 2019-2023 2.0T models, causing stalling and loss of power. (Ref: Recall 023G (NHTSA 23V-771) & Warranty Extension Z05G)
• Water Leaking into Trunk / Battery Compartment 🟠 Medium → Shop Vehicle Battery — Multiple owner reports on forums. Often caused by clogged sunroof drains or a shipping plug not being removed by the dealer. Can lead to battery damage and electrical problems.
• Turbocharger Oil Feed Pipe Leak (3.3T) 🔴 High — Affects 2019-2022 3.3T models. The driver's side oil feed pipe can crack, leaking oil onto the hot exhaust and creating a significant fire risk. (Ref: Recall 019G (NHTSA 24V-191))
• Infotainment Screen Delamination 🟡 Low — Common cosmetic issue where bubbles form along the edges of the infotainment screen laminate. Functionality is usually unaffected. (Ref: Typically replaced under warranty.)
• Digital Key / Remote Start Malfunctions 🟡 Low — Some owners report persistent issues with getting the digital key feature to work or inconsistent behavior from the remote start system.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For a simple, non-critical component like an A/C relay, a used part from a reputable salvage yard is a cost-effective and low-risk option. Other simple mechanical parts not tied to the vehicle's security system may also be considered.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For relays, check for any signs of melted plastic or corrosion on the pins.
• Ensure the donor vehicle was not involved in a flood or fire.
• Match part numbers exactly, as subtle variations can exist between model years.

OEM-only on this vehicle (don't cheap out):

• Smart Key Module (Immobilizer)
• Engine Control Module (ECM)
• High-Pressure Fuel Pump (especially if related to a recall)
• Low-Pressure Fuel Pump (if related to a recall)

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white box' electronic sensors and modules, as they often lack the correct calibration and can fail prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0088 — Often appears alongside fuel-related P1621 issues; specifically cited in TSB 24-01-076G regarding high fuel rail pressure and HPFP failure.
• P0191 — A fuel rail pressure sensor range/performance code that may be logged during the high-pressure fuel pump failures common to the G70 2.0T.
• P0299 — An underboost code that can occur if the vehicle enters limp mode or if the electronic wastegate actuator fails.
• UXXXX — Network communication codes (U-series) often accompany P1621 when the issue is a communication error between the Smart Key Module (SMK) and the ECU.
