P1621 on 2012-2018 Hyundai Veloster: Investigating an Uncertain Code

What's Unique About the 2012-2018 Hyundai Veloster

The primary challenge with P1621 on the first-generation Veloster is the lack of clear, vehicle-specific information. While some older Hyundai models like the Accent and Getz link this code directly to the A/C relay, and others to the fuel system, no enthusiast forums or repair databases show a clear pattern for the Veloster. This ambiguity means that unlike more common codes, you cannot assume the cause based on the code number alone; a proper diagnostic process is critical.

Symptoms You May Notice

• Air conditioning may not turn on or function correctly.
• Engine may stall, hesitate, or be difficult to start.
• Check Engine Light is illuminated.
• Possible loss of power during acceleration.
• Vehicle may enter a reduced power or 'limp' mode.

Most Likely Causes

1. A/C Relay or Circuit Fault (Potential Cause) 🟡 Medium Probability The Veloster is known for issues with its climate control head unit, where the fan speed selector switch can melt internally from high current draw on setting 4, causing A/C failure. This indicates a potential weakness in the overall A/C electrical system that could trigger a circuit code like P1621.
   How to confirm: A technician would test the A/C compressor relay and check for proper voltage and ground signals at the relay socket and the ECM. They would also inspect the wiring for opens or shorts. Visually inspecting the fan speed selector switch on the climate control unit for melting is also a prudent step.
   Typical fix: If the relay is faulty, it would be replaced. If the wiring is damaged, it would need to be repaired. In cases where the climate control unit itself has failed or melted, the entire unit may need replacement.
   Est. part cost: $10-$30 for a relay, $150-$250 for a new climate control unit.
2. Fuel Cut Valve / Fuel System Issue (Potential Cause) 🟡 Medium Probability Stalling issues on the Veloster are sometimes linked to the fuel pump or related sensors. While not directly tied to P1621 in forum discussions, the code's definition points to this as a possibility.
   How to confirm: Diagnosing this would involve checking fuel pressure and testing the circuit for the component identified by a Hyundai-specific scan tool (e.g., fuel cut valve, fuel pump relay).
   Typical fix: Replacement of the faulty fuel system component, such as a relay, sensor, or the fuel cut-off solenoid valve itself.
   Est. part cost: $20-$150
3. Immobilizer System Fault (Potential Cause) ⚪ Low Probability While less common for this code on Hyundai, immobilizer issues can cause starting problems and trigger various P1xxx codes. Generic definitions for P1621 often point to 'Immobilizer Code Words Do Not Match'.
   How to confirm: This requires a scan tool that can read immobilizer system data and codes. The technician would check for communication errors between the immobilizer module, the key, and the ECM.
   Typical fix: May require reprogramming keys or replacing the immobilizer antenna or module.
   Est. part cost: $50-$300

Rare But Worth Checking

• Engine Control Module (ECM) Fault: → Shop Engine Control Module (ECM) While rare, an internal failure of the ECM can generate erroneous codes. This should only be considered after all other possibilities (wiring, relays, components) have been thoroughly ruled out.

Diagnosis Steps

1. Connect a professional-grade OBD-II scanner capable of reading Hyundai-specific manufacturer codes and live data.
2. Note any other codes present, as they can provide critical context.
3. Based on the definition provided by the advanced scanner, begin diagnosis. Do not rely on generic internet definitions.
4. If the scanner points to an A/C fault: Inspect the A/C compressor relay in the under-hood fuse box. Test the relay and its circuit for proper power, ground, and signal from the ECM. Also, remove and inspect the climate control unit for signs of melting around the fan speed knob connector, a known failure point.
5. If the scanner points to a fuel system fault: Inspect the relevant component (e.g., fuel cut valve, fuel pump relay). Test the component's circuit and functionality. Check for related issues like fuel pressure.
6. If the scanner points to an immobilizer fault: Check the status of the security light on the dashboard. Use the scanner to check for communication between the key, immobilizer module, and ECM.
7. Inspect all related wiring and connectors for damage, corrosion, or loose connections.
8. If all external components and wiring test correctly, the issue may be with the Engine Control Module (ECM), but this is a last resort.

Parts You'll Likely Need

• A/C Compressor Relay
• Climate Control Unit (Heater Control Assembly)

Related Codes That Often Appear With This One

• P0193 — In one documented case, P1621 appeared with P0193 (Fuel Rail Pressure Sensor Circuit High Input), and the ultimate cause was a faulty fuel rail pressure sensor leading to stalling.

Platform-Specific Known Issues

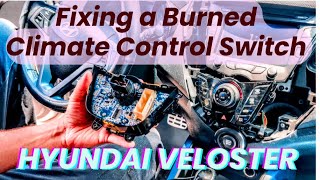

• The first-generation Veloster is widely known to have issues with the climate control unit, where the fan speed selector switch fails or melts internally. This is caused by excessive current draw, particularly on the highest fan setting (4). While not directly linked to P1621 in search results, it represents a known weakness in the vehicle's A/C control system.
• Owners on Reddit's r/veloster frequently discuss the climate control knob melting, confirming it as a very common problem.

Mechanic-Grade Diagnostic Values

• A/C Compressor Relay Coil Resistance — expected: 40 - 120 Ohms. Failure: A reading outside this range indicates a damaged coil, requiring relay replacement.
• Crankshaft Position Sensor (CKPS) Coil Resistance (1.6L Turbo) — expected: 774 - 946 Ohms at 20°C (68°F). Failure: An out-of-spec reading suggests a faulty sensor, which can cause stalling that mimics an immobilizer or fuel cut issue.
• Immobilizer Antenna Coil DC Resistance — expected: ~6 Ohms (DC). Failure: A significantly different DC resistance reading could indicate a fault in the immobilizer antenna coil.
• Ignition Coil Primary Resistance (1.6L Turbo) — expected: 0.79 Ohms ± 15% at 20°C (68°F). Failure: Incorrect resistance can lead to weak or no spark, causing misfires or stalling.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Actuation Test — To manually command the A/C compressor relay on and off. This directly tests the control circuit from the ECM to the relay, helping to isolate a wiring, relay, or ECM fault when P1621 is suspected to be A/C related.
• Hyundai GDS (Global Diagnostic System): Vehicle S/W Management (Special Functions) — Used for functions like resetting adaptive values or VIN registration. If an immobilizer issue is suspected, this menu would be used for key teaching or module pairing after a component replacement.

Wiring & Ground Locations

• Engine Compartment Fuse & Relay Box — Located on the left side of the engine compartment.. This box houses the A/C compressor relay and fuel pump relay, two of the most likely components related to a P1621 code. On some later models, the A/C relay may be integrated into this box's circuit board.
• ECM (Engine Control Module) — Located in the left rear of the engine compartment.. The ECM is the source of the command signal for both the A/C relay and the fuel system components. A fault in the ECM driver for these circuits could trigger P1621.
• Gggt07 / G07 — A key ground point located on the left side of the engine compartment.. A poor engine or component ground can cause erratic behavior in various systems, including the A/C and fuel pump circuits, potentially leading to intermittent circuit codes like P1621.
• Immobilizer Module / Antenna — The immobilizer antenna is a ring around the ignition lock cylinder. The control module (Smartra unit) is often located behind the dashboard or center console area.. If the code is related to an immobilizer fault, checking the connections at these locations is a primary diagnostic step.

Real Owner Repair Stories

• Reddit user on r/VelosterN (2022 Hyundai Veloster N) — Air conditioner would intermittently fail to turn on for an entire trip, then work fine on the next trip.
  ❌ Tried (didn't work) Repeatedly pushing the A/C button., Restarting the car.
  ✅ What actually fixed it The A/C compressor relay was found to be faulty. However, the relay was hardwired onto the main circuit board of the engine compartment fuse box. The entire fuse box assembly had to be replaced at a cost of over $900.
• Reddit user 'fight_for_anything' on r/veloster (Hyundai (model not specified, but in a Veloster thread)) — Engine randomly stalled while driving, with immobilizer, oil, and battery lights illuminating. Restarting the car temporarily fixed it.
  ❌ Tried (didn't work) Initially purchased a crankshaft position sensor from Amazon, which turned out to be faulty and did not fix the problem.
  ✅ What actually fixed it A diagnosis at the dealership confirmed a faulty crankshaft position sensor (CKPS). Replacing it with a new, quality sensor resolved the stalling issue. This is a critical story because the symptoms (stalling, immobilizer light) can easily be misdiagnosed as an immobilizer or fuel system failure, when the root cause is the CKPS providing inconsistent data to the ECU.

OEM Part Supersession History

• 9522405000, 9522429000, 9522429700, 9522429750, 9522429800 → 95224-2D000 — Part consolidation and revision over time. This is a common multi-purpose micro relay used for horns, fuel pumps, and A/C clutches across many Hyundai models.

Model Year Variations Within This Range

• Potentially later years of the 2012-2018 range, confirmed on 2022+ models: Some Hyundai models began integrating previously plug-in relays, like the A/C compressor relay, directly onto the printed circuit board (PCB) of the engine compartment fuse box. If a vehicle has this design, a simple relay swap is impossible; the entire fuse box assembly must be replaced.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Engine Failure (Connecting Rod Bearings) 🔴 High — Affects 2015-2016 models with the 1.6L engine. Can lead to engine seizure and potential fire. (Ref: NHTSA Recall 20V-746. Hyundai also implemented a Knock Sensor Detection System (KSDS) software update to monitor for early signs of failure.)
• Dual-Clutch Transmission (DCT) Issues 🟠 Medium → Shop Transmission Assembly — Common across 2012-2017 models, especially Turbo models with the 7-speed DCT. Symptoms include hesitation from a stop, shuddering, jerking, and premature clutch wear. (Ref: Multiple software updates (TCU logic) were released, such as TSB #5NP-X7J3D-10 for related models, to address drivability.)
• ABS Module Fire Risk 🔴 High — Affects 2012-2015 models. The ABS module can leak brake fluid internally, causing an electrical short and potential engine compartment fire, even when parked. (Ref: NHTSA Recall 23V-701 (Hyundai Recall 251).)
• Climate Control Unit Melting 🟡 Low — Very common on 2012-2016 models. The fan speed selector switch and its connector can melt due to high electrical current, especially on fan speed 4, causing the blower to become inoperable.
• Engine Pre-Ignition (Turbo Models) 🔴 High — Affects 2013 Veloster Turbo models. Engine management software can cause pre-ignition, leading to excessive cylinder pressure and potential engine damage or stalling. (Ref: NHTSA Recall 19V-204 (Hyundai Recall 182).)
• High Engine Oil Consumption 🟠 Medium — Reported across multiple model years, often attributed to premature wear of piston rings. Can lead to engine damage if oil levels are not monitored closely.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is a smart choice for the Climate Control Unit, as new units can be expensive and used ones are widely available. If the A/C relay is confirmed to be integrated into the fuse box, a used engine compartment fuse box assembly from a reputable salvage yard is a cost-effective alternative to a new unit costing nearly $1,000.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a Climate Control Unit, check for intact knobs and connectors; avoid units with visible melting or burn marks on the fan speed switch connector.
• For a used fuse box, inspect thoroughly for any signs of water intrusion, corrosion on the pins or PCB, or melted plastic.
• Verify the part number on the donor part matches the original part exactly.
• Ask for the donor vehicle's VIN to check for any outstanding recalls or TSBs related to the electrical system.

OEM-only on this vehicle (don't cheap out):

• Engine Control Module (ECM)
• Immobilizer Module
• Smart Key Module

Aftermarket brands forum-validated for this vehicle:

• For plug-in relays: Standard Motor Products (SMP), Four Seasons

Brands owners have reported issues with on this vehicle:

• Unbranded or exceptionally cheap electronic sensors (like a Crankshaft Position Sensor) from online marketplaces, as they have a high failure rate and can make diagnosis more difficult.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0300 — Random misfire code that may appear alongside P1621 if the root cause is a fuel system issue or engine pre-ignition as noted in Recall 19V-204.
• P0420 — Catalytic converter efficiency code; related because owners have reported misdiagnosing Veloster power loss symptoms (like those seen with P1621) as plugged converters.
• B1234 — Body control codes may be present if the climate control unit's internal melting causes a total circuit failure in the HVAC system.
