P1621 on 2002-2004 Oldsmobile Bravada: PCM Memory Failure Causes and Fixes

What's Unique About the 2002-2004 Oldsmobile Bravada

The 2002-2004 Bravada is part of the GMT360 platform, which also includes the Chevrolet Trailblazer and GMC Envoy. On these vehicles, engine and transmission functions are controlled by a single Powertrain Control Module (PCM). Unlike some other GM vehicles where P1621 might point to a separate Transmission Control Module (TCM), on the Bravada, this code specifically flags a problem within the main PCM itself. Additionally, these trucks are known for ignition switch failures, which can cause intermittent power loss to the PCM and trigger this memory fault code. Low voltage during startup from a bad switch or poor grounds can interrupt the PCM's self-test and falsely set a P1621.

Symptoms You May Notice

• Check Engine Light is on
• Engine may stall intermittently or fail to start
• Vehicle may enter 'Reduced Power' or 'Limp Mode'
• Unpredictable behavior from electrical accessories
• Loss of communication with the scan tool
• Erratic instrument cluster behavior
• Loss of memory for radio presets or clock (less common, but possible)

Most Likely Causes

1. Internal Powertrain Control Module (PCM) Failure 🔴 High Probability → Shop Engine Control Module (ECM) The internal memory (EEPROM) of the PCM can fail due to age, heat cycles, and vibration, leading to a failed self-test checksum. This is the most common definitive cause after all other electrical issues are ruled out.
   How to confirm: After confirming all power and ground circuits to the PCM are good (stable voltage, low resistance) and the ignition switch is functioning correctly, the P1621 code reliably indicates a faulty PCM. Often seen with P0601.
   Typical fix: Replace the Powertrain Control Module. It is highly recommended to purchase a unit that is pre-programmed to your vehicle's VIN to avoid needing dealer tools for setup.
   Est. part cost: $150-$250
2. Poor Battery Voltage or Bad Ground Connections 🟡 Medium Probability → Shop Vehicle Battery Vehicle electronics are sensitive to voltage. A weak battery, failing alternator, or corroded ground straps can cause intermittent voltage drops, corrupting the PCM's memory check during startup. The main PCM ground (G103) on the 4.2L engine is located on the driver's side of the engine block and is a common point for corrosion.
   How to confirm: Test the battery to ensure it holds a charge above 12.4V and passes a load test (cranking voltage should stay above 9.5V). Check the alternator output (13.7-14.7V). Inspect and clean the main battery terminals, PCM connectors, and chassis ground points, especially the main engine ground on the driver's side block.
   Typical fix: Replace the battery, alternator, or clean/replace corroded cables and ground straps.
   Est. part cost: $20-$400
3. Failing Ignition Switch 🟡 Medium Probability → Shop Ignition Switch The ignition switch is a notorious weak point on the GMT360 platform. A worn switch can create intermittent electrical contact, cutting or reducing voltage to the PCM during startup or while running, causing a wide range of electrical faults, including memory codes.
   How to confirm: While the engine is running, gently wiggle the key in the ignition. If this causes the engine to sputter, stall, or dashboard lights to flicker, the ignition switch is almost certainly faulty. Another symptom is the key being difficult to turn or remove.
   Typical fix: Replace the ignition switch. The ACDelco OEM part is D1462G. 🎬 Watch: Step-by-step guide to replacing the ignition starter switch.
   Est. part cost: $30-$80

Rare But Worth Checking

• Aftermarket Engine Programmer: If an aftermarket tuner (e.g., Bully Dog, Superchips, DiabloSport) was used, it may have corrupted the PCM's software. A user on a Chevrolet forum confirmed this happened to their 2002 Silverado, causing P1621 and other memory issues. Attempting to revert to the stock tune may resolve the issue, but sometimes the PCM is permanently damaged and requires replacement.
• Water Intrusion / Corrosion: The PCM is located on the driver's side of the engine, bolted to the intake manifold. While somewhat protected, water intrusion from a damaged hood seal or deep water driving can lead to corrosion on the PCM connectors, causing poor connections and voltage issues that can trigger P1621. Always inspect the connectors for blue/green corrosion when troubleshooting.

Diagnosis Steps

1. Scan for Codes: Confirm P1621 is present and note any other codes, especially P0601 or any U-series communication codes. Record freeze-frame data.
2. Test Battery and Charging System: Ensure the battery has a full charge (12.4V+ engine off) and maintains voltage under load (above 9.5V during cranking). Verify the alternator is charging correctly (13.7-14.7V engine running). A weak or failing battery is a common cause of electronic issues.
3. Inspect Power and Grounds: Disconnect the battery. Visually inspect the PCM connectors for corrosion or damaged pins. Locate, remove, clean, and tighten the main engine-to-chassis and battery-to-chassis ground straps. 🎬 Watch: How to find and identify common GM wiring grounds. Pay special attention to the G103 ground on the driver's side of the engine block.
4. Test the Ignition Switch: With the vehicle in park and running, gently wiggle the ignition key. If this causes any hesitation, stalling, or flickering lights, the ignition switch is a likely culprit.
5. Check for Aftermarket Devices: If an aftermarket performance tuner is installed, remove it and flash the PCM back to the stock tune. If the code disappears, the tuner was the cause.
6. Condemn the PCM: If all the above steps check out, the battery is strong, grounds are clean, the ignition switch is good, and the P1621 code persists (especially if it returns immediately after clearing), the PCM has failed internally and must be replaced.

Parts You'll Likely Need

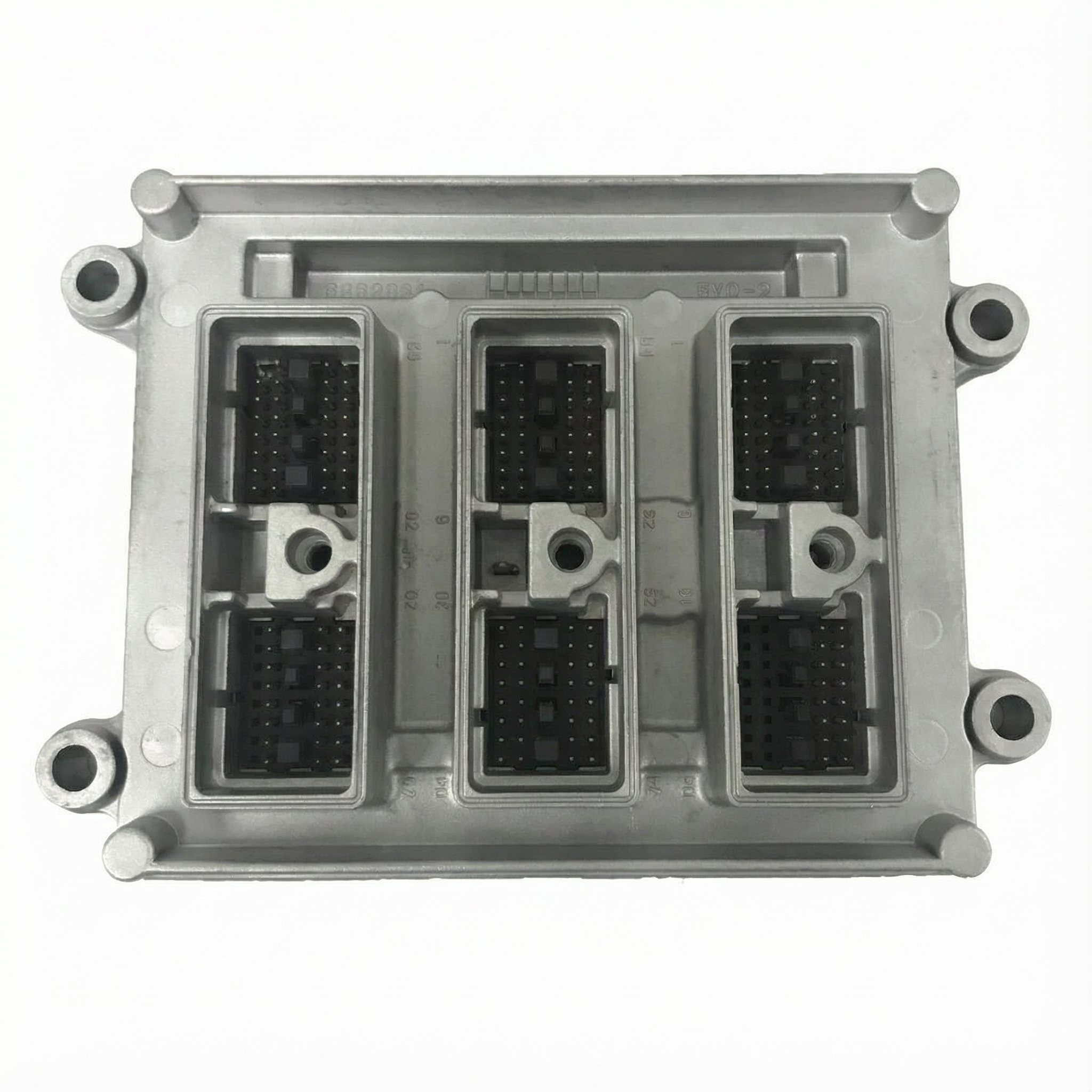

• Powertrain Control Module (PCM) (OEM #12576161) — This is the most common cause of a P1621 code, indicating an internal hardware failure. Other compatible part numbers include 12223160, 12571178, 12571910, 12574238, 12575331, 12576462, 12576463, 16255240, 19210066, 12574976, 12577955, 12584593.
  Trusted brands: ACDelco (OEM), Cardone, Solo PCMs, Flagship One
  OEM price range: $250-$400
  Aftermarket price range: $150-$250
• Ignition Switch (OEM #D1462G) — This is a common failure point on the platform that can cause intermittent power loss to the PCM, triggering memory-related codes. Replacing it is a key diagnostic step before condemning the PCM.
  Trusted brands: ACDelco, Standard Motor Products
  OEM price range: $50-$80
  Aftermarket price range: $30-$50

Related Codes That Often Appear With This One

• P0601 — This code means 'Internal Control Module Memory Check Sum Error.' It is very similar to P1621. P1621 often relates to the long-term storage (EEPROM), while P0601 is a more general checksum failure. Seeing them together strongly confirms an internal PCM failure.
• U-series codes (e.g., U1000) — These codes indicate a loss of communication between modules. A failing PCM can stop communicating with other modules on the vehicle's data bus, leading to these codes alongside the P1621.

Technical Service Bulletins (TSBs) & Recalls

• GM TSB #05-06-04-060A: This is an informational bulletin that lists P1621 among several other codes (P0601, P0602, etc.) that indicate internal control module failures. It advises technicians that these codes can be set by various modules and to correctly identify which module is faulting before proceeding with replacement. It confirms that the primary fix for these codes, after ruling out external factors, is module replacement.

Platform-Specific Known Issues

• Owner Experience: Ignition Switch Failure: → Shop Ignition Switch A user on GMTNation.com described replacing their ignition switch and initially having trouble. They noted that if the internal gear is not aligned correctly during installation, it can cause starting issues or allow the battery light to flicker when the key is touched. The proper procedure involves removing the lock cylinder to ensure correct alignment. This highlights the sensitivity of the system and why it's a primary suspect for electrical codes like P1621.
• Owner Experience: Aftermarket Tuner Corruption: On ChevroletForum.com, a 2002 Silverado owner reported getting code P1621 immediately after using a Bully Dog programmer. Symptoms included the clock and seat memory resetting on every startup. Even after returning the tune to stock, the problem persisted, indicating the PCM's memory had been permanently corrupted by the programming process. This serves as a strong cautionary tale for using aftermarket tuners on these vehicles.

Mechanic-Grade Diagnostic Values

• Battery Voltage (Key On, Engine Off) — expected: > 12.4 Volts. Failure: Voltage below 12.4V indicates a weak battery that can cause false memory codes during startup.
• Cranking Voltage — expected: > 9.5 Volts. Failure: Voltage dropping below 9.5V during cranking can interrupt the PCM's self-test and trigger P1621.
• PCM Power Pins to Ground (Key On) — expected: Battery Voltage (approx. 12.6V). Failure: Low or no voltage indicates a wiring or fuse issue. Test at PCM connector C1 (Blue), pins 19 (Ignition), 20 (Battery), and 57 (Battery).
• PCM Ground Pins to Chassis Ground — expected: < 1.0 Ohm. Failure: High resistance or an open circuit (O.L.) indicates a bad ground connection. Test at PCM connector C1 (Blue), pins 1 and 41, and C2 (Green), pin 40.

Scan Tool Commands That Help

• GM Tech2 / GDS2: Service Programming System (SPS) — This is mandatory after installing a new or used PCM. It flashes the module with the vehicle's specific VIN and the latest GM software calibration, allowing it to function.
• Professional Scan Tool: Crankshaft Position Variation Learn — This may be required after PCM replacement to prevent codes like P0315 or P1336 from setting. It synchronizes the new PCM with the crankshaft position sensor's signal.
• Manual Procedure or Scan Tool: Vehicle Theft Deterrent (VTD) Relearn — Required after PCM replacement to allow the engine to start. The manual procedure involves turning the key to 'ON' for 10-15 minutes until the security light stops flashing, then cycling the key off before starting.

Wiring & Ground Locations

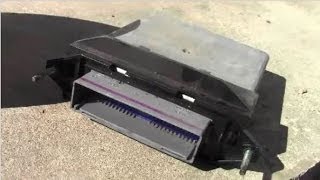

• Powertrain Control Module (PCM) — Bolted to the driver's side of the intake manifold in the engine bay.. This is the module that sets the code. Its connectors (C1 Blue, C2 Green/Clear) must be inspected for corrosion and tested for proper power and ground.
• G103 — On the driver's side of the engine block. This is a primary engine and PCM ground point.. Corrosion or a loose connection at this main ground is a very common cause of low voltage conditions that can trigger a false P1621 code.
• Body Control Module (BCM) — Attached to the rear fuse block, located under the left rear seat.. While not the direct cause, a faulty BCM or its wiring can cause widespread electrical issues on the data bus that may be confused with a PCM problem.

Real Owner Repair Stories

• ChevroletForum.com user 'treetop' (2002 Chevrolet Silverado) — Code P1621 appeared, and the clock, radio presets, and seat memory would reset on nearly every startup.
  ❌ Tried (didn't work) Setting the aftermarket programmer back to the stock factory tune.
  ✅ What actually fixed it The problem started immediately after using a Bully Dog programmer. Even after reverting to stock, the issue persisted, indicating the programmer had permanently corrupted the PCM's memory, necessitating PCM replacement.
• Diablosport Forums user (Chevrolet Truck (year/model not specified)) — Vehicle would enter limp mode and set code P1621 immediately after installing a DiabloSport Predator programmer.
  ❌ Tried (didn't work) The user was advised the transmission might be slipping, but driving for two weeks with the stock tune produced no issues.
  ✅ What actually fixed it A Chevrolet dealer diagnosed the issue, confirming the transmission was fine and that the programmer was the direct cause of the P1621 code and limp mode, stating the 'code words do not match'. The resolution was to remove the tune.

OEM Part Supersession History

• Multiple (e.g., 12574976, 12577955) → Multiple (e.g., 12584593, 19210065) — Standard hardware revisions and software updates.
  Heads up: Many different PCM service numbers for this platform are physically identical and interchangeable, BUT they will not function unless they are professionally programmed with the specific vehicle's VIN and correct software calibration. A used PCM from a donor vehicle will not be plug-and-play.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a salvage yard is a cost-effective option, but only if you send it to a third-party programming service to have your vehicle's VIN and software flashed to it before installation. A used OEM ignition switch is also a viable option over a new aftermarket one.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a PCM, inspect for any physical damage to the case or connectors.
• Check PCM connector pins for any signs of corrosion (green/white powder) or being bent.
• For an ignition switch, ensure the key turns smoothly without binding or excessive play.

OEM-only on this vehicle (don't cheap out):

• Ignition Switch: Due to the high failure rate and sensitivity of the Passlock security system, using an ACDelco (OEM) switch is strongly recommended to avoid repeat failures.

Aftermarket brands forum-validated for this vehicle:

• PCM Remanufacturers: Cardone, Flagship One, Solo PCMs.
• Ignition Switch: Standard Motor Products (SMP).

Brands owners have reported issues with on this vehicle:

• Aftermarket Tuners/Programmers: Brands like Bully Dog and DiabloSport have been directly linked in owner forums to causing P1621 by corrupting the PCM memory.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0601 — Internal Control Module Memory Check Sum Error. This code is a very common companion to P1621, as both point directly to an internal PCM memory or processor failure. GM TSB #05-06-04-060A groups them together as module failure codes.
• U-SERIES (E.G., U1000) — Loss of Communication codes. A failing ignition switch, bad grounds, or a faulty PCM can disrupt the vehicle's data bus, causing modules to lose communication and setting U-codes alongside P1621.
• P0602 — Control Module Programming Error. Also listed in TSB #05-06-04-060A, this code can appear with P1621 if an aftermarket tuner or a failed reflash procedure has corrupted the PCM's software.

Frequently Asked Questions
