P1889 on 2005-2007 Ford Five Hundred: AWD Malfunction Causes and Fixes

What's Unique About the 2005-2007 Ford Five Hundred

The Ford Five Hundred (and its siblings, the Freestyle and Mercury Montego) uses a Haldex-based AWD system derived from the Volvo P2 platform. Because of this, a specific Technical Service Bulletin (TSB 08-4-11) was issued that dramatically simplifies diagnosis. Unlike many other vehicles where a pump performance code immediately suggests a failed pump, this TSB directs technicians to first suspect the oil pressure/temperature sensor if P1889 is the only code present. This platform-specific knowledge can save owners from a costly and unnecessary pump replacement, a common misdiagnosis 🎬 Watch: Common issues and overview of the Ford Five Hundred reported by owners.

Symptoms You May Notice

• "AWD MALFUNCTION" or "SERVICE AWD SOON" message on the dashboard
• Traction Control System (TCS) or stability control warning light is illuminated.
• Noticeable loss of all-wheel drive function; the vehicle will operate only in FWD
• In some cases, the AWD works for a few minutes when the car is cold and then shuts off as it warms up.

Most Likely Causes

1. Faulty AWD Oil Pressure/Temperature Sensor 🔴 High Probability Ford issued TSB 08-4-11 specifically identifying this sensor as the primary failure point when P1889 is the only code stored in the DEM. The sensor provides critical feedback to the control module, and its failure leads the system to shut down as a precaution.
   How to confirm: Use a scan tool to check for codes in the Differential Electronic Module (DEM). If P1889 is the only DTC present, the TSB identifies the sensor as the culprit.
   Typical fix: Replace the oil pressure/temperature sensor located on the DEM on the rear differential. The TSB specifies that the kit includes a new O-ring for the adjacent solenoid, which must also be replaced. The sensor washer must be installed with the concave side facing the DEM. 🎬 See this walkthrough for removing the DEM, pump, and filter
   Est. part cost: $50-$150
2. Failed AWD Oil Pump 🟡 Medium Probability → Shop Engine Oil Pump The electric pump that generates hydraulic pressure for the AWD coupling can fail, often due to worn internal brushes or becoming stuck from contamination in old fluid. This is the next most likely cause if replacing the sensor does not resolve the code. NHTSA ODI #10216278 notes that owners have reported the P1889 code specifically as an oil pump failure.
   How to confirm: This is suspected if replacing the sensor doesn't fix the code, or if other DEM codes are present. A technician can test the pump by disconnecting its electrical connector and applying 12V power (yellow wire) and ground (black wire) directly to it; if the pump doesn't run, it has failed. Sometimes tapping the pump with a hammer while power is applied can un-stick it temporarily, confirming it needs replacement.
   Typical fix: Replace the AWD oil pump, which is mounted to the rear differential coupling. It is highly recommended to also replace the fluid and filter at the same time.
   Est. part cost: $200-$400
3. Clogged AWD Coupling Filter and Old Fluid ⚪ Low Probability The Haldex system has a small filter that can become clogged with clutch material and debris over time, especially if the fluid has never been changed. This restricts flow and can cause the pump to struggle or burn out, triggering the code.
   How to confirm: This is typically diagnosed after checking the sensor and pump. The filter is an internal component that requires partial disassembly of the coupling to inspect. It is often replaced preventatively during a pump replacement. A user on a forum noted that Ford's diagnostic information doesn't mention this filter, but it is available from Volvo under part number 30787687.

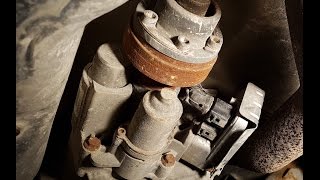

   Typical fix: Replace the AWD coupling filter and the specialized fluid. This should be done whenever the pump is replaced. 🎬 Watch: How to service the Haldex AWD fluid and filter
   Est. part cost: $70-$120 for filter and fluid

Rare But Worth Checking

• Faulty Differential Electronic Module (DEM): The control module itself can fail, but this is rare. This should only be considered after all other possibilities (sensor, pump, fluid, filter, wiring) have been thoroughly ruled out. Some sources note that if the code returns after a pump replacement, the DEM may need to be replaced as well. Due to software variations, repairing the original module is often a better option than using one from a salvage vehicle.
• Wiring Harness Damage: Damage to the wires leading to the DEM, sensor, or pump can cause a loss of signal or power. A visual inspection for corrosion, chafing, or breaks is a necessary step in a thorough diagnosis, especially for vehicles in regions with heavy road salt use. A known chafe point exists on the main engine harness near the A/C line in the engine bay for this platform, which can cause various electrical faults.

Diagnosis Steps

1. Connect a professional scan tool (like Ford IDS) capable of communicating with the Differential Electronic Module (DEM/4x4 Module). Standard OBD-II readers that only check the PCM will not see this code.
2. Scan the DEM, ABS module, and Instrument Cluster for codes. If codes are present in the ABS or cluster, diagnose them first per the workshop manual.
3. Crucial Step: If P1889 is the ONLY code stored in the DEM, follow Ford TSB 08-4-11 and replace the AWD oil pressure/temperature sensor and the adjacent solenoid O-ring.
4. If other codes are present in the DEM, or if replacing the sensor did not resolve the issue, proceed with further diagnosis.
5. Check the fluid level and condition in the AWD coupling (rear differential). There is a specific fill plug for the coupling section.
6. Test the AWD oil pump by disconnecting its two-pin connector and applying direct 12V power and ground. The yellow wire is positive, and the black is negative. If it does not make noise or run, the pump has failed.
7. If the pump runs, inspect the wiring and connectors to the DEM and pump for damage or corrosion. Pay special attention to the known engine harness chafe point near the A/C line.
8. If the pump and sensor are known-good, consider replacing the AWD coupling filter (Volvo P/N 30787687) and fluid, as a clog can cause the same code.
9. If all other components test good, the DEM itself may be faulty, though this is the least likely cause.

Parts You'll Likely Need

• AWD Oil Pressure / Temperature Sensor (OEM #7F9Z-4B487-A (supersedes 5F9Z-4B487-A)) — This is the most common failure point according to Ford's own Technical Service Bulletin (08-4-11) when P1889 is the only code present. Note: This part has been discontinued by Ford but may be available from dealer backstock or aftermarket sources.
  Trusted brands: Motorcraft
  OEM price range: $60-$150
  Aftermarket price range: $40-$80

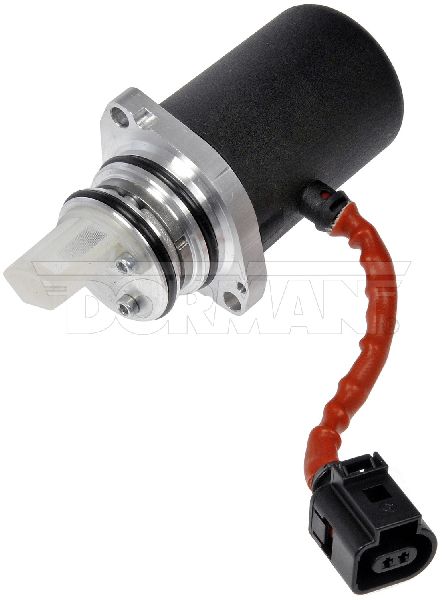

• AWD Coupling Oil Pump — This is the second most likely cause, responsible for generating the hydraulic pressure for the AWD system. It is replaced if the sensor doesn't fix the issue or if it fails a direct power test.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $300-$450
  Aftermarket price range: $200-$350
• AWD Coupling Filter Kit (OEM #Volvo P/N: 30787687) — The system shares parts with Volvo. A clogged filter can cause low pressure and trigger this code. It's good practice to replace it when servicing the pump or fluid.
  Trusted brands: Volvo OE, Febi Bilstein
  OEM price range: $40-$60
  Aftermarket price range: $25-$40

Technical Service Bulletins (TSBs) & Recalls

• TSB 08-4-11: States that if P1889 is the only code in the Differential Electronic Module (DEM) on a 2005-2007 Five Hundred, Freestyle, or Montego, the cause is a faulty oil pressure/temperature sensor, not the pump. It also specifies that other modules (ABS, Instrument Cluster) should be checked for codes first.

Platform-Specific Known Issues

• Owner Experience: Sensor Replacement Doesn't Always Fix It: In a thread on 2CarPros.com, an owner reported having the P1889 code and followed the TSB by replacing the fluid temperature sensor. The 'malfunction all wheel drive' message returned. A mechanic in the thread confirmed the TSB procedure and suggested the next step would be to diagnose the pump, wiring, or the DEM itself, illustrating that while the sensor is the most common fix, it's not guaranteed.

Documented NHTSA Reports

• NHTSA ODI #10260529: An owner reported that the AWD light came on after approximately 25 minutes of driving. A computer scan revealed code P1889, and the technician advised replacing the oil pump pressure sensor using a kit supplied by Ford.
• NHTSA ODI #10365323: A report describes the "AWD MALFUNCTION" message appearing sporadically while driving or idling, with diagnostic code P1889 confirmed.
• NHTSA ODI #10443854: An owner noted that the vehicle appears normal for the first 10 minutes of driving before the traction control light and AWD malfunction message appear. Ford diagnosed the P1889 error code, though the owner observed that standard recommendations often fail to resolve the issue for others.

Mechanic-Grade Diagnostic Values

• AWD Oil Pump Motor Resistance — expected: 5 to 8 Ohms (based on similar Gen 4 Haldex systems). Failure: A reading significantly outside this range, or an open circuit, suggests a failed pump motor.
• AWD Oil Pump Manual Activation Test — expected: Pump should run/make noise when power is applied.. Failure: No noise or operation when 12V is applied directly to the pump's connector pins indicates a failed pump.

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): Self Test -> DEM (or 4x4 Module) — This is the primary step to retrieve the P1889 code. Standard OBD-II scanners connected to the main port will not communicate with the DEM, making this a required function on a professional tool.
• Ford IDS (Integrated Diagnostic System): Clear CMDTCs (Continuous Memory Diagnostic Trouble Codes) — After the repair is complete (e.g., sensor or pump replacement), this function is used to clear the P1889 code from the DEM and turn off the AWD warning light. A road test is then needed to verify the fix.

Wiring & Ground Locations

• Main Engine Harness Chafe Point — In the engine bay, near the power steering reservoir, where the main engine wiring harness rests on top of a silver A/C line.. Vibrations can cause the harness to rub through on the A/C line, shorting out various sensor and module communication wires. While not specific to P1889, an intermittent short here could disrupt power or communication to the DEM, causing unpredictable faults. This is a known issue on the Five Hundred/Freestyle/Montego platform.
• AWD Pump Connector — The two-pin electrical connector on the AWD pump, mounted to the rear differential coupling.. This is the connection point for manually testing the pump. The yellow wire is the 12V positive, and the black wire is the ground.

Real Owner Repair Stories

• 2CarPros.com forum user 'JERRY KATT' (2006 Ford Five Hundred AWD) — P1889 code and 'malfunction all wheel drive' message.
  ❌ Tried (didn't work) Replacing the oil pressure/temperature sensor twice.
  ✅ What actually fixed it The user was advised by a shop that the next steps were to replace the DEM and oil pump, or source parts from a salvage rear end. The final resolution was not posted, but the story is critical because it shows the TSB fix is not a 100% guarantee. Another user suggested the often-overlooked clogged internal filter (Volvo part).
• FordForums.com user 'Timesnow' (2005 Ford Five Hundred AWD) — Traction control light on, AWD not working. Works for a few minutes when cold then fails.
  ❌ Tried (didn't work) Took it to a dealer who diagnosed 'low pressure' and quoted $3,600 to replace 'clutch packs'.
  ✅ What actually fixed it Another user intervened and stated the dealer's diagnosis was wrong, correctly identifying the symptoms of P1889 and advising the owner to start with the pressure/temperature sensor (7F9Z-4B487-A) per TSB 08-4-11, saving the owner from a massive, unnecessary repair bill. The story highlights the most common misdiagnosis.

When the Usual Fixes Don't Work

• While TSB 08-4-11 is the definitive guide for P1889, multiple owner accounts confirm that replacing the pressure/temperature sensor does not always resolve the issue. In these cases, the fault was later attributed to a failed AWD pump, a clogged internal filter, or a faulty DEM control module. This demonstrates that while the sensor is the highest probability fix, it should not be considered the only possible cause.

OEM Part Supersession History

• 5F9Z-4B487-A → 7F9Z-4B487-A — Part revision by Ford.
  Heads up: Both parts are interchangeable. However, the part is now discontinued by Ford, making New Old Stock (NOS) or aftermarket versions the only option.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Harsh/Delayed Shifting or Failure of CVT Transmission 🔴 High — Common on AWD models equipped with the ZF-Batavia CFT30 CVT. Issues can appear at various mileages, sometimes under 100,000 miles.
• Faulty Electronic Throttle Body 🟠 Medium — Widespread issue causing the vehicle to enter 'limp mode' or 'failsafe engine mode' with poor throttle response. Can occur around 100,000 miles. (Ref: A customer satisfaction program (12N03) was issued, but not a full recall, to clean the throttle body or update software.)
• Prematurely Worn Engine Mounts 🟠 Medium — The upper torque strut mount ('dog bone') and the rear lower mount are known to fail, causing significant vibration at idle and clunking when shifting gears. Some owners report failure as early as 50,000 miles.
• A/C Compressor or Regulator Valve Failure 🟡 Low — Common complaint where the A/C blows cool but not cold, or fails entirely. Often attributed to a faulty compressor regulator valve.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the AWD pump or the entire rear differential/coupling assembly. If the pump is confirmed bad, a low-mileage used unit can be a cost-effective alternative to a new OEM or aftermarket pump.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for heavy corrosion on the aluminum housing of the DEM and pump.
• Inspect electrical connectors for corrosion or damage.
• If possible, get the VIN of the donor car to check its service history or mileage.
• Ensure the donor vehicle was not involved in a severe rear-end collision.

OEM-only on this vehicle (don't cheap out):

• AWD Oil Pressure / Temperature Sensor: Since this part is discontinued, finding a New Old Stock (NOS) Ford/Motorcraft part is the most reliable option. Quality of aftermarket sensors is unverified.
• Differential Electronic Module (DEM): It is strongly recommended to have your original DEM repaired by a specialist service rather than buying a used one. Used DEMs may have incompatible software, even if they are not VIN-locked.

Aftermarket brands forum-validated for this vehicle:

• No specific aftermarket brands have consistent positive validation in forums for this repair.

Brands owners have reported issues with on this vehicle:

• Dorman (P/N 600-221) offers a replacement pump, but user reviews specific to the Five Hundred are lacking, making its long-term reliability unknown.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
