P2002 on 2005-2016 Toyota RAV4 2.2L Diesel: DPF Causes and Fixes

What's Unique About the 2005-2016 Toyota RAV4

The Toyota 2.2L diesel engines (2AD-FTV and 2AD-FHV) in this RAV4 generation are generally robust, but their DPF systems are sensitive to driving habits. Many owners who primarily drive short distances or in city traffic experience this code because the exhaust never gets hot enough for long enough to complete an automatic 'regeneration' cycle to burn off soot. While a clogged filter is a common cause, these models are also known for failures of the differential pressure sensor, which can mimic the symptoms of a clogged DPF, making proper diagnosis crucial to avoid unnecessary, expensive repairs. The D-CAT (2AD-FHV) version has an even more complex system with a 5th injector for regeneration that can also be a point of failure.

Generation note: The 2005-2016 range covers the third (XA30, 2005-2012) and fourth (XA40, 2013-2018) generations of the RAV4. The 2.2L D-4D and D-CAT engines are primarily found in the XA30 generation, especially in European markets. The information and common issues are most relevant to the XA30 models.

Symptoms You May Notice

• Check Engine Light illuminated
• VSC (Vehicle Stability Control) and/4x4 warning lights may also turn on
• DPF warning light may be flashing
• Engine goes into 'limp mode' (reduced power and acceleration)
• Noticeable decrease in fuel economy
• Engine may idle at a higher RPM than usual
• White or excessive smoke from the exhaust during attempted regeneration cycles

Most Likely Causes

1. Faulty DPF Differential Pressure Sensor 🔴 High Probability The sensor is exposed to extreme heat and vibration and is a widely-documented failure point on the 2AD engine platform. It can fail internally or provide biased readings, tricking the ECU into thinking the DPF is clogged.
   How to confirm: With a diagnostic scan tool, check the sensor's pressure reading with the ignition on but the engine off. The reading should be zero or very close (e.g., under 0.2 kPa). If it shows a significant pressure reading, the sensor is faulty. Also, monitor the live data while driving; erratic or illogical readings point to a bad sensor. A simple test involves applying light pressure to one of the sensor's ports with a hand pump and seeing if the live data reading changes accordingly on the scan tool.

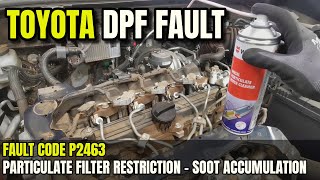

   Typical fix: Replace the differential pressure sensor and its associated hoses. 🎬 Watch: How to diagnose and fix this DPF fault
   Est. part cost: $50-$150
2. Clogged Diesel Particulate Filter (DPF) 🔴 High Probability → Shop Diesel Particulate Filter (DPF) A driving history of frequent short trips prevents the DPF from performing its automatic self-cleaning (regeneration) cycles, leading to soot accumulation. This is the most common underlying reason for the entire system to have issues.
   How to confirm: Check live data for high differential pressure readings. A healthy, clean DPF should show a pressure of 10 mbar or less at idle. Readings of 20-30 mbar at idle or over 150-200 mbar at 2,500-3,000 RPM suggest a significant blockage. If a forced regeneration fails to lower these pressures and clear the code, the DPF is likely clogged with non-burnable ash or is damaged.
   Typical fix: Perform a forced regeneration using a diagnostic tool or by sustained highway driving. If that fails, the DPF may need professional off-car cleaning or, in severe cases, replacement.
   Est. part cost: $200-$500 for cleaning, $1000+ for replacement
3. Cracked or Leaking DPF Pressure Sensor Hoses 🟡 Medium Probability The rubber hoses that connect the DPF to the pressure sensor can become brittle from heat and age, leading to cracks and pressure leaks. This causes the sensor to read an incorrect differential, triggering the code.
   How to confirm: Visually inspect the two rubber hoses running from the DPF pipes to the differential pressure sensor. Look for any cracks, splits, or loose connections. A French forum user noted that these pipes can also become internally clogged with soot, which requires removing them and clearing them with a wire or compressed air.
   Typical fix: Replace the damaged hoses. This is an inexpensive and simple repair.
   Est. part cost: $10-$30
4. Blocked 5th Injector Port (D-CAT engines) ⚪ Low Probability On D-CAT models (2AD-FHV), a 5th injector sprays diesel directly into the exhaust stream to raise temperatures for regeneration. The port for this injector can become blocked with carbon, preventing fuel from entering the exhaust. This means regeneration can never start, leading to eventual DPF clogging and the P2002 code.
   How to confirm: This is a more advanced diagnosis. A technician would monitor exhaust temperatures during a forced regeneration; a failure of the temperature to rise from ~300°C to ~500°C or higher points to a lack of fuel for the process. Physical inspection requires removing the 5th injector to check its port for carbon blockage.

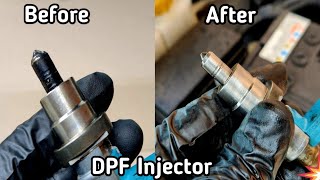

   Typical fix: Carefully remove the 5th injector and manually clean the carbon buildup from the port inside the exhaust manifold. 🎬 Watch: How to clean a clogged diesel injector
   Est. part cost: $0 if DIY, or 1-2 hours of labor

Rare But Worth Checking

• Exhaust System Leak: A leak in the exhaust system between the engine and the DPF can alter the pressure differential, causing the sensor to report incorrect values and trigger the P2002 code.
• Cracked DPF: In some cases, the internal filter element of the DPF can crack. This causes a loss of filtration efficiency as exhaust passes through the crack instead of the filter media. This will permanently set the P2002 code because the pressure differential will be too low. A cracked DPF cannot be cleaned and must be replaced.
• Faulty EGR Valve: A stuck-open or clogged EGR valve can lead to excessive soot production, overwhelming the DPF and causing it to clog faster than it can regenerate. On Lexus IS 220d models with the same engine, a faulty EGR was identified as the root cause of the P2002 code.

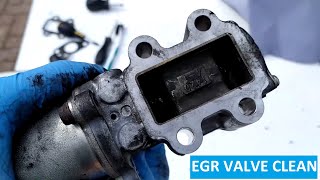

🎬 See how to clean the EGR valve on this engine

Diagnosis Steps

1. Read Fault Codes: Confirm P2002 is present and note any other codes, especially P2463 (soot accumulation) or P2452/P2453 (sensor circuit fault).
2. Check Live Data (Key On, Engine Off): Using a capable scan tool (like Toyota Techstream), view the 'DPF Differential Pressure' reading. It should be 0 kPa / 0 mbar. A user on a Toyota forum reported their faulty sensor showed -0.93 kPa with the engine off, correctly identifying it as the problem.
3. Check Live Data (Engine Idling): Start the engine. At idle, a clean DPF should show a low pressure (typically under 10 mbar). A reading consistently above 20 mbar at idle indicates a blockage.
4. Check Live Data (Engine Revving): Increase engine RPM to 2500-3000. The pressure should rise smoothly. If it spikes excessively (e.g., over 150-200 mbar) or behaves erratically, it points to a blockage or sensor issue.
5. Inspect Sensor Hoses: Visually and physically inspect the two rubber hoses connected to the differential pressure sensor for any cracks, perishing, loose fittings, or blockages.
6. Attempt Regeneration: If the sensor and hoses seem okay but the pressure is high, attempt a forced regeneration. This can be done via a scan tool or by driving on a highway at a steady speed (e.g., over 50 mph / 80 km/h) for at least 20-30 minutes. Monitor exhaust gas temperatures during the process; they should reach 550-600°C for a successful regeneration.
7. Post-Regen Check: After the regeneration attempt, re-check the differential pressure at idle. If it has dropped significantly (back to <10 mbar), the issue was a simple soot clog. If it remains high or the P2002 code returns quickly, the DPF is likely clogged with ash, damaged, or another underlying fault exists (like a bad 5th injector).
8. Advanced Checks: If regeneration fails, investigate the 5th injector (on D-CATs) for blockages and the EGR valve for proper function.
9. Professional Cleaning/Replacement: If all else fails, the DPF may need professional off-car cleaning or replacement.

Parts You'll Likely Need

• DPF Differential Pressure Sensor (OEM #89480-42010 (Verify with VIN)) — This sensor is a frequent failure point and is responsible for providing the data that triggers the P2002 code.

Related Codes That Often Appear With This One

• P2463 — This code indicates 'DPF Soot Accumulation' and often appears before or alongside P2002, signifying that the filter is heavily loaded with soot and regeneration is required immediately.
• P2452 / P2453 — These codes point directly to a malfunction in the DPF differential pressure sensor circuit (stuck, low, or high reading), reinforcing the diagnosis of a faulty sensor or wiring.

Platform-Specific Known Issues

• Owner Experience: Faulty Sensor Mimics Clogged DPF: A 2010 RAV4 D-CAT owner was getting a persistent P2002 code. Despite the code pointing to DPF efficiency, their live data showed DPF pressure at a healthy 1.3 kPa. However, they noticed the 'Differential pressure sensor corr' value was stuck at -0.93 kPa even with the ignition on and engine off, when it should be 0. This indicated the sensor itself was biased and faulty, not the DPF. This highlights the importance of checking the sensor's baseline reading before assuming the DPF is clogged.

Mechanic-Grade Diagnostic Values

• DPF Differential Pressure Sensor Reading (Key On, Engine Off) — expected: 0.0 ±0.2 kPa. Failure: A significant non-zero reading, such as -0.93 kPa or 9.7 mbar, indicates a faulty sensor that is biased.
• Catalyst Differential Pressure Value (Techstream) — expected: Below 0.4 (unitless value in Techstream). Failure: If the value exceeds approximately 0.4 at 3000 RPM with no load, the ECU will store DTC P2002, indicating a clogged DPF.
• Exhaust Gas Temperature Rise During Regeneration — expected: Temperature should rise from approx. 300°C to 500°C or higher.. Failure: If the temperature fails to rise significantly during a forced regeneration, it indicates a malfunction in the activation process, such as a blocked 5th injector on D-CAT models.

Scan Tool Commands That Help

• Toyota Techstream: Activate the DPF Rejuvenate (PM) — This is the service function used to initiate a forced or static regeneration of the DPF. It should be used when the DPF is clogged with soot but not yet damaged, and passive regeneration through driving is not working.
• Toyota Techstream: Reset Memory (DPF) — After replacing the DPF or the differential pressure sensor, the learned values in the ECU must be reset. This command tells the ECU that a new component is installed and to relearn its baseline values. Some aftermarket tools may call this 'Reset DPF learning values'.
• General Scan Tool: Clear Fault Codes (Twice) — On some Toyota models, a specific procedure of turning the ignition off, disconnecting the battery for 30 seconds, reconnecting, turning the ignition on, and then clearing the fault codes TWICE is required to fully clear persistent DPF-related codes like P2002 and P2463.

Wiring & Ground Locations

• DPF Pressure Sensor Connector — The sensor is typically located on a bracket on the firewall or inner fender in the engine bay, connected by two rubber hoses to pipes on the DPF.. The 3-pin connector is a point of failure. Checking for 5V reference, ground, and a signal voltage that changes with pressure is a key diagnostic step. A wiring diagram is needed to identify the specific pin functions (VCC, E2, PEX).

Real Owner Repair Stories

• Reddit user post (2010 Toyota RAV4 2.2 D-CAT, 74,000 miles) — P2002 code appeared after fixing another issue. Check engine light was on.
  ❌ Tried (didn't work) The user cleared the code, but suspected it would return.
  ✅ What actually fixed it The user identified the root cause by checking live data with the engine off. The 'Differential pressure sensor corr' value was -0.93 kPa, when it should have been near 0.0 kPa. This definitively pointed to a faulty differential pressure sensor, not a clogged DPF.

OEM Part Supersession History

• 89480-42010 → 89480-42020 — Part revision or supplier change. The functionality is the same.
  Heads up: The part is listed as compatible with a wide range of Toyota models including Auris, Verso, Corolla, and RAV4, suggesting good cross-compatibility. However, always verify with VIN.

Model Year Variations Within This Range

• 2005-2016: The primary difference within this engine family is the D-4D (2AD-FTV) vs. the D-CAT (2AD-FHV) engine. The D-CAT system is more complex, featuring a NOx reduction catalyst and a 5th exhaust fuel injector to aid regeneration. This 5th injector and its port are an additional, specific point of failure (blockage) that can cause P2002 on D-CAT models but does not exist on the standard D-4D.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cylinder Head Gasket Failure / Block Corrosion 🔴 High — A notorious and well-documented design flaw in the 2AD engine family, particularly the higher-output 2AD-FHV. Can occur at various mileages, sometimes as early as 80,000 km. (Ref: Toyota issued an extended warranty (7 years / 180,000 km) in some regions for this specific issue, but it has long since expired.)
• Excessive Oil Consumption 🟠 Medium — Many 2AD engines, especially early models, were known for high oil consumption due to issues with piston ring design. Toyota acknowledged the issue and in some cases replaced pistons under warranty. Consumption of over 1 liter per 3000 miles is a sign of a problem.
• EGR Valve Clogging 🟠 Medium — Common for modern diesels, the EGR valve on the 2.2L engine is prone to clogging with carbon deposits, especially with city driving. This typically occurs after 100,000 km and can cause rough idling, poor economy, and contribute to DPF issues.
• Water Pump Failure 🟡 Low — Some owners report water pump failures, sometimes accompanied by loud noises from the engine, at relatively low mileages (e.g., after 25,000 miles / 40,000 km).

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used DPF differential pressure sensor from a low-mileage donor vehicle can be a cost-effective option, as it is a simple electronic component. Other related parts like brackets or sections of exhaust pipe without the filter media are also good candidates for used parts.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a sensor, ensure the connector pins are clean and not corroded.
• Check that the plastic housing is not cracked or showing signs of extreme heat damage.
• Verify the part number on the used sensor matches the original or its superseded number.
• For hoses, ensure the rubber is still pliable and not brittle, cracked, or swollen.

OEM-only on this vehicle (don't cheap out):

• Diesel Particulate Filter (DPF): It is highly risky to buy a used DPF. Its remaining life is unknown, and it could be clogged with non-burnable ash from the donor vehicle, leading to the same P2002 code shortly after installation. Aftermarket DPFs can also be problematic and may not meet OEM efficiency standards, causing the code to return.

Aftermarket brands forum-validated for this vehicle:

• For the DPF pressure sensor, brands like Denso (often the OEM supplier), NGK, and Bosch are generally considered reliable alternatives to genuine Toyota parts.

Brands owners have reported issues with on this vehicle:

• Be cautious of unbranded, generic 'white-box' sensors from online marketplaces. While cheap, they have a high failure rate and may provide inaccurate readings, leading to continued diagnostic frustration.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P2463 — Indicates soot accumulation; often appears alongside P2002 when the DPF is physically blocked.
• P2452 — Relates to the DPF pressure sensor circuit; a failure here can cause the incorrect readings that trigger P2002.
