P2096 on 2008-2013 Mazda 3 2.0L: Causes and Fixes for Post Catalyst Lean Condition

What's Unique About the 2008-2013 Mazda 3

For the 2010-2011 Mazda 3 with the 2.0L engine, this code is frequently caused by a software issue, not a physical part failure. Mazda released Technical Service Bulletin (TSB) 01-015/16 because the original PCM logic was too sensitive and could set a false P2096 code. This TSB applies to specific VIN ranges and requires a dealer to reprogram the PCM. For other years in this range, the code is more typical, often pointing to physical exhaust leaks which allow outside air to be pulled into the exhaust stream, fooling the rear oxygen sensor into thinking the engine is running lean. The exhaust flex pipe is a particularly common failure point for such leaks.

Generation note: This range covers the end of the first generation (BK, 2008-2009) and the beginning of the second generation (BL, 2010-2013). The MZR 2.0L engine was used in both. A key difference is that 2010-2011 models are specifically called out in TSB 01-015/16 for a PCM software update to fix this code. The first generation is known to be more susceptible to rust issues. For the 2012-2013 model years, Mazda introduced the new direct-injected Skyactiv 2.0L engine as an option, which ran alongside the MZR 2.0L, so it is critical to confirm which engine a 2012-2013 model has.

Symptoms You May Notice

• Check Engine Light is on
• Reduced fuel efficiency
• Possible rough idle
• Hesitation during acceleration
• In many cases, no noticeable symptoms other than the Check Engine Light.
• A ticking or hissing sound from the engine bay, especially on a cold start, if an exhaust leak is the cause.
• Faint smell of exhaust fumes in the cabin or engine bay.

Most Likely Causes

1. Exhaust Leak (before downstream O2 sensor) 🔴 High Probability Gaskets and flex pipes can degrade over time, allowing outside air to be sucked into the exhaust stream. This extra oxygen causes a false lean reading from the downstream O2 sensor. The flex pipe is a commonly reported leak location on these models.
   How to confirm: Visually inspect the exhaust manifold, gaskets, and pipes for cracks, rust, or black soot trails which indicate a leak. A ticking noise on a cold start is a strong clue. A smoke test of the exhaust system is the most effective way to pinpoint small leaks.
   Typical fix: Replace the leaking gasket or repair/replace the cracked pipe section. Exhaust manifold gasket replacement is a common repair.
   Est. part cost: $15-$50 for gaskets
2. PCM Software Update Needed (2010-2011 models) 🔴 High Probability Mazda TSB 01-015/16 identifies that improper PCM control logic can cause a false P2096 code on 2010-2011 Mazda 3 2.0L vehicles. The fix is a software update to widen the sensor's acceptable reading threshold. This TSB also applies to some 2010 Mazda 5 models. Manufacturer TSB Bulletin #01-015-16-3234 confirms this is caused by improper control logic of the PCM regarding the target A/F feedback system.
   How to confirm: A Mazda dealer can check your vehicle's VIN against the TSB's range (e.g., US-spec VINs lower than JM1BL**244894) and its PCM calibration version to see if the update applies and has already been performed.
   Typical fix: Reprogramming the PCM with the updated software at a Mazda dealership. This is a software-only fix and does not require a new PCM.
   Est. part cost: $0 (software only, though dealer labor charges will apply if out of warranty)
3. Failing Downstream Oxygen (O2) Sensor 🟡 Medium Probability → Shop Oxygen Sensor O2 sensors are wear items that degrade over time, leading to slow or inaccurate readings. A sensor stuck in a low-voltage state will be interpreted as a lean condition.
   How to confirm: Use a scan tool to monitor the live data for the downstream O2 sensor (Bank 1, Sensor 2). A healthy sensor on a warm engine should show a relatively steady voltage. If the voltage is stuck low (e.g., below 0.2V) or not responding after leaks and software issues are ruled out, the sensor is likely faulty.
   Typical fix: Replace the downstream (post-catalyst) oxygen sensor. A common aftermarket part is the Denso 234-4527.
   Est. part cost: $80-$180
4. Intake Air Leak (Post-MAF) ⚪ Low Probability
   How to confirm: Perform a smoke test on the intake system to check for unmetered air entering after the Mass Airflow (MAF) sensor. A common and often overlooked cause is an ill-fitting or improperly sized aftermarket air filter that prevents the airbox lid from sealing correctly.
   Typical fix: Replace the cracked intake hose or faulty gasket. Ensure the air filter and housing are seated correctly, and use an OEM-spec filter.
   Est. part cost: $20-$100

Rare But Worth Checking

• Fuel Delivery Issue: A weak fuel pump or clogged injectors can cause a true lean condition. This would typically trigger other codes like P0171 (System Too Lean) first, making it a less likely cause for an isolated P2096.
• Failing Catalytic Converter: → Shop Catalytic Converter While possible, a failing converter is much more likely to set a P0420 (Catalyst Efficiency) code. P2096 is rarely caused by the converter itself.

Diagnosis Steps

1. Check for Technical Service Bulletins (TSBs). For 2010-2011 2.0L models, confirm if TSB 01-015/16 applies and has been performed by checking the VIN and PCM calibration.
2. Visually inspect the entire exhaust system from the engine manifold to the downstream O2 sensor. Look for obvious cracks, rust holes, or black soot indicating a leak. Listen for a ticking noise on cold starts.
3. If no obvious leaks are found, perform an exhaust smoke test to find smaller, hard-to-see leaks. Pay close attention to the flex pipe.
4. Use a scan tool to observe the live voltage data from the downstream O2 sensor (Bank 1, Sensor 2). A healthy sensor should have a relatively stable voltage when the engine is warm. If it's stuck low after ruling out leaks, it points towards a bad sensor.
5. Check for intake system leaks after the MAF sensor, paying close attention to the air filter housing seal. An improperly seated or wrong-sized air filter is a known cause.
6. If other lean codes (like P0171) are present, check fuel pressure and inspect the fuel system to rule out a weak fuel pump or clogged filter.

Parts You'll Likely Need

• Downstream Oxygen Sensor (OEM #L541-18-861A) — If TSBs and exhaust leaks are ruled out, the sensor itself is the next most likely failure point. It is a common wear item.
  Trusted brands: Denso (e.g., 234-4527), NGK/NTK
  OEM price range: $150-$220
  Aftermarket price range: $80-$160
• Exhaust Manifold Gasket / Flange Gasket — These gaskets are a common failure point for exhaust leaks that trigger P2096.
  Trusted brands: Fel-Pro, Walker Exhaust, Bosal
  OEM price range: $15-$40
  Aftermarket price range: $5-$20

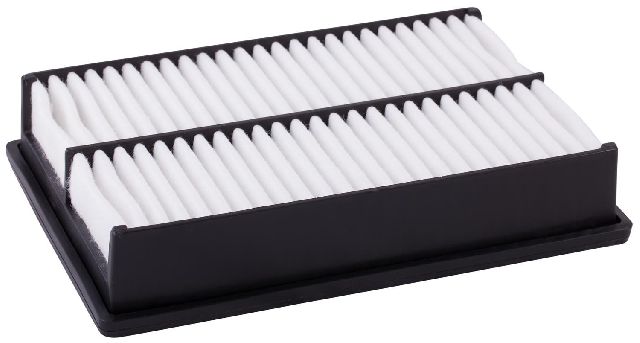

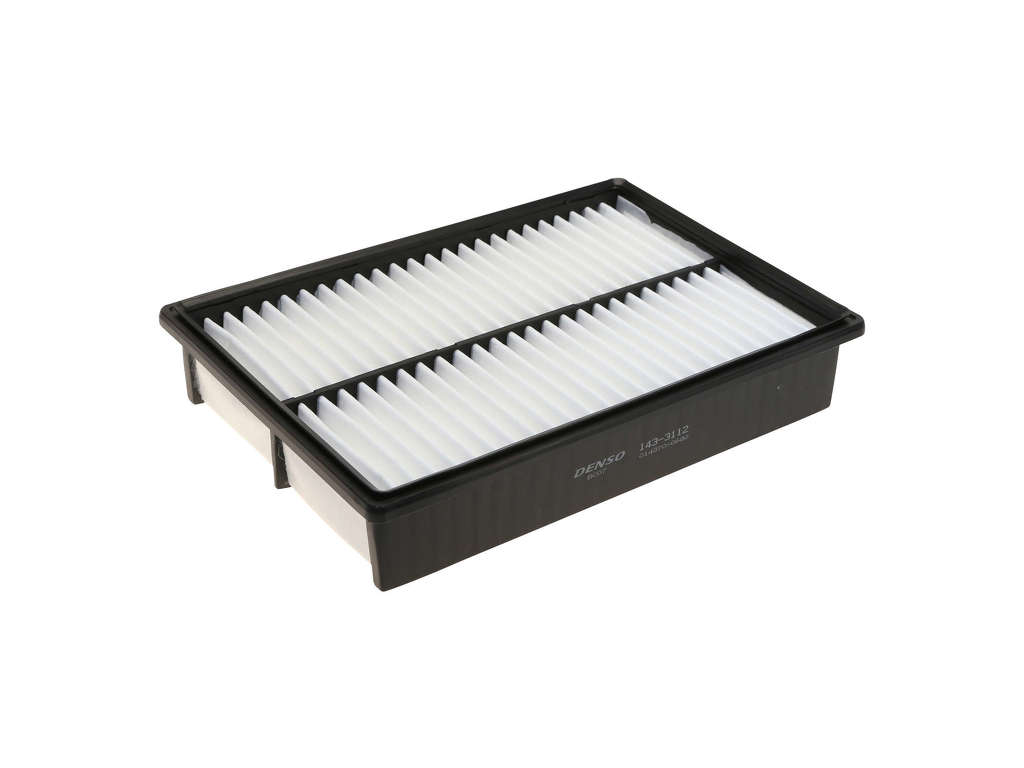

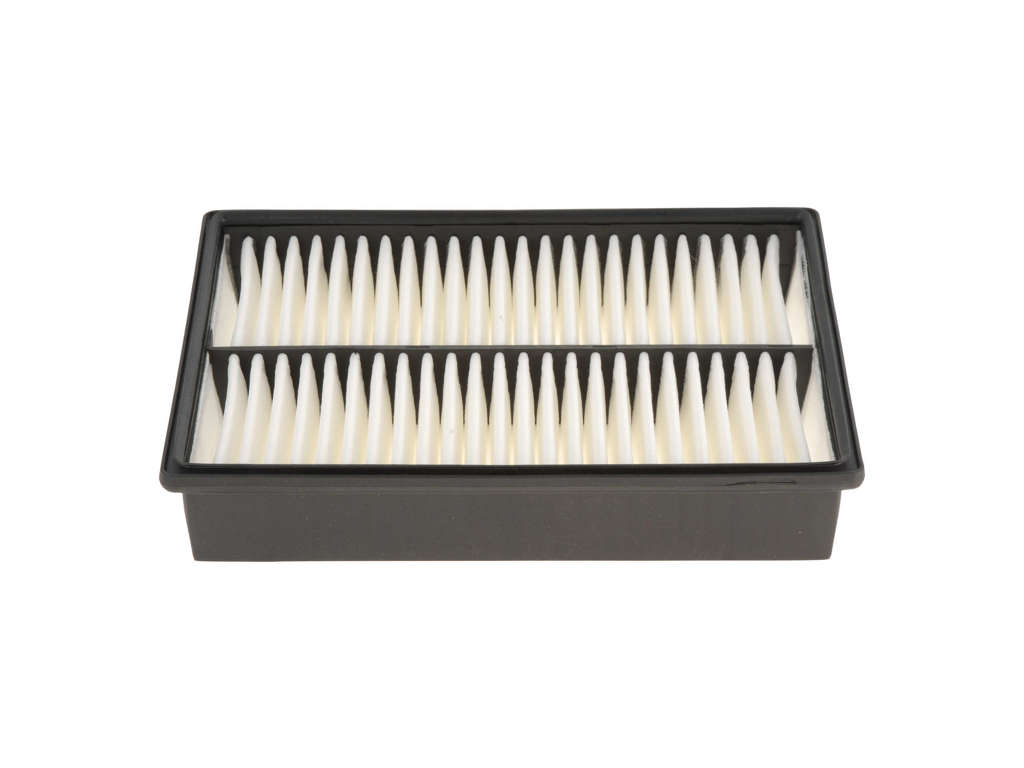

• Engine Air Filter — An incorrectly sized or installed air filter can cause an intake leak at the airbox, leading to a P2096 code.
  Trusted brands: Mazda OEM, Wix, Purolator
  OEM price range: $20-$30
  Aftermarket price range: $15-$25

Related Codes That Often Appear With This One

• P0137 — This code for 'O2 Sensor Circuit Low Voltage (Bank 1, Sensor 2)' points directly to the same downstream sensor. Seeing both codes together strongly suggests a failing sensor or a significant exhaust leak causing a persistent low voltage reading.
• P0171 — This code means 'System Too Lean' as detected by the *upstream* sensor. If you have both P0171 and P2096, it indicates a genuine lean condition affecting the whole engine (like a major vacuum leak or fuel delivery problem), not just a localized exhaust leak fooling the rear sensor.

Technical Service Bulletins (TSBs) & Recalls

• 01-015/16: CHECK ENGINE LIGHT ON WITH DTC P2096:00 - Affects 2010-2011 Mazda 3 (2.0L) and 2010 Mazda 5 (2.3L) due to improper PCM control logic, requiring a software update. It applies to specific VIN ranges.
• TSB Bulletin #01-027-12-2739: A manufacturer service bulletin for related Mazda models notes that some vehicles exhibit MIL illumination with DTC P2096:00 stored in memory, and the PCM logic control was changed to eliminate the concern.
• TSB Bulletin #SA271: This bulletin instructs that if a vehicle has a check engine light on with DTC P2096 stored, the technician should update the PCM calibration with IDS version 99.01 or higher.
• TSB Bulletin #01-011-19-3586a: This record notes that on some Mazda vehicles, the P2096:00 (Air fuel too lean) concern occurs specifically on vehicles with PCMs manufactured by MITSUBISHI.
• TSB Bulletin #01-012-20-3738: This bulletin mentions that some vehicles may experience a check engine light with DTCs P2096:00, P2097:00 and/or P0524:00 that cannot be cleared by itself, staying on even if the detection condition has gone.

Platform-Specific Known Issues

• TSB 01-015/16: Some 2010-2011 Mazda 3 vehicles with the 2.0L engine may set a P2096 code due to overly sensitive PCM software logic. The fix is a dealer-installed software update.
• Real-world owner story: A user on the Mazdas247 forum chased a persistent P2096 code after replacing sensors. The ultimate fix was discovering an incorrectly sized aftermarket air filter (for a CX-9 instead of a CX-7, but the principle applies) was installed, preventing the airbox from sealing and causing an unmetered air leak.

Mechanic-Grade Diagnostic Values

• Downstream O2 Sensor (HO2S) Voltage — expected: Relatively steady voltage, typically between 0.5V and 0.8V on a warm, healthy system.. Failure: Voltage is stuck low (e.g., below 0.2V) or is not responsive. The TSB for this code involves widening the PCM's acceptable voltage threshold before setting a fault.
• Post-Catalyst Fuel Trim (Mazda Specific) — expected: The sum of short-term (SHRTFT12) and long-term (LONGFT12) fuel correction should remain below the fault threshold.. Failure: The code may set when the short-term fuel feedback correction amount (SHRTFT12) is 2% or more, AND the sum of short and long term trims (SHRTFT12+LONGFT12) exceeds 2.3-2.5% for a continuous period of 25 seconds.

Hidden / Shadow Codes Worth Checking

• $07e8 / $07e8Pd: This is not a separate fault code, but rather a hexadecimal identifier for the Engine Control Module (ECM/PCM) that is reporting the main P2096 code. Some OBD-II scanners display this information alongside the primary DTC. Seeing this simply confirms the P2096 code is coming from the main engine computer. (see via Visible on some consumer-grade OBD-II scanners, such as certain MOTOPOW models.)

Scan Tool Commands That Help

• Mazda IDS / MDARS: Module Reprogramming — This is the specific dealer-level function required to perform the software update outlined in TSB 01-015/16 for affected 2010-2011 models. It flashes the PCM with a new calibration file that has a wider tolerance for the downstream O2 sensor readings.

Wiring & Ground Locations

• Downstream O2 Sensor Connector — The gray electrical connector for the downstream sensor is typically clipped to the firewall on the passenger side of the engine bay, not underneath the car.. Knowing the connector is in the engine bay allows for easier access to test for power, ground, and signal integrity at the harness side without raising the vehicle.
• Main Engine Ground — Located on the engine block near the passenger-side motor mount, where the main negative battery cable connects.. A poor main engine ground can cause a variety of electrical issues, including erratic sensor readings. The PCM relies on this ground for accurate sensor data, and a voltage drop here could affect O2 sensor readings.
• Transmission Grounds — Several ground points are located on the transmission case.. The PCM and other modules use the engine and transmission as a ground path. A loose or corroded ground on the case can create intermittent and hard-to-diagnose sensor issues.

Real Owner Repair Stories

• Mazdas247 Forum (Mazda 3 (year/engine not specified, but principle applies)) — Persistent P2096 Check Engine Light.
  ❌ Tried (didn't work) Replacing the upstream O2 sensor, Replacing the downstream O2 sensor
  ✅ What actually fixed it The owner discovered an improperly sized aftermarket engine air filter was installed. The air box lid was not sealing correctly, causing a significant unmetered air leak after the MAF sensor. Replacing the filter with the correct OEM-spec part and ensuring the airbox was sealed resolved the P2096 code.
• Reddit r/mazda3 user (2012 Mazda 3 2.0L, 108k miles) — Recurring P2096 code, which then turned into a P0420 code. Poor acceleration and shaking.
  ❌ Tried (didn't work) Cleaning MAF and throttle body, Patching two large exhaust leaks, Using fuel injector cleaner
  ✅ What actually fixed it The root cause was tampering by a previous owner who had moved the downstream O2 sensor to an incorrect location and gutted the primary catalytic converter. After moving the sensor back to its correct bung, the true code (P0420 - Catalyst Efficiency) appeared. The final fix was replacing the manifold catalytic converter with a new OEM unit.

"I Checked Everything" — The Actual Cause

• A common scenario for this code is passing an exhaust smoke test, only for the root cause to be an intake-side leak. An improperly sized or installed engine air filter can prevent the airbox from sealing, allowing unmetered air to enter the system *after* the MAF sensor. This type of leak will not be found with an exhaust smoke test but will cause a lean condition and trigger P2096.

When the Usual Fixes Don't Work

• While exhaust leaks and faulty O2 sensors are the most common causes, a significant number of owners have fixed a persistent P2096 code only after addressing issues on the intake side. In one well-documented case, after replacing both O2 sensors to no effect, the final repair was replacing an ill-fitting aftermarket air filter that was preventing the airbox from sealing. This created an unmetered air leak that the standard exhaust smoke test could not detect, highlighting the need to check the entire air path from the filter to the rear O2 sensor.

OEM Part Supersession History

• L541-18-861, L541-18-861A-9U → L541-18-861A — Standard part revision and consolidation by the manufacturer.
  Heads up: These part numbers are interchangeable for the specified application (2.0L non-Skyactiv engine).

Model Year Variations Within This Range

• 2010-2011: These model years with the 2.0L MZR engine are subject to TSB 01-015/16, which points to overly sensitive PCM logic as a primary cause, fixed by a dealer software update.
• 2012-2013: For these years, Mazda offered both the standard MZR 2.0L engine and the new Skyactiv-G 2.0L engine. The Skyactiv is a direct-injection engine with a different design and potentially different diagnostic procedures. It is crucial to identify which 2.0L engine the vehicle is equipped with before starting diagnosis.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Automatic Transmission Control Module (TCM) Failure 🔴 High — Common on 2010-2011 models, often occurring between 70,000 and 140,000 miles. Can cause harsh shifting, getting stuck in gear, or a no-start condition.
• Melting/Sticky Dashboard 🟡 Low — Widespread on 2010-2011 models, especially in hot, humid climates. The dash surface becomes sticky and creates a dangerous glare on the windshield. (Ref: Mazda issued a warranty extension (not a recall) for 10 years/unlimited miles to replace affected dashboards.)
• Failing Passenger-Side Engine Mount 🟠 Medium — Common across the generation. The hydraulic mount fails over time, leading to excessive engine vibration felt in the cabin, especially at idle and during acceleration.
• Body and Subframe Rust 🟠 Medium — More prevalent on the first generation (BK, through 2009), especially in the rust belt. Common areas include rear wheel arches, sills, and subframes. The second generation (BL) showed improvement but is not immune.
• Manual Transmission Grinding / Clutch Failure 🟠 Medium — Some 2010-2011 models with manual transmissions experienced grinding noises, particularly when shifting, and premature clutch failure, sometimes within 50,000 miles.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For major exhaust components like the manifold or flex pipe (if not part of the converter), a used part from a rust-free donor vehicle can be a cost-effective option. However, for sensors and the catalytic converter itself, used parts are generally not recommended.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For exhaust pipes/manifolds, check for the absence of rust, especially at welds and flanges.
• Ensure there are no cracks or signs of previous repair (e.g., sloppy welds).
• Verify the donor vehicle is from a region with minimal road salt usage to avoid premature rust.

OEM-only on this vehicle (don't cheap out):

• Catalytic Converter: Aftermarket converters, especially non-CARB compliant ones, frequently fail to resolve catalyst-related codes (like P0420, which can follow P2096) on this platform and may have fitment issues. An OEM converter is the most reliable, albeit expensive, fix.
• Mass Airflow (MAF) Sensor: While not a primary cause, if replacement is needed, OEM is highly recommended as the PCM is sensitive to the exact calibration.

Aftermarket brands forum-validated for this vehicle:

• Oxygen Sensors: Denso and NGK/NTK are widely considered to be the OEM suppliers for Mazda and are the most recommended aftermarket brands for a reliable repair.

Brands owners have reported issues with on this vehicle:

• Cheap, unbranded 'universal' oxygen sensors should be avoided. Forum users report frequent issues with incorrect readings and premature failure, leading to the code returning.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0171 — A lean condition code that may appear alongside P2096 if there is a systemic fuel delivery issue, such as a weak fuel pump or clogged filter.
• P2096:00 — The specific diagnostic trouble code format used in TSB 01-015/16 to identify the PCM software logic error in 2010-2011 models.

Frequently Asked Questions
