P2111 on 2012-2017 GMC Terrain 2.4L: Throttle Body Failure Causes and Fixes

What's Unique About the 2012-2017 GMC Terrain

The first-generation GMC Terrain and its sibling, the Chevrolet Equinox, are well-known for throttle body issues leading to P2111. The problem is so common that the primary symptom, a 'Reduced Engine Power' warning, is frequently discussed by owners in forums. The issue typically stems from carbon and grime buildup inside the throttle body, which impedes the movement of the throttle plate and confuses the integrated electronic sensors. A malfunctioning or clogged PCV (Positive Crankcase Ventilation) system can accelerate this carbon buildup. While the part itself can fail electronically, a simple and often effective cleaning procedure should always be the first step.

Symptoms You May Notice

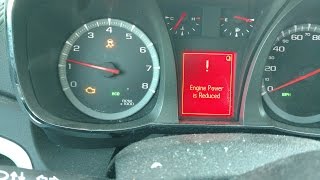

• "Reduced Engine Power" warning light on the dashboard.
• "Service Stabilitrak" warning light may also appear.
• Check Engine Light is on.
• Vehicle enters 'limp mode' with very limited speed and acceleration.
• Unstable, rough, or high idle speed.
• Engine may stall, especially when coming to a stop or at idle.
• Poor or hesitant acceleration.
• Vehicle shakes or sputters.

Most Likely Causes

1. Dirty or Carbon-Clogged Throttle Body 🔴 High Probability → Shop Fuel Injection Throttle Body The 2.4L Ecotec engine's PCV (Positive Crankcase Ventilation) system can route oil vapors and combustion byproducts back into the intake, leading to carbon buildup on the throttle plate and bore over time. This buildup physically restricts the plate from closing properly, causing it to stick. A known issue with a clogged or freezing PCV orifice on these engines (addressed in TSB 14882) can worsen this problem.
   How to confirm: Remove the air intake duct from the throttle body and visually inspect the throttle plate and the inside of the throttle body bore for a thick, black layer of carbon.
   Typical fix: Remove the throttle body from the vehicle and clean it thoroughly with a dedicated throttle body cleaner and a soft brush or microfiber cloth. Pay special attention to the edges of the throttle plate and the bore where it seats. This is a very common and often successful first step.
   Est. part cost: $5 - $15 for cleaner
2. Failed Throttle Body Assembly 🟡 Medium Probability → Shop Fuel Injection Throttle Body The electronic components, including the internal motor, plastic gears, and the integrated Throttle Position Sensor (TPS), can fail over time. Since the TPS is built into the throttle body on this engine, the entire assembly must be replaced if it fails.
   How to confirm: If a thorough cleaning does not resolve the code and symptoms, the throttle body itself is the likely point of failure. A scan tool can monitor the commanded vs. actual throttle position to confirm a discrepancy, but this is often unnecessary after cleaning has failed.

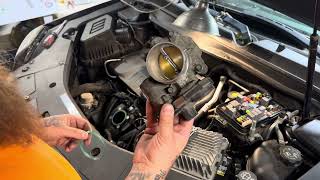

   Typical fix: Replace the entire throttle body assembly. After replacement, a 'throttle relearn' procedure is required for the engine computer to calibrate to the new part.
   Est. part cost: $100 - $250

Rare But Worth Checking

• Wiring or Connector Issue: While less common than throttle body failure, damage to the wiring harness or a poor connection at the throttle body connector (6-pin connector) can cause erratic signals and trigger this code. Check for frayed wires or bent pins at the connector before replacing parts.
• Powertrain Control Module (PCM) Fault: → Shop Engine Control Module (ECM) In very rare cases, the PCM itself can be the source of the problem. This should only be considered after the throttle body and wiring have been definitively ruled out by a professional technician.

Diagnosis Steps

1. Confirm the presence of the P2111 code using an OBD-II scanner.
2. Visually inspect the wiring harness and connector going to the throttle body for any signs of damage, corrosion, or loose connections.
3. Disconnect the negative battery terminal.
4. Remove the engine cover and air intake duct to access the throttle body.
5. Remove the four 10mm bolts holding the throttle body to the intake manifold.
6. Thoroughly clean the throttle plate and bore using throttle body cleaner and a soft cloth or brush. Do not spray cleaner directly into the electronic components.
7. Reinstall the cleaned throttle body and reconnect the air intake and electrical connector.
8. Reconnect the negative battery terminal.
9. Perform a throttle relearn procedure. 🎬 Watch: How to manually reset and relearn your GM throttle body A common method is to start the engine and let it idle in Park for 3 minutes, turn the engine off for at least 60 seconds, then restart and let it idle for another 3 minutes. If the idle is still high, a drive cycle with several accelerations and decelerations above 44 mph may be required.
10. Clear the codes with the OBD-II scanner and test drive the vehicle. If the code and symptoms return, the throttle body assembly needs to be replaced.

Parts You'll Likely Need

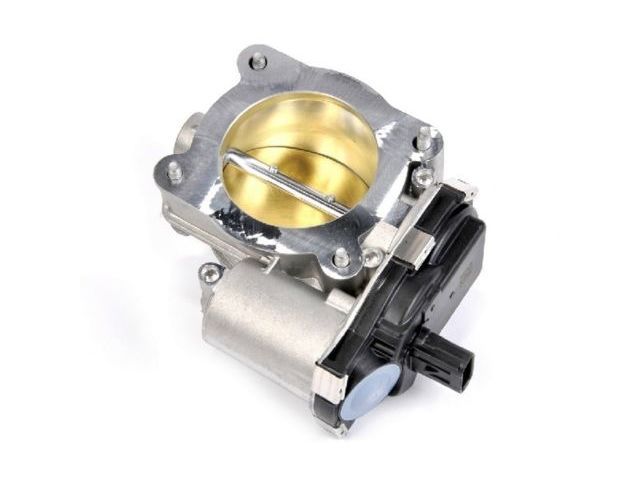

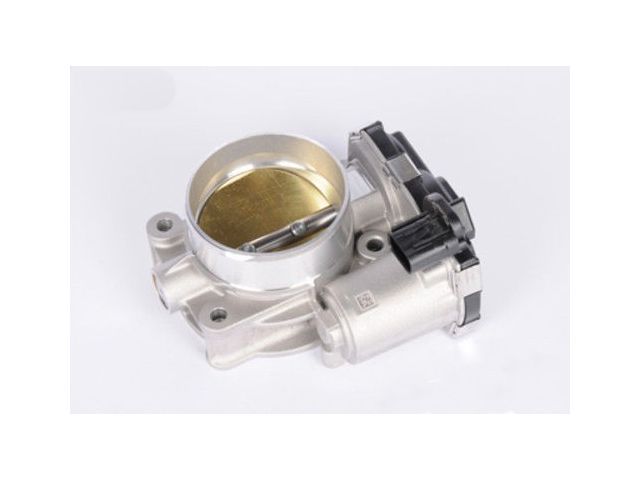

• Electronic Throttle Body Assembly (OEM #12670834, 12669146, 12632101) — This is the most common part to fail, either due to internal electronic failure or because heavy carbon buildup cannot be fully removed. The entire assembly, including the integrated sensor, is replaced as a single unit.
  Trusted brands: ACDelco (OEM), Bosch, Hitachi, Standard Motor Products (S20221)
  OEM price range: $180-$280
  Aftermarket price range: $80-$180
• Throttle Body Cleaner — Required for the first, and often successful, diagnostic step of cleaning the existing throttle body.
  Trusted brands: CRC, Gumout
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• P2135 — This code indicates a 'Throttle/Pedal Position Sensor/Switch A/B Voltage Correlation' fault. It is very common to see this code alongside P2111 as it points to the failure of the sensors integrated within the throttle body assembly.

Technical Service Bulletins (TSBs) & Recalls

• TSB 14882: Addresses a plugged or frozen PCV orifice in the intake manifold which can cause oil leaks and contribute to the carbon buildup that causes P2111.

Platform-Specific Known Issues

• Owner Experience: Cleaning Solves the Problem: Numerous owners on forums and in video testimonials report that the 'Reduced Engine Power' and 'Service Stabilitrak' warnings appeared suddenly. In many cases, a simple 15-minute cleaning of the throttle body completely resolved the issue and the check engine light turned off on its own.
• Owner Experience: Replacement Required: Some owners report that after cleaning the throttle body, the problem returned shortly after or did not improve. In these cases, replacing the entire throttle body assembly was the definitive fix. One owner on a Reddit forum noted that after cleaning failed, a full replacement solved the problem permanently.

Mechanic-Grade Diagnostic Values

• TPS1 Signal Circuit Voltage (Key On, Engine Off) — expected: Less than 1.0 V with throttle closed. Failure: Voltage is greater than 1.0 V, indicating a fault.
• TPS2 Signal Circuit Voltage (Key On, Engine Off) — expected: 4.8 V to 5.2 V with throttle closed. Failure: Voltage is outside of the expected range.

Scan Tool Commands That Help

• Professional OBD-II Scan Tool (e.g., GDS2, Tech2): Actuator Test Mode / Bidirectional Control — Use this function to command the throttle plate to open and close while monitoring live sensor data. If the actuator does not respond to commands, or the sensor reading does not change, it confirms a failure within the throttle body assembly.

Wiring & Ground Locations

• X105 Connector — The 6-pin electrical connector on the electronic throttle body assembly.. This is the primary connection for all throttle body functions. Corrosion, moisture, or spread pins here can directly cause P2111 and related codes.
• G103 — Located at the left front of the engine compartment, under the battery.. This is a key ground point for the Engine Control Module (ECM). A poor connection here can cause a wide range of erratic electronic issues, including faults in the throttle control system.
• G105 — Located at the rear of the 2.4L engine.. This is a primary engine ground. The ECM and its driver circuits rely on a solid engine ground, and a poor connection here can cause erratic actuator behavior.
• G112 — Located at the lower left front of the 2.4L engine.. This is another primary engine block ground that ensures the ECM and its related sensors have a stable ground reference.

Real Owner Repair Stories

• Chevrolet Forum (2010 Chevrolet Equinox 3.0L V6 (same platform/issue)) — Sudden engine slowdown with warning messages while driving in busy highway traffic.
  ❌ Tried (didn't work) Restarting the car temporarily cleared the limp mode but the malfunction indicator light remained on.
  ✅ What actually fixed it The throttle sensor failed, requiring the entire throttle body to be replaced. The owner noted the sensor was integrated into the throttle body assembly. The repair cost was $440.
• YouTube channel 'GMC Terrain DTC P2101' (2009 GMC Terrain 2.4L) — Check engine and traction control lights, lack of power, engine would not rev past 2500 RPM. Codes P2101, P2119, P0121 present (related throttle codes).
  ❌ Tried (didn't work) Cleaning the throttle body., Replacing the throttle body with a new part.
  ✅ What actually fixed it The Engine Control Module (ECM) was faulty. A technician confirmed this by back-probing the TP1 signal wire, which showed a steady voltage, while the scan tool reported fluctuating data from the ECM. Replacing the ECM with a used, reprogrammed unit resolved all codes and symptoms.

OEM Part Supersession History

• 12632101 → 12669146 — Standard part design improvement and revision by the manufacturer.
• 12669146 → 12670834 — Standard part design improvement and revision by the manufacturer. This is the most current OEM part number.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption 🔴 High — Very common, especially on 2010-2013 models. Caused by low-tension piston rings that allow oil to burn off. Can lead to engine damage if oil level is not checked frequently. (Ref: Special Coverage Adjustments 15285 (2011), 16118 (2012), N192291100 (2013) were issued, but have since expired.)
• Timing Chain Stretch and Failure 🔴 High — Common issue, typically presenting as a rattling noise on cold starts between 65,000 and 100,000 miles. Can lead to catastrophic engine failure if the chain breaks or jumps time.
• High-Pressure Fuel Pump (HPFP) Failure 🟠 Medium — The HPFP can fail, leaking fuel into the engine oil. This often triggers a P0172 (System Too Rich) code and can be confirmed by a strong smell of gasoline on the oil dipstick. This can cause engine damage due to poor lubrication. (Ref: Voluntary Emission Recall 43180 for 2010-2011 models.)
• Clogged Catalytic Converter 🟠 Medium — Often a secondary failure caused by the excessive oil consumption issue. Unburned oil contaminates and clogs the catalytic converter, leading to reduced performance and costly replacement.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Due to the high failure rate of the internal electronics, a used throttle body is a significant gamble. It should only be considered as a short-term, budget-constrained option. A new aftermarket part is often affordable enough to be the smarter choice.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage is as low as possible.
• Inspect the electrical connector pins for any signs of corrosion, moisture, or damage.
• Check the throttle bore; minimal carbon buildup suggests a better-maintained donor engine.
• Avoid parts from vehicles with known flood, fire, or severe front-end collision damage.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a reputable brand for the throttle body is critical. The quality of the internal sensors determines the longevity of the repair.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM)
• Bosch
• Hitachi
• Standard Motor Products
• Dorman (specifically their 'OE FIX' version which claims an improved seal)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded parts sold at exceptionally low prices may use inferior internal sensors that can fail prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0172 — System Too Rich code; often triggered when the High-Pressure Fuel Pump (HPFP) fails and leaks fuel into the engine oil, a known issue on this engine platform.
• P2101 — Often associated with throttle body performance issues where the commanded vs. actual throttle position does not match, similar to P2111.
• P0300 — Random or multiple cylinder misfires can occur due to the rough idle, sputtering, and stalling symptoms associated with a sticking throttle plate.
• P0420 — Catalytic converter efficiency code; often a secondary failure caused by the excessive oil consumption and unburned oil contamination common in these 2.4L engines.
