P2111 on 2007-2016 Lexus RX350: Throttle Body Stuck Open Causes and Fixes

What's Unique About the 2007-2016 Lexus RX350

The 2GR-FE engine in the RX350 is generally very reliable, but like many modern engines with electronic throttle control, it's susceptible to carbon buildup in the throttle body. This buildup comes from the PCV (Positive Crankcase Ventilation) system, which routes oil vapors and combustion byproducts back into the intake. Over time, this sticky residue can cause the throttle plate to bind, leading to the P2111 code. There are no widespread, systemic issues or recalls for this problem on the RX350; it's typically a maintenance-related issue that develops with mileage.

Generation note: The 2007-2016 range covers three generations of the Lexus RX350: - 2nd Generation (XU30): 2007-2009 - 3rd Generation (AL10): 2010-2015 - 4th Generation (AL20): 2016 The cause and diagnostic procedure for P2111 are consistent across these generations as they all use the 2GR-FE engine with a similar electronic throttle body design. However, the specific OEM part number for the throttle body may differ.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle enters 'limp mode' with severely limited power and acceleration
• VSC and ABS warning lights may also illuminate on the dashboard
• Engine may idle higher than normal or surge unpredictably
• A feeling that the car maintains speed after letting off the accelerator pedal
• Engine may stall, especially when coming to a stop or at low RPMs.

Most Likely Causes

1. Dirty Throttle Body 🔴 High Probability → Shop Fuel Injection Throttle Body The engine's PCV system routes oil vapors and carbon back into the intake tract, which can deposit on the throttle plate and bore over time, causing it to stick.
   How to confirm: Remove the air intake hose connected to the throttle body and visually inspect the throttle plate and bore for a thick, black layer of carbon buildup. The plate should move smoothly when pushed open manually (with ignition off).
   Typical fix: Thoroughly clean the throttle body plate and bore using a dedicated throttle body cleaner and a soft cloth or brush. A throttle relearn procedure may be needed afterward.
   Est. part cost: $10-$20 for cleaning supplies
2. Faulty Throttle Body Assembly 🟡 Medium Probability → Shop Fuel Injection Throttle Body The electric motor or internal position sensor within the throttle body assembly can fail electronically or mechanically over time, which is a common failure point for this type of component across many manufacturers.
   How to confirm: If the P2111 code returns immediately after a thorough cleaning and a throttle relearn procedure, the throttle body assembly itself is the likely culprit. A diagnostic scan tool can also be used to command the throttle plate open and closed to test its response.
   Typical fix: Replace the entire throttle body assembly. It is a self-contained unit with the motor and sensor.
   Est. part cost: $350-$500 for an OEM part

Rare But Worth Checking

• Wiring or Connector Issue: The wiring harness leading to the throttle body can become damaged, or the connector pins can corrode, leading to a poor connection. This is worth inspecting before replacing an expensive part.
• Debris in Throttle Body: → Shop Fuel Injection Throttle Body In some cases, a piece of debris (like a fragment from the air filter or intake) can become physically lodged in the throttle body, preventing the plate from closing. A NHTSA document for a related model confirms this possibility.
• Powertrain Control Module (PCM) Fault: → Shop Engine Control Module (ECM) In very rare cases, the PCM itself can fail. This should only be considered after all other possibilities, including the throttle body and wiring, have been definitively ruled out.

Technical Service Bulletins (TSBs) & Recalls

While the RX350 is robust, manufacturer bulletins for related Lexus models highlight specific conditions where P2111 may occur. For instance, TSB Bulletin #L-SB-0021-15 notes that some vehicles may exhibit a MIL "ON" with DTC P2111 after a cold soak. Additionally, TSB Bulletin #L-SB-0012-16 (also cited as #LSB001216) describes a condition where a vehicle may experience an engine stall while stopped, accompanied by P2111, which led to modified ECU logic and affected parts. For high-performance Lexus variants, TSB Bulletin #L-SB-0032-25 indicates that the throttle body assembly, motor, and ventilation hoses were modified to address P2111 and idle control issues.

Diagnosis Steps

1. Confirm the P2111 code is present using an OBD-II scanner.
2. Disconnect the negative battery terminal for safety.
3. Remove the engine cover and the air intake duct connected to the throttle body.
4. Visually inspect the throttle plate and the inside of the throttle body bore for heavy carbon buildup or foreign debris.
5. If dirty, thoroughly clean the throttle plate (front and back) and the bore using throttle body cleaner and a soft cloth. Manually open the plate to clean the edges where it seats. Do not spray cleaner directly into the electronic components.
6. Reconnect the air intake duct and the negative battery terminal.
7. Perform a throttle relearn procedure. Some owners report that after cleaning, the idle may be high. A common fix is to drive the vehicle for several miles, including some steady-speed cruising and acceleration, to allow the ECU to relearn the throttle position.
🎬 Watch: How to fix high idle after cleaning
8. If the code returns, inspect the wiring harness and connector at the throttle body for any signs of damage, corrosion, or loose pins.
9. If the wiring is intact and the code persists after cleaning, the throttle body assembly is most likely faulty and should be replaced. Always use a new throttle body gasket during installation.
🎬 See this step-by-step throttle body replacement walkthrough

Parts You'll Likely Need

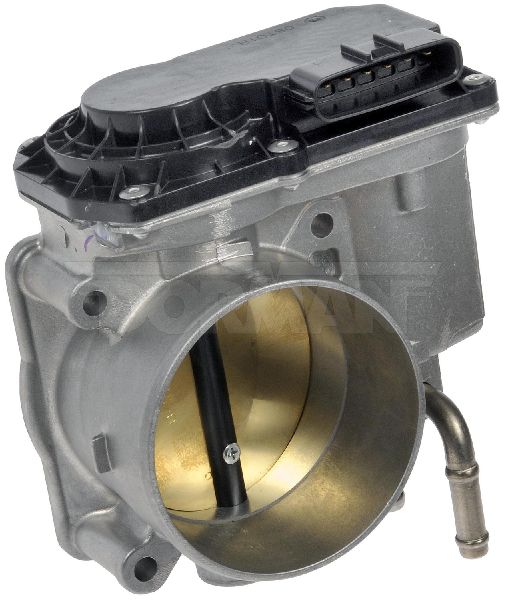

• Throttle Body Assembly (OEM #22030-31030 (fits many 2007-2015 models), 22030-0P050, 22030-0P090. Always verify with VIN.) — This is the complete unit that fails. It includes the throttle plate, the electric motor that moves it, and the integrated throttle position sensor.
  Trusted brands: Lexus (OEM), Aisin, Dorman
  OEM price range: $350-$500
  Aftermarket price range: $150-$300

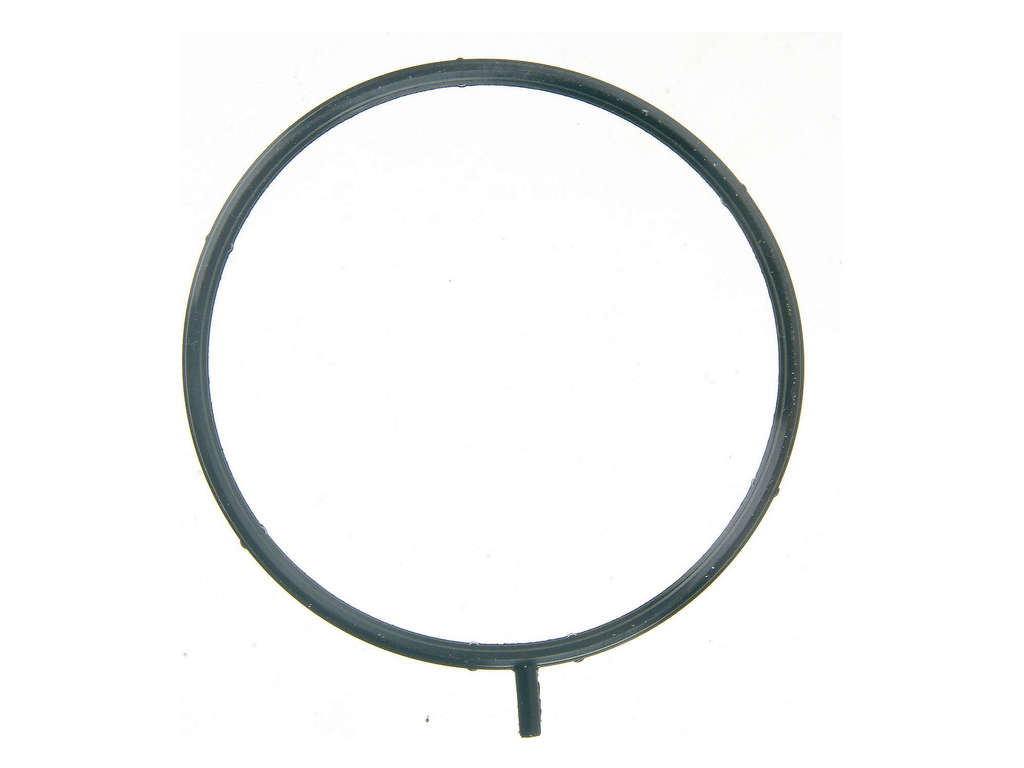

• Throttle Body Gasket (OEM #22271-31040) — A new gasket is required whenever the throttle body is removed and reinstalled to prevent vacuum leaks.
  Trusted brands: Lexus (OEM), Fel-Pro, Mahle
  OEM price range: $10-$20
  Aftermarket price range: $5-$10
• Throttle Body Cleaner — Required for the most common and least expensive fix: cleaning the existing throttle body to remove carbon buildup.
  Trusted brands: CRC, Gumout, WD-40
  OEM price range: N/A
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P2112 — This code means 'Throttle Actuator Control System - Stuck Closed' and can indicate an intermittent or failing throttle body motor that is struggling to move in either direction.
• P0121 - P0124 — These codes relate to the Throttle Position Sensor (TPS). Since the TPS is integrated into the throttle body assembly on the RX350, these codes often point to a failing throttle body unit.
• P2102, P2103 — These codes indicate a fault in the throttle actuator's motor circuit (low or high). They point directly to an electrical problem within the throttle body assembly itself.

Mechanic-Grade Diagnostic Values

• Throttle Control Motor Resistance — expected: 0.3 to 100 Ω at 20°C (68°F). Failure: Resistance is outside the specified range, indicating a faulty motor within the throttle body assembly.
• Throttle Position Sensor Live Data (via Techstream) — expected: The 'Throttle Pos' value should be 60% or more when the accelerator pedal is fully depressed (with ignition ON, engine OFF).. Failure: A value less than 60% at wide-open throttle points to a faulty throttle body assembly.
• ECM Power Supply to Throttle Position Sensor — expected: Approximately 5V at the VCPA/VCP2 pins on the ECM connector with the ignition ON.. Failure: No voltage or incorrect voltage suggests a problem with the ECM or the wiring, not the throttle body itself.

Scan Tool Commands That Help

• Toyota Techstream: Active Test: 'Control the Throttle Actuator' — Use this to command the throttle plate to open and close. This directly tests the motor's response, helping to distinguish between a mechanical jam (carbon buildup) and an electrical failure (bad motor or wiring).
• Toyota Techstream: Data List: 'Throttle Pos' vs. 'Throttle Position Command' — Monitor these two values in real-time while operating the pedal or running an active test. If the actual position ('Throttle Pos') does not match the commanded position, it confirms a fault within the throttle body system.
• Toyota Techstream: Utility: 'Learning Value Reset' — After cleaning or replacing the throttle body, this function can be used to clear the ECM's old learned values for throttle position, which may help resolve an unstable or high idle.

Wiring & Ground Locations

• Throttle Body Connector (T2) — The 6-pin electrical connector located directly on the electronic throttle body assembly.. This is the single point of electrical connection for the throttle motor and position sensor. Damage to this connector (broken lock tab, corroded pins) or its pigtail harness is a common point of failure that can mimic a faulty throttle body.
• Throttle Body Connector Housing P/N — The plastic connector housing on the engine wiring harness side.. The locking tab on this connector can become brittle and break, leading to a poor connection. The OEM part number for a replacement housing is 90980-11858.

Real Owner Repair Stories

• Reddit user in r/Lexus (2015 Lexus GS350 (similar 2GR-FE engine) with 172,000 km) — Not specified if P2111 was present, but owner performed cleaning as preventative maintenance and to improve driveability.
  ❌ Tried (didn't work) Replacing the PCV valve did not produce any noticeable change in performance.
  ✅ What actually fixed it Cleaning the throttle body resulted in a significant improvement: smoother and quicker revs, and better throttle response. The owner noted the car's idle was slightly high for a day or two after cleaning as the computer relearned the new airflow characteristics.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Rupturing VVT-i Oil Line 🔴 High — Common on earlier models (approx. 2007-2009). The original rubber hose section degrades and can burst, leading to catastrophic oil loss and engine seizure if not shut down immediately. (Ref: Toyota issued a Limited Service Campaign (LSC) to replace the original rubber/metal line with an all-metal line (Part No. 15772-31030).)
• Cracked or Melting Dashboard 🟡 Low — Very common on 2007-2009 models due to a material defect that causes the dashboard plastic to crack or become sticky in heat and humidity. (Ref: Lexus issued a Warranty Enhancement Program (ZLD) to cover the replacement of affected dashboards, even for owners outside of the standard warranty period.)
• Power Steering Rack Leak 🟠 Medium — A common issue where the steering rack's seals fail, particularly on the passenger side, leading to a power steering fluid leak. Often becomes noticeable around 100,000 miles.
• Timing Cover Oil Leak 🟠 Medium — The 2GR-FE engine is known for developing oil leaks from the timing chain cover gasket over time. It's a labor-intensive repair due to the engine needing to be partially removed.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used OEM throttle body from a reputable salvage yard is a reasonable choice for this repair, especially if on a tight budget. The failure is often electronic or due to wear, so a lower-mileage used part can be a cost-effective alternative to a new aftermarket part of questionable quality.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number on the used unit matches your original.
• Inspect the connector for any broken plastic or bent/corroded pins.
• Check the throttle plate for significant scoring or damage, though some carbon is expected.
• Ask about the donor vehicle's mileage and if it comes with a warranty (even 30-90 days is a plus).

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a genuine Lexus/Toyota part or one from the original equipment manufacturer (Aisin) is highly recommended over generic, unbranded aftermarket options to ensure proper function and longevity.

Aftermarket brands forum-validated for this vehicle:

• Aisin: Aisin is a Toyota-owned company and the original equipment manufacturer for many of their parts, including throttle bodies. An Aisin-branded part is equivalent to OEM quality.

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost throttle bodies from online marketplaces should be avoided. While tempting, they often have higher failure rates and may not perform to OEM specifications, potentially causing persistent driveability issues.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P2103 — Throttle Actuator Control Motor Circuit High; often appears intermittently alongside P2111 when the throttle body assembly begins to fail electronically.
• P2112 — Throttle Actuator Control System - Stuck Closed; the opposite of P2111, often caused by the same carbon buildup from the PCV system or a mechanical failure in the 2GR-FE throttle body.

Frequently Asked Questions
