P2135 on 2008-2012 Buick Enclave: Throttle Position Sensor Causes and Fixes

What's Unique About the 2008-2012 Buick Enclave

This issue is extremely common across many General Motors vehicles from this era that share the same electronic throttle control system, including the Buick Enclave and its Lambda platform mates (Chevrolet Traverse, GMC Acadia, Saturn Outlook). The problem was so widespread that GM issued a Special Coverage Adjustment (#11273A, later updated to #14582) which extended the warranty for this specific failure to 10 years or 120,000 miles. While this warranty has likely expired for most 2008-2012 models, its existence confirms that the original throttle position sensors were a frequent point of failure.

Symptoms You May Notice

• "Reduced Engine Power" message displayed on the dashboard
• "Service StabiliTrak" or "Service Traction Control" message may also appear
• Check Engine Light is on
• Vehicle has very limited acceleration and power (limp mode)
• Engine may run rough or stall
• Unstable or high idle
• Hesitation or surging when pressing the accelerator pedal

Most Likely Causes

1. Faulty Throttle Body Assembly 🔴 High Probability → Shop Fuel Injection Throttle Body The integrated throttle position sensors (TPS) are a known high-failure item on this GM platform, as acknowledged by GM Special Coverage Adjustment #14582. The internal electronics of the sensors degrade over time, leading to erratic voltage signals.
   How to confirm: Use a scan tool to monitor the live data from TPS1 and TPS2. As you slowly press the accelerator pedal, the voltage readings should change smoothly and in correlation with each other. A jumpy, erratic, or non-responsive reading from one of the sensors confirms the failure. Wiggling the connector and wiring harness while watching the live data can also expose an intermittent fault.
   Typical fix: Replace the entire throttle body assembly. While sensor-only kits exist for some GM models, for the Enclave, replacing the complete unit is more reliable and the standard repair. After replacement, a throttle relearn procedure is required. 🎬 Watch this step-by-step throttle body replacement walkthrough.
   Est. part cost: $95-$520
2. Wiring or Connector Issue ⚪ Low Probability The wiring harness to the throttle body can be subject to heat and vibration, which can cause wires to fray or pins in the connector to become loose or corroded over time.
   How to confirm: Visually inspect the wiring harness and connector at the throttle body for any signs of damage, corrosion, chafing, or loose pins. Wiggle the connector with the engine running to see if it affects the idle or sensor readings on a scan tool.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail.
   Est. part cost: $15-$50

Rare But Worth Checking

• Faulty Accelerator Pedal Position (APP) Sensor: → Shop Accelerator Pedal Assembly While less common than the throttle body, the APP sensor also has dual sensors that can fail and cause a correlation code. This would typically set code P2138, but can sometimes be associated with P2135.
• Powertrain Control Module (PCM) Fault: → Shop Engine Control Module (ECM) This is very rare. The PCM should only be considered after all other possibilities, including wiring, have been exhaustively ruled out.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P2135 is the primary code. Note any other codes present, especially P1516, P2101, P0121, or P0221.
2. Observe Freeze Frame data to see the conditions under which the code was set.
3. Using the scanner's live data function, graph the voltage of Throttle Position Sensor 1 (TPS1) and Throttle Position Sensor 2 (TPS2).
4. With the key on and engine off, slowly press and release the accelerator pedal. The two sensor voltage readings should move smoothly. One will typically read about half of the other, but they should mirror each other's movement without any spikes or dropouts.
5. If one or both sensor readings are erratic or flat, the throttle body assembly is almost certainly faulty.
6. If the sensor data looks good, turn the vehicle off and inspect the wiring harness and electrical connector at the throttle body. Check for corrosion, bent pins, or damaged wires.
7. If wiring is intact and sensor data is erratic, the throttle body assembly needs replacement.
8. After replacement, perform a throttle relearn procedure. A common method is to start the engine and let it idle in Park for 3 minutes, then turn it off for 60 seconds. Repeat this process. For best results, a scan tool may be needed to perform the 'Idle Learn Reset'.

Parts You'll Likely Need

• Throttle Body Assembly (OEM #12631018 (ACDelco), 12616668 (Previous GM)) — This is the most frequent cause of P2135, as the internal throttle position sensors fail. The sensors are integrated into the assembly and are not typically sold separately for this vehicle.
  Trusted brands: ACDelco (GM Original Equipment), Bosch, Dorman, Standard Motor Products
  OEM price range: $400-$520
  Aftermarket price range: $95-$250

Related Codes That Often Appear With This One

• P1516 — This code relates to 'Throttle Actuator Control (TAC) Module Throttle Actuator Position Performance,' which is often triggered as a direct result of the sensor correlation fault in P2135.
• P2101 — This code means 'Control Module Throttle Actuator Position Performance' and, like P1516, indicates a problem with the electronic throttle control system that is often set alongside P2135.
• P0121 — This code, 'Throttle/Pedal Position Sensor/Switch 'A' Circuit Range/Performance,' is also frequently cited in the same GM Special Coverage Adjustment that covers P2135.
• P0221 — Similar to P0121, this code for the 'B' circuit is also covered under the same GM Special Coverage Adjustment and points to the same throttle body sensor issue.

Technical Service Bulletins (TSBs) & Recalls

• Special Coverage Adjustment #14582 / #11273C: Covers the throttle position sensor failure causing a reduced power mode for 10 years or 120,000 miles. It explicitly mentions DTC P2135, P0121, and P0221 as covered codes.
• TSB Bulletin #12-06-04-003: Although issued for the Buick Lucerne, this bulletin provides a procedure for replacing the throttle position sensor cover to address a malfunction indicator lamp, reduced power message, and DTC P2135.

Platform-Specific Known Issues

• General Motors issued Special Coverage Adjustment #11273A, later superseded by #14582, extending the warranty on the throttle body to 10 years/120,000 miles due to the high failure rate of the throttle position sensor. This confirms a known defect with the original part.

Mechanic-Grade Diagnostic Values

• 5V Reference at Throttle Body Connector — expected: Steady 5.0V with key on, engine off. Failure: A missing or fluctuating voltage points to a wiring or PCM issue, not a faulty sensor.
• Ground Circuit at Throttle Body Connector — expected: < 0.1V (100 millivolls) with key on, engine off. Failure: A reading higher than 0.1V indicates a poor ground connection, which can cause erratic sensor readings.
• TPS1 vs TPS2 Live Data Correlation — expected: One sensor's voltage should rise (e.g., ~0.5V to ~4.5V) while the other falls (~4.5V to ~0.5V) as the accelerator is pressed. They should move in a smooth, opposing mirror image.. Failure: Any spike, dropout, or flat line in one of the sensor readings during a slow pedal sweep indicates a failing sensor within the throttle body.

Scan Tool Commands That Help

• GM GDS2/Tech2 or equivalent professional scanner: Idle Learn Reset / Throttle Learn — This function should be used after replacing the throttle body assembly to force the PCM to learn the new closed-throttle position. While manual relearn procedures exist, this is the most reliable method to prevent an unstable idle after replacement.

Wiring & Ground Locations

• Throttle Body Connector — Plugged into the driver's side of the throttle body, located at the front of the engine where the main air intake duct connects.. This is the single connection point for both TPS sensors and the throttle motor. Corrosion, backed-out pins, or broken wires are a common point of failure. Wiggling this connector while watching live data can often reveal an intermittent fault.
• G103 / G301 — A primary engine ground located on the front of the passenger-side cylinder head or behind the left kick panel.. A poor connection at this main engine ground can cause unstable voltage references for multiple sensors, including the TPS, leading directly to correlation faults like P2135. Cleaning this ground is a critical diagnostic step if sensor readings are erratic but the throttle body is new.

Real Owner Repair Stories

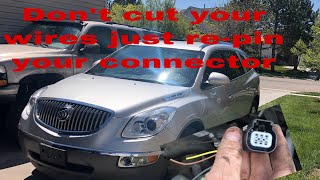

• YouTube user experience (Buick Enclave (year not specified, but within generation)) — Wife and kids were stranded due to the vehicle entering limp mode.
  ✅ What actually fixed it The plastic locking clip on the throttle position sensor connector had broken. Instead of replacing the entire throttle body, the owner purchased a new connector pigtail and carefully re-pinned the existing wires into the new connector housing, which resolved the fault.

OEM Part Supersession History

• 12616668, 12616439 → 12631018 — Standard part evolution and potential internal revisions by GM to improve reliability.
  Heads up: The newer part number (12631018) is the correct direct replacement for the earlier numbers on this vehicle.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Timing Chain Stretch 🔴 High — Common, can occur as early as 40,000 miles, but more typical around 100,000 miles. Often linked to extended oil change intervals. (Ref: GM offered extended coverage under Customer Satisfaction Program 10287 for some model years.)
• 3-5-R Wave Plate Failure (6T75 Transmission) 🔴 High — Very common on 2008-2009 models, leading to loss of 3rd, 5th, and Reverse gears. Can occur under 100,000 miles. (Ref: Special Coverage Adjustment #14404B extended the warranty to 10 years/120,000 miles.)
• Power Steering Pump Failure / Stiff Steering 🟠 Medium — Common issue where steering becomes difficult, especially at low speeds. (Ref: Special Coverage Adjustment #14329B extended the warranty to 10 years/150,000 miles.)
• Leaking Rack and Pinion Steering Gear 🟠 Medium — A well-documented issue on 2008 and 2009 models, leading to loss of power steering fluid.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used throttle body is generally not recommended for this repair. The failure is due to the wear and degradation of internal electronic components over time. A used part from a junkyard is likely to have similar wear and may fail soon after installation, repeating the problem.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number matches the latest OEM revision (12631018).
• Inspect the connector pins for any signs of corrosion or damage.
• Check for any physical damage to the throttle body housing.
• If possible, get a part from a vehicle with the lowest possible mileage.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a GM Genuine or ACDelco OEM part is highly recommended by owners on forums for longevity and to avoid repeat failures that are sometimes associated with cheaper aftermarket units.

Aftermarket brands forum-validated for this vehicle:

• Bosch
• Hitachi
• Standard Motor Products
• Dorman (specifically their OE FIX versions which claim improvements to prevent moisture intrusion)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded units sold on marketplaces like eBay or Amazon are frequently cited in forums as being problematic or failing prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0121 — Related to Throttle Position Sensor performance; explicitly mentioned as a covered code under GM Special Coverage Adjustment #14582.
• P0221 — Related to Throttle Position Sensor 2 performance; explicitly mentioned as a covered code under GM Special Coverage Adjustment #14582.
• P1516 — Often appears alongside P2135 as a companion code regarding throttle actuator control module performance.
• P2101 — A companion code related to the throttle actuator control motor circuit that may be present during diagnosis.
