P2135 on 2006-2008 Chevrolet Malibu: Causes and Fixes for Reduced Power

What's Unique About the 2006-2008 Chevrolet MALIBU

This issue is very common across many General Motors vehicles from this era, not just the Malibu. The problem is so well-known that GM issued a Technical Service Bulletin (TSB #12-06-04-003A) for it. The 2006-2008 year range also covers two different Malibu generations—the 6th generation (2006-2007) and the completely redesigned 7th generation (2008)—but both are susceptible to this throttle body problem due to shared component design and electronics. The issue also plagues platform mates like the Pontiac G6 and Saturn Aura.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle. 👇

Generation note: The 2006-2008 model years span the end of the 6th generation (2004-2007) and the beginning of the 7th generation (2008). The P2135 fault is common on both generations due to similar electronic throttle control systems used by GM during this period. While the cause is the same, specific throttle body part numbers may vary between the different engines offered (e.g., 2.2L, 3.5L, 2.4L, 3.6L).

Symptoms You May Notice

• Check Engine Light is on
• "Engine Power Reduced" message on the dashboard.
• "Service Traction" or "Service ESC" messages may appear.
• Vehicle may stall or die while driving, often at low speeds or when decelerating.
• Hesitation or surging during acceleration.
• Car won't start after being shut down.
• Unstable or rough idle.
• Hard or erratic transmission shifting due to incorrect throttle signals.

Most Likely Causes

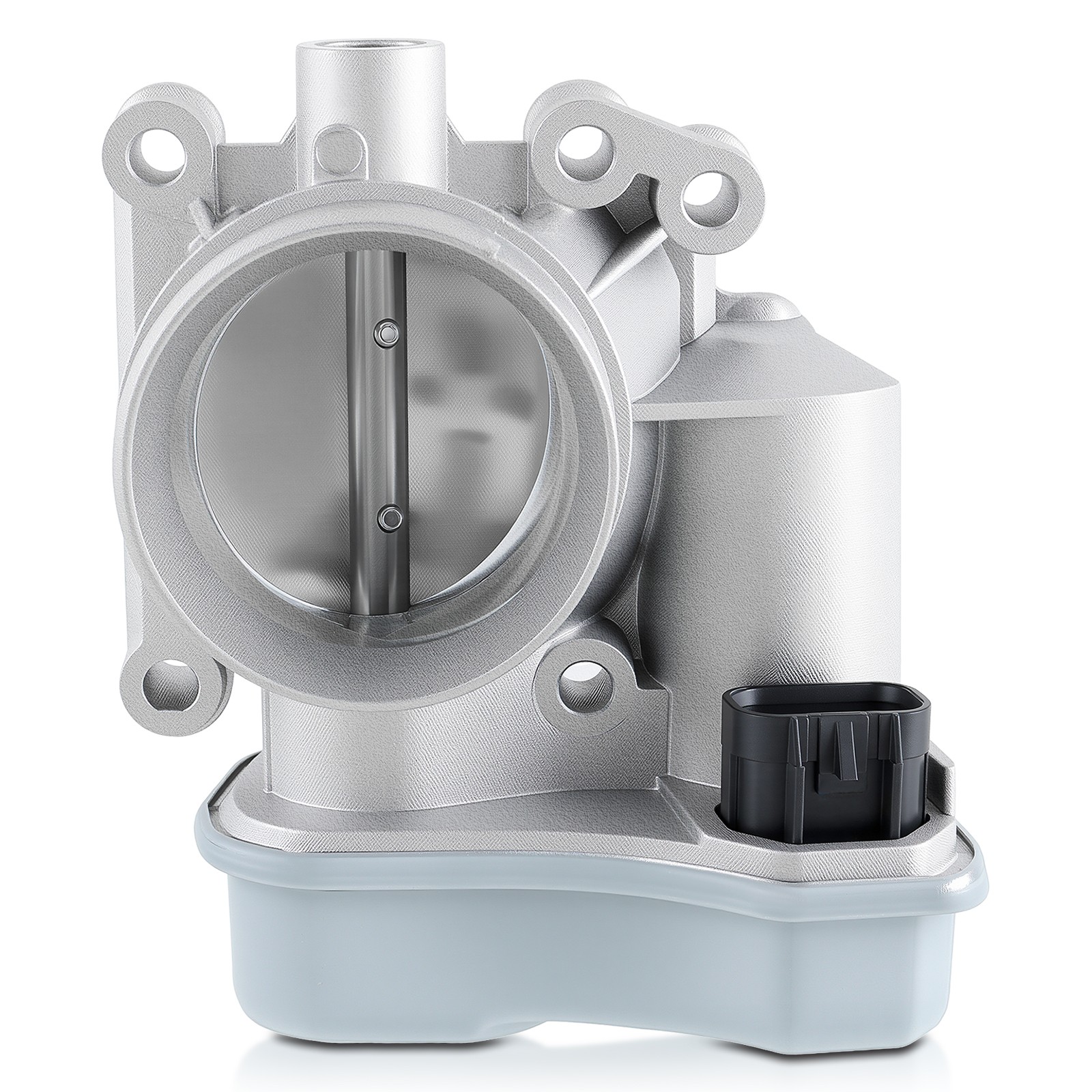

1. Faulty Throttle Body Assembly 🔴 High Probability → Shop Fuel Injection Throttle Body This is a widely documented failure point on many GM vehicles from this period. The internal throttle position sensors (TPS) wear out or fail, causing the correlation error. GM TSB #12-06-04-003A directly addresses this, though it recommends replacing just the sensor cover. Many owners find replacing the whole unit is a more permanent fix.
   How to confirm: Using a scan tool, monitor the live data for Throttle Position Sensor 1 and Sensor 2. As you slowly press the accelerator pedal (Key On, Engine Off), their voltage readings should be smooth and inversely proportional (e.g., one rises from ~0.5V to ~4.5V while the other falls). If one or both are erratic, jumpy, or don't correlate, the throttle body is bad.
   Typical fix: Replace the entire throttle body assembly. While TSB #12-06-04-003A outlines a procedure to replace only the TPS cover (the black plastic part), many mechanics and owners report the issue returning, suggesting wear in the throttle motor or gears as well. After replacement, a 'Throttle Relearn Procedure' is mandatory.
   Est. part cost: $70 - $280
2. Wiring or Connector Issue at Throttle Body 🟡 Medium Probability → Shop Fuel Injection Throttle Body The engine harness connector pins can suffer from 'fretting corrosion,' a microscopic wear and oxidation that increases resistance and causes signal loss. This is a known issue across many GM platforms. The harness is also subject to heat and vibration, which can cause wires to chafe or pins to become loose.
   How to confirm: Visually inspect the throttle body connector for corrosion, bent pins, or loose wires. Perform a 'wiggle test': with the key on and engine off, watch the live TPS voltage data on a scan tool while gently wiggling the connector and harness. If the voltage jumps or the code sets, you have a wiring issue.
   Typical fix: Repair the damaged wiring or replace the connector pigtail (e.g., ACDelco PT2628). Applying a small amount of dielectric grease to the connector pins can help prevent future fretting corrosion.
   Est. part cost: $15 - $50

Rare But Worth Checking

• Faulty Accelerator Pedal Position (APP) Sensor: → Shop Accelerator Pedal Assembly Less common than the throttle body, but the APP sensor also has correlation sensors. If throttle body and wiring are confirmed good, this is the next logical part to inspect. It will often set its own codes, like P2138, but can sometimes contribute to P2135.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is the least likely cause. The PCM should only be considered after all other possibilities, including wiring, grounds, the throttle body, and the APP sensor, have been thoroughly ruled out.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P2135 is present.
2. Turn the ignition off and inspect the electrical connector and wiring harness at the throttle body. Look for any signs of damage, corrosion, or loose pins. Check for evidence of fretting corrosion (a fine, dark dust).
3. Using a scan tool with live data capability, monitor the voltage of TP Sensor 1 and TP Sensor 2.
4. With the engine off but the key on, slowly press the gas pedal to the floor and watch the sensor voltages. They should change smoothly and in correlation with each other (one may rise while the other falls, but they should be proportional).
5. If you see any voltage spikes, drops, or flat spots from either sensor, the throttle body assembly is faulty.
6. If the sensor data appears normal, perform a 'wiggle test' on the harness and connector while watching the live data to check for intermittent connection issues.
7. If wiring and the throttle body are confirmed good, the accelerator pedal position sensor would be the next component to test.
8. Crucial Final Step: Perform a Throttle Relearn Procedure. After replacing the throttle body or disconnecting the battery, the PCM must relearn the idle and full-range positions. A common method is: 1. Start and idle the engine for 3 minutes. 2. Turn the engine off for 60 seconds. 3. Start and idle the engine again for 3 minutes. The idle should stabilize. Some scan tools can also command this reset.

Parts You'll Likely Need

• Throttle Body Assembly (OEM #Varies by engine. Example: ACDelco 217-3153 (Note: this specific part may not fit Malibu, always verify with VIN).) — This is the most frequent cause of P2135. The internal sensors fail, and replacing the complete assembly is the most reliable repair.
  Trusted brands: ACDelco, Delphi, Bosch, Hitachi
  OEM price range: $200-$380
  Aftermarket price range: $70-$220
• Throttle Position Sensor Kit (OEM #Dorman 977-000 (Aftermarket)) — For a cheaper repair, TSB #12-06-04-003A advises replacing only the sensor cover. Aftermarket kits like the Dorman 977-000 are available, but some owners report the problem returning, making a full throttle body replacement more reliable long-term.
  Trusted brands: Dorman
  OEM price range: N/A (Sold as cover only)
  Aftermarket price range: $50-$95

Related Codes That Often Appear With This One

• C0561 — This is a code for the traction control/stability system (ESC). The engine computer will often disable traction control as a safety precaution when a critical powertrain fault like P2135 occurs, leading to the 'Service ESC' message.
• P2119 — This code relates to the Throttle Actuator Control (TAC) system, indicating the throttle blade didn't return to its expected position. It often appears alongside P2135 as the two faults are closely related within the same component.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #12-06-04-003A: Describes a procedure to replace the throttle position sensor cover for concerns of a malfunction indicator lamp, reduced power message, and DTC P2135. It advises against replacing the entire throttle body.
• Bulletin #11-06-04-007C: A similar TSB for GM trucks that also details replacing the TPS cover and mentions a required PCM reprogram for some model years.
• Special Coverage Adjustment #11273A: Extended warranty coverage to 10 years/120,000 miles for this specific throttle position sensor failure on many 2008-2011 V8-equipped GM trucks and SUVs.

Platform-Specific Known Issues

• NHTSA records show multiple owner complaints about sudden power loss and stalling at highway speeds due to this code. One owner reported, "ENGINE POWER REDUCED 99 %.SOMETIMES ENGINE DIES WHILE DRIVING 40-55 MPH."
• Another complaint noted multiple warning messages appearing at once: "SERVICE TRACTION/SERVICE ESC/ENGINE POWER REDUCED."
• GM issued Technical Service Bulletin #12-06-04-003A which provides a procedure for replacing the throttle position sensor cover to address DTC P2135, confirming this is a known manufacturer issue. The TSB explicitly states, 'DO NOT replace the throttle body. Instead follow this procedure below.'
• Some GM vehicles were covered under a Special Coverage Adjustment (#11273) which extended the warranty for this issue to 10 years/120,000 miles, though this primarily applied to V8-equipped trucks and SUVs. A similar program, #14329, covered some 2008-2012 Malibu models. Malibu owners should still check with a dealer for any applicable programs for their specific VIN.

Mechanic-Grade Diagnostic Values

• Throttle Position (TP) Sensor Voltage at Closed Throttle — expected: Approximately 0.5V - 0.7V. Failure: Voltage is outside this range or is unstable/jumpy at rest.
• Throttle Position (TP) Sensor Voltage at Wide Open Throttle (WOT) — expected: Approximately 4.0V - 4.5V. Failure: Voltage does not reach this range, or the signal is erratic while opening the throttle.
• Correlation between TP Sensor 1 and TP Sensor 2 — expected: Voltages should remain within approximately 0.2V of each other (in their respective inverse patterns).. Failure: The difference between the expected values of the two sensors exceeds the calibrated range (e.g., >0.2V divergence).
• Throttle Body Mounting Bolt Torque — expected: 89 in-lbs (for 2.4L engine). Failure: N/A - This is an installation specification.

Scan Tool Commands That Help

• Tech2 / GDS2: Idle Learn Reset — Used after replacing the throttle body to command the ECM to relearn the new throttle's idle and closed positions. This is the dealer-level method to perform the mandatory relearn procedure.
• Professional Scan Tool with Live Data/Graphing: Graphing TP Sensor 1 vs. TP Sensor 2 — This is the primary diagnostic step. Graphing the two sensor voltages while operating the pedal makes it easy to spot glitches, dropouts, or non-correlation that confirm a faulty throttle body.

Wiring & Ground Locations

• G110 (2.4L Engine) — On the engine block, near the exhaust camshaft position (CMP) sensor.. This is a primary engine ground. A poor connection here can introduce electrical noise or voltage drops, affecting sensor readings, including those from the throttle body, potentially causing a correlation code.
• Throttle Body Connector (All Engines) — Directly on the electronic throttle body assembly, where the engine harness connects.. This 6-pin (or 8-pin on some GM models) connector is the single point for all power, ground, and signal wires for the throttle position sensors and throttle motor. It is a common point of failure due to fretting corrosion or broken locking tabs.
• Engine Control Module (ECM) — On the left side of the engine compartment, near the battery.. All throttle body signals are sent to the ECM. While less common, checking the ECM connectors for corrosion or loose pins is a valid step if the throttle body and its connector are confirmed good.

Real Owner Repair Stories

• Chevy HHR Network Forum User (2008 Chevrolet HHR 2.4L (Shares platform/drivetrain with Malibu)) — P2135 code, vehicle would go into limp mode, especially when first starting. Problem became progressively worse.
  ❌ Tried (didn't work) Took the throttle body off and cleaned it., Inspected each individual wire in the harness., Cleaned the ground connection.
  ✅ What actually fixed it Took the vehicle to a dealer. They concluded the throttle actuator was faulty and replaced the entire throttle body assembly, then performed a software update/reprogram on the ECM. The final cost was $633.

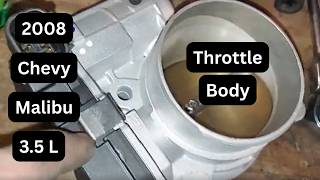

• YouTube video by '2008 Chevy Malibu' (2008 Chevrolet Malibu 3.5L V6) — P2135 code and related symptoms.
  ❌ Tried (didn't work) Replacing only the throttle position sensor (the black cover on the side of the throttle body).
  ✅ What actually fixed it The problem was not resolved until the entire throttle body assembly was replaced with a new unit.

When the Usual Fixes Don't Work

• While the official GM Technical Service Bulletin (#12-06-04-003A) specifically advises replacing only the throttle position sensor cover and NOT the entire throttle body, real-world owner experiences often contradict this. Multiple owners have reported that replacing only the sensor kit (the cheaper repair) did not permanently solve the problem, and the P2135 code returned. The issue was only resolved after replacing the complete throttle body assembly, suggesting that wear within the throttle motor, gears, or the throttle plate shaft can also contribute to the correlation fault, not just the sensor electronics.

Model Year Variations Within This Range

• 2006-2007 (3.5L V6): The 6th generation Malibu uses a slightly different Throttle Actuator Control (TAC) system wiring compared to the 7th generation 2008+ models. While the principle and failure mode are the same, specific pinouts and wire colors at the ECM may differ.
• 2008 (2.4L I4 & 3.6L V6): The 7th generation Malibu introduced new engines (2.4L I4 and 3.6L V6) with different throttle body part numbers and potentially different ECM software logic compared to the older 3.5L V6. A Special Coverage Adjustment (#14329) was issued for the TPS on some 2008-2012 models, which may not apply to the 2006-2007 model years.
