P2135 on 2007-2009 Pontiac Torrent 3.4L: Reduced Engine Power Causes and Fixes

What's Unique About the 2007-2009 Pontiac Torrent

On this GM platform, which includes the Pontiac Torrent and its sibling the Chevrolet Equinox, the P2135 code is an extremely common and well-documented issue. The problem is almost always a failure of the integrated electronic throttle position sensors within the throttle body assembly. The issue was so widespread that General Motors issued a Technical Service Bulletin (TSB #11-06-04-007C) that, for some vehicles, detailed a procedure for replacing just the sensor's cover and electrical terminals (Kit P/N 19259452) rather than the entire throttle body, pointing to a known weakness in the electrical contacts. However, for long-term reliability, most technicians and owners recommend replacing the complete throttle body assembly.

Symptoms You May Notice

• "Reduced Engine Power" message on the dashboard
• Check Engine Light is on
• Severely limited acceleration (limp mode)
• Vehicle hesitates or surges when accelerating
• Stalling, especially after stopping
• Unstable or high idle
• "Service Stabilitrak" or "Service Traction Control" message may also appear

Most Likely Causes

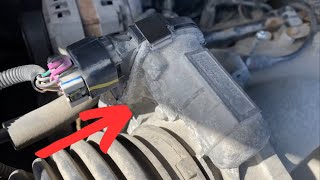

1. Faulty Electronic Throttle Body Assembly 🔴 High Probability → Shop Fuel Injection Throttle Body The integrated throttle position sensors (TPS) are a known high-failure item on this GM platform, leading to the P2135 correlation error. Internal wear and electronic glitches cause the two sensor signals to disagree.
   How to confirm: Using a scan tool, graph the live data for TP Sensor 1 and TP Sensor 2 voltage. As the accelerator is slowly pressed, the two voltage readings should move smoothly and in opposite directions (one increasing from ~0.5V to ~4.5V, the other decreasing from ~4.5V to ~0.5V). If either signal is erratic, jumpy, or flat, the throttle body assembly is faulty. A jump or glitch in the data confirms the failure. 🎬 Watch: How to test the electronic throttle body
   Typical fix: Replace the entire throttle body assembly and the corresponding gasket. An idle relearn procedure is required after installation. The GM Original Equipment part is ACDelco #217-3108. 🎬 See this step-by-step throttle body replacement walkthrough
   Est. part cost: $140-$260
2. Wiring or Connector Issue at the Throttle Body 🟡 Medium Probability → Shop Fuel Injection Throttle Body The wiring harness connector at the throttle body is exposed to engine heat and vibration, which can lead to corrosion, loose pins, or broken wires over time. Water intrusion into connectors has also been noted as a cause.
   How to confirm: Turn the ignition off and disconnect the throttle body connector. Inspect for any signs of green corrosion, backed-out pins, or damaged wires. Wiggle the harness while observing live scan tool data (with the engine on) to see if the sensor voltage fluctuates. Apply dielectric grease to the cleaned connector pins to prevent future issues.
   Typical fix: Clean the connector terminals or repair the damaged section of the wiring harness. In some cases, a new pigtail connector (ACDelco P/N PT2628) may need to be spliced in.
   Est. part cost: $15-$40 for a pigtail connector
3. Faulty Accelerator Pedal Position (APP) Sensor ⚪ Low Probability → Shop Accelerator Pedal Assembly
   How to confirm: While P2135 typically points to the throttle body, a faulty APP sensor can be a cause. A faulty pedal sensor would more commonly set a P2138 code, but it's worth checking. Use a scan tool to graph the live data for APP Sensor 1 and APP Sensor 2. Both voltages should increase smoothly as you press the gas pedal. If they are erratic or do not correlate, the pedal assembly is likely faulty.
   Typical fix: Replace the entire accelerator pedal assembly, as the sensor is integrated into it. The OEM part number is typically 25832864.
   Est. part cost: $50-$100

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is a last resort after confirming the throttle body, APP sensor, and all related wiring are in perfect condition. A PCM failure is uncommon but possible.

Diagnosis Steps

1. Scan for Codes: Use an OBD-II scanner to confirm P2135 is the primary code. Note any other codes that are present, such as P1516 or P2101.
2. Visual Inspection: Carefully inspect the wiring harness and 8-pin electrical connector going to the throttle body. Look for any signs of damage, corrosion, or loose connections. Unplug it, check for pin integrity, and reseat it firmly.
3. Analyze Live Data: Use a scan tool that can graph live data. Monitor the voltage readings for 'TP Sensor 1' and 'TP Sensor 2'. With the key on and engine off, slowly press the gas pedal to the floor and release. The two sensor readings should be smooth and mirror each other (one goes from low to high voltage, the other from high to low). Any glitches, spikes, or dropouts in the data strongly indicate a faulty throttle body.
4. Test the APP Sensor: As a secondary check, graph the 'APP Sensor 1' and 'APP Sensor 2' voltages. Both should rise and fall smoothly as you operate the accelerator pedal. A failure here would typically set P2138.
5. Check for TSBs: Be aware of GM TSB #11-06-04-007C, which acknowledges this common failure and provides diagnostic direction.
6. Replace the Faulty Component: Based on the data, the most likely repair is replacing the throttle body assembly. If the APP sensor data was faulty, replace the pedal assembly.
7. Perform Idle Relearn: After replacing the throttle body, an idle relearn procedure is necessary for the PCM to adapt to the new part. A common method is to let the engine idle in Park for 3 minutes, turn it off for 1 minute, then restart and idle for another 3 minutes. Disconnecting the battery for 15-20 minutes during the repair can also trigger a relearn.

Parts You'll Likely Need

• Electronic Throttle Body Assembly (OEM #12609500 (ACDelco #217-3108)) — This is the most common failure point for code P2135 on this vehicle, as the internal throttle position sensors fail.
  Trusted brands: ACDelco, Delphi, Hitachi, Standard Motor Products
  OEM price range: $200-$300
  Aftermarket price range: $140-$250

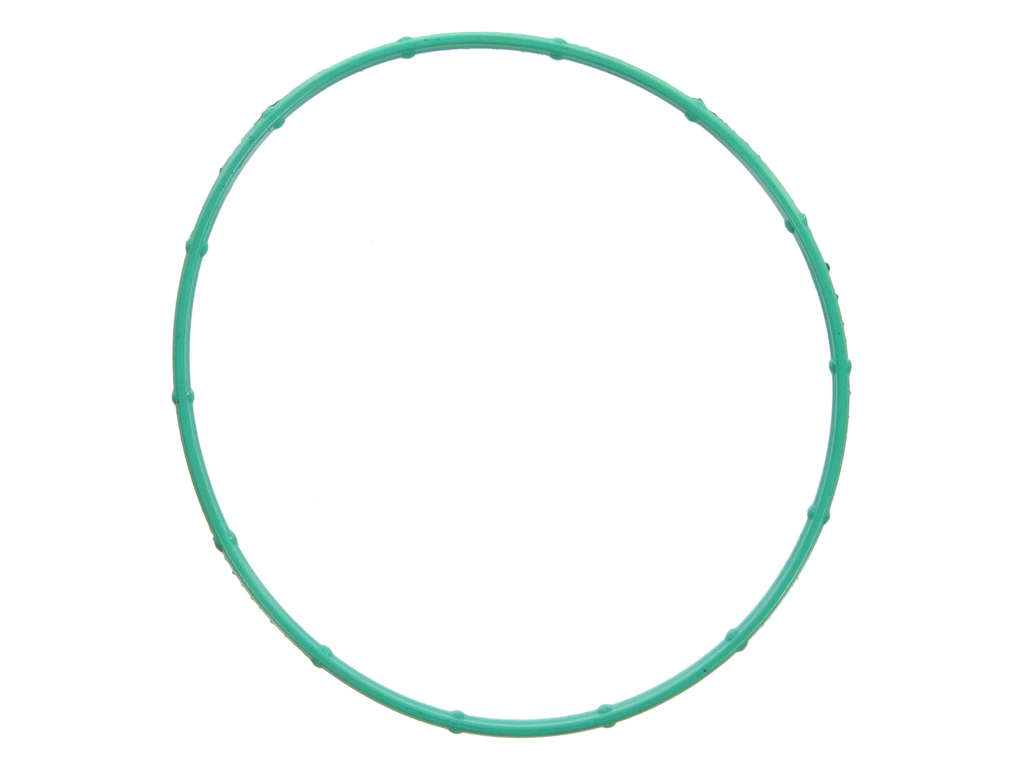

• Throttle Body Gasket (OEM #Included with most new throttle bodies (Fel-Pro #61466 if separate)) — The gasket should always be replaced when the throttle body is removed to prevent vacuum leaks.
  Trusted brands: Fel-Pro, ACDelco, Mahle
  OEM price range: $10-$20
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• P1516 — This is another GM-specific code related to Throttle Actuator Control (TAC) Module performance, which can be triggered by the same throttle body faults.
• P2101 — This code indicates a fault in the throttle actuator control motor circuit, which is part of the same throttle body assembly and can fail concurrently with the position sensors.

Technical Service Bulletins (TSBs) & Recalls

• GM TSB #11-06-04-007C: Entitled 'Diagnosis and Repair - Malfunction Indicator Lamp (MIL) Illuminated, Reduced Engine Power Message Displayed, DTC P2135 Set'. 🎬 Watch: Understanding the P2135 code and reduced power mode It details a potential repair for some GM vehicles by replacing only the throttle position sensor cover and terminals (Kit P/N 19259452), highlighting a known weakness in the sensor's electrical contacts.
• TSB Bulletin #12-06-04-003: This manufacturer bulletin provides a procedure on the replacement of the throttle position sensor cover for a concern of a malfunction indicator lamp, reduced power message, and DTC P2135.

Platform-Specific Known Issues

• Throttle body failure causing 'Reduced Engine Power' mode is a very common problem on the 3.4L LNJ engine platform used in the Torrent and Chevrolet Equinox.
• Owners on forums frequently report the sudden onset of the 'Reduced Engine Power' light with code P2135, and the vast majority resolve it by replacing the throttle body assembly.

Mechanic-Grade Diagnostic Values

• TPS1 and TPS2 Voltage Correlation — expected: The combined voltage of TPS1 and TPS2 should remain constant at approximately 5.0V. As one sensor's voltage rises from ~0.5V to ~4.5V, the other should fall from ~4.5V to ~0.5V.. Failure: The PCM sets code P2135 if the voltage signals from the two sensors deviate from each other by a predetermined amount (e.g., more than 0.2V) for over 2 seconds.
• Low Reference (Ground) Circuit Resistance — expected: Less than 5.0 Ohms when measured between the sensor harness connector's low reference pin and a known good chassis ground.. Failure: Resistance greater than 5.0 Ohms indicates high resistance in the ground circuit, which can cause erratic sensor readings.

Scan Tool Commands That Help

• Professional OBD-II Scanner (e.g., Tech2, GDS2, or equivalent): Graph Live Data: TP Sensor 1 & TP Sensor 2 — This is the primary diagnostic step. Graphing both sensor voltages simultaneously while slowly operating the accelerator pedal will visually expose any glitches, spikes, or dropouts that confirm a failing sensor within the throttle body assembly.
• Manual Procedure or Scan Tool: Idle Relearn / Throttle Relearn — Required after cleaning or replacing the electronic throttle body. The PCM must learn the new closed-throttle position. A common manual procedure is: 1. Start engine and idle in Park for 3 minutes. 2. Turn engine off for 1 minute. 3. Restart engine and idle in Park for another 3 minutes. The idle should then stabilize.

Wiring & Ground Locations

• Throttle Body Connector — Directly on the electronic throttle body assembly, where the engine wiring harness connects.. This 8-pin connector provides power, ground, and signal lines for both throttle position sensors and the throttle actuator motor. Corrosion, moisture, or loose pins at this connector are a medium-probability cause for P2135.
• G111 — On the rear of the 3.4L engine, near the crankshaft position sensor.. This is a primary engine ground. A poor connection at G111 can introduce electrical noise and voltage offsets, potentially affecting sensor readings and causing correlation codes like P2135.
• ECM (Engine Control Module) — Mounted on top of the battery cover in the engine compartment.. All sensor signals are sent to the ECM. While rare, issues with the ECM's internal drivers or connector pins can mimic sensor failures.

When the Usual Fixes Don't Work

• There are documented cases where the common fixes do not resolve an intermittent P2135. In one instance involving a 2007 GM vehicle, the owner replaced the throttle body and the accelerator pedal assembly, performed the relearn procedure, and inspected for wiring damage, yet the code continued to appear intermittently. This highlights that in a minority of cases, the fault can be more elusive, potentially stemming from a poor ground connection (like G111), a fault within the wiring harness that isn't visually apparent, or a rare PCM issue.

OEM Part Supersession History

• 12577029 → 12609500 (ACDelco P/N 217-3108) — GM regularly updates part designs to integrate new materials and technologies for improved reliability.

Model Year Variations Within This Range

• 2008-2009 (and other GM models up to 2011): While the P2135 fault is common across these years, GM TSB #11-06-04-007C specifies that many 2008 and newer models MUST have the Engine Control Module (ECM) reprogrammed with an updated calibration after replacing the throttle position sensor or the entire throttle body. Failure to perform this software update on applicable models can cause the code to return even with a new part.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Head Gasket Failure 🔴 High — Common issue, especially after 100,000 miles. The 3.4L V6 is notorious for this failure.
• Lower Intake Manifold (LIM) Gasket Leak 🟠 Medium — The original nylon gaskets are known to degrade over time from exposure to Dex-Cool coolant, leading to coolant or vacuum leaks. This was a very common issue on the wider GM 60-degree V6 family.
• Fuel Pump Module Crack 🔴 High — A plastic port on the fuel pump module could crack, causing a fuel leak. This prompted a safety recall in certain hot-weather states. (Ref: NHTSA Campaign ID: 12V459000)
• Difficult Rear Spark Plug Access 🟡 Low — Access to the rear bank of spark plugs (cylinders 1, 3, 5) is extremely limited, requiring the engine to be tilted forward for replacement. This significantly increases labor time for a standard tune-up.
• Passenger Sensing System Error 🟠 Medium — An error in the seat sensor calibration could cause the passenger airbag to be improperly enabled or disabled. (Ref: NHTSA Campaign ID: 07V344000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the electronic throttle body, a used part is generally not recommended. The failure is due to internal wear of electronic components (the TPS carbon tracks), and a used part from a junkyard has unknown wear and a high likelihood of premature failure, potentially leaving you stranded again. The cost savings are often not worth the risk and repeated labor.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle was not in a front-end collision.
• Inspect the electrical connector pins for any signs of corrosion or damage.
• Check for excessive carbon buildup inside the throttle bore, as this can indicate high mileage or poor engine health.
• If possible, get the mileage from the donor vehicle's odometer.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a reputable brand for the electronic throttle body is critical. Cheap, unbranded parts have a very high failure rate for this specific component.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (Original Equipment)
• Delphi
• Hitachi
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' parts from online marketplaces should be avoided due to inconsistent quality control for this sensitive electronic component.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P1516 — A companion code often found during a scan for P2135, relating to throttle actuator control performance.
• P2101 — Another throttle-related code that may appear alongside P2135 when the PCM detects issues with the throttle position sensor or motor.
• P2138 — This code relates to the Accelerator Pedal Position (APP) sensor correlation; while P2135 points to the throttle body, P2138 points to the pedal assembly.
• P2101 — Mentioned as a secondary code to look for when diagnosing throttle-related performance issues on this platform.

Frequently Asked Questions
