P2149 on 2010-2014 Chevrolet Equinox: Fuel Injector Group 'B' Circuit Fixes

What's Unique About the 2010-2014 Chevrolet EQUINOX

The 2010-2014 Equinox, particularly with the V6 engines (3.0L and 3.6L), is highly susceptible to a specific wiring harness failure. GM's own service bulletin, PIP4924D, identifies common chafe points where the harness routing leads to rubbing and damage. [⭐ MANUFACTURER TSB — highest authority] The bulletin explicitly calls out inspection points against the intake plenum, valve cover bolts, fuel lines, and the side of the cylinder head under the plenum. This known vulnerability makes a wiring fault the primary suspect, far more so than a random injector failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine runs rough or vibrates excessively.
• Engine may stall, especially at idle
• Noticeable loss of power and poor acceleration.
• Difficulty starting the engine.
• Increased fuel consumption.

Most Likely Causes

1. Chafed or Damaged Fuel Injector Wiring Harness 🔴 High Probability → Shop Engine Wiring Harness As cited in GM TSB #PIP4924D, the fuel injector wiring harness is known to rub through or develop internal opens. This is the most documented cause for this specific vehicle range, especially on V6 models. [⭐ MANUFACTURER TSB — highest authority]
   How to confirm: Visually inspect the entire fuel injector harness for signs of rubbing, melting, or broken wires. Per the TSB, pay extremely close attention to where the harness may contact: the intake plenum, valve cover bolts, fuel lines, and the side of the cylinder head, particularly under the plenum. [⭐ MANUFACTURER TSB — highest authority] It may be necessary to unwrap the harness loom to find the damaged wire. Use a multimeter to check for continuity from the ECM connector to each injector connector in Group B. Resistance should be less than 0.2 Ω.
   Typical fix: Repair the damaged section of the wire(s) using solder and heat shrink. Protect the repaired area with high-quality anti-abrasion tape or re-route the harness slightly to prevent future contact. In severe cases, the entire engine harness may need replacement.
   Est. part cost: $10-$50 for wire repair materials, $50-$250 for a harness pigtail.
2. Failed Fuel Injector 🟡 Medium Probability → Shop Fuel Injector
   How to confirm: After confirming the wiring is intact, test the resistance of each fuel injector in Group B with a multimeter. Compare the readings to the manufacturer's specifications. An out-of-spec reading (open or shorted) indicates a failed injector. See 'specific_diagnostic_values' for engine-specific Ohm ranges.

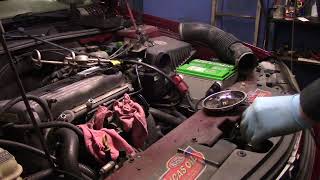

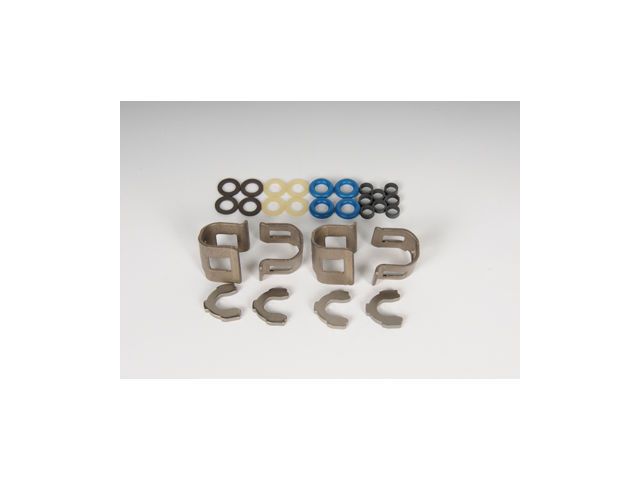

   Typical fix: Replace the faulty fuel injector. It is often recommended to replace injectors as a set to ensure balanced performance, especially on higher mileage vehicles.
   Est. part cost: $50-$180 per injector, depending on brand and engine.
3. Poor Connection at Injector or ECM ⚪ Low Probability
   How to confirm: Inspect the connectors at both the fuel injectors and the ECM for corrosion, dirt, or backed-out pins. Disconnect and reconnect them to ensure a secure fit. A loose pin within the connector can cause an intermittent open circuit.
   Typical fix: Clean the connectors with electrical contact cleaner. If pins are damaged or loose, the connector pigtail may need to be replaced.
   Est. part cost: $5-$20 for cleaner, $20-$50 for a pigtail.

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is the least likely cause. The PCM's internal injector driver circuit can fail, but all other possibilities, especially wiring, must be exhaustively ruled out first before condemning the PCM.

Diagnosis Steps

1. Use an OBD-II scanner to confirm P2149 and note any other codes present, such as P020x codes, which will help identify the specific cylinders in 'Group B'.
2. Perform a thorough visual inspection of the fuel injector wiring harness. Following the guidance of TSB #PIP4924D, pay close attention to areas where the harness might rub against the intake plenum, valve cover bolts, fuel lines, and the side of the cylinder head under the plenum. [⭐ MANUFACTURER TSB — highest authority]
3. Disconnect the harness from the affected injectors (Group B) and inspect the connectors for corrosion or damage.
4. If the wiring looks good, use a multimeter to check the resistance of each injector in the group. Compare the readings to the OEM specification. A reading that is very high (open) or very low (short) indicates a bad injector.
5. If injector resistance is good, check for continuity in the wiring harness. Test for an open circuit by checking continuity on each wire from the ECM connector to the corresponding injector connector. Resistance should be less than 0.2 Ohms.
6. Check for a short to ground by testing for continuity between each injector control wire and a known good ground. There should be no continuity.
7. If wiring and injectors test good, the final and least likely possibility is a failed injector driver circuit within the PCM.

Parts You'll Likely Need

• Fuel Injector Wiring Harness Repair Kit/Pigtail — This is the most common failure point according to GM's own TSB. Repairing the specific chafed wire is often all that is needed. [⭐ MANUFACTURER TSB — highest authority]
  Trusted brands: ACDelco, Dorman
  OEM price range: $50-$100
  Aftermarket price range: $20-$60
• Fuel Injector (OEM #V6 (3.0L, 2010-12 LFW): ACDelco 217-3449 / GM 12629927. V6 (3.6L, 2013-14 LFX): ACDelco 12669384. I4 (2.4L, 2010-11 LAF / 2012-14 LEA): ACDelco 217-3444 / GM 12633784.) — If the injector's internal coil has failed (tested with a multimeter), it will need to be replaced.
  Trusted brands: ACDelco, Bosch, Delphi, Standard Motor Products
  OEM price range: $80-$180
  Aftermarket price range: $50-$120

Related Codes That Often Appear With This One

• P2146 — This code is for 'Fuel Injector Group A Supply Voltage Circuit/Open'. Seeing both P2146 and P2149 together points to a more widespread wiring harness problem or a potential ECM issue affecting both injector banks. [⭐ MANUFACTURER TSB — highest authority]
• P0201, P0202, P0203, P0204, P0205, P0206 — These codes correspond to specific injector circuit malfunctions (e.g., P0202 for cylinder 2). P2149 is a group fault, so it will almost always be accompanied by one or more of these specific cylinder codes, which helps identify which injectors are in the affected 'Group B'. [⭐ MANUFACTURER TSB — highest authority, 13]

Technical Service Bulletins (TSBs) & Recalls

• PIP4924D: Addresses multiple injector circuit codes (P2149, P2146, P0201-P0206, etc.) and points to a chafed fuel injector wiring harness as the likely cause on V6 models. It provides specific locations to inspect for damage. [⭐ MANUFACTURER TSB — highest authority]

Platform-Specific Known Issues

• GM Technical Service Bulletin #PIP4924D explicitly calls out DTC P2149 on these vehicles and directs technicians to inspect the fuel injector wiring harness. Specific chafe points to inspect are against the intake plenum, at valve cover bolts, against the fuel line, and on the side of the head under the plenum. [⭐ MANUFACTURER TSB — highest authority]

Mechanic-Grade Diagnostic Values

• Fuel Injector Internal Resistance (3.6L LFX V6, 2013-2014) — expected: 1.2 - 1.8 Ohms. Failure: A reading outside this very low range indicates an internal injector fault. Note: This is a low-impedance GDI injector.
• Fuel Injector Internal Resistance (3.0L LFW V6, 2010-2012) — expected: Approximately 12 Ohms. Failure: A significant deviation, open circuit (OL), or short (near 0 Ohms) indicates a failed injector. Note: This is a high-impedance PFI injector.
• Fuel Injector Internal Resistance (2.4L I4 LAF/LEA) — expected: 11 - 14 Ohms. Failure: A reading of zero, infinity (OL), or significantly outside this range indicates a failed injector coil.
• Injector Circuit Wiring Resistance — expected: < 0.2 Ohms. Failure: Resistance greater than 0.2 Ω from the ECM output pin to the injector connector suggests a high-resistance path in the wiring, such as corrosion or a frayed wire.
• PCM Ground Circuit Resistance (at ECM connector to battery negative) — expected: < 1.0 Ohm. Failure: High resistance when testing from the ECM ground pin to the negative battery terminal indicates a poor ground connection at G112 or G105.

Scan Tool Commands That Help

• GDS2 (GM Tech Tool): Injector Balance Test — This bidirectional test is used to functionally check an injector when wiring and resistance tests are inconclusive. The tool commands the injector to fire and measures the resultant drop in fuel rail pressure. A minimal or excessive pressure drop for a specific cylinder compared to others indicates a faulty injector.

Wiring & Ground Locations

• G112 — On the 2.4L, it's at the lower left front of the engine. On the 3.6L, it's at the left rear of the engine.. This is a primary ground for the Powertrain Control Module (PCM). A poor connection here can cause a variety of engine control issues, including incorrect readings on injector circuits.
• G109 — On the 2.4L, it's at the top right rear of the engine. On the 3.6L, it's at the right front of the engine.. This is another key engine ground point. A loose or corroded connection can affect sensor readings and module performance.
• G105 — On the 2.4L, it's at the top rear of the engine. On the 3.6L, it's at the left rear of the engine.. Serves as a ground point for various engine components. Ensuring all engine grounds are clean and tight is a critical step in diagnosing electrical faults like P2149.
• Underhood Fuse Block — Left rear of the engine compartment.. This block contains the fuses and relays that supply power to the ECM and fuel injector circuits. A poor connection or corrosion within the fuse block itself can mimic a wiring harness failure.

Real Owner Repair Stories

• Turbo Diesel Register forum user (2004.5 Dodge Ram (Note: Not an Equinox, but illustrates a P2149 diagnostic path)) — Truck lost all power and was running on only 3 cylinders, with code P2149 present.
  ❌ Tried (didn't work) Visual inspection of the main wiring harness showed no damage., Testing the injector harness under the valve cover showed it was good.
  ✅ What actually fixed it An Ohm test of each injector revealed one injector (#4) had a reading of 0 ohms while all others were 0.3 ohms. Replacing the single faulty injector resolved the code and restored normal engine operation.

Model Year Variations Within This Range

• 2010-2012: V6 models used the 3.0L LFW engine, which has higher impedance (~12 Ohm) Port Fuel Injection (PFI) injectors.
• 2013-2014: V6 models were upgraded to the 3.6L LFX engine, which uses low-impedance (~1.2-1.8 Ohm) Gasoline Direct Injection (GDI) injectors. This difference in resistance is critical for diagnosis.
• 2012-2014: The 2.4L I4 engine was updated from the LAF to the LEA code, making it FlexFuel capable. While injector resistance remains the same, there can be software and other fuel system component differences.
• 2013-2014 (3.6L LFX): A specific TSB (#PI1067) identifies a harness chafe point where the ECM wiring harness can rub on the metal ECM bracket, a unique issue for these later model years.
