P2181 on 2013-2015 Chevrolet Malibu: Cooling System Performance Causes and Fixes

What's Unique About the 2013-2015 Chevrolet MALIBU

For this specific generation of Chevrolet Malibu with the 2.5L engine (and related GM models with the 2.0L LTG), the P2181 code is strongly linked to a known manufacturing issue. General Motors issued technical service bulletins (TSBs) advising technicians that plastic flashing or debris can break loose and get stuck in the water outlet assembly, preventing the thermostat from closing properly. 🎬 Watch: Why you shouldn't replace parts before seeing this P2181 guide. This is a much more specific starting point than the usual generic causes like a simple failed thermostat.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine temperature gauge reads lower than normal
• Poor heater performance, especially at idle or low speeds.
• "AC Off" message may appear on the driver information center.
• Reduced fuel economy.
• Cooling fans running constantly or at high speed, even when the engine is cold. This is an ECM fail-safe strategy.

Most Likely Causes

1. Debris/Flashing in Water Outlet Assembly 🔴 High Probability This is a documented manufacturing defect from GM for the 2.5L LCV and 2.0L LTG engines in this vehicle, as noted in TSBs #PIP5300 and #PIC5764A. Plastic flashing from the manufacturing process can break off and jam the thermostat within the water outlet housing.
   How to confirm: Remove the water outlet from the rear of the cylinder head and visually inspect for any plastic debris or flashing restricting thermostat movement. TSB PIP5300 also advises inspecting the upper heater core hose and coolant bypass pipe for a stray black plug.
   Typical fix: If debris is found, the official GM recommendation is to replace the entire water outlet assembly. If a black plug is found in the heater hose, it should be removed and discarded.
   Est. part cost: $40-$70
2. Stuck-Open Thermostat 🔴 High Probability → Shop Integrated Thermostat Housing Assembly This is a common failure on most vehicles. The thermostat can fail and stick in the open position, allowing coolant to circulate constantly and preventing the engine from warming up properly. On this Malibu, this can be caused by the aforementioned debris or by simple mechanical failure.
   How to confirm: Monitor the engine coolant temperature with a scan tool. If it rises very slowly and never reaches the target temperature (approx. 195-220°F), the thermostat is likely stuck open.

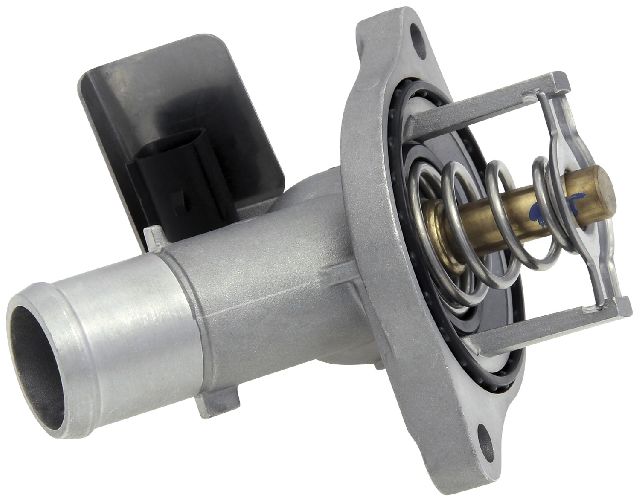

   Typical fix: Replace the engine coolant thermostat and housing assembly.
   Est. part cost: $40-$70
3. Faulty Engine Coolant Temperature (ECT) Sensor 🟡 Medium Probability → Shop Engine Coolant Temperature Sensor
   How to confirm: Use a scan tool to compare the ECT reading to the ambient air temperature on a cold engine; they should be very close. The reading should rise smoothly as the engine warms up. An erratic or non-moving reading indicates a bad sensor.
   Typical fix: Replace the ECT sensor.
   Est. part cost: $25-$55
4. Low Engine Coolant Level ⚪ Low Probability → Shop Engine Coolant / Antifreeze
   How to confirm: Visually check the coolant level in the coolant reservoir. If it is low, there is a leak in the system that must be found and repaired.
   Typical fix: Find and repair the source of the coolant leak, then top off and bleed the cooling system.
   Est. part cost: $15-$30 for coolant

Diagnosis Steps

1. Check for other diagnostic trouble codes. P00B7 is commonly seen with P2181 on this vehicle and strengthens the diagnosis of a flow problem.
2. Inspect the engine coolant level and condition. Ensure it is full and not contaminated.
3. Using a scan tool, monitor the Engine Coolant Temperature (ECT) data as the engine warms up from a cold start. Confirm if the engine is truly failing to reach operating temperature (typically 195-220°F).
4. Following the guidance in TSB #PIP5300 and #PIC5764A, remove the plastic water outlet assembly from the rear of the cylinder head.
5. Carefully inspect the water outlet and integrated thermostat for any plastic flashing or debris that could be holding the thermostat open.
6. Per TSB #PIP5300, also inspect the upper heater core hose and coolant bypass pipe at the water outlet for an errant black plug. If found, remove and discard it.
7. If debris is found, the recommended procedure is to replace the water outlet assembly.
8. If no debris is found and the thermostat is not stuck, test the ECT sensor. Compare its resistance to a temperature chart or check its voltage readings with a scan tool.
9. Refill and bleed the cooling system of any air pockets before clearing the code and re-testing.

Parts You'll Likely Need

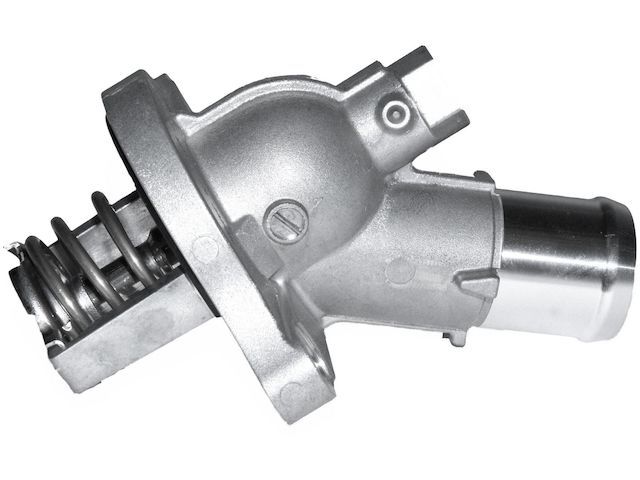

• Engine Coolant Water Outlet / Thermostat Housing (OEM #12657134) — This is the primary part identified in GM service bulletins as the location for debris that causes code P2181. The thermostat is integrated into this housing and replacement of the assembly is the official fix.
  Trusted brands: ACDelco, Dorman
  OEM price range: $50-$80
  Aftermarket price range: $30-$60
• Engine Coolant Temperature (ECT) Sensor (OEM #12639899) — If the thermostat and water outlet are clear, a faulty ECT sensor giving incorrect readings to the ECM is the next most likely cause.
  Trusted brands: ACDelco, Bosch, NTK
  OEM price range: $32-$55
  Aftermarket price range: $20-$40
• Dex-Cool Engine Coolant — The cooling system will need to be drained and refilled to perform the repair.
  Trusted brands: ACDelco, Prestone
  OEM price range: $20-$25 per gallon
  Aftermarket price range: $18-$22 per gallon

Related Codes That Often Appear With This One

• P00B7 — This code for 'Engine Coolant Flow Low/Performance' is frequently set alongside P2181, as mentioned directly in GM's service bulletins for this exact issue.

Technical Service Bulletins (TSBs) & Recalls

• PIP5300: Addresses poor heater performance, AC off message, and DTCs P00B7/P2181. Instructs technicians to inspect the water outlet assembly for flashing/debris and to also check for a black plug in the heater/bypass hoses.
• PIC5764A (Superseded by PIC5764B): Notes poor heater performance and DTCs P00B7/P2181, pointing to plastic flashing/debris in the water outlet on 2013 Malibu and ATS models.

Platform-Specific Known Issues

• GM Technical Service Bulletins #PIP5300 and #PIC5764A specifically call out an issue where plastic flashing from the manufacturing process can break loose and lodge in the water outlet assembly, causing P2181 and/or P00B7.
• TSB #PIP5300 also notes that a black plug may be found obstructing the upper heater core hose or coolant bypass pipe, which must be removed.

Mechanic-Grade Diagnostic Values

• Engine Coolant Temperature (ECT) Sensor Resistance — expected: Approximately 2000-3000 Ω at 20°C (68°F) and 200-300 Ω at 90°C (194°F).. Failure: Readings that are significantly outside this range or do not change smoothly as the engine warms indicate a faulty sensor.
• Engine Coolant Temperature (ECT) Sensor Signal Voltage — expected: Approximately 2.0V - 3.0V on a cold engine, dropping to around 0.5V when the engine is at full operating temperature.. Failure: Voltage that is stuck high or low, or does not correspond to the actual engine temperature, points to a sensor or wiring issue.
• ECT Sensor Reference Voltage — expected: 5 Volts DC from the ECM to the sensor.. Failure: A lack of 5V at the sensor connector (with the key on, engine off) indicates a wiring problem or an issue with the ECM's 5V reference circuit.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Cooling System Diagnostic Override Tests — This function allows a technician to command the cooling fans on at various speeds, independent of the ECM's automatic control. This is useful for verifying the fan motors and relays are working correctly, which helps isolate the cause of an overheating-related P2181.
• GDS2 (GM Global Diagnostic System 2): A/C Compressor Solenoid Commanded % — While not a direct test for P2181, monitoring this PID is useful because the ECM will disable the A/C compressor (commanding 0%) as a protective measure when P2181 is set. Observing this confirms the ECM is in a fail-safe mode due to the cooling system fault.

Wiring & Ground Locations

• G122 — On the rear of the cylinder head.. This is a primary ground point for several engine sensors. A poor connection here could potentially cause erratic readings from the ECT sensor, contributing to a P2181 code.
• G109 — Located on the left rear of the engine compartment.. This ground serves the engine compartment and is in the general vicinity of the ECM. Ensuring it is clean and tight is good practice when diagnosing any engine control codes.
• ECT Sensor Connector — On the rear of the cylinder head, integrated into the water outlet housing.. This is the direct connection point for the sensor. It should be inspected for corrosion, damage, or signs of coolant intrusion, which can travel up the wiring harness.

Real Owner Repair Stories

• chevymalibuforum.com user (2014 Chevrolet Malibu 2.5L) — Check Engine Light with codes P2181 and P00B7, poor heater performance, and cooling fans running constantly.
  ❌ Tried (didn't work) Initially replacing only the thermostat without inspecting the housing.
  ✅ What actually fixed it The owner followed the advice in the TSBs. Upon removing the water outlet housing, they found a piece of plastic flashing jamming the thermostat open. Replacing the entire water outlet assembly (which includes a new thermostat) resolved both codes and all symptoms.
