P2181 on 2018-2023 Hyundai Sonata: Cooling System Performance Causes and Fixes

What's Unique About the 2018-2023 Hyundai Sonata

The 2018-2023 Sonata range spans two distinct generations with different cooling system designs. The 2018-2019 models use a conventional thermostat and sensors. Starting with the 2020 model year redesign, most Sonata engines feature an 'Integrated Thermal Management' (ITM) module. This complex, electronically controlled unit combines the thermostat, temperature sensor, and control valves into a single plastic housing. These ITM modules are a known common failure point across the Hyundai lineup, frequently causing the P2181 code.

Generation note: This range covers two Sonata generations. The 2018-2019 models belong to the seventh generation (LF). The 2020-2023 models are the eighth generation (DN8). The primary difference regarding this code is the cooling system design: the eighth generation introduced the Integrated Thermal Management (ITM) module on its new 'Smartstream' engines (1.6T, 2.5L), which is the most common cause of P2181 on those model years.

Symptoms You May Notice

• Check Engine Light is on
• Engine temperature gauge reads lower than normal or fluctuates
• Engine takes a long time to warm up
• Poor heater performance in the cabin
• Reduced fuel economy
• In rare cases, engine overheating
• Engine idle remains high because it is not reaching operating temperature

Most Likely Causes

1. Failed Integrated Thermal Management (ITM) Module 🔴 High Probability This is a very common failure on 2020-2023 Sonatas with the 1.6T and 2.5L Smartstream engines. The electronic valves and plastic housing are known to fail, sometimes in as little as 11,000 miles, causing improper coolant flow. Some owners on forums report needing to replace the module multiple times.
   How to confirm: A technician will use a scan tool to monitor coolant temperature data and command the electronic thermostat to open and close. If the temperature doesn't respond as expected, the ITM is faulty. The presence of code P2181 on these specific models is a very strong indicator of ITM failure.
   Typical fix: The entire ITM assembly must be replaced with a revised part, and the Powertrain Control Module (PCM) must be reprogrammed with updated logic. This is not considered a DIY job due to the required software update. 🎬 Watch this video to see how an ITM module is replaced.
   Est. part cost: $130-$200
2. Stuck or Faulty Thermostat 🔴 High Probability → Shop Integrated Thermostat Housing Assembly This is the most likely cause for 2018-2019 models with the 2.4L or 2.0T engines, which use a more traditional thermostat. Thermostats can fail by sticking open, which prevents the engine from warming up properly.
   How to confirm: Monitor the engine coolant temperature on a scan tool. If it rises to operating temperature at idle but drops significantly while driving at highway speeds, the thermostat is likely stuck open. You can also check if the upper radiator hose gets warm while the lower one stays cool.
   Typical fix: Replace the thermostat and gasket. It's recommended to drain and refill the coolant at the same time.
   Est. part cost: $20-$50
3. Low Engine Coolant Level 🟡 Medium Probability → Shop Engine Coolant / Antifreeze Any vehicle can develop coolant leaks from hoses, the radiator, or the water pump over time. A low coolant level can cause air pockets and erratic temperature readings, triggering a P2181 code.
   How to confirm: Visually inspect the coolant reservoir and the radiator (when the engine is cold). If the level is low, a cooling system pressure test should be performed to find the source of the leak.
   Typical fix: Top off the coolant and repair any leaks found during the pressure test.
   Est. part cost: $20-$300 (depending on the source of the leak)
4. Faulty Engine Coolant Temperature (ECT) Sensor ⚪ Low Probability → Shop Engine Coolant Temperature Sensor While less common than a thermostat failure, the ECT sensor can send incorrect readings to the PCM. One source noted a 2017 Sonata with a corroded ECT sensor circuit causing this code. On 2020+ models, the ECT is integrated into the ITM module and replaced with it.
   How to confirm: Compare the ECT sensor reading on a scan tool to the actual coolant temperature using an infrared thermometer. The readings should be very close. Also, inspect the sensor's wiring and connector for corrosion or damage.
   Typical fix: Replace the engine coolant temperature sensor.
   Est. part cost: $25-$75

Rare But Worth Checking

• Cooling Fan Malfunction: If the code is associated with overheating in stop-and-go traffic, the cooling fan operation should be checked. A faulty fan motor or control module could be the cause.
• Water Pump Failure: → Shop Engine Water Pump A failing water pump may not circulate coolant effectively, leading to overheating and potentially triggering P2181. This is usually accompanied by other symptoms like noise or leaks from the pump area.

Diagnosis Steps

1. Check the engine coolant level in the reservoir and radiator (only when the engine is completely cool). Top off if necessary.
2. Use an OBD-II scanner to check for any other related trouble codes.
3. Monitor the live data stream for the Engine Coolant Temperature (ECT) sensor. Observe if the engine warms up to its target temperature (typically 195-220°F) and if the temperature remains stable.
4. If the engine is slow to warm up or the temperature drops at highway speeds, suspect a stuck-open thermostat (2018-2019 models) or faulty ITM (2020-2023 models).
5. If the engine overheats, check for cooling fan operation when the A/C is turned on or when the engine reaches high temperatures.
6. Perform a cooling system pressure test to check for any leaks if the coolant level was low.
7. Inspect the ECT sensor wiring and connector for any signs of damage or corrosion (primarily on 2018-2019 models).
8. If a faulty ITM is suspected on a 2020+ model, professional diagnosis with an advanced scan tool that can command the electronic thermostat is recommended. The repair requires replacement of the ITM and a PCM software update.

Parts You'll Likely Need

• Integrated Thermal Management (ITM) Module (OEM #25600-2S000) — This is the most common failure for the P2181 code on 2020-2023 Sonatas. The entire assembly fails and must be replaced as a unit.
  Trusted brands: Hyundai (OEM)
  OEM price range: $130-$185
  Aftermarket price range: Not widely available
• Thermostat (OEM #25500-2GTA0 (2.0T), 25500-2GGA0 (2.4L)) — For 2018-2019 models, a thermostat stuck in the open position is the most frequent cause of the engine running too cool and triggering P2181.
  Trusted brands: Mahle, Motorad
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Engine Coolant Temperature Sensor — Though less common, a faulty sensor can provide inaccurate readings to the computer, causing the code to set.
  Trusted brands: NTK, Bosch
  OEM price range: $40-$80
  Aftermarket price range: $20-$50

Related Codes That Often Appear With This One

• P0128 — Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) - This code is very similar and often points directly to a thermostat that is stuck open.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #24-EM-001H: Notes that certain Sonata (DN8a) vehicles may experience a warning lamp illumination for diagnostic trouble code P2181 related to the Integrated Thermal Management Module (ITM), requiring replacement of the ITM.

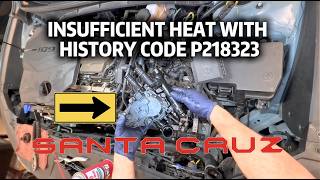

• 23-EM-006H (for Santa Cruz): Addresses DTC P2181 caused by the Integrated Thermal Management Module (ITM), requiring replacement of the ITM with a revised part and a mandatory PCM update. This is highly relevant as it details the official fix for the same failure on a platform mate.
• 20-EM-002H (for Elantra): Provides a procedure for replacing the thermostat for P2181, relevant for the earlier generation (2018-2019) Sonatas with similar engine architecture.

Platform-Specific Known Issues

• The Integrated Thermal Management (ITM) module on 2020 and newer models is a known high-failure item. While no specific recall has been issued for the Sonata, TSBs for other Hyundai models like the Santa Cruz (23-EM-006H) address the exact same issue, requiring a revised part and a PCM update, indicating a widespread component problem.

Mechanic-Grade Diagnostic Values

• Engine Coolant Temperature (ECT) Sensor Resistance — expected: Approximately 2,200 - 3,000 Ω at 20°C (68°F) and 250 - 350 Ω at 80°C (176°F).. Failure: Resistance readings that are significantly outside the expected range for a given temperature, or an open/short circuit reading, indicate a faulty sensor.
• Engine Coolant Temperature (ECT) Sensor Voltage — expected: Typically 2.0V - 3.0V with a cold engine, dropping to around 0.5V when the engine is fully warmed up.. Failure: Voltage that does not change with temperature, or is stuck at 0V or 5V, points to a wiring or sensor issue.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Integrated Thermal Module Coolant Filling Mode — This service function is mandatory after replacing the ITM module or servicing the cooling system on 2020+ models. It electronically actuates the valves in the ITM to properly bleed all air from the complex coolant passages, which is critical for preventing overheating and repeat codes.

Real Owner Repair Stories

• r/sonata on Reddit (2022 Hyundai Sonata with 2.5L engine) — Vehicle overheated.
  ✅ What actually fixed it The dealer diagnosed that the Integrated Thermal Management (ITM) module/thermostat had 'imploded,' which caused two main coolant hoses to burst. The ITM module and the burst hoses were replaced under warranty to resolve the issue.

OEM Part Supersession History

• 25600-2S000 → 25600-2S001 — This is an alternate part number for the Integrated Thermal Management (ITM) module, likely indicating a revision to address the common failure issues.

Model Year Variations Within This Range

• 2020-2023: For Sonata Hybrid models, Hyundai issued TSB 25-EM-007H which addresses P2181 by having technicians install a spring onto the thermostat within the ITM to prevent it from opening prematurely. This is paired with an ECU software update. This indicates a specific design flaw in the ITM for the hybrid powertrain that differs from the standard gasoline engine fix of complete replacement.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption (Theta II & Smartstream engines) 🔴 High — Common on 2.4L and 2.0T engines in earlier models, and some reports on the newer 2.5L Smartstream engines. Can lead to engine damage or failure. (Ref: Multiple lawsuits and service campaigns exist for Theta II engines. Some owners of 2018 models report excessive oil consumption.)
• Fuel Tank Deforming and Leaking (1.6T) 🔴 High — Affects 2020-2023 models with the 1.6L Turbo engine. A worn purge control check valve can cause the tank to expand and contact the hot exhaust. (Ref: NHTSA Recall 25V-796 / Hyundai Recall 286)
• Connecting Rod Bearing Failure (Theta II engines) 🔴 High — Primarily affects 2018-2019 models with the 2.4L GDI and 2.0L Turbo GDI engines. Can lead to sudden engine failure. (Ref: Multiple recalls and a lifetime warranty extension for the engine short block for this issue.)
• Loss of Drive Power (2.5T) 🔴 High — Affects some 2021-2022 models with the 2.5L Turbo engine. A transmission oil pump malfunction can cause a complete loss of motive power. (Ref: Hyundai Recall)
• Damaged Trunk Latch 🟠 Medium — Affects 2020 models. The latch can become damaged, preventing the emergency interior trunk release from working. (Ref: Hyundai Recall Campaign 221)
• Leaking Fuel Injectors (2.5L) 🟠 Medium — The 2.5L Smartstream GDI engine has a documented higher-than-average rate of fuel injector failure, which can lead to misfires and oil dilution. (Ref: Multiple TSBs and a class-action lawsuit have been filed regarding this issue.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific code and vehicle range, using used parts is generally not recommended. The primary failure parts (ITM module, thermostat, sensors) are either known to have high failure rates or are inexpensive to buy new.

Donor-vehicle mileage cap: roughly under 30000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a conventional thermostat (2018-2019), ensure there is no corrosion or physical damage.
• For sensors, check that the plastic connector is not brittle or cracked and the pins are clean.

OEM-only on this vehicle (don't cheap out):

• Integrated Thermal Management (ITM) Module: Due to the extremely high failure rate and subsequent part revisions from Hyundai, installing a used ITM module is a significant risk. A new, revised OEM part is the only reliable fix to prevent recurring issues.

Aftermarket brands forum-validated for this vehicle:

• NTK (for ECT sensors)
• Mahle (for thermostats)
• Motorad (for thermostats)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded ITM modules or thermostats from online marketplaces should be avoided due to quality control concerns.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
