P2280 on 2016-2017 Ram 3500 6.7L Cummins: Air Flow Restriction Causes & Fixes

What's Unique About the 2016-2017 Ram 3500

On the 6.7L Cummins engine in this generation of Ram trucks, P2280 is uniquely and frequently tied to the factory Crankcase Ventilation (CCV) system. The CCV filter has a finite service life of around 67,500 miles. As it becomes saturated with oil and soot, it can no longer effectively separate oil mist from crankcase gases. This oil is then routed back into the intake, where it soaks the large paper engine air filter, causing a severe restriction that directly triggers the P2280 code. This specific cause is so common that Ram issued a Technical Service Bulletin (TSB #9003821) acknowledging the problem of oil-soaked air filters associated with this code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (MIL) is on.
• "Service Air Filter" message on the dashboard.
• Reduced engine power and acceleration (limp mode).
• Rough or unstable idle.
• Poor fuel economy.
• Hissing or whistling sounds from the engine bay, indicating a leak.
• Blueish-white smoke from the exhaust if oil is being burned.
• Noticeably lower-than-usual mass airflow sensor readings on a scan tool.

Most Likely Causes

1. Oil-Soaked Engine Air Filter due to Clogged CCV Filter 🔴 High Probability → Shop Air Cleaner Assembly The factory CCV filter becomes saturated over its service life (typically around 67,500 miles) and allows oil mist into the intake, which collects on the paper air filter. This is a well-documented issue acknowledged by TSB #9003821. Trucks used for heavy towing or with high idle time may require more frequent changes.
   How to confirm: Visually inspect the engine air filter. It will be wet and dark with engine oil. The CCV filter housing itself may also show signs of oil saturation.
   Typical fix: Replace the engine air filter and the CCV filter assembly located on top of the valve cover. 🎬 Watch: Step-by-step guide to replacing your CCV filter.
   Est. part cost: $130-$230
2. Clogged or Dirty Engine Air Filter 🔴 High Probability → Shop Air Cleaner Assembly The large air demand of the 6.7L Cummins can pull in significant amounts of dust and debris, especially in harsh environments, leading to a clogged filter.
   How to confirm: Visually inspect the air filter. It will be filled with dirt, dust, or other debris.
   Typical fix: Replace the engine air filter.
   Est. part cost: $30-$80
3. Collapsed or Disconnected Intake Hose/Boot 🟡 Medium Probability The plastic and rubber components of the intake system can become brittle over time due to heat and age, leading to cracks or loose connections. Specifically, the flexible, corrugated duct for the Ram Active Air system that runs into the fender is known to collapse internally, creating a significant blockage.
   How to confirm: Visually inspect all intake tubing between the air filter box and the MAF sensor for cracks, splits, or loose clamps. A smoke test can help find hidden leaks. To check the fender duct, you may need to remove the fender liner for access.
   Typical fix: Tighten loose clamps or replace the damaged intake hose section. Some owners cut off the collapsed flexible portion of the fender duct as a permanent fix.
   Est. part cost: $50-$150
4. Debris in Air Intake / Ram Active Air system fault ⚪ Low Probability → Shop Engine Air Intake Resonator Rodents can build nests in the airbox, or debris can be pulled into the intake tract, causing a physical blockage. Additionally, the Ram Active Air system has internal doors that direct airflow; a broken linkage or failed actuator can cause a door to become stuck, restricting airflow.
   How to confirm: Open the airbox and inspect the intake path for foreign objects like nests, leaves, or plastic bags. Check the linkage on the Active Air doors inside the airbox to ensure they move freely.
   Typical fix: Remove the obstruction and replace the air filter. If the Active Air system is at fault, repair the linkage or replace the actuator/airbox assembly. 🎬 See how to diagnose and repair Active Airbox faults.
   Est. part cost: $30-$70 for debris removal, potentially higher for airbox repairs.

Rare But Worth Checking

• Faulty Mass Airflow (MAF) Sensor: → Shop Fuel Injection Air Flow Meter While less common for a restriction code, an oil-fouled or failed MAF sensor can send incorrect data to the PCM, mimicking a restriction. This is usually a consequence of a failed CCV filter saturating the intake with oil.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P2280 is present.
2. Open the air filter housing and visually inspect the air filter. Note if it is excessively dirty or soaked with oil.
3. If the filter is oil-soaked, the CCV filter is the root cause and must be serviced. Replace both the engine air filter and the CCV filter assembly.
4. If the filter is just dirty, replace it with a new one.
5. If the filter is clean, carefully inspect the entire intake tract from the airbox to the turbo inlet. Look for cracks in plastic tubing, loose clamps, and disconnected hoses.
6. Inspect the Ram Active Air system inside the airbox. Check that the linkage for the doors is connected and that they are not stuck.
7. Remove the passenger-side fender liner to inspect the flexible, corrugated intake duct. Check if it has collapsed on itself, which is a known issue.
8. Inspect the MAF sensor wiring and connector for damage. Check the sensor element for oil contamination. If oily, clean it carefully with a dedicated MAF sensor cleaner.
9. After performing repairs, clear the code with the scanner and perform a test drive to ensure the code does not return.

Parts You'll Likely Need

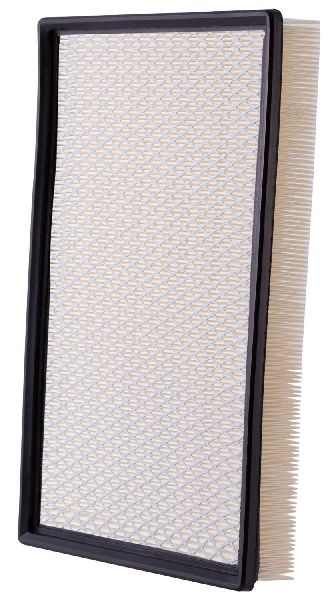

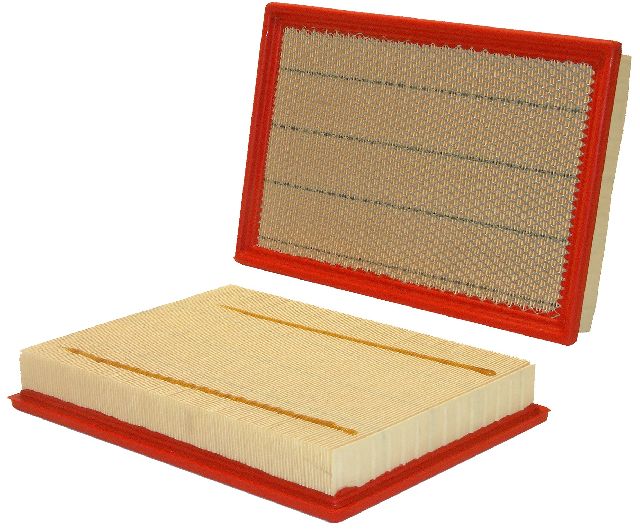

• Engine Air Filter (OEM #Mopar 53034051AB) — This is the most common failure point, either by becoming clogged with dirt or saturated with oil from the CCV system.
  Trusted brands: Mopar, Fleetguard (AF27684), Fram, Wix
  OEM price range: $50-$80
  Aftermarket price range: $30-$60
• Crankcase Ventilation (CCV) Filter Kit (OEM #68002433AB / 68002433AC) — A clogged CCV filter is the root cause of the oil-soaked air filter that triggers P2280. It is a required maintenance item with a service interval of ~67,500 miles.
  Trusted brands: Mopar, Fleetguard (CV52001)
  OEM price range: $100-$150
  Aftermarket price range: $80-$120

Related Codes That Often Appear With This One

• P2281 — This code indicates an 'Air Leak Between MAF and Throttle Body.' It can appear alongside P2280 if there are multiple leaks or if the PCM is struggling to pinpoint the exact location of the intake air issue.
• P2BAC — This is an informational code for 'NOx Exceedance - Deactivation of EGR.' It can be triggered by P2280 because the airflow restriction prevents the EGR system from operating within its expected parameters.

Technical Service Bulletins (TSBs) & Recalls

• 9003821: Notes that customers with 6.7L engines are experiencing MIL with DTC P2280 and oil-soaked air intake filters.
• 1813022REVA: Mentions a software update changing P2280 from a one-trip to a two-trip fault.
• 1800322: Mentions a software update changing P2280 from a one-trip to a two-trip fault.
• 1802321: Mentions a software update changing P2280 from a one-trip to a two-trip fault.
• 18-092-17: Mentions a software update changing P2280 from a one-trip to a two-trip fault.
• 18-015-17 Rev A: Details a flash update for 6.7L diagnostic improvements, including changing P2280 to a two-trip fault.

Platform-Specific Known Issues

• TSB #9003821 was issued specifically for the 6.7L turbo diesel engine regarding P2280 being caused by oil-soaked air intake filters.
• Several software updates were released (TSB #1813022REVA, #1800322, #1802321, #18-092-17, #18-015-17 Rev A) that changed the P2280 code from a one-trip fault to a two-trip fault. This was done to reduce the frequency of the check engine light for intermittent or minor issues, preventing nuisance alerts.
• The Ram Active Air intake system features a flexible, corrugated hose running to the fender that is prone to collapsing internally, causing a restriction that sets P2280 even with a clean filter.

Mechanic-Grade Diagnostic Values

• Inlet Air Pressure/Temperature Sensor 5V Reference — expected: Approximately 5.0 Volts. Failure: Voltage significantly above or below 5.0V indicates a circuit or PCM issue.
• Inlet Air Pressure/Temperature Sensor Ground Circuit — expected: Less than 50 mV. Failure: Higher voltage indicates a poor ground connection.
• Stock Intake Manifold Airflow Capacity — expected: Approximately 421 CFM. Failure: Live data showing significantly less airflow under load, combined with a P2280 code, points towards a restriction.

Scan Tool Commands That Help

• wiTECH: Fuel Pressure Override Test — While not directly for P2280, TSB 18-003-22 mentions an improvement to this test in a software update that also addressed P2280, suggesting it can be part of a broader engine health diagnosis.
• wiTECH: PCM Configuration Routine — This routine should be performed after reprogramming the PCM, which may be necessary if a software update related to P2280 is being applied.
• Scan Tool (General): Active Airbox Actuator Calibration/Relearn — If you suspect a problem with the Ram Active Air system, such as a stuck door or replaced actuator, performing a calibration can reset its learned positions and may resolve the fault.

Wiring & Ground Locations

• Inlet Air Temperature/Pressure Sensor — Located in the top of the air cleaner box.. This combined sensor provides the primary data for detecting the air restriction. The ECM provides a 5-volt supply and ground, and receives a signal back. A fault in this sensor or its wiring can trigger P2280.
• MAF Sensor Connector — On the MAF sensor, which is mounted at the air filter box.. Damage or corrosion at this connector can interrupt the signal to the PCM, causing incorrect airflow readings and triggering P2280. The wiring harness has a plastic anchor holding it to the airbox lid that should be checked.
• Ram Active Air Actuator Connector — On the side near the bottom of the air filter housing.. A disconnected or damaged connector will prevent the Active Air doors from moving, potentially causing them to be stuck in a restrictive position and triggering P2280.

Real Owner Repair Stories

• YouTube user 'MotorCity Mechanic' (2013-2015 Ram with 6.7L Cummins) — P2280 code and 'Service Air Filter' message, even with a brand new air filter.
  ❌ Tried (didn't work) Replacing the air filter.
  ✅ What actually fixed it The flexible, corrugated air inlet tube that runs into the passenger-side fender well had collapsed internally, causing a major restriction. The mechanic demonstrated that cutting off the collapsed flexible portion resolved the issue.
• YouTube user 'American Diesel Tech' (2018 Ram 5500) — P2280 code, 'Service Air Filter' message, and low mass airflow readings on a scan tool.
  ❌ Tried (didn't work) Visual inspection of the air filter, which was not excessively dirty.
  ✅ What actually fixed it The linkage for the Ram Active Air door inside the airbox had become disconnected. Reconnecting the linkage restored proper door function and normal mass airflow readings, clearing the code.

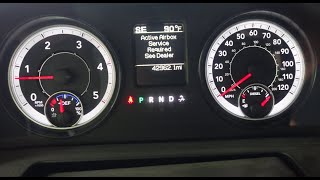

• YouTube user 'Adventures with Purpose' (2017 Ram) — 'Active Airbox Service Required' message, 'Change your air filter' message, especially under load.
  ❌ Tried (didn't work) Considering replacing the air filter.
  ✅ What actually fixed it A bird had built a nest inside the Ram Active Air intake tract, blocking one of the doors. Removing the grille, cleaning out the nest debris, and running a calibration test with a scan tool fixed the problem.

"I Checked Everything" — The Actual Cause

• In many documented cases, a smoke test for intake leaks will come back clean. The actual cause is often an internal collapse of the flexible intake duct inside the passenger fender, which isn't a leak but a physical blockage. This requires removing the fender liner to visually inspect the duct.
• Another common scenario is a clean smoke test but a faulty Ram Active Air system. A broken or disconnected linkage inside the airbox can cause one of the air doors to remain shut, creating a restriction that won't be found with a smoke test.

OEM Part Supersession History

• 68002433AA, 68002433AB → 68002433AC — Standard part revision and improvement over time.
  Heads up: All part numbers are interchangeable for the 2007.5-2024 model years. The aftermarket equivalent is often a Fleetguard CV52001.
• 53034068AA, 68002441AA, 68002441AB → 68002441AC — Standard part revision for the Mass Air Flow (MAF) sensor.
  Heads up: All listed Mopar part numbers are interchangeable for the 2007.5-2018 model years.

Model Year Variations Within This Range

• 2016-2017: There are no significant mechanical or system differences between the 2016 and 2017 Ram 2500/3500 models that would affect the diagnosis or common causes of code P2280. The primary change in 2018 was an updated infotainment system.
