P2459 on 2022-2024 Cadillac Escalade 3.0L Diesel: DPF Regeneration and Intake Leak Causes

What's Unique About the 2022-2024 Cadillac ESCALADE

For the 3.0L Duramax diesel engine (LM2/LZ0) in the 2022-2024 Escalade and its platform mates (like the Tahoe, Yukon, and Silverado 1500), code P2459 is specifically linked to known issues beyond just driving style. General Motors issued Technical Service Bulletin #22-NA-128, which directly connects P2459 to a potential leak at the intake manifold. This leak can trigger a cluster of codes including P2459, making it a critical platform-specific diagnostic starting point. Additionally, TSBs #23-NA-071 and #24-NA-094 identify software glitches in 2023-2024 models that can falsely trigger this code, requiring only an ECM update.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp) is on
• "Service Emission System" message on the driver information center
• Reduced engine power or entering "limp mode"
• Noticeably lower fuel economy
• Vehicle may perform more frequent DPF regeneration cycles than normal, sometimes under 150 miles.

Most Likely Causes

1. Leaking Intake Manifold 🔴 High Probability → Shop Engine Intake Manifold This is a documented issue for the 3.0L Duramax engine in this platform, as identified in GM TSB #22-NA-128, which was updated to include 2022-2025 models with both LM2 and LZ0 engines.
   How to confirm: A technician can perform a smoke test on the intake system 🎬 Watch: How to perform a smoke test for intake leaks to find the leak, as specified in the TSB. The presence of codes P0172, P026D, or P2A00 alongside P2459 strongly points to this cause.
   Typical fix: If a leak is confirmed, the intake manifold must be replaced. TSB #22-NA-128 specifies a warranty labor time of 6.3 hours for this job on an SUV.
   Est. part cost: $250-$400
2. ECM Software Anomaly 🔴 High Probability GM has released specific software updates to correct logic errors that can cause P2459. TSB #24-NA-094 is for 2024 models and TSB #23-NA-071 is for 2023 models with the LZ0 engine.
   How to confirm: A GM dealership can check your vehicle's VIN against their system to see if these specific TSBs and the corresponding software updates are applicable.
   Typical fix: Reprogram the ECM with the updated software. This should be a primary diagnostic step for 2023-2024 models before replacing any parts.
   Est. part cost: $0 under warranty, otherwise ~$100-$200
3. Driving Habits 🟡 Medium Probability The Escalade is often used for short city trips, which prevents the exhaust from reaching the high, sustained temperatures needed for the DPF to automatically regenerate. This is a common issue for many modern diesel owners.
   How to confirm: Review your typical driving patterns. If most trips are short and at low speeds, this is a likely contributor. Forum users often point to this as the first thing to consider.
   Typical fix: Drive the vehicle at a sustained highway speed (e.g., above 50 mph) for 20-30 minutes to allow a full regeneration cycle to complete.
   Est. part cost: $0
4. Faulty DPF Pressure Sensor ⚪ Low Probability
   How to confirm: Use a diagnostic scan tool to monitor the DPF pressure sensor's live data. The readings should be low at idle and increase with engine RPM. Incorrect or erratic readings, or a Key-On-Engine-Off voltage of 0V or 5V, indicate a faulty sensor or circuit.
   Typical fix: Replace the DPF pressure sensor and its hoses, which can become clogged or cracked. After replacement, the sensor's adaptive values must be reset using a scan tool.
   Est. part cost: $50-$150

Rare But Worth Checking

• Exhaust System Leaks: A leak in the exhaust system before or near the DPF can alter pressure and temperature readings, tricking the ECM into thinking a regeneration is needed.
• Leaking Fuel Injectors: A faulty fuel injector can introduce excess fuel, leading to more soot production and overwhelming the DPF. This is sometimes seen with code P026D, which is also mentioned in TSB #22-NA-128 as being related to the intake manifold issue.
• Restricted Engine Air Filter: → Shop Air Cleaner Assembly A severely clogged or collapsed engine air filter can restrict airflow, leading to a rich air/fuel mixture and increased soot production, which in turn causes more frequent regenerations.

Diagnosis Steps

1. Scan the ECM for P2459 and any other stored codes. Pay close attention to the presence of P0172, P026D, or P2A00.
2. For 2023-2024 models, contact a Cadillac dealer with your VIN to check for eligibility for software updates under TSB #23-NA-071 or #24-NA-094 before proceeding with physical inspection.
3. If the code cluster from TSB #22-NA-128 is present, the top priority is to perform a smoke test on the intake system to check for leaks.
4. If no other codes are present, review recent driving habits. If primarily short trips, attempt a highway drive for at least 30 minutes to initiate a DPF regeneration cycle.
5. Inspect the engine air filter. A severely clogged or collapsed filter can restrict airflow and contribute to excess soot.
6. Inspect the DPF pressure sensor wiring for damage and use a scan tool to check its live data for plausible readings.
7. If a leak is found in the intake manifold, replace it following the service procedure.

Parts You'll Likely Need

• Intake Manifold (OEM #55511544) — This is the causal part identified in GM TSB #22-NA-128 for fixing P2459 when it appears with related codes. The part number is explicitly listed in the bulletin.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $250-$400
  Aftermarket price range: $200-$350
• DPF Pressure Sensor — This sensor tells the ECM how full the DPF is. If it provides false readings, it can trigger unnecessary regenerations. This is a more likely cause if P2459 appears alone.
  Trusted brands: ACDelco, Bosch
  OEM price range: $80-$150
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• P0172 - Fuel Trim System Rich — Often set alongside P2459 due to a leaking intake manifold, as documented in TSB #22-NA-128.
• P026D - Fuel Injection Quantity Too High — Also linked to a leaking intake manifold per TSB #22-NA-128.
• P2A00 - Heated Oxygen Sensor Performance — Another code specified in TSB #22-NA-128, pointing towards an intake manifold leak affecting the air/fuel mixture.
• P2463 - Diesel Particulate Filter Restriction - Soot Accumulation — This code indicates the DPF is already clogged. The frequent regenerations (P2459) are a response to the heavy soot load (P2463).

Technical Service Bulletins (TSBs) & Recalls

• 22-NA-128: Malfunction Indicator Lamp (MIL) Illuminated - DTC P0172, P026D, P2459, and/or P2A00 Set. States the cause may be a leak at the intake manifold and provides replacement procedures and part number 55511544.
• 24-NA-094: Addresses a software anomaly on 2024 models with the LZ0 engine that can cause false DPF codes, including P2459. The fix is an ECM reprogram.
• 23-NA-071: Similar to the above, this TSB is for 2023 models with the LZ0 engine and addresses multiple DTCs, including P2459, that can be resolved with a software update.

Platform-Specific Known Issues

• TSB #22-NA-128 explicitly links P2459 to a potential intake manifold leak on 2022-2024 Escalades with the 3.0L diesel engine. This is the most significant vehicle-specific issue for this code.
• TSB #24-NA-094 and #23-NA-071 address a software anomaly in 2024 and 2023 models, respectively, that can falsely trigger P2459. A dealer reprogram is the only fix.

Mechanic-Grade Diagnostic Values

• DPF Pressure Sensor Signal Voltage (Key-On Engine-Off) — expected: ~1.0V. Failure: A reading of 0V or 5V indicates a circuit fault (short or open). A reading that doesn't change with RPM when the engine is running may indicate a stuck sensor or clogged hose.
• DPF Pressure Sensor 5V Reference (Key-On Engine-Off) — expected: 5.0V. Failure: Voltage significantly lower than 5.0V suggests a short in the reference circuit or a faulty ECM.
• DPF Soot Load Percentage (Scan Tool Data) — expected: Varies, but should decrease to a low percentage after a successful regeneration.. Failure: A reading that is excessively high (e.g., over 200%) and does not decrease after a regeneration cycle indicates a severely clogged DPF that may require forced regeneration or replacement.
• DPF Differential Pressure (Scan Tool Data) — expected: Should be near zero at idle with a clean filter and increase with engine RPM/load.. Failure: High pressure at idle (e.g., over 1-2 PSI) can indicate a clogged filter. During a forced regeneration, values can be high (e.g., 2-12 PSI), but should decrease as the soot burns off.

Scan Tool Commands That Help

• GDS2 (or equivalent professional scanner): DPF Service Regeneration — To manually initiate a DPF cleaning cycle when the vehicle is unable to do so automatically due to driving conditions or high soot levels. This is a necessary step before condemning a DPF.
• GDS2, Autel, Delphi (or equivalent): Differential Pressure Sensor Learning / Reset — This function must be performed after replacing the DPF pressure sensor to reset its learned adaptive values in the ECM, ensuring accurate readings from the new part.

Wiring & Ground Locations

• Engine Harness Chafe Point 1 — On 2019-2021 LM2 models, the engine wiring harness may chafe on top of the generator, approximately 18 inches (46 cm) from the ECM connectors.. Chafing can damage wires for various sensors, including those in the emissions system, leading to erratic behavior and fault codes.
• Engine Harness Chafe Point 2 — On 2019-2021 LM2 models, the harness can chafe at the PCV hose clamp near the crankcase pressure regulator.. Damage to circuits in this area can cause a variety of engine performance and emissions-related fault codes.
• Body Ground Strap — A wide, braided metal ground strap located on the passenger side of the vehicle, connecting the frame to the body.. This strap is known to corrode and fail, especially in salt-belt regions. A poor ground can cause widespread, difficult-to-diagnose electrical issues, including false codes from emissions system modules.
• G134 Ground Stud — A specific ground stud for the emissions system.. GM issued bulletin #22-NA-210 regarding this stud breaking from vibration fatigue, which can cause a large number of emissions-related codes to set.
• DPF Assembly Ground — A ground wire that attaches directly to a stud on the DPF assembly bracket.. Ensures that the various sensors and modules on the exhaust aftertreatment system are properly grounded. A missing or loose connection here can cause sensor reading errors.

Real Owner Repair Stories

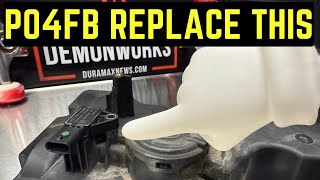

• YouTube Commenter on DemonWorks Video (2023 with LZ0 engine, 37,000 miles) — DPF regeneration frequency changed from every 450 miles to every 200 miles during long-distance highway driving.
  ❌ Tried (didn't work) Owner assumed it was an emissions warranty issue.
  ✅ What actually fixed it A GM dealer performed a forced regeneration using their scan tool and charged the owner $350. The mechanic suggested the owner was not 'working the truck hard enough' to keep the filter clean, even on long trips.
• Reddit user in r/Duramax (2015 LML Duramax (different engine, but same code logic)) — P2459 code, excessive white smoke after replacing fuel system, exhaust injector, and NOx sensor.
  ❌ Tried (didn't work) Replacing the entire fuel system for a separate issue., Replacing the 9th injector (exhaust injector)., Replacing a NOx sensor.
  ✅ What actually fixed it The owner reported that cleaning the MAF (Mass Airflow) sensor significantly slowed the rate of soot accumulation. The final resolution for the customer was to have the DPF professionally removed and cleaned. This highlights that an upstream sensor (MAF) can be the root cause of the rich condition creating excess soot.

"I Checked Everything" — The Actual Cause

• In cases where P2459 is present but a smoke test of the intake manifold (per TSB #22-NA-128) shows no leaks, the root cause is likely an issue that doesn't involve unmetered air. Technicians should investigate other known causes before suspecting the DPF itself. These include checking for an applicable ECM software update on 2023-2024 models, testing the DPF pressure sensor for correct voltage readings, inspecting for a severely clogged engine air filter, or cleaning a contaminated Mass Airflow (MAF) sensor that could be causing a rich fuel mixture.

OEM Part Supersession History

• Multiple → 55511544 — This is the current part number for the intake manifold specified in TSB #22-NA-128. It may also be found under alternate numbers 40009229, 40009057, and 707550AT.
• 12694479, 12696443, 12698485, 12700216, 12709334, and others → 40009139 — Part consolidation and design updates for the complete DPF/SCR assembly.

Model Year Variations Within This Range

• 2022 (LM2) vs. 2023-2024 (LZ0): The 2023 model year introduced the updated LZ0 engine. While the P2459 intake leak issue can affect both, the LZ0 features significant internal changes including steel pistons (vs. aluminum), new fuel injectors, a revised turbo, and an improved camshaft profile.
• 2023-2024: Models with the LZ0 engine may have a software anomaly causing false P2459 codes. TSB #23-NA-071 applies to 2023 models and TSB #24-NA-094 applies to 2024 models. The fix is a dealer-installed ECM update.
• Mid-2022: Per GM bulletin PIP5838B, the wiring pinout for the Diesel Exhaust Fluid (DEF) tank connector changed during the 2022 model year. While not a direct cause of P2459, it is a relevant wiring change within the emissions system for this vehicle range.
