P2610 on 2012-2013 Fiat 500: PCM Internal Engine Off Timer Performance Fixes

What's Unique About the 2012-2013 Fiat 500

This code is a well-documented issue on the 2012-2013 Fiat 500, particularly for models with the 1.4L engine (sales code EAB). Fiat Chrysler Automobiles (FCA) released several Technical Service Bulletins (TSBs) specifically to address this code by updating the PCM software. This indicates the original factory software logic was too sensitive or flawed, making a software update the most common and manufacturer-recommended solution.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Inability to pass an emissions test
• Intermittent crank-no-start condition
• Engine cranks as if it has no compression
🎬 Watch: How to fix a crank-no-start with no compression.
• Intermittent fast crank condition
• In rare cases, a rough idle or hard starting after the vehicle has sat for several days

Most Likely Causes

1. Outdated Powertrain Control Module (PCM) Software 🔴 High Probability → Shop Engine Control Module (ECM) The manufacturer released multiple TSBs (e.g., 18-053-16, 18-027-15) specifically to correct this fault with a software update, confirming it's a known issue with the original programming.
   How to confirm: A Fiat dealer or a shop with a subscription to OEM service information can check your vehicle's VIN against the applicable TSBs to see if the update is needed.
   Typical fix: Reprogramming the PCM with the latest software version using a wiTECH tool.
   Est. part cost: $0
2. Weak or Failing Battery / Loose Terminals 🟡 Medium Probability → Shop Vehicle Battery The PCM's internal timer requires a stable voltage supply to keep time when the engine is off. A weak battery or poor connection can disrupt this memory, causing the timer to report irrational data upon startup. This is often seen after the car sits unused for several days.
   How to confirm: Test the battery voltage with the car off (should be ~12.4V or higher). Check that the battery terminals are clean and tight. Many auto parts stores offer free battery testing. The code may appear with a rough idle on the first startup after sitting for an extended period.
   Typical fix: Replace the battery and/or clean and tighten the battery terminals.
   Est. part cost: $150-$250
3. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM)
   How to confirm: This is a diagnosis of exclusion. If the PCM software is up-to-date, the battery and charging system are healthy, and all PCM power/ground circuits are verified to be good, the module itself is the likely culprit.
   Typical fix: Replace the PCM and program it to the vehicle's VIN.
   Est. part cost: $550-$800

Rare But Worth Checking

• PCM Power or Ground Circuit Issue: An intermittent loss of power or a poor ground connection to the PCM can corrupt its memory and internal processes, including the engine-off timer. This can be caused by corrosion or a damaged wire in the engine wiring harness, particularly the main ground strap from the battery to the chassis and gearbox.
🎬 See this walkthrough on replacing a corroded main ground strap.
• Faulty Main PCM Power Relay (T09): The main relay, labeled T09 in the under-hood fuse box, supplies power to the PCM. If this relay fails or has internal corrosion, it can cause intermittent power loss to the computer, triggering P2610 and often a no-start condition.

Diagnosis Steps

1. Check the battery. Ensure it is fully charged and healthy. Test its voltage with the engine off (~12.4V+) and while running (~13.5V-14.5V) to also check alternator output.
2. Inspect battery terminals and the main PCM ground connection. Ensure they are clean, tight, and free of corrosion. The main ground strap runs from the battery negative terminal to the chassis below the battery tray, and then to the gearbox; it is a common failure point.
3. Scan for other trouble codes. Note any other codes that may be present, especially P1607 and P1239, as they point to the same software issue.
4. Check for applicable TSBs. Contact a Fiat dealer with your VIN to determine if TSBs #18-053-16, #18-027-15, or #18-007-14 apply to your vehicle and have not yet been performed.
5. Perform PCM software update. If an update is available, have the dealer or a qualified shop reflash the PCM. Per TSB instructions, a battery charger must be connected to ensure voltage does not drop below 13.2 volts or exceed 13.5 volts during the flash process.
6. Inspect PCM wiring. If the code persists after the update, perform a pin-point test on the PCM's power and ground circuits to check for intermittent connections or corrosion.

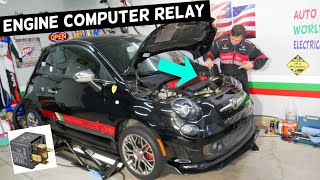

7. Test the main PCM relay (T09). 🎬 Watch: How to locate and replace the engine computer relay. This relay is located in the under-hood fuse box and can be tested for proper function or swapped with a known-good relay.
8. If all previous steps fail to resolve the issue, suspect a faulty PCM.

Parts You'll Likely Need

• Powertrain Control Module (PCM) Software Update — This is not a physical part, but a service. It is the most common fix, as specified by multiple Fiat TSBs, to correct logic flaws in the original programming.
  OEM price range: $150-$300
  Aftermarket price range: N/A
• Car Battery — A weak or failing battery can cause low voltage conditions that disrupt the PCM's internal timer, triggering the P2610 code.
  Trusted brands: Mopar, Interstate, DieHard
  OEM price range: $200-$300
  Aftermarket price range: $150-$250
• Powertrain Control Module (PCM) (OEM #P68083996AD, 68206701AD, P68170039AD (VIN Specific - Examples Only)) — In the rare case that a software update and battery replacement do not fix the issue, the internal timer hardware within the PCM itself may have failed.
  Trusted brands: Mopar
  OEM price range: $556
  Aftermarket price range: $300-$500

Related Codes That Often Appear With This One

• P1607 — This code for 'PCM Internal Shutdown Timer Rationality' is often listed in the same Fiat TSBs as P2610, indicating they are both resolved by the same PCM software update.
• P1239 — Also mentioned in the same Fiat TSBs, this code for 'Engine Oil Temperature Too Low' is another fault that can be resolved by the PCM software update for sales code EAB engines.

Technical Service Bulletins (TSBs) & Recalls

• 18-053-16: Flash: Powertrain Diagnostic And System Improvements
• 18-027-15 REV C: Flash: Powertrain Diagnostic And System Improvements
• 18-007-14 REV. B: Flash: MIL Illumination for P1607-00, P2610-00, P1239-00, or P0298-00

Platform-Specific Known Issues

• The factory software on 2012-2013 Fiat 500 models with the 1.4L engine (sales code EAB) is known to be overly sensitive, causing P2610 to be set erroneously. Fiat addressed this with several software updates available through dealers, as documented in TSBs 18-053-16, 18-027-15 REV C, and others. These updates also resolve related symptoms like intermittent no-starts.

Mechanic-Grade Diagnostic Values

• Battery Voltage (Engine Off) — expected: 12.2V - 12.7V. Failure: Below 12.2V indicates a discharged or failing battery that can disrupt PCM memory.
• Charging System Voltage (Engine Running) — expected: 13.5V - 14.5V. Failure: Voltage below 13.2V or above 14.8V indicates an alternator or regulator issue, which can cause electrical problems for the PCM.
• PCM Reflash Voltage (Strict Requirement) — expected: Maintain between 13.2V and 13.5V. Failure: Dropping below 13.2V or exceeding 13.5V during the software update can interrupt or corrupt the process, potentially damaging the PCM.

Scan Tool Commands That Help

• wiTECH 2.0: Restore Vehicle Configuration — This function is used after installing a new or used PCM to program the vehicle's VIN, mileage, and other configuration data into the module. It is essential for ensuring the new PCM communicates correctly with other modules like the Body Control Module and immobilizer.
• wiTECH 2.0: Reprogram the PCM with the latest software — This is the primary repair procedure specified by Fiat TSBs to resolve the P2610 code. It flashes the module with updated logic to correct the overly sensitive engine-off timer performance.
• wiTECH 2.0: Learn ETC (Electronic Throttle Control) — After a PCM replacement or sometimes after a reflash, the throttle body's learned values may need to be reset and relearned. This function guides the technician through the process.

Wiring & Ground Locations

• Main Engine/Chassis Ground Strap — A multi-part cable that connects from the negative battery terminal to the chassis leg directly below the battery tray, and then continues down to a bolt on the gearbox housing.. This strap provides the primary ground path for the engine and PCM. Corrosion or breakage of this strap is a very common Fiat 500 issue, causing a host of electrical problems including no-start conditions and erroneous PCM codes like P2610.
• T09 - Main PCM Power Relay — Located in the main under-hood fuse and relay box, near the battery. It is often the first relay in the row, labeled 'T09' on the fuse box diagram.. This relay supplies the main operating power to the PCM. A faulty relay can cause intermittent power loss to the computer, corrupting its internal timer memory and triggering P2610. It's a common cause for related no-start and no-communication issues.
• G005 - Ground Point — Located on the left rear of the engine compartment.. This is a shared ground point for several engine components. A loose or corroded connection here can introduce electrical noise and unstable grounds for sensors the PCM relies on.

Real Owner Repair Stories

• YouTube user 'Fix it Rich' (Fiat 500 with 1.4L MultiAir engine) — Car sat for 6 weeks, now has a crank-no-start condition. Engine sounds like it has no compression.
  ❌ Tried (didn't work) Initial thought was a broken timing belt.
  ✅ What actually fixed it The MultiAir valvetrain system had lost oil pressure, preventing the valves from actuating. The fix was to remove the oil fill cap and, while an assistant cranked the engine, use a long screwdriver to press on a small plunger/valve at the bottom of the oil fill area. This purged the air from the system, restored oil pressure to the valvetrain, and allowed the engine to start.
• Reddit user in r/fiat500 (2015 Fiat 500 Pop) — After sitting for 4-5 days, experienced a very rough idle on startup and a flashing check engine light for ~15 seconds. The light went out, but code P2610 was stored.
  ✅ What actually fixed it The user did not post a final fix, but the symptoms strongly point to a weak battery causing a voltage drop after sitting, which is a known trigger for P2610. The community advice was to check/replace the battery.
