P2636 on 2007-2013 Chevrolet Suburban: Fuel Pump Performance and Fixes

What's Unique About the 2007-2013 Chevrolet SUBURBAN

On these GMT900 platform trucks, the fuel system is controlled by a dedicated Fuel Pump Control Module (FPCM) instead of a simple relay. This module is notoriously prone to failure because it's mounted on the frame rail under the vehicle, exposed to moisture and corrosion. Additionally, GM issued technical service bulletins specifically stating that refueling the vehicle with the engine or ignition on can confuse the system and trigger a P2636 code, making owner habits a key diagnostic question. The FPCM is a GMLAN module that receives commands from the ECM and sends a PWM signal to the fuel pump to vary its speed.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads empty or is inaccurate, especially after refueling
• Engine may crank but not start
• Engine stalling, especially under load or when warm
• Hesitation or loss of power during acceleration
• Loud whining noise from the fuel pump area

Most Likely Causes

1. Failing Fuel Pump Control Module (FPCM) 🔴 High Probability → Shop Fuel Pump The FPCM is mounted on the driver's side frame rail near the spare tire, making it highly susceptible to water, road salt, and debris, which causes corrosion on the housing and connector pins, leading to internal failure.
   How to confirm: Locate the module on the driver's side frame rail. Inspect the module and its connector for green or white corrosion, swollen plastic, or physical damage. A scan tool can also check for communication with the FPCM; loss of communication often points to a failed module. 🎬 See how a pro diagnoses a faulty fuel control module.
   Typical fix: Replace the Fuel Pump Control Module. OEM parts like ACDelco require programming. Many aftermarket versions (e.g., Dorman) do not require programming and are plug-and-play. 🎬 Watch: A quick guide to replacing this common failure part.
   Est. part cost: $70-$180
2. Refueling with Ignition On or Engine Running 🟡 Medium Probability The fuel level sensing system performs a check after refueling. If the ignition is on, the system can get a confusing reading, assume a fault, and set P2636. This is documented in GM Technical Service Bulletin #PIT5208A.
   How to confirm: Question the driver about their refueling habits. If the issue only occurs immediately after filling the tank, this is the likely cause. The fuel gauge may also read empty after filling up.
   Typical fix: Turn the vehicle off completely before refueling. Clear the code with a scanner; it may clear on its own after several drive cycles. This is a no-cost fix.
   Est. part cost: $0
3. Failed In-Tank Fuel Pump / Sender Assembly ⚪ Low Probability → Shop Fuel Pump While less common than the FPCM, the fuel pump itself can fail over time. Owners on forums often replace the FPCM first due to its high failure rate and lower cost before suspecting the pump.
   How to confirm: Perform a fuel pressure test to see if it meets specifications. A professional can also use a scan tool to command the pump on and monitor its performance and amperage draw. A simple test is to bypass the FPCM with jumper wires to see if the pump runs with direct power.

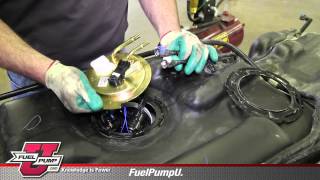

   Typical fix: Replace the entire fuel pump and sender assembly. This requires dropping the fuel tank.
   Est. part cost: $1100-$1400

Rare But Worth Checking

• Wiring Harness Damage: The wiring to the FPCM or the fuel pump can become chafed or corroded, causing an open or short circuit. This can mimic the symptoms of a failed module or pump. Specifically, check the Dark Green/White wire at pin 13 of the FPCM connector for the 'pump on' signal from the ECM.
• Clogged Fuel Lines or Filter: → Shop Fuel Line A restriction in the fuel transfer line between the tanks can prevent proper fuel flow and trigger the code. TSB PIT5510C notes that the transfer line can become kinked during installation or service, which will cause a repeat P2636 code even after parts are replaced.
• Blown Fuel System Fuse: Before replacing components, check the fuses for the fuel system. 🎬 Watch: How to find and check your fuel module fuse. On many GMT900 trucks, this includes a 15A ECM fuse and a 20A FSCM fuse in the underhood fuse block.

Diagnosis Steps

1. Read the code and any other stored codes with an OBD-II scanner. Note codes like P069E or U0109, which point directly to the FPCM.
2. Ask the driver if the problem occurred after refueling and if the engine was running at the time. If so, clear the code and advise on proper refueling procedure as per TSB PIT5208A.
3. If refueling habits are not the cause, locate the Fuel Pump Control Module (FPCM) on the driver's side frame rail, just in front of the spare tire.
4. Visually inspect the FPCM and its electrical connector for any signs of corrosion, water intrusion, or physical damage. Corrosion is the most common sign of failure.
5. If the FPCM looks okay, check the fuses related to the fuel pump system. This is typically fuse 21 (FSCM) and fuse 56 (ECM) in the underhood fuse block.
6. Using a test light, check for the 'pump on' signal at the FPCM connector. The Dark Green/White wire at pin 13 should have power for a few seconds when the key is turned on.
7. If signals are present but the pump doesn't run, you can bypass the FPCM by jumping the power and ground wires directly to the fuel pump wires at the module connector to confirm if the pump itself is functional.
8. Using a capable scan tool, attempt to communicate with the FPCM and command the fuel pump on. If there is no communication or the pump doesn't respond, and wiring/fuses are good, the FPCM is faulty.
9. If the FPCM seems to be working and can command the pump on, the issue may be a weak pump or a clogged line. A fuel pressure test is the next step.

Parts You'll Likely Need

• Fuel Pump Control Module (FPCM) (OEM #20759945 (supersedes 15213110, 25854536, 25967325, 20850907)) — This is the most common point of failure for this code on the 2007-2013 Suburban due to its exposed mounting location under the vehicle.
  Trusted brands: ACDelco (GM OE), Dorman (OE FIX)
  OEM price range: $120-$180
  Aftermarket price range: $70-$120
• Fuel Pump and Sender Assembly (OEM #M100124 (Auxiliary pump for dual tank models)) — If the FPCM and wiring are confirmed to be good, the in-tank fuel pump is the next most likely component to have failed.
  Trusted brands: Delphi, ACDelco, Bosch
  OEM price range: $1300-$1519
  Aftermarket price range: $400-$800

Related Codes That Often Appear With This One

• P069E — This code indicates a fault in the Fuel Pump Control Module itself, and often appears alongside P2636 when the module is failing.
• U0109 — This code means 'Lost Communication With Fuel Pump Control Module'. It is a strong indicator that the FPCM has failed or there is a wiring issue between the ECM and FPCM.

Technical Service Bulletins (TSBs) & Recalls

• PIT5208A: Fuel Gauge Shows Empty After Refueling And DTC P2636. Advises technicians to ask the owner about refueling habits before performing diagnostics.
• PIT5510C: Fuel Gauge Displays Empty / Low Fuel Light On / DTC P2636. Notes that a kinked fuel transfer line can cause this code, especially after service.

Platform-Specific Known Issues

• The placement of the Fuel Pump Control Module on the exterior frame rail leads to a high failure rate from corrosion.
• A documented issue where refueling with the key in the ignition or the engine running can cause the fuel computer to set code P2636 and show an empty fuel gauge.
• For vehicles with dual tanks, a kinked fuel transfer line between the tanks can restrict flow and set P2636, an issue noted in TSB PIT5510C.

Mechanic-Grade Diagnostic Values

• Fuel Pump Amperage Draw — expected: 4 to 8 amps for a healthy PFI pump at normal operating pressure (around 60 psi).. Failure: Significantly higher than 8 amps may indicate a clogged filter or failing pump; significantly lower may indicate high resistance in the circuit or a bad ground.
• FPCM Connector - Pin 13 (Dark Green/White) Voltage — expected: 12V for 2-6 seconds when the key is first turned to 'ON' (ECM commanding pump prime).. Failure: No voltage indicates a problem with the ECM or the wiring between the ECM and FPCM.
• FPCM Connector - Pin 15 (Pink) Voltage — expected: 12V whenever ignition is ON.. Failure: No voltage indicates a problem with the ignition circuit or fuse supplying the FPCM.
• FPCM Connector - Pin 32 (Red/White) Voltage — expected: Constant Battery Voltage (12V+).. Failure: No voltage indicates a blown fuse (likely FSCM fuse 21) or a break in the power wire from the fuse block.
• FPCM Connector - Pin 1 (Black) Ground Resistance — expected: Less than 1 ohm to a clean chassis ground.. Failure: High resistance indicates a corroded or broken ground connection at the frame rail, a common issue on these trucks.

Scan Tool Commands That Help

• GDS2 / Tech2: Fuel Pump Relay 2 ON/OFF Command — Use this bidirectional control to manually turn the secondary fuel pump on and off to verify the FPCM, relay, and pump are capable of functioning. You should hear the pump run when commanded ON.
• Professional Scan Tool: PCM-FICM Handshake Test — This function tests the communication link (CAN bus) between the main engine computer and the fuel control module. A failure here, when wiring is known-good, points to a faulty module.

Wiring & Ground Locations

• Fuel Pump Ground — A black wire bolted directly to the inside of the driver's side frame rail, typically near the fuel tank and FPCM.. This is the primary ground for the fuel pump. Corrosion at this point is extremely common and will cause low voltage to the pump, reducing its performance and potentially triggering a P2636 code before the pump itself has failed.
• FPCM Connector (X3) — The large electrical connector that plugs into the Fuel Pump Control Module on the frame rail.. This is the central point for all power, ground, and command signals for the fuel pump. Testing voltages at this connector is the fastest way to determine if the fault lies with the ECM, the wiring, the FPCM, or the pump.

OEM Part Supersession History

• 15213110, 25854536, 25967325, 20850907, and others → 20759945 — GM consolidated multiple older part numbers into a single replacement module.
  Heads up: The replacement module (20759945) requires VIN programming by a dealer or a specialist. Using a junkyard module will typically result in a no-start condition or other codes, as it is programmed for a different vehicle's options.
