P2764 on 2014-2021 Jeep Cherokee: TCC Solenoid Circuit Low Causes and Fixes

What's Unique About the 2014-2021 Jeep CHEROKEE

The 2014-2021 Jeep Cherokee (KL generation) is equipped with the Chrysler-designated 948TE transmission, which is a version of the ZF 9-speed 9HP48 automatic. This unit is electronically controlled and is marketed as being 'sealed' with 'lifetime' fluid, which makes checking the fluid level and condition difficult for a DIYer as there is no dipstick. While an authoritative NHTSA Technical Service Bulletin (TSB #9004009) exists for code P2764 on Jeeps, it specifically references the 62TE transmission. Since the Cherokee KL uses the 948TE, this TSB is not directly applicable but highlights that on other Jeep transmissions, this code can sometimes point to a torque converter failure. For the 948TE, numerous software updates were released by Chrysler to address a wide variety of shift quality issues, so ensuring the TCM is running the latest software is a critical first step.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission slipping (engine RPMs flare up without an increase in speed)
• Shuddering or vibration during acceleration, sometimes described as driving over a rumble strip
• Harsh or delayed gear shifts
• Stalling when coming to a stop
• Decreased fuel economy
• Transmission may enter 'limp mode,' limiting available gears

Most Likely Causes

1. Faulty TCC Pressure Control Solenoid / Valve Body Assembly 🔴 High Probability → Shop Transmission Valve Body The solenoid is an electronic component within the transmission that can fail over time due to heat and wear. On the 948TE, solenoids are integrated into the valve body assembly, and it is common practice to replace the entire unit rather than an individual solenoid.
   How to confirm: A technician can use a diagnostic scan tool to command the solenoid on and off while monitoring voltage. The solenoid's internal resistance can also be tested with a multimeter at the transmission connector. If the solenoid and wiring test good, the issue could be mechanical within the valve body.
   Typical fix: Replace the entire valve body assembly, which includes all solenoids. 🎬 Watch: Step-by-step guide to replacing the ZF 9HP valve body. After replacement, a 'Quick Learn' or adaptation procedure must be performed with a scan tool.
   Est. part cost: $300-$800 for a valve body assembly.
2. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness leading to or inside the transmission can become damaged from heat, vibration, or fluid leaks, causing a short or open circuit. The code specifically points to a 'Circuit Low' condition, which can be a short to ground.
   How to confirm: Visually inspect the external transmission harness. Perform a continuity and voltage drop test on the TCC solenoid circuit from the TCM to the transmission connector.
   Typical fix: Repair or replace the damaged section of the wiring harness.
   Est. part cost: $50-$300
3. Low or Contaminated Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly Although a 'sealed' unit, leaks can develop. Dirty or burnt fluid can cause solenoids and valves to stick or malfunction. Many specialists outside the US recommend fluid changes every 30,000-60,000 miles, despite the 'lifetime' marketing in America.
   How to confirm: The fluid level must be checked via the fill plug at a specific temperature, which is a complex procedure requiring a scan tool to monitor temperature. The fluid condition (color and smell) should be inspected for signs of burning or contamination.

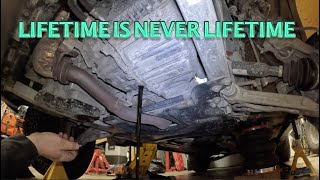

   Typical fix: Perform a transmission fluid drain and fill using the correct Mopar 8 & 9 Speed 🎬 See this full DIY walkthrough for a transmission fluid change.ATF. If the fluid is heavily contaminated, a more extensive service or valve body replacement may be needed.
   Est. part cost: $150-$300 for fluid
4. Faulty Transmission Control Module (TCM) ⚪ Low Probability → Shop Transmission Assembly Early 948TE transmissions were plagued by software issues that caused numerous shifting problems. While less common, the TCM hardware itself can fail.
   How to confirm: This is a diagnosis of exclusion. If the solenoid, wiring, and fluid are all confirmed to be good, the TCM is the likely culprit. First, ensure the TCM has the latest software updates from the dealer.
   Typical fix: Update the TCM software. If the problem persists, replace and program the Transmission Control Module.
   Est. part cost: $500-$1200

Rare But Worth Checking

• Internal Torque Converter Failure: → Shop Automatic Transmission Torque Converter TSB #9004009 points to this as a cause for P2764 on the 62TE transmission. While not directly applicable to the Cherokee's 948TE, a mechanical failure of the torque converter's lock-up clutch can mimic an electrical fault and should be considered if all circuit tests pass.

Diagnosis Steps

1. Verify the code with a professional OBD-II scanner that can read transmission codes.
2. Check for any available Technical Service Bulletins (TSBs) or software updates for the TCM. This is a critical first step for the 948TE transmission.
3. Check for any other related trouble codes.
4. Inspect the transmission housing and wiring harness for any visible damage, leaks, or loose connectors.
5. Perform the complex procedure to check the transmission fluid level and condition. The vehicle must be level and the fluid at a specific temperature (typically checked with a scan tool).
6. Use an advanced scan tool to monitor live data, specifically the TCC solenoid commanded state and the circuit voltage.
7. If possible with the scan tool, perform a functional test to command the TCC solenoid on and off.
8. If the solenoid does not respond correctly, disconnect the transmission harness and test the resistance of the TCC solenoid at the connector pins.
9. Test the wiring circuit for continuity, shorts to ground, and proper voltage from the TCM.
10. If the solenoid and wiring test good, the issue may be with the valve body, the torque converter, or the TCM itself.

Parts You'll Likely Need

• Transmission Valve Body with Solenoids (OEM #68318224AA, 04753134AA) — The TCC solenoid is integrated into the valve body on the 948TE transmission. It is the most common point of failure for this code, and is typically replaced as a complete assembly.
  Trusted brands: Mopar, ZF
  OEM price range: $600-$1000
  Aftermarket price range: $300-$700
• Mopar ATF 8&9 Speed Automatic Transmission Fluid (OEM #68218925AB) — This is the required fluid for the 948TE transmission. Any service will require draining and refilling the fluid.
  Trusted brands: Mopar
  OEM price range: $25-$40 per quart
• Torque Converter — In less common cases where the solenoid and circuit are good, the mechanical lock-up clutch inside the torque converter may have failed.
  Trusted brands: Mopar, Luk
  OEM price range: $500-$900
  Aftermarket price range: $300-$600

Related Codes That Often Appear With This One

• P0740 — P0740 indicates a general malfunction of the TCC circuit. It is often logged alongside P2764, which specifies a 'low circuit' condition.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #9004009: While this TSB mentions P2764 and points to potential torque converter failure, it is specified for the 62TE transmission and is likely not applicable to the 2014-2021 Cherokee, which uses the 948TE transmission.
• Bulletin #21-007-15: This TSB for the 2014-2015 Cherokee discusses the sophisticated shift adaptation algorithm of the 948TE. It details the 'Adaptation Learn Procedure' required after a valve body or TCM is replaced, or when the TCM is flashed, to ensure proper shift quality.

Platform-Specific Known Issues

• The 948TE transmission is a 'sealed' unit without a dipstick, making fluid level checks non-trivial and requiring a specific procedure and scan tool.
• Chrysler/Jeep markets the transmission fluid as 'lifetime,' but many specialists and service recommendations in other countries suggest a fluid and filter change between 30,000 and 60,000 miles to prevent issues like this code.
• The early model years (2014-2016) of the 948TE transmission were subject to numerous software updates to correct harsh shifting, hesitation, and other drivability complaints.

Mechanic-Grade Diagnostic Values

• TCC Solenoid Resistance — expected: 5 - 6 ohms. Failure: A reading outside this range, or an open/infinite reading, indicates a faulty solenoid coil.
• TCC Solenoid Circuit Voltage — expected: ~12 V (+/- 0.5 V) with ignition on, engine off.. Failure: A voltage reading below 9 V confirms the 'Circuit Low' condition reported by the code.

Scan Tool Commands That Help

• Professional Scan Tool (e.g., wiTECH): TCC Solenoid Functional/Activation Test — After checking for codes and before performing resistance tests, a technician can use a bidirectional scanner to command the TCC solenoid on and off. This helps determine if the solenoid is mechanically stuck or not responding to electrical commands, isolating the issue between the component and the wiring/TCM.

Wiring & Ground Locations

• Transmission Connector Pins (TCC Solenoid) — At the main electrical connector on the 948TE transmission case.. To test the TCC solenoid's resistance without removing the transmission pan, a technician can probe pins 1 and 10 at the main transmission connector. This allows for quick verification of the solenoid coil's integrity.
• Engine Block and Firewall Grounds — Key grounds are typically located on the engine block near the starter or motor mounts, and via braided straps from the engine/head to the firewall.. A poor ground connection for the PCM or TCM can cause erratic sensor readings and low voltage conditions, mimicking a component failure. Ensuring the main engine and control module grounds are clean and tight is a crucial step in diagnosing any electrical fault code like P2764.

OEM Part Supersession History

• rl318224aa → 68318224AA — Part has been updated or revised by the manufacturer.
  Heads up: The 948TE transmission was built with variations. Some valve bodies use 9 solenoids while others use 10 (for electronic parking). It is critical to verify the correct version for the specific vehicle, often by providing the VIN when ordering.

Model Year Variations Within This Range

• 2014-2018 vs 2019-2021: The 2019 model year received a significant refresh, including a new optional 2.0L turbocharged engine. FCA also implemented a "running change" on transmission software for 2019 models, which reportedly led to fewer powertrain problem reports compared to earlier years.
• 2014-2016: The earliest models of the Cherokee with the 948TE transmission were subject to numerous recalls and software updates aimed at fixing a wide range of shifting and drivability problems. When diagnosing these earlier models, checking for the latest TCM software is especially critical.
