P2764 on 2007-2014 Jeep Compass: TCC Solenoid Circuit Low Causes & Fixes

What's Unique About the 2007-2014 Jeep COMPASS

The first-generation Jeep Compass (MK) primarily used a Jatco JF011E (also known as the CVT2) continuously variable transmission. This transmission is known for several common issues, including failures of the valve body solenoids and the stepper motor that controls pulley ratios. The P2764 code is frequently triggered by an electrical failure within the TCC lock-up solenoid, which is located on the valve body. While the NHTSA TSB #9004009 references a different transmission (62TE), its diagnostic logic is sometimes applied by technicians: if the solenoid and its circuit are confirmed to be good, the torque converter itself may be the culprit. However, for the Jatco CVT, the valve body and its solenoids are the more common failure point.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• Engine stalling when coming to a stop.
• Harsh, erratic, or delayed gear shifts.
• Transmission slipping (engine RPMs rise without a corresponding increase in speed).
• Shuddering or vibration, especially at speeds of 40-50 mph, that feels like driving over rumble strips.
• Decreased fuel economy.
• Transmission may enter a "limp mode," limiting vehicle speed.
• RPM fluctuations of 200-300 RPM while cruising at a steady speed.

Most Likely Causes

1. Faulty Torque Converter Clutch (TCC) Solenoid 🔴 High Probability → Shop Automatic Transmission Torque Converter The solenoids on the Jatco CVT valve body are a well-documented failure point, susceptible to electrical failure from heat cycles and contamination in the transmission fluid.
   How to confirm: A technician can test the solenoid's resistance with a multimeter. A healthy solenoid should have a resistance of around 13-14 ohms. A significantly lower reading (e.g., under 10 ohms) indicates a shorted/failed solenoid. A bidirectional scan tool can also be used to command the solenoid on and off to check for a response.
   Typical fix: Replace the TCC solenoid. On the Jatco JF011E, this solenoid is located on the valve body and is often replaced as part of a complete solenoid pack or a remanufactured valve body assembly.
   Est. part cost: $200-$600
2. Damaged Wiring or Connectors 🟡 Medium Probability The internal wiring harness, which is submerged in transmission fluid, can become brittle or damaged. The external connector to the transmission can also suffer from corrosion or loose pins, causing a low voltage condition.
   How to confirm: Visually inspect all accessible wiring to the transmission for damage. Test for continuity and voltage at the solenoid connector and the TCM connector. A voltage reading below 12V at the solenoid connector can indicate a wiring issue.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector.
   Est. part cost: $20-$150
3. Failed Torque Converter ⚪ Low Probability → Shop Automatic Transmission Torque Converter While less common than solenoid failure on the CVT, a mechanical failure within the torque converter's clutch mechanism can cause similar symptoms and may trigger the P2764 code, especially if the solenoid and wiring check out.
   How to confirm: This is typically diagnosed by elimination. If the fluid, wiring, and TCC solenoid all test good, the torque converter is the likely culprit. A specific symptom can be engine stalling when shifting into Drive but not Reverse.
   Typical fix: Replace the torque converter. This is a major repair that requires removing the transmission from the vehicle.
   Est. part cost: $400-$900
4. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly The Jatco CVT is highly sensitive to fluid type and condition. Incorrect fluid (non-CVT specific) or fluid that is old and contaminated with metal shavings can clog the fine passages in the valve body and cause solenoids to stick or fail.
   How to confirm: Check the transmission fluid level and condition. The fluid should be a light honey color. If it is dark, burnt-smelling, or contains visible metal particles, it indicates a problem.
   Typical fix: Perform a transmission fluid and filter change using the correct Mopar CVTF+4 or equivalent fluid. However, if the fluid is heavily contaminated, this is often a symptom of a larger internal failure (like a failing torque converter or pulleys) rather than the root cause.
   Est. part cost: $100-$250

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly While rare, the TCM itself can fail, specifically the driver circuit that sends power to the solenoid. This should be considered only after all other possibilities (solenoid, wiring, fluid) have been thoroughly ruled out.
• Worn Valve Body: → Shop Transmission Valve Body The aluminum bores within the valve body can wear over time, causing hydraulic fluid to leak past the valves. This can lead to pressure loss and erratic solenoid operation, even if the solenoid itself is electrically sound. In these cases, replacing the entire valve body is necessary.

Diagnosis Steps

1. Scan the vehicle for P2764 and any other related transmission codes (e.g., P0740, P0700).
2. Check the level and condition of the transmission fluid. Ensure the correct fluid type (CVTF+4 for the CVT) is being used. Burnt or dirty fluid can indicate internal problems.
3. Inspect the transmission's external wiring harness and connectors for any signs of damage, corrosion, or loose connections.
4. Using a professional scan tool, monitor the live data for TCC solenoid command vs. actual status and check for RPM slip.
5. Drop the transmission oil pan to gain access to the valve body and internal wiring.
6. Visually inspect the internal harness for damage.
7. With a multimeter, test the resistance of the TCC solenoid. Disconnect the solenoid and measure between its pins. Compare the reading to the manufacturer's specification (typically 13-14 ohms for a good solenoid on a Jatco CVT).
8. If the solenoid resistance is out of spec, it needs to be replaced. If it tests correctly, check the wiring from the TCM to the solenoid for continuity and shorts to ground.
9. If the solenoid and wiring test correctly, the issue may lie with worn bores in the valve body or a mechanical failure in the torque converter.

Parts You'll Likely Need

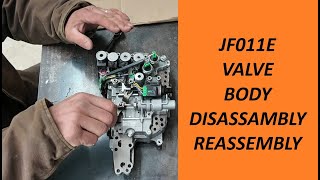

• Transmission Valve Body with Solenoids — This is the most common fix. For the Jatco CVT, the TCC solenoid is part of the valve body assembly. Replacing the entire remanufactured unit addresses both the failed solenoid and potential wear in the valve body bores.
  Trusted brands: Mopar, Rostra, Sonnax
  OEM price range: $800-$1200
  Aftermarket price range: $400-$700
• Torque Converter Clutch (TCC) Solenoid (OEM #Part of valve body assembly) — If the solenoid can be sourced individually and the valve body is in good condition, this is a more targeted repair. Aftermarket brands like Rostra sometimes offer individual solenoids or kits.
  Trusted brands: Rostra (e.g., part of a kit like 52-0580), TC Remanufacturing
  OEM price range: Not sold separately
  Aftermarket price range: $100-$250
• Torque Converter

Related Codes That Often Appear With This One

• P0740 — This code also relates to a general TCC circuit malfunction and often appears with P2764, indicating a problem within the same system.
• P0700 — This is a generic code that simply means the Transmission Control Module (TCM) has stored a fault. It serves as an alert to check for more specific codes like P2764.
• P0868 — This code indicates 'Transmission Fluid Pressure Low'. It can appear alongside P2764 if the root cause is a major leak, clogged filter, or failing pump that affects the entire hydraulic system.

Technical Service Bulletins (TSBs) & Recalls

• 9004009: (Note: For 62TE transmission, not this vehicle's CVT) Advises that for vehicles with a P2764 code, if the TCC solenoid operation is confirmed to be okay, the torque converter should be replaced. Its logic is sometimes referenced by technicians.
• 21-004-14: Involves flash reprogramming the Transmission Control Module (TCM) for shift quality improvements on 2014 models. While not a direct fix for a P2764 hardware fault, ensuring the TCM software is up-to-date is a good practice during diagnosis.

Platform-Specific Known Issues

• A manufacturer TSB for other Jeep/Chrysler vehicles (TSB #9004009) advises that if the TCC solenoid is functioning correctly, a P2764 code is indicative of a torque converter failure. This diagnostic logic is often applicable to the Compass as well, but should only be considered after thoroughly inspecting the more common failure point: the valve body/solenoids in the Jatco CVT.
• The Jatco JF011E CVT is known for overheating, which accelerates fluid degradation and can lead to premature failure of electronic components like the TCC solenoid.
• Some owners have found that a TCM software update can improve overall shift quality and drivability, as referenced in TSB 21-004-14, though it does not directly address the P2764 code's root cause.

Mechanic-Grade Diagnostic Values

• TCC Control Solenoid Resistance — expected: 3 to 9 Ohms. Failure: A reading outside this range indicates a faulty solenoid.
• Lockup Select Switch Solenoid Resistance — expected: 15 to 30 Ohms. Failure: A reading outside this range indicates a faulty solenoid.
• TCC Solenoid Connector Voltage (Key On) — expected: Approximately 12V (+/- 0.5V). Failure: A reading below 9V points to a low-voltage condition in the circuit.
• Solenoid Ground Strap to Chassis Resistance — expected: Below 0.1 Ohms. Failure: Values above 0.1 Ohms suggest a poor ground connection that needs repair.

Scan Tool Commands That Help

• Chrysler wiTECH or capable aftermarket scanner: Quick Learn / AT Learning Mode — This procedure is mandatory after replacing the valve body or solenoid pack. It allows the TCM to learn the hydraulic and electrical characteristics of the new components to ensure proper operation and prevent persistent codes.
• Professional Bidirectional Scanner: TCC Solenoid Actuator Test — Used to command the TCC solenoid on and off while monitoring circuit voltage. This helps isolate whether the fault is electrical (solenoid, wiring, TCM) or mechanical (stuck valve, torque converter).

Wiring & Ground Locations

• Transmission Control Module (TCM) — Located inside the vehicle, behind the driver's side kick panel, up under the dashboard.. The TCM sends the signal to the TCC solenoid. Technicians may need to access the TCM connector to test the circuit wiring for continuity or shorts.
• TCM Connector - TCC Solenoid Wire — At the TCM connector, the wire for the TCC solenoid circuit is typically red with a white stripe. On some connectors, this corresponds to pin #26.. This is the specific pin/wire to back-probe with a multimeter to test resistance and voltage of the TCC solenoid circuit directly from the control module side.
• Transmission Case Connector (External) — The main electrical connector on the outside of the CVT case. For Dodge/Jeep models, pin 6 is used as the ground path for checking several solenoids.. This is the primary point for testing the solenoid and internal harness without dropping the transmission pan. A fault can exist in the external connector pins due to corrosion or damage.

Real Owner Repair Stories

• YouTube video by 'Pine Hollow Auto Diagnostics' (2011 Subaru Outback (uses a similar CVT with P2764 issues)) — Check Engine Light with code P2764.
  ✅ What actually fixed it The TCC (lock-up duty) solenoid resistance measured 7 ohms, which was out of the specified range (approx. 13 ohms). Replacing the entire valve body assembly, which contained the faulty solenoid, resolved the code.
• YouTube video by 'L+T adventures' (Subaru with P2764/P2763) — Check Engine Light, various warning lights ('Christmas tree' on dash).
  ✅ What actually fixed it The TCC solenoid resistance measured 22 ohms when hot, well above the expected ~12 ohms. The user replaced only the individual solenoid (sourced from Dorman, as Subaru only sells the full valve body) which fixed the problem for under $100.

OEM Part Supersession History

• Closed Coil Solenoids → Open Coil Solenoids — The updated 'open coil' solenoids were designed for better heat dissipation to prevent the coil circuit from overheating and failing, which was a common issue with the original 'closed coil' design.
  Heads up: Open coil solenoids can replace closed coil ones, but a closed coil solenoid should never be used to replace an open coil design.

Model Year Variations Within This Range

• 2007-2013: These years predominantly used the Jatco JF011E (CVT2) transmission, where P2764 is most commonly associated with a failed TCC solenoid on the valve body.
• 2014: The 2014 model year was a transition period that introduced an optional 6-speed automatic transmission (6F24). While P2764 can still occur, the internal components, part numbers, and diagnostic procedures (like resistance values) will differ from the CVT models.
• Early production models: Some early production Jatco JF011E valve bodies used a design with only one pressure sensor, while later versions used two. Chrysler/Jeep applications consistently use the two-sensor valve body. An incorrect valve body will not function.
