P2802 on 2010-2015 Hyundai Tucson: Transmission Range Sensor Causes and Fixes

What's Unique About the 2010-2015 Hyundai Tucson

The second-generation Hyundai Tucson (2010-2015) and its sibling, the Kia Sportage (2011-2016), are well-documented for premature failure of the Transmission Range Sensor, which Hyundai officially calls the 'Inhibitor Switch'. The problem is so widespread that Hyundai issued TSB 17-AT-005, which supersedes the older 15-AT-001 and covers this exact component for a range of DTCs (P0705, P0706, P0707, P0708) across many models, including the Tucson. While wiring issues can cause this code on any car, on this specific platform, the sensor itself is the overwhelming point of failure.

Symptoms You May Notice

• Check Engine Light is on
• Engine will not crank or start, especially intermittently
• Vehicle may only start in Neutral, but not Park (or vice-versa)
• Incorrect or no gear position displayed on the instrument cluster
• Transmission may be stuck in a single gear (fail-safe or 'limp' mode)
• Harsh or erratic shifting
• Reverse lights do not work
• Flashing gear position indicator on the dashboard

Most Likely Causes

1. Failed Transmission Range Sensor (Inhibitor Switch) 🔴 High Probability → Shop Transmission Assembly This is a widely documented failure point on Hyundai and Kia vehicles from this era using the 6-speed automatic transmission. Hyundai TSB 17-AT-005 directly addresses diagnosing and replacing this switch for related codes.
   How to confirm: After verifying the wiring is intact, test the sensor's voltage output at the connector pins while moving the gear selector. A wiring diagram is needed to identify the correct pins. However, due to the extremely high failure rate, many technicians and owners replace it based on the code and classic symptoms (like no-start in Park but starts in Neutral) alone.
   Typical fix: Replace the Transmission Range Sensor (Inhibitor Switch).
   Est. part cost: $90-$125
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The sensor is located on top of the transmission, exposed to engine bay heat and potential moisture, which can degrade wiring and connectors over time. The connector pins should be inspected for green/white corrosion or damage when the sensor is replaced.
   How to confirm: Visually inspect the wiring harness leading to the sensor for any signs of fraying, melting, or corrosion. Unplug the connector and check for bent, corroded, or loose pins.
   Typical fix: Repair the damaged section of the wire harness or clean/replace the electrical connector.
   Est. part cost: $5-$50

Rare But Worth Checking

• Misadjusted Transmission Range Sensor: → Shop Transmission Assembly If the sensor was recently replaced or the shift cable was adjusted, it might not be properly aligned. The sensor's position is adjustable and must be set correctly in the Neutral position during installation using a 5mm bolt or guide pin.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM should only be considered after all other possibilities, including the sensor and wiring, have been exhaustively tested and ruled out.

Diagnosis Steps

1. Scan the vehicle for all OBD-II codes. Confirm P2802 is present and check for other related transmission codes like P0705, P0706, P0707, or P0708.
2. Check for Technical Service Bulletins (TSBs). TSB 17-AT-005 is the most relevant, superseding 15-AT-001, and covers diagnosis for this entire family of codes.
3. Attempt to start the vehicle in both Park and Neutral. If it starts in Neutral but not in Park, this strongly indicates a failed inhibitor switch.
4. Locate the Transmission Range Sensor on top of the transmission, underneath the battery and battery tray.
🎬 See this video showing the sensor location and removal
5. Carefully inspect the wiring harness and connector going to the sensor. Look for any signs of corrosion, damage, or loose pins.
6. If wiring appears okay, the next step is to test the sensor itself. This typically involves back-probing the connector with a multimeter to check for correct voltage signals as the gear shifter is moved through each position. This requires a wiring diagram for pin identification.
7. If the sensor fails the voltage test or if the symptoms are definitive (e.g., starts in N but not P), replace the Transmission Range Sensor (Inhibitor Switch).
8. During installation of the new sensor, ensure it is properly aligned in the Neutral position using a 5mm bolt or alignment pin before tightening the control lever nut.

Parts You'll Likely Need

• Transmission Range Sensor / Inhibitor Switch (OEM #42700-26700 (supersedes 42700-26500 and 42700-26000)) — This is the most common point of failure for code P2802 on this specific vehicle. The part number has been revised by Hyundai, indicating they have improved the original design.
  Trusted brands: Genuine Hyundai, Dorman, Holstein, Standard Motor Products (SMP)
  OEM price range: $90-$125
  Aftermarket price range: $40-$90

Related Codes That Often Appear With This One

• P0705 — P0705 indicates a general malfunction in the Transmission Range Sensor circuit. P2802 is a more specific fault within that same system, and they often appear together as they point to the same root cause.
• P0706 — P0706 indicates a range/performance issue with the sensor circuit. It points to the same component and is often triggered by the same root cause.
• P0707 / P0708 — These codes indicate low circuit input (P0707) or high circuit input (P0708) from the range sensor. All of these codes (P0705-P0708 and P2802) are addressed by TSB 17-AT-005 and point to a failure of the inhibitor switch.

Technical Service Bulletins (TSBs) & Recalls

• TSB 17-AT-005: A comprehensive guide for diagnosing inhibitor switch circuit codes (P0705-P0708) on various Hyundai models, including the 2010-2015 Tucson. It outlines the full diagnostic tree, from checking fuses to replacing the switch.
• TSB 15-AT-001: The predecessor to 17-AT-005, this TSB also addressed intermittent no-crank/no-start conditions related to the range sensor circuit.

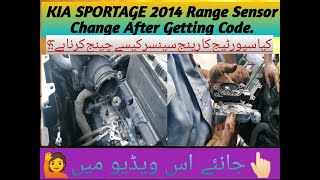

• Kia Service Action SA317A: A similar campaign for Kia vehicles 🎬 Watch: Kia Sportage inhibitor switch replacement walkthrough that details symptoms like no-start, erratic shifting, and MIL on with P0705, all due to a faulty inhibitor switch.

Platform-Specific Known Issues

• Hyundai issued Technical Service Bulletin 17-AT-005, which supersedes 15-AT-001. This TSB provides a comprehensive diagnostic procedure for a family of codes (P0705, P0706, P0707, P0708) related to the inhibitor switch on many models, including the 2010-2015 Tucson (LM).

Mechanic-Grade Diagnostic Values

• Inhibitor Switch Signal Voltage (at connector, back-probed) — expected: Approximately 12V (battery voltage) on the specific signal wire for the selected gear, and 0V on the others.. Failure: No voltage on any signal wire when a gear is selected, voltage on multiple wires at once, or voltage lower than battery voltage.
• Inhibitor Switch Continuity Test (on bench) — expected: Continuity (near 0 Ohms) should exist only between the specific pin pairs for each gear position as per a service manual diagram.. Failure: No continuity on the correct pins for a selected gear, or continuity between incorrect pins (an internal short).

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Live Data (Current Data) > AT > 'Gear Shift Lever Switch' — Use this to monitor the gear position signal being received by the TCM in real-time. As you move the shifter through P-R-N-D, the display on the GDS should match. If it's blank, incorrect, or jumps erratically, it strongly points to a bad inhibitor switch or wiring issue.
• Hyundai GDS (Global Diagnostic System): Vehicle S/W Management > Resetting Adaptive Values — After replacing the inhibitor switch and confirming correct operation, it is good practice to reset the transmission's adaptive values to clear any learned adjustments that were compensating for the faulty sensor.

Wiring & Ground Locations

• Transmission-to-Chassis Ground Strap — A thick cable or copper braid connecting the transmission housing directly to the vehicle's chassis/frame, often near the engine mount.. A corroded or loose main transmission ground can cause a floating ground, leading to erratic voltage readings for all transmission sensors, including the inhibitor switch. This can mimic a sensor failure and should be checked and cleaned before replacing parts.
• G100 Ground Point — On the passenger side frame rail in the engine compartment.. This is a major chassis ground point. While not directly for the sensor, other modules use this ground, and a fault here can introduce electrical noise into the system, potentially affecting sensor readings.
• Inhibitor Switch Connector — A 10-pin connector on the inhibitor switch itself, located on top of the transmission underneath the battery tray.. This is the primary point for testing voltage and signals directly from the switch. Corrosion on these pins is a common issue and can cause the P2802 code by creating low voltage readings.
• Rear Combination Lamp Ground — In the trunk area, near the tail light assemblies.. Hyundai TSB 17-AT-005 specifically instructs technicians to check this ground. A poor ground here can cause electrical feedback on shared circuits that may be misinterpreted by the TCM, potentially leading to false range sensor codes. This is a non-obvious but critical check.

OEM Part Supersession History

• 42700-26000 → 42700-26500, then 42700-26700 — Part revision by the manufacturer to improve durability and reliability, addressing the high failure rate of the original design.
  Heads up: The newest part, 42700-26700, is the recommended replacement and is fully backward compatible with vehicles that used the older part numbers.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Theta II Engine Failure (Rod Bearing Wear) 🔴 High — Widespread across multiple model years, particularly 2014-2015 Tucsons with the 2.4L GDI engine. Can occur without warning, often leading to complete engine seizure. (Ref: Subject to major recalls and a class-action lawsuit settlement which extended the warranty to 15 years/150,000 miles for affected vehicles and led to the development of a Knock Sensor Detection System (KSDS) software update (Campaign 966).)
• Flexible Steering Coupler Disintegration 🟠 Medium — Extremely common across the entire 2010-2015 generation. Owners typically notice a distinct 'clicking' or 'clunking' sound from the steering column at low speeds, which worsens over time. (Ref: Hyundai addressed this with an extended warranty (10 years/100,000 miles) under TSB 17-ST-002-1, but the issue is caused by a small, inexpensive rubber part (OEM #56315-2K000-FFF) that degrades.)
• Excessive Oil Consumption 🟠 Medium — Often a precursor or related symptom to the larger Theta II engine issues. Affects 2.0L and 2.4L engines, with owners reporting rapid oil loss between changes. (Ref: Related to the broader engine recalls and warranty extensions.)
• ABS Module Internal Leak / Fire Risk 🔴 High — Less common than engine issues, but critical. The ABS module can leak brake fluid internally, causing an electrical short that poses a fire risk, even when the vehicle is parked. (Ref: Subject of a major safety recall (e.g., Recall 205) affecting 2010-2013 Tucson models, among many other Hyundai/Kia vehicles.)
• Harsh or Delayed Transmission Shifting 🟡 Low → Shop Transmission Assembly — Some owners report harsh or delayed shifts with the 6-speed automatic transmission. This can sometimes be addressed with a software update or by performing an adaptive values reset. (Ref: TSB 18-AT-004 provides a diagnostic procedure for shift quality issues. TSB 15-01-050 addressed hesitation in some models.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Never. This specific part has a very high, well-documented failure rate. A used part from a donor vehicle is likely to have significant wear and could fail shortly after installation, wasting both time and money. The part was updated by Hyundai for a reason.

What to inspect on the donor part:

• Not applicable as a used part is not recommended.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a Genuine Hyundai part (42700-26700) is very strongly recommended over aftermarket options for this specific repair. The OEM part is the revised, more durable version.

Aftermarket brands forum-validated for this vehicle:

• While OEM is preferred, brands like Standard Motor Products (SMP) and Holstein are generally considered higher-quality aftermarket choices if OEM is unavailable.

Brands owners have reported issues with on this vehicle:

• Be cautious with unbranded, low-cost parts from online marketplaces. While Dorman is a major brand, forum discussions often show mixed results, with some users preferring to install a used OEM part over a new Dorman part for certain components. Given the critical function and high failure rate, sticking to OEM or top-tier aftermarket is the safest bet.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0705 — A primary companion code mentioned in TSB 17-AT-005 and Kia SA317A; it indicates a Transmission Range Sensor circuit malfunction.
• P0706 — Related to range sensor range/performance; often diagnosed alongside P2802 using the same TSB diagnostic tree.
• P0707 — Indicates low input in the Transmission Range Sensor circuit, frequently caused by the same failed inhibitor switch.
• P0708 — Indicates high input in the Transmission Range Sensor circuit; part of the family of codes addressed by TSB 17-AT-005.

Frequently Asked Questions
