P3004 on 2007-2011 Toyota Camry Hybrid: High Voltage Malfunction Explained

What's Unique About the 2007-2011 Toyota Camry Hybrid

The 2007-2011 Camry Hybrid uses Toyota's proven Hybrid Synergy Drive system. While generally reliable, age can lead to issues in the high-voltage components. Unlike some Prius models famous for inverter failures under warranty extensions, the Camry Hybrid experiences these issues less frequently, but the diagnostic principles are the same. The key to diagnosing P3004 is often found 🎬 Watch: Diagnosing P3004 high voltage power codes in the more specific 'info codes' (like -131 for an open circuit or -800 for a short circuit) that can only be read with an advanced scan tool. These info codes are critical for distinguishing between a relatively inexpensive relay failure and a much more costly inverter replacement.

Symptoms You May Notice

• "Check Hybrid System" warning light illuminated
• Vehicle will not start or enter 'Ready' mode
• Vehicle may shut down while driving
• Car is stuck in Park and cannot be shifted
• A loud 'clunk' or no sound at all when attempting to start
• The vehicle may enter a "Fail Safe Mode" with various warning lamps illuminated on the instrument panel, as noted in TSB Bulletin #23TE03.

Most Likely Causes

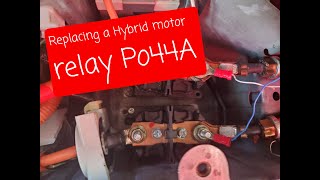

1. Failed HV Battery Contactor (Relay) 🔴 High Probability → Shop Vehicle Battery The high-voltage relays (also called contactors) inside the battery's junction block can fail or stick open over time, preventing power from being sent to the inverter. This is a common failure mode as the vehicle ages.
   How to confirm: A professional technician can use a scan tool's 'Active Test' to command the relays and listen for an audible click. This fault is almost always associated with info code P3004-131 (open circuit).
   Typical fix: Replace the faulty relay or the entire HV battery junction block assembly.
   Est. part cost: $250-$500
2. Failed Inverter with Converter Assembly 🟡 Medium Probability → Shop Power Converter An internal failure of the Intelligent Power Module (IPM), a set of transistors within the inverter, can cause a short circuit. This can be due to thermal stress over many years of operation. This is a well-documented failure on Toyota hybrid systems. TSB Bulletin #23TE03 specifically identifies the failure of the IPM located inside the inverter assembly as a cause for this code.
   How to confirm: This fault is strongly indicated by the presence of info code P3004-800 (short circuit/overcurrent). Often the code P0A94 (DC/DC Converter Performance) will be present as well, as the DC/DC converter is part of the inverter assembly.

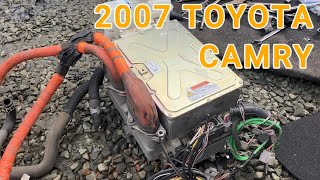

   Typical fix: The entire inverter with converter assembly must be replaced. 🎬 Watch: How to remove a Camry Hybrid inverter
   Est. part cost: $1500-$3000
3. Failed Inverter Coolant Pump ⚪ Low Probability The inverter has its own dedicated cooling system. If the electric water pump for this system fails, the inverter can overheat, leading to the destruction of the internal IPM and triggering P3004. This is a known point of failure on Toyota hybrids.
   How to confirm: A technician will check for coolant circulation in the inverter coolant reservoir and test the pump for operation. A lack of flow or a pump that is not vibrating indicates a failed pump.

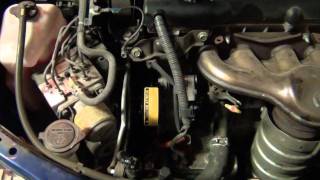

   Typical fix: Replace the inverter coolant pump. 🎬 See this step-by-step water pump replacement guide If the inverter was damaged from overheating, it may need to be replaced as well.
   Est. part cost: $150-$350

Rare But Worth Checking

• Damaged High-Voltage Power Cables: The main orange cables connecting the battery to the inverter can be damaged by corrosion, road debris, or improper service, causing an open or short circuit.
• Failed Pre-charge Resistor: The hybrid system uses a resistor to slowly energize the inverter's capacitors at startup to prevent a current surge. If this resistor fails, it disrupts the startup sequence and can set P3004, often with info code P3004-132.
• Corroded Hybrid Battery ECU Connector: → Shop Vehicle Battery Moisture in the trunk area can sometimes lead to corrosion on the battery ECU connector, causing a variety of communication and power faults. One owner on PriusChat noted this as a potential cause after experiencing similar issues.

Diagnosis Steps

1. SAFETY FIRST: This is a job for a qualified professional. The high-voltage system must be properly de-energized by removing the service plug and waiting at least 10 minutes for capacitors to discharge.
2. Scan for Codes: Use a professional scan tool (like Toyota Techstream) to read the primary code (P3004) and any accompanying info codes (e.g., -131, -132, -800). The info code is critical for diagnosis. Manufacturer TSB Bulletin #TSB000321 notes that P3004 often appears alongside P0A94, P324E, and P0A1A when the inverter assembly has malfunctioned.
3. Inspect HV Cables: Visually inspect the orange high-voltage cables between the battery and inverter for any signs of damage, corrosion, or loose connections.
4. Test System Main Relays (Contactors): If info code P3004-131 is present, this indicates an open circuit. Use the scan tool's Active Test function to command the relays on and off. A silent relay indicates it has failed.
5. Check Pre-charge Resistor: If info code P3004-132 is present, the pre-charge resistor located in the HV relay assembly needs to be tested for proper resistance (typically 18-22 Ω).
6. Diagnose Inverter: If info code P3004-800 is present, this points to a short circuit, most commonly an internal failure of the inverter assembly. Further testing of the inverter and A/C compressor would be required.
7. Check Inverter Coolant Pump: Visually inspect the inverter coolant reservoir for any signs of coolant movement. If there is no swirling or flow, the pump has likely failed, which can lead to inverter overheating and failure.

Parts You'll Likely Need

• Inverter with Converter Assembly (OEM #G9200-33030 (or superseding part numbers)) — An internal short circuit, often in the Intelligent Power Module (IPM), is a common cause of P3004-800, requiring replacement of the entire assembly.
  Trusted brands: Toyota (OEM)
  OEM price range: $1900-$4000
  Aftermarket price range: $1000-$2000 (Remanufactured)
• HV Battery Junction Block / Relay Assembly (OEM #G92Z0-33030 (Note: Verify with VIN, part numbers can vary)) — This assembly contains the system main relays (contactors) that connect battery power to the inverter. A failed or stuck relay is a high-probability cause for an open-circuit fault (P3004-131).
  Trusted brands: Toyota (OEM)
  OEM price range: $250-$500
• Inverter Coolant Pump (OEM #G9020-33010) — Failure of this pump can cause the inverter to overheat, leading to catastrophic failure and a P3004 code. It's often replaced as a preventative measure during inverter replacement.
  Trusted brands: Toyota (OEM)
  OEM price range: $300-$500
  Aftermarket price range: $50-$150

Related Codes That Often Appear With This One

• P0A94 — This code for 'DC/DC Converter Performance' often appears with P3004 because the DC/DC converter is housed inside the same inverter assembly. Seeing both codes together strongly points to a failed inverter.
• P3000 — This is a general code for 'HV Battery Malfunction' and can appear alongside the more specific P3004 when a fault occurs in the high-voltage system.
• C1259, C1310 — These codes for 'HV System Regenerative Malfunction' and 'HV System Malfunction' are often triggered alongside P3004 as they indicate a general failure in the hybrid system's ability to operate correctly.
• P324E, P0A1A — These codes are frequently detected alongside P3004 when a malfunction occurs in the inverter assembly with converter, as documented in TSB Bulletin #TSB000321.

Technical Service Bulletins (TSBs) & Recalls

• T-SB-0003-21: While this TSB applies to the 2010-2015 Prius, it details the diagnostic process for P3004, P0A94, P324E, and P0A1A related to inverter failures, which is relevant context for the Camry Hybrid system. It outlines how info codes point to specific component failures within the inverter.
• TSB Bulletin #TSB000321: This manufacturer bulletin notes that certain Toyota hybrid vehicles may exhibit a MIL ON condition with DTC P3004, indicating a malfunction in the inverter assembly with converter.
• Customer Confidence Program 23TE03: This program extends the warranty on the Intelligent Power Module (IPM) inside the inverter for some Toyota hybrid models. While the Camry is not explicitly listed in all documents, owners should contact a Toyota dealer with their VIN to check for any applicable coverage before paying for an inverter replacement.
• TSB Bulletin #23TE03: This bulletin highlights that failure of the IPM located inside the inverter assembly is indicated by DTC P3004 and may cause the vehicle to enter Fail Safe Mode.

Mechanic-Grade Diagnostic Values

• System Main Resistor / Pre-charge Resistor Resistance — expected: 18 to 22 Ω (Ohms). Failure: A reading outside this range, especially an open circuit (infinite resistance), will trigger P3004, often with info code -131 or -132.
• Inverter High-Voltage Input to Ground Resistance — expected: High resistance (Mega-ohms, effectively an open circuit). Failure: A reading of 0.0 ohms indicates a dead short within the inverter, typically a failed Intelligent Power Module (IPM). This is a key test for info code P3004-800.
• High-Voltage A/C Compressor Winding Resistance — expected: Above 100 kΩ (kilo-ohms). Failure: A reading below 100 kΩ suggests an internal short in the A/C compressor, which can bring down the entire high-voltage system and trigger P3004-800.

Hidden / Shadow Codes Worth Checking

• P3004-131: Indicates an open circuit. The Hybrid Control ECU did not detect voltage at the inverter after commanding the main relays to close. This points to a failed relay, blown fuse, or disconnected cable. (see via Toyota Techstream or equivalent professional scan tool under the 'Hybrid Control' ECU menu.)
• P3004-132: Indicates an inverter pre-charge malfunction. The ECU detected an issue with the pre-charge sequence, often due to an inverter voltage sensor malfunction or increased resistance in the pre-charge resistor. (see via Toyota Techstream or equivalent professional scan tool under the 'Hybrid Control' ECU menu.)
• P3004-800: Indicates an excessive overcurrent (short circuit). The system detected a massive current draw during the pre-charge sequence. This strongly points to a catastrophic internal failure of the Inverter's Intelligent Power Module (IPM). NHTSA ODI #10816757 describes an instance where a vehicle shut off while in motion and could not restart, with a technician identifying P3004-800 as the only code present. (see via Toyota Techstream or equivalent professional scan tool under the 'Hybrid Control' ECU menu.)
• P3004-801: Indicates a minimal overcurrent during pre-charge. Similar to -800, this points to an abnormal current flow, suggesting a short circuit or other malfunction in the high-voltage system. (see via Toyota Techstream or equivalent professional scan tool under the 'Hybrid Control' ECU menu.)
• P3004-803: Indicates an abnormal voltage drop was detected in the power cable after the vehicle entered 'Ready' mode. (see via Toyota Techstream or equivalent professional scan tool under the 'Hybrid Control' ECU menu.)

Scan Tool Commands That Help

• Toyota Techstream: Active Test: 'Hybrid Control' -> 'SMRB, SMRP, SMRG' — This is the primary diagnostic step for an open circuit fault (P3004-131). It allows a technician to command each of the three System Main Relays (SMRs) individually. An audible 'click' should be heard from the battery area for each command. A silent relay directly points to the failed component.
• Toyota Techstream: Data List: 'Hybrid Control' -> 'VL-Voltage before Boosting' vs 'VH-Voltage after Boosting' — When diagnosing a pre-charge fault (P3004-132), this allows the technician to monitor the voltages on either side of the boost converter during startup. Freeze frame data for this code often shows a large discrepancy between these values.
• Toyota Techstream: Active Test: 'Battery Charge' — This function is used by technicians with a special charger (GRX-5100) to perform a 'rescue charge' on a depleted HV battery. It forces the system main relays to close to allow charging.

Real Owner Repair Stories

• Garage-Wired UK (Professional Diagnosis) (Toyota Prius (similar hybrid system)) — Non-start, no 'Ready' mode, 'Check Hybrid System' light on. P3004-131 was the primary code.
  ❌ Tried (didn't work) Checked 12V battery (was acceptable), Verified brake pedal switch operation
  ✅ What actually fixed it Using a scan tool's active test to command the three high-voltage contactors, the technician heard audible clicks from the first two but silence from the third. The silent contactor (relay) was replaced, which cleared the code and allowed the vehicle to start.
• NHTSA ODI #10816757 (Toyota Prius (similar hybrid system)) — An owner reported the car shut off while in motion and could not be restarted. Despite trying a system reset per the manual, the hybrid system would not clear. A dealership technician identified DTC code P3004-800 as the sole fault.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Engine Oil Consumption 🔴 High — Common on 2007-2009 models with the 2AZ-FXE engine. Caused by faulty piston rings. (Ref: T-SB-0094-11 and T-SB-0158-14 were issued to address this. A warranty enhancement program (ZE7) was also offered but has since expired.)
• Brake Actuator / ABS Module Failure 🔴 High — A well-documented issue where the ABS actuator fails, causing brake system warning lights and potentially affecting braking performance. Can be a very expensive repair. (Ref: Toyota issued a Warranty Enhancement Program (ZGE) to extend coverage for this component to 10 years or 150,000 miles, which has now expired for most vehicles.)
• Melting or Sticky Dashboard 🟡 Low — Common in regions with high heat and sun exposure. The dashboard material degrades, becoming shiny, sticky, or cracked. (Ref: Toyota initiated a Warranty Enhancement Program (ZLD) to replace affected dashboards, but this program has also expired.)
• Inverter Coolant Pump Failure 🟠 Medium — The electric water pump that cools the hybrid inverter is a known failure point. If it fails, the inverter will overheat, which can lead to a much more expensive inverter replacement.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For a vehicle of this age, a used Inverter with Converter Assembly from a reputable salvage yard is a very common and cost-effective repair, often saving thousands over a new OEM part. A complete used HV battery assembly can also be a source for the junction block/relay assembly if it cannot be sourced separately.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Ask for the VIN of the donor vehicle to verify mileage and check for accident history.
• Visually inspect the part for any physical damage, corrosion, or signs of water intrusion.
• Purchase from a seller that offers a warranty (30-90 days is common for salvage parts).
• For a used HV battery, ask for a screenshot of the battery block voltages from a scan tool before it was dismantled to ensure the cells are balanced.

OEM-only on this vehicle (don't cheap out):

• Battery ECU (Battery Smart Unit)
• Individual relays/contactors (aftermarket options are rare and quality is unverified)

Brands owners have reported issues with on this vehicle:

• Unknown/unbranded remanufactured inverters from online marketplaces without a strong warranty and return policy.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0A94 — DC/DC Converter Performance; often present with P3004-800 because the DC/DC converter is part of the inverter assembly.
• C1259 — HV System Regenerative Braking Malfunction; frequently appears as a companion code when the hybrid system disables itself due to P3004.
• C1310 — Malfunction in HV System; a chassis code triggered by the skid control ECU when the hybrid control system reports a fault like P3004.
• P324E — Often appears alongside P3004 and P0A94 during internal inverter failures as noted in Toyota diagnostic bulletins.
• P0A1A — Generator Control Module failure; related to the inverter/converter assembly malfunctions that trigger P3004.
• C1241 — Low Battery Positive Voltage; can occur when the HV system fails to charge the 12V battery via the DC/DC converter during a P3004 event.
