U0074 on 2010-2015 Buick LaCrosse: Chassis Bus Communication Failure Causes and Fixes

What's Unique About the 2010-2015 Buick LACROSSE

On this generation of Buick LaCrosse, the U0074 code is frequently associated with a 'Service StabiliTrak' or 'Service Power Steering' message, as documented in GM Technical Service Bulletin #PIT5076E. The chassis bus on this specific platform connects the EBCM, a multi-axis acceleration sensor, and the steering angle sensor. A failure of any one of these modules, or the wiring between them, can bring down the entire network and trigger this code. 🎬 Watch: Diagnostic deep dive on a Buick with U0074 A detailed diagnostic video on a 2010 LaCrosse showed an internal failure in the EBCM was the root cause, specifically an intermittent 12-volt supply from the module to the bus sensors.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service StabiliTrak" message on the driver information center.
• "Service Power Steering" message (if equipped with electric steering).
• ABS and Traction Control warning lights are illuminated.
• Loss of sound for turn signals or Bluetooth audio.
• Erratic or false activation of the ABS system while driving.
• Instrument cluster may display blank screens or multiple warning lights simultaneously.
• Vehicle may jerk or enter a reduced power state.
• In some cases, the car may be slow to shift or the shifter may be locked in Park.

Most Likely Causes

1. Faulty Electronic Brake Control Module (EBCM) 🔴 High Probability → Shop ABS Control Module The EBCM acts as a hub on the chassis bus and contains a terminating resistor. Internal failures, such as a faulty 12-volt driver for the bus sensors or bad solder joints, are a common cause. Tapping on the module may cause the fault to appear or disappear, indicating an internal issue.
   How to confirm: A technician will use a scan tool to identify which modules are offline. They will then test the CAN bus resistance at the EBCM connector and check for proper power and ground. A key diagnostic step is to check the 12-volt power feed from the EBCM to the other sensors on the bus (like the SAS); an intermittent or missing voltage points to an internal EBCM fault. Disconnecting the EBCM may restore communication between other modules, confirming it as the source of the fault.
   Typical fix: Replace the Electronic Brake Control Module. The new module will require programming to the vehicle's VIN.
   Est. part cost: $300-$700
2. Damaged Wiring or Spread Connector Pins 🟡 Medium Probability Wiring harnesses can be susceptible to corrosion from moisture or physical damage. A specific, documented failure point is spread or loose female pins in the EBCM connector for the CAN bus wires (typically a twisted pair of light blue and dark blue wires), causing an intermittent open circuit. While not on this specific bus, GM has issued recalls for other models of this era (like recall 14235 for 2014 LaCrosse) for unsealed wire splices in door harnesses that corrode, showing a pattern of potential wiring vulnerabilities.
   How to confirm: Visually inspect the wiring harness leading to the EBCM. A multimeter is used to check for continuity and shorts on the CAN bus wires. Resistance should be ~60 ohms with all modules connected and ~120 ohms with one terminating module disconnected. If resistance is erratic when wiggling the harness at the EBCM connector, suspect spread pins. A 'pin drag test' using a spare male terminal can confirm a lack of tension.
   Typical fix: Repair the damaged section of the wiring harness. If pins are spread, they can sometimes be carefully re-tensioned with a pick, or the connector pigtail can be replaced. Ensure the harness is protected from future damage.
   Est. part cost: $10-$150
3. Faulty Steering Angle Sensor (SAS) or Multi-Axis Acceleration Sensor ⚪ Low Probability → Shop Steering Angle Sensor These sensors are nodes on the same chassis bus. While less common to fail than the EBCM, an internal short or failure in one of these sensors can disrupt network communication and bring the bus down.
   How to confirm: A diagnostic technician can disconnect these sensors one at a time. If disconnecting a sensor restores communication on the network (verified with a scan tool and by checking for 60-ohm resistance), that sensor is faulty. A GM Preliminary Information bulletin also notes that a short in the sensor or its power supply wire can pull down the EBCM internally, causing a no-communication state.
   Typical fix: Replace the faulty sensor. The Steering Angle Sensor requires calibration after replacement using a compatible scan tool.
   Est. part cost: $70-$400

Rare But Worth Checking

• Faulty Diagnostic Link Connector (DLC) Cable: A GM service bulletin (PIT5076E) notes that in some cases, the U0074 code could not be cleared after repairs due to a faulty MDI (GM's diagnostic tool) to DLC cable, which interfered with the diagnostic process itself. Trying a different diagnostic cable resolved the issue.

Diagnosis Steps

1. Connect a professional scan tool capable of reading GM-specific chassis codes. Verify the presence of U0074 and note all other communication codes (U-codes) and chassis codes (C-codes).

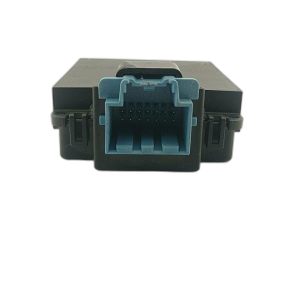

2. Attempt to communicate with all modules on the chassis bus: Electronic Brake Control Module (EBCM), Power Steering Control Module (PSCM), Steering Angle Sensor (SAS), and Multi-axis Acceleration Sensor. Note which modules are not responding.
3. Turn the ignition off and disconnect the battery.
4. Measure the resistance between pins 12 and 13 of the Diagnostic Link Connector (DLC). This is the chassis bus. A healthy network should read approximately 60 ohms. A reading of 120 ohms indicates an open circuit or a missing terminating resistor. An erratic reading while wiggling wires points to a connection issue.
5. If resistance is incorrect, begin isolating modules. Disconnect the EBCM connector. Inspect the female terminals for the CAN wires (twisted pair, often dark blue and light blue) for being spread or loose. Perform a pin drag test.
6. With the EBCM disconnected, measure the resistance across the CAN pins on the module itself to test its internal terminating resistor (should be 120 ohms).
7. If the EBCM and its connector seem fine, check for proper power and ground at its connector. Also, use a scope or multimeter to verify the EBCM is sending a steady 12-volt supply to the other sensors on the bus (e.g., at the SAS connector). An intermittent voltage here strongly suggests an internal EBCM fault.
8. Visually inspect the wiring harness for any signs of physical damage, chafing, or corrosion, especially around the EBCM and where harnesses pass through the firewall or under carpeting.
9. If a specific sensor like the SAS is suspected, disconnect it and see if the bus resistance returns to a stable 120 ohms (when measured from the EBCM side).
10. Once the fault is isolated (e.g., a bad module, spread pins, or a wiring break) and repaired, clear all codes and perform any necessary calibrations, such as for the steering angle sensor.

Parts You'll Likely Need

• Electronic Brake Control Module (EBCM) (OEM #84065240) — This module is a frequent point of failure on the chassis bus for this vehicle, containing critical processing and a terminating resistor. An internal fault can disable the entire network.
  Trusted brands: ACDelco
  OEM price range: $400-$700
  Aftermarket price range: $300-$550
• Steering Angle Sensor (OEM #25849366 (superseded by 13589991)) — As a key module on the chassis bus, an internal failure of this sensor can cause a U0074 code, though it's less common than an EBCM failure.
  Trusted brands: ACDelco, Dorman, GM Genuine Parts
  OEM price range: $70-$100
  Aftermarket price range: $80-$120

Related Codes That Often Appear With This One

• C0710 — This code is related to the Steering Angle Sensor signal, which communicates on the same chassis bus. A communication failure will often log faults in related modules.
• U0121 — Lost Communication With Electronic Brake Control Module. This is a common companion code logged by other modules (like the TCM or PSCM) when the EBCM goes offline.
• U0125 — Lost Communication With Multi-axis Acceleration Sensor Module. This sensor is on the same bus, so a bus-off fault (U0074) will cause this code.
• U0126 — Lost Communication With Steering Angle Sensor Module. The SAS is on the same bus, so a bus-off fault will prevent communication with it.
• C0186, C0196 — These are codes related to the Yaw Rate and Lateral Accelerometer circuits, which are inputs for the StabiliTrak system. They are often logged alongside the U0074 communication fault as noted in TSB PIT5076E.

Technical Service Bulletins (TSBs) & Recalls

• PIT5076E: Addresses Service Stability/Traction messages and lists U0074 as a key DTC to look for when diagnosing the chassis bus on the LaCrosse and several other GM models.

Platform-Specific Known Issues

• TSB #PIT5076E: Service Stability/Traction Message: General Motors issued this bulletin for multiple vehicles including the 2010-2015 LaCrosse regarding a 'Service Stability/Traction' message. The bulletin notes that U0074 may be set along with other chassis codes and advises diagnosing the chassis bus if the codes will not clear.

Mechanic-Grade Diagnostic Values

• Chassis CAN Bus Resistance — expected: ~60 Ohms across DLC pins 12 and 13 (battery disconnected).. Failure: 120 Ohms indicates an open circuit or one terminating resistor is offline. Readings below 45 Ohms or erratic readings indicate a short or wiring issue.
• CAN Bus Voltage (Key On, Engine Off) — expected: CAN High (Pin 12 at DLC) and CAN Low (Pin 13 at DLC) should both be ~2.5V when idle. During communication, CAN-H should toggle to ~3.5V and CAN-L to ~1.5V.. Failure: Voltages stuck high or low, or no voltage, indicates a short to power/ground or an open circuit.
• EBCM Ignition Circuit Voltage — expected: Greater than 11.0 Volts between the ignition circuit terminal at the EBCM connector and a good ground.. Failure: Voltage below 11.0V indicates a power supply issue to the module itself, which must be corrected before diagnosing the network.
• EBCM Sensor Supply Voltage — expected: A steady 12V on the sensor supply wire (Dark Green, Circuit 2087) coming out of the EBCM connector.. Failure: An intermittent or missing voltage on this wire points to an internal EBCM fault.

Hidden / Shadow Codes Worth Checking

• U0121-71: Lost Communication With Electronic Brake Control Module - Invalid Data. This subtype code indicates that other modules are receiving data from the EBCM that is incorrect or irrational, pointing towards an internal fault in the EBCM. (see via Professional scan tools like the Thinkcar T-Wand 900 or GM's GDS2 can read manufacturer-specific codes and their subtypes.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Vehicle DTC Information / Module Diagnostics — This is the first step to poll all vehicle modules and see which ones are reporting codes or are not communicating on the network.
• GDS2 (GM Global Diagnostic System 2): Data Bus Diagnostic Tool — This specialized function actively tests the data bus to help identify which modules are present and communicating, helping to isolate the point of failure on the network.
• GDS2 or equivalent professional scan tool: Steering Wheel Angle Sensor Learn / Reset — This procedure is required after replacing the Steering Angle Sensor or the EBCM to calibrate the new sensor to the vehicle.

Wiring & Ground Locations

• K17 Electronic Brake Control Module (EBCM) — Located in the engine compartment, mounted to the brake pressure modulator valve, near the brake fluid reservoir.. This is a primary terminating module for the chassis CAN bus and a common point of failure. All diagnostic paths for U0074 lead to testing this module and its connections.
• Diagnostic Link Connector (DLC) Chassis Bus Pins — Pins 12 and 13 of the 16-pin DLC under the driver's side dashboard.. These pins provide direct access to the Chassis CAN bus for resistance and voltage testing without having to disconnect any modules initially.
• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This is a critical ground point for the Body Control Module (BCM), Instrument Panel Cluster (IPC), and the DLC itself. A poor connection here can cause a wide range of communication issues.

Real Owner Repair Stories

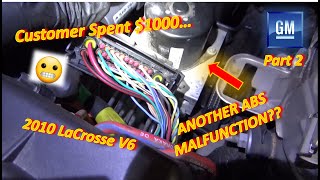

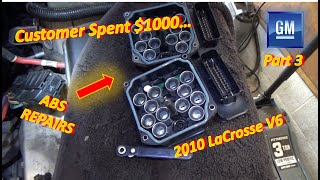

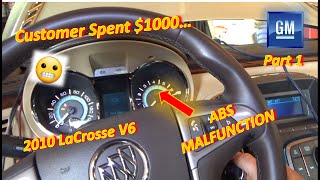

• Pine Hollow Auto Diagnostics (YouTube) (2010 Buick LaCrosse V6) — Intermittent ABS and Traction Control lights, "Service StabiliTrak" message, code U0074.
  ❌ Tried (didn't work) Replacing the Steering Angle Sensor, Replacing the Yaw Rate Sensor
  ✅ What actually fixed it The final repair involved two separate issues: 1) The female terminals for the CAN bus wires in the EBCM connector were spread, causing a poor connection. 2) The EBCM itself had an internal, intermittent failure where its 12V power supply to the bus sensors would drop out. Replacing the EBCM and ensuring proper pin tension in the connector resolved all issues.

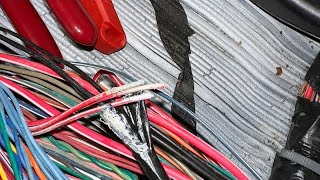

• Car Talk Community Forum (2011 Buick LaCrosse) — ABS light on, multiple communication codes (U0121, U0073) after driving through a large mud puddle and being towed out.
  ❌ Tried (didn't work) Initial scan pointed towards the ABS module but was inconclusive.
  ✅ What actually fixed it The definitive fix was not posted by the user, but the strong consensus from technicians in the thread was that the issue was almost certainly wiring damage. The advice was to thoroughly inspect any wiring harnesses that were submerged in mud or stressed during the vehicle's extraction, as this was the precipitating event.

"I Checked Everything" — The Actual Cause

• In a documented case, initial resistance checks of the CAN bus were normal (60 ohms) because the fault was intermittent. The root cause was only found using an oscilloscope to monitor the network during a test drive, which captured the communication dropping out. Further diagnosis revealed the EBCM was intermittently failing to provide 12V power to other sensors on the bus, which would not be found with a simple resistance or continuity test.
• A GM technical bulletin describes a scenario where the EBCM is unresponsive (U0121 set by other modules) even though its power, ground, and CAN bus wiring all test perfectly. The hidden cause was the sensor power supply wire (Dark Green) being shorted to ground elsewhere in the vehicle, which internally disables the EBCM's communication circuits. The fix is to disconnect this specific wire at the EBCM to see if communication is restored, thereby isolating the fault to that circuit.

When the Usual Fixes Don't Work

• While a faulty EBCM is the most common cause, a significant number of cases are resolved by addressing wiring issues alone. In one detailed diagnostic case, the primary fix was repairing spread pins in the EBCM connector, though the EBCM was also faulty. This suggests that before condemning an expensive module, technicians should perform a 'pin drag test' on the connector terminals and meticulously inspect the harness, as a connection issue can mimic a complete module failure.

OEM Part Supersession History

• 25849366 → 13589991 — Part update/revision by GM.
  Heads up: Part 25849366 is listed for 2010-2012/2013 models. Using the incorrect sensor for the vehicle's year can lead to calibration or communication failures.
• 23444530, 23383118, 84107111, etc. → 85148429 — Part consolidation and revision for EBCM.
  Heads up: The EBCM part numbers differ between pre-facelift (2010-2013) and post-facelift (2014-2016) models. Part 85148429 is specified for 2014-2016 models and replaces several previous numbers for that range. Installing a module from the wrong year range will likely result in a no-start or no-communication issue.

Model Year Variations Within This Range

• 2014-2015: The Electronic Brake Control Module (EBCM) part numbers are different from the earlier 2010-2013 models, coinciding with the vehicle's mid-cycle refresh. This means modules are not interchangeable between the two ranges.
• 2014: GM issued recall #14235 for some 2014 LaCrosse vehicles due to a wiring splice in the driver's door that could corrode and break. While not directly on the chassis bus, it highlights a potential for wiring integrity issues specific to this model year's manufacturing process.
