U0101 on 2015-2020 Chevrolet Suburban: Causes of Lost Communication with TCM and Fixes

What's Unique About the 2015-2020 Chevrolet SUBURBAN

The 2015-2020 Suburban, part of the K2XX platform, is known for specific electrical vulnerabilities that trigger a flood of communication codes, including U0101. Manufacturer Technical Service Bulletins (TSBs) point to two primary culprits that are more common than an actual TCM failure. The first is a poor ground connection for the Body Control Module (BCM) at a location known as G218, where dash insulation can get trapped under the ground nut. The second is a fault within the Serial Data Gateway Module (SDGM), which acts as a central hub for vehicle network traffic and can suffer from logic lock-ups or poor pin connections. [Bulletin #PIT5586B, Bulletin #PIT5586G] Owners and shops often mistakenly replace the TCM when the real problem lies with these network infrastructure components, leading to unnecessary expense.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission may not shift or is stuck in one gear (limp mode)
• Harsh or erratic shifting
• Service StabiliTrak / Service Traction Control warning message
• Instrument panel gauges may go blank, drop to zero, or fluctuate wildly [Bulletin #PIT5405B]
• Radio, HVAC controls, or steering wheel controls may become inoperative [Bulletin #PIT5586B, Bulletin #PIT5586G]
• Vehicle may not start or may stall
• Gear selector indicator on the dash may be blank or incorrect

Most Likely Causes

1. Poor Body Control Module (BCM) Ground at G218 🔴 High Probability → Shop Body Control Module As cited in TSBs PIT5405B and PIT5405C, the ground stud can be loose, or sound-deadening insulation material can get trapped under the ground terminal, causing high resistance. This is a very well-documented failure point on the K2XX platform.
   How to confirm: Locate the G218 ground on the driver's side, under the dash near the A-pillar and speaker. Visually inspect for a loose 10mm nut or for black foam insulation material between the ground eyelet and the vehicle body. The ground may test as high resistance with a multimeter.
   Typical fix: Disconnect the battery. Remove the 10mm nut, pull the ground terminal eyelet off the stud, and thoroughly clean the terminal and the body surface. 🎬 Watch: Step-by-step guide to cleaning and upgrading your K2XX grounds. Carefully trim away any interfering insulation mat, then securely retighten the nut.
   Est. part cost: $0-$5
2. Faulty Serial Data Gateway Module (SDGM) 🔴 High Probability → Shop Telematics Interface Module TSBs PIT5586B and PIT5586G identify internal logic locks and poor terminal connections at the X1 and X2 connectors as common failures. The SDGM acts as a router for all module communications, and its failure can take down the entire network.

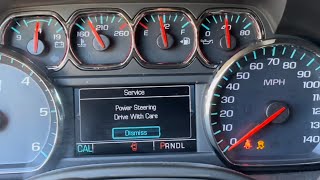

   How to confirm: A technician can check for communication through the SDGM using a scan tool. 🎬 See how a pro diagnoses communication faults and the gateway module. A common diagnostic step is to disconnect the battery or pull the SDGM fuse to reset it. Inspecting the module's connectors for loose or backed-out terminals is also necessary. [Bulletin #PIT5586B]
   Typical fix: In some cases, a reset resolves the issue temporarily. If terminals are loose, they can be repaired. If the module is faulty, it must be replaced and programmed by a dealer or qualified shop.
   Est. part cost: $65-$300
3. Low Battery Voltage or Poor Battery Cable Connections 🟡 Medium Probability → Shop Vehicle Battery All modern vehicle networks are sensitive to low or unstable voltage. A weak battery or corroded/loose battery terminals can cause widespread communication faults. TSB PIT5405C specifically calls out checking battery cable integrity.
   How to confirm: Test the battery with the engine off (should be >12.5V) and while running (should be 13.7V-14.7V). Inspect the main battery terminals and the primary ground cable connection to the frame and engine block for corrosion or looseness. TSB PIT5405C advises to check torque on battery clamp nuts (7 Nm / 62 lb-in) and the negative cable-to-block nut (45 Nm / 33 ft-lb).
   Typical fix: Charge or replace the battery. Clean or replace corroded battery cables and ensure all connections are torqued to spec.
   Est. part cost: $20-$250
4. Damaged CAN Bus Wiring ⚪ Low Probability Wiring harnesses can be damaged by chafing against brackets, corrosion, or improper repairs. GM has identified specific chafe points on this platform, including where the engine harness contacts the ECM/TCM bracket, the driver-side upper control arm, and the shock tower. The harness near the transmission can also melt from proximity to the exhaust heat shield.
   How to confirm: This requires a visual inspection of harnesses running to the TCM, BCM, and SDGM, especially at known chafe points. Testing the CAN bus wires for proper resistance (typically 60 ohms between CAN High and CAN Low at the OBD-II port with the battery disconnected) and for shorts to power/ground is necessary.
   Typical fix: Repairing the specific section of damaged wiring and rerouting or protecting it with anti-abrasion tape or sleeves to prevent future damage.
   Est. part cost: $10-$100

Rare But Worth Checking

• Failed Transmission Control Module (TCM): → Shop Transmission Assembly While this code directly points to the TCM, it is one of the less likely causes on this platform. All other network-related possibilities, especially grounds and the SDGM, should be eliminated before condemning the TCM.
🎬 Watch: Understanding U0101 codes and why the TCM isn't always the culprit.

Diagnosis Steps

1. Check battery voltage and clean the battery terminals. Ensure the battery is fully charged and that cable clamps are tight. Per TSB PIT5405C, torque to 7 Nm (62 lb-in).
2. Scan all vehicle modules with a professional-grade scan tool and record all stored DTCs. Note how many modules are reporting communication loss, which can help pinpoint the failure's location in the network.
3. Locate and inspect the BCM ground G218 under the driver's side dash, near the A-pillar. Check for a loose 10mm nut and for foam insulation trapped under the terminal. Clean and tighten as needed.
4. Inspect the fuses related to the TCM, BCM, and SDGM in the underhood and instrument panel fuse blocks.
5. Locate the Serial Data Gateway Module (often integrated with the dash fuse box or located nearby) and inspect its electrical connectors (X1 and X2) for any backed-out, bent, or corroded pins. [Bulletin #PIT5586B]
6. If the issue persists, perform a CAN bus network integrity test. This involves measuring resistance between Pin 6 (CAN High) and Pin 14 (CAN Low) at the OBD-II port. It should be ~60 Ohms with the battery disconnected.
7. Visually inspect wiring harnesses for signs of physical damage, especially at known chafe points near the ECM/TCM bracket, upper control arm, and around the transmission exhaust shielding.
8. If all network tests pass, the final step is to test the TCM itself, which may involve checking for 12V power and good ground directly at the module connector.

Parts You'll Likely Need

• Serial Data Gateway Module (OEM #13599318, 13534928, 84527283) — Identified in TSBs as a primary cause of network communication failures. A faulty module can disrupt communication for multiple systems and requires programming upon replacement. [6, 8, Bulletin #PIT5586B, Bulletin #PIT5586G]
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $65-$250
  Aftermarket price range: $50-$180
• Negative Battery Cable (OEM #84511232, 84221366, 84634109) — The main ground cable can corrode internally or at its connection points on the frame/engine, causing high resistance and widespread electrical issues as noted in TSB PIT5405C.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $50-$100
  Aftermarket price range: $30-$70

Related Codes That Often Appear With This One

• U0100 — Lost Communication with ECM/PCM. Often appears with U0101 during a widespread network failure. [3, Bulletin #PIT5405C]
• U0140 — Lost Communication with Body Control Module. This is a strong indicator that the BCM or its ground (G218) is the source of the problem. [3, Bulletin #PIT5405C]
• U0073 — Control Module Communication Bus 'A' Off. This is a general network code indicating a major communication breakdown, consistent with a faulty ground or gateway module. [Bulletin #PIT5405B]
• B1011, U0151, U0155, U0164 — These are some of the many codes listed in TSBs alongside U0101, pointing to a systemic network failure originating from the SDGM or BCM ground. [Bulletin #PIT5586B, Bulletin #PIT5586G]

Technical Service Bulletins (TSBs) & Recalls

• PIT5586B / PIT5586G: Instructs technicians to check for logic lock-up of the SDGM or for bent/backed-out terminals in its connectors, which cause a flood of communication codes.
• PIT5405B / PIT5405C: Details the widespread electrical issues caused by a poor BCM ground at G218, often due to trapped dash insulation, and provides the fix.
• 08-07-30-021H: An older but relevant TSB for the previous generation that discusses general GMLAN communication loss, including checks for data link resistors and corrosion in module connectors.
• 21-NA-149: Details various engine wiring harness chafe locations on 2019+ trucks and SUVs that can lead to shorts and communication failures.

Platform-Specific Known Issues

• A poor BCM ground at G218 is a well-documented issue on this platform, causing numerous electrical problems including multiple communication DTCs like U0101. TSB PIT5405C provides the exact repair procedure.
• Faults with the Serial Data Gateway Module (SDGM), including logic lock-ups and connector pin issues, are another known cause of widespread communication loss. TSB PIT5586G details this issue.
• Engine wiring harness chafing against the ECM/TCM bracket, upper control arm, or shock tower is a known issue that can short out communication lines.

Mechanic-Grade Diagnostic Values

• High-Speed GMLAN Bus Resistance — expected: 60 ohms (+/- 5 ohms) across DLC pins 6 and 14 with battery disconnected.. Failure: A reading of ~120 ohms indicates an open in the bus or a missing terminating resistor. A reading significantly less than 60 ohms indicates the CAN High and CAN Low wires are shorted together.
• TCM Power Supply Voltage — expected: 11 to 14 Volts at the TCM power supply pin with ignition on.. Failure: Voltage below 11V indicates a power supply issue (fuse, relay, wiring) to the module.
• TCM Ground Circuit Resistance — expected: Below 1.0 Ohm between the TCM ground pin and a clean chassis ground.. Failure: Resistance above 1.0 Ohm indicates a poor ground connection, which is a very common cause of this code.
• High-Speed GMLAN Bus Voltage (Key On) — expected: CAN High (Pin 6) should be 2.5-3.5V and fluctuating. CAN Low (Pin 14) should be 1.5-2.5V and fluctuating.. Failure: A short to ground will pull the voltage to 0V. A short to power will pull it to battery voltage. If the wires are shorted together, the voltage will equalize.
• Battery Cable Torque Specs — expected: Battery terminal clamp nuts: 7 Nm (62 lb-in). Negative cable to engine block nut: 45 Nm (33 ft-lb).. Failure: Loose connections can cause intermittent voltage drops and network communication failures.

Scan Tool Commands That Help

• GDS2 / Professional Scan Tool: Module Isolation by Fuse Removal — When multiple 'U' codes are present and the bus is suspected of being corrupted by a single module, a technician can remove the power feed fuse for each high-speed LAN module one at a time while monitoring the scan tool to see if communication with other modules returns.
• GDS2 / Professional Scan Tool: Network Halving by Connector Disconnect — To quickly isolate the source of a network-wide failure, a technician can disconnect a key junction connector (such as C3/X3 on the back of the instrument panel junction block) to split the CAN bus into two halves. If communication is restored to the modules on one half (e.g., ECM, TCM, BCM), the fault lies in the disconnected half of the network.

Wiring & Ground Locations

• G218 — Driver's side, under the dash near the A-pillar and speaker. This is a primary ground for the Body Control Module (BCM).. Cited in TSBs PIT5405B and PIT5405C as a primary cause for a flood of communication codes, including U0101. Insulation often gets trapped under the ground nut, causing high resistance.
• CAN Bus Terminating Resistor — On 2015+ models, one 120-ohm terminating resistor is internal to the ECM. The second is an external resistor located in the rear of the vehicle, near the spare tire and above the muffler, often taped to the main harness that runs to the fuel pump control module.. The network requires two 120-ohm resistors for a total resistance of 60 ohms. If the rear resistor is disconnected or the wiring to it is broken, the bus resistance will read 120 ohms, causing communication instability.
• SDGM Connectors X1 & X2 — On the Serial Data Gateway Module, which is often located near or integrated into the instrument panel fuse block.. TSBs PIT5586B and PIT5586G specifically call out checking the X2 connector for terminal issues that can cause widespread communication loss.
• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This is a major ground point for the BCM, Instrument Panel Cluster (IPC), and the Data Link Connector (DLC) itself. A fault here can mimic a BCM failure or prevent a scan tool from communicating.
• G101 / G106 — G101 is behind the left headlamp. G106 is on the front center frame cross rail. These grounds are often jumpered together.. This is the primary ground location for the Engine Control Module (ECM) and the Transmission Control Module (TCM). A poor connection here directly affects the modules this code is related to.

Real Owner Repair Stories

• YouTube user comment on a diagnostic video (2014-2018 GM Truck (K2XX Platform)) — Flickering dash lights, truck suddenly shutting down at low speed, intermittent transmission slipping, radio/nav system shutting down, and voltage reading under 14V.
  ❌ Tried (didn't work) Not specified, but the user implies other common fixes were attempted without success.
  ✅ What actually fixed it The problem was a bad ground connection on the passenger side. Over time, the ground point became rusted and dirty. The fix was to remove the ground screw, thoroughly clean the contact surfaces of the terminal and the frame, and re-secure the connection.
• YouTube diagnostic video (Ford truck, but demonstrating a universally applicable GM diagnostic principle) — No communication with TCM, code U0101.
  ❌ Tried (didn't work) Checked power fuses F53 and F26, which were good., Confirmed 12V power at TCM connector pins 9 and 14.
  ✅ What actually fixed it The ground circuit was faulty. A power probe showed good ground at ground point G100 and before a splice connector, but there was no ground signal after the connector. The issue was an internal failure/corrosion within the splice connector. Applying a temporary ground to the circuit after the splice restored communication with the TCM.

OEM Part Supersession History

• 13509768, 13524297, 13524298, 13599317 → 13599318 — Standard part evolution to integrate new materials, technologies, or fix prior design flaws.
  Heads up: This part requires programming and special setup procedures using GM Service Information (GDS2) to function in the vehicle. It is not a plug-and-play component.

Model Year Variations Within This Range

• 2015-2020: While the core electrical architecture is similar, there were intermittent changes. A recall for power steering loss and electrical issues (GM Recall 18289, NHTSA 18V586) officially targeted 2015 models, but owners of later models (e.g., 2019) have reported identical symptoms, suggesting the root cause (poor grounds/electrical connections) may persist across the generation.
