U0102 on 2007-2010 Chevrolet Silverado 2500: Lost TCCM Communication Causes and Fixes

What's Unique About the 2007-2010 Chevrolet SILVERADO 2500

On this generation of Silverado (GMT900), network communication issues are a known weakness. GM issued Technical Service Bulletin #08-07-30-021H, which groups U0102 with other communication codes like U0073, U0100, and U0101. This indicates the platform is sensitive to broader network problems, often stemming from chafed wiring harnesses or corroded ground connections, rather than just a simple module failure. Owners frequently find broken ground wires near the engine block (G102/G103) or on the frame rail under the driver's door (G110).

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4 Wheel Drive" message on the instrument cluster.
• Check Engine Light is on.
• Indicator lights on the 4WD selector switch are off or do not change.
• Inability to shift into or out of 4WD.
• Transmission may not shift properly, may feel like it's slipping from a stop, or may default to a single gear.
• Other warning lights (ABS, StabiliTrak) may illuminate.
• Gauges on the instrument panel may fluctuate erratically.
• A clicking or cycling sound from the door locks.

Most Likely Causes

1. Poor or Broken Ground Connection 🔴 High Probability Ground wires, especially G110 on the driver's side frame rail and G103 on the passenger side cylinder head, are exposed to moisture and vibration. Wires can corrode and break inside the crimped terminal or loom, appearing intact but failing under load. Undercoating applied at the factory or by third parties can also create a poor connection between the ground eyelet and the frame.
   How to confirm: Locate the main ground points on the frame under the driver's door (G110) and on the engine block/cylinder heads (G102, G103). Disassemble, clean, and inspect the connections. Tug on individual wires at the terminal; a broken wire will pull out. Perform a voltage drop test on the ground circuit, which should be less than 100-200mV.
   Typical fix: Clean the mounting surface and wire terminals with a wire brush until shiny. If a wire is broken, crimp on a new ring terminal and re-secure it. Apply dielectric grease to the connection to prevent future corrosion.
   Est. part cost: $1-$10
2. Damaged or Corroded Wiring Harness 🟡 Medium Probability As detailed in TSB #08-07-30-021H, the wiring harness that runs to the TCCM and along the transmission can chafe against the frame, transmission housing, or other components, leading to open or shorted wires. Common chafe points are above the transfer case and near the transmission auxiliary fluid pump.
   How to confirm: Visually inspect the wiring harness leading to the TCCM and transfer case. Look for chafed plastic loom, exposed wires, or green/white corrosion on connector pins. A multimeter can be used to check for continuity on the CAN bus wires. With the battery disconnected, the resistance between pins 6 and 14 at the diagnostic port should be approximately 60 ohms. A reading of 120 ohms indicates an open circuit.
   Typical fix: Repair any broken or chafed wires using solder and heat shrink. Clean corroded connectors with electrical contact cleaner and apply dielectric grease.
   Est. part cost: $5-$25
3. Failed Transfer Case Control Module (TCCM) 🟡 Medium Probability → Shop Transfer Case Motor Like any electronic module, the TCCM can fail internally due to age, vibration, or voltage spikes. The module is located under the driver's side dashboard, to the left of the steering column, where it can be susceptible to water intrusion from a leaking windshield or cowl.
   How to confirm: This is typically diagnosed by exclusion. If all fuses, grounds, power, and communication wires to the module test good, the TCCM itself is the likely culprit. A professional scan tool that can attempt to communicate directly with the module will show it as "offline" or "no response".

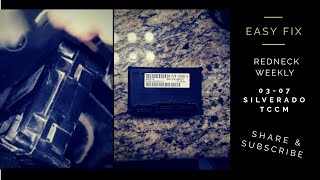

   Typical fix: Replace the Transfer Case Control Module. The module is located under the driver's side dashboard, to the left of the steering column. The new module must be programmed to the vehicle's VIN. Some aftermarket modules (like certain Dorman models) may offer a plug-and-play solution with a specific relearn procedure.
   Est. part cost: $150-$350
4. Blown Fuse ⚪ Low Probability An electrical short in the harness or a voltage spike can blow the fuse that powers the TCCM.
   How to confirm: Check the fuses labeled '4WD' or 'TREC' in the under-hood fuse box. Use a fuse tester or multimeter to confirm continuity.
   Typical fix: Replace the blown fuse. If the fuse blows again immediately, it indicates a short circuit in the wiring or a failed TCCM that needs to be diagnosed.
   Est. part cost: $1-$5

Rare But Worth Checking

• Serial Data Gateway Module (SDGM) Logic Lock or Failure: → Shop Telematics Interface Module As mentioned in TSB #PIT5586E, the SDGM can enter a 'logic lock' state, causing widespread communication issues. This often presents with a large number of U-codes, not just U0102. A battery disconnect for 30 minutes can sometimes reset it, but it may require dealer diagnostics.
• Incorrect Software: In some forum-reported cases, an improper software update at a dealership caused the U0102 code to appear. One owner of a 2007 Tahoe reported this issue after a tech installed the wrong software, which required a complex manual update to fix.
• Low Battery Voltage: → Shop Vehicle Battery A weak or failing battery can cause modules to stop communicating during startup as voltage drops below a critical threshold. If the code appeared after a dead battery event, ensure the battery is fully charged and tested before proceeding with further diagnostics.

Diagnosis Steps

1. Scan for all DTCs in all modules. Note if U0102 is isolated or appears with other U-codes, which would suggest a wider network fault.
2. Check the '4WD' and 'TREC' fuses in the under-hood fuse box.
3. Perform a hard reset by disconnecting the battery for at least 30 minutes to clear any module logic locks.
4. Inspect ground connections. The most critical are G110 (driver's side frame rail, under the door) and G103 (front of passenger side cylinder head). Disassemble, clean all contact surfaces until shiny, and secure them tightly.
5. Visually inspect the wiring harness for chafing or damage, especially where it runs along the frame, above the transfer case, and near the transmission.
6. If possible, access the TCCM connector under the driver's dash to check for a secure connection and any signs of corrosion or water intrusion.
7. With a multimeter and the key on, check for 12V power and good ground at the TCCM connector. Ground resistance should be less than 0.1 Ω.
8. With the battery disconnected, measure resistance between Pin 6 (CAN High) and Pin 14 (CAN Low) at the OBD-II port. A healthy network will read approximately 60 Ω.
9. If all wiring, power, and grounds are good, the TCCM is the most likely failed component.

Parts You'll Likely Need

• Transfer Case Control Module (TCCM) (OEM #24249095) — This module is the final suspect after all wiring, fuse, and ground issues have been ruled out. Internal failure will cause a complete loss of communication. Replacement requires VIN programming.
  Trusted brands: ACDelco (Genuine GM), Dorman (e.g., 599-192)
  OEM price range: $250-$400
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• U0073 — This is a general network code ('Control Module Communication Bus 'A' Off') that often appears with U0102, indicating a broader problem on the High-Speed CAN bus, as noted in TSB #08-07-30-021H.
• U0100 — Lost Communication with ECM/PCM. If the main engine computer is also having network issues, it points towards a systemic wiring or power problem rather than just a TCCM fault.
• U0101 — Lost Communication with TCM. This points to a wider network issue and is consistent with symptoms of erratic shifting mentioned in TSB #08-07-30-021H.

Technical Service Bulletins (TSBs) & Recalls

• 08-07-30-021H: Covers intermittent communication loss from various causes like chafed harnesses and poor connections, listing U0102 as a possible DTC.
• PIT5586E: Mentions U0102 in a list of DTCs that can be caused by a logic lock of the Serial Data Gateway Module.

Platform-Specific Known Issues

• TSB #08-07-30-021H addresses intermittent network communication loss that sets U0102 and other codes, pointing to chafed wiring harnesses or poor terminal connections as the root cause, rather than module failure.

Mechanic-Grade Diagnostic Values

• GMLAN High-Speed Bus Resistance — expected: ~60 Ω (with battery disconnected). Failure: A reading of ~120 Ω indicates an open circuit or a missing termination resistor. A reading significantly less than 60 Ω suggests a short between the CAN wires.
• GMLAN Bus Voltage (Key On, Engine Off) — expected: Both CAN High and CAN Low wires should read ~2.5V at rest.. Failure: A line stuck near 0V or battery voltage indicates a short to ground or power. No voltage indicates an open circuit.
• GMLAN Bus Voltage (Communicating) — expected: CAN High toggles to ~3.5V while CAN Low toggles to ~1.5V.. Failure: Lack of this differential voltage swing indicates no data is being transmitted.
• TCCM Ground Circuit Voltage Drop — expected: < 100-200 mV. Failure: A higher voltage reading indicates excessive resistance in the ground circuit, which can cause the module to malfunction.
• TCCM Power Supply — expected: 12V ± 0.5V. Failure: Low or no voltage indicates a problem with the fuse or power supply wire.

Scan Tool Commands That Help

• Tech2 / GDS2: Module Status / Vehicle DTC Information — To perform an initial network scan and verify which modules are actively communicating. For U0102, the TCCM will likely show as 'No Response' or 'Offline'.
• Tech2 / GDS2: TCCM Programming / Module Setup — This is required after installing a new Transfer Case Control Module. The function programs the vehicle's VIN into the new module to allow it to communicate with other vehicle systems.
• Tech2 / GDS2: Special Functions / Learn Range Selector — After communication is restored or a new module is programmed, this function may be needed to relearn the positions of the transfer case actuator.

Wiring & Ground Locations

• G110 — On the frame rail, under the driver's side door.. This is a primary frame ground point for multiple components. Corrosion or a loose connection here is a very common cause of U0102, as it provides the ground path for the TCCM.
• G103 — On the front of the right (passenger side) cylinder head.. A major engine and module ground point. A poor connection here can cause widespread communication codes, including U0102.
• TCCM Connector — Under the driver's side dashboard, to the left of the steering column.. This is the direct connection to the module. It should be checked for power (12V+), ground, and the two GMLAN serial data wires (Tan and Tan/Black).
• TREC / 4WD Fuse — In the under-hood fuse block.. This fuse provides the main battery power to the Transfer Case Control Module. A blown fuse will cause a complete loss of communication.

Real Owner Repair Stories

• Reddit user in r/Silverado (2008 Silverado Z71 5.3L, 150,000 miles) — Check engine light with code U0102, no lights on the transfer case selector switch.
  ❌ Tried (didn't work) Initial diagnosis pointed towards a bad module after verifying connections and grounds seemed okay.
  ✅ What actually fixed it Replaced the Transfer Case Control Module (TCCM) and performed the Dorman-specific reprogramming procedure without a scan tool, which successfully restored function.
• Go-Parts article citing a common field repair (2007-2014 GM Truck/SUV) — Service 4WD message, U0102 code.
  ❌ Tried (didn't work) Cleaning the main, large ground lug at the G110 frame location did not resolve the issue.
  ✅ What actually fixed it A smaller, secondary ground wire that was part of the same harness bundle at G110 had broken off its eyelet connector. The break was hidden inside the plastic loom. A new eyelet was crimped onto the broken wire and re-secured to the ground stud, which permanently fixed the problem.

"I Checked Everything" — The Actual Cause

• A known issue documented by GM involves the TCCM failing internally after a voltage spike, often from an improperly wired aftermarket accessory like a relay or solenoid. The failed TCCM then back-feeds 2-3 volts onto the Run/Crank power circuit, even with the ignition off. This causes a parasitic battery drain and can lead to misdiagnosing other modules like the Instrument Panel Cluster (IPC). The key diagnostic step is to check for voltage at fuses like F23DL or F31DL with the key off. If stray voltage is present and disappears when the TCCM is disconnected, the TCCM has failed in this specific manner and the source of the voltage spike must be found and corrected before replacing the module.

When the Usual Fixes Don't Work

• While the most common fix for a bad ground is to clean the main terminal (e.g., G110 on the frame), there are documented cases where this is not enough. A thorough repair requires inspecting all wires entering the ground lug. A smaller wire within the harness bundle can break inside its insulation or at the crimp, completely invisible to a simple visual inspection or cleaning of the main lug. In these cases, tugging on each individual wire at the ground point is necessary to reveal the hidden break.

OEM Part Supersession History

• Multiple, including 24239190, 12588096 → 24249095, 24261367 — Standard part evolution and software updates by the manufacturer to improve reliability.
  Heads up: No incompatibility is noted. In fact, replacement modules programmed with the latest software are intended to fix bugs present in original units. However, any replacement module, new or used, must be programmed with the vehicle's VIN to function.

Model Year Variations Within This Range

• 2007-2010: No significant variations in the cause or diagnosis of code U0102 have been identified within this specific model year range for the Silverado 2500. The entire range is part of the GMT900 platform, and the described issues with grounds (G110, G103), harness chafing, and TCCM failures are consistent across these years.
