OBD-II Code U0121

Common Causes

• Weak Battery or Failing Alternator — A resting battery voltage below 12.4V or severe voltage drops during cranking force sensitive modules like the ABS to drop offline, triggering communication codes.
• Blown ABS Power Fuses — The ABS module draws high current for its pump motor. A blown 20A-40A maxi-fuse in the engine bay completely cuts power to the module.
• Corroded or Loose Ground Connection — Modules require a pristine path to the chassis ground. Corrosion at the ground stud (like GM's notorious G218) creates high resistance, breaking the circuit.

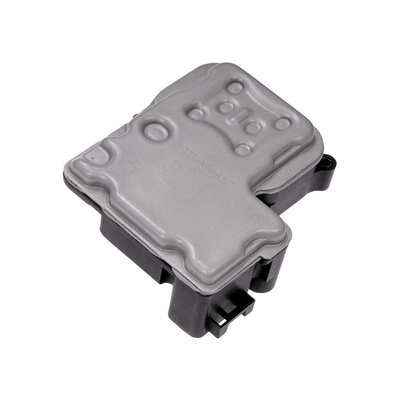

• Internal ABS Control Module Failure — The microscopic solder joints inside the ABS module's circuit board crack over time due to heat and vibration, severing the internal communication pathways.
• Damaged CAN Bus Wiring — Chafed wires shorting to the chassis or broken wires inside the main harness physically sever the CAN High or CAN Low communication lines.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace the 12V Battery
• Clean and Tighten Chassis Grounds
• Replace Blown ABS Fuse
• Rebuild or Replace ABS Control Module

What Happens If You Wait — Timeline

1. Immediate: Code U0121 sets. ABS, Traction Control, and Electronic Stability Control warning lights illuminate. These safety systems are completely disabled. (Added cost: $0)
2. 0-6 months: The vehicle automatically fails state safety inspections due to the illuminated ABS light. Dependent systems like cruise control or AWD are disabled. (Added cost: $50-$200 in potential fines and fees.)
3. 3-12 months: Moisture migrates further into the harness, corroding other circuits. A faulty module develops a parasitic draw, draining the battery overnight. (Added cost: $150-$300 (cost of a new battery or additional diagnostic time).)
4. 6+ months: A severe accident occurs where ABS or ESC could have prevented the outcome. Financial impact includes insurance deductibles and potential lawsuits. (Added cost: $1000-$25,000+ (deductible, increased insurance premiums, total vehicle loss).)

Diagnosis Steps

1.
   Tools: Multimeter
2.
   Tools: Multimeter or Test Light
3.
   Tools: Multimeter, Vehicle Wiring Diagram
4.
   Tools: Multimeter

How to Talk to a Mechanic About This Code

Say this: "I have a U0121 code and my ABS light is on. Please test battery health, ABS fuses, and verify power and ground at the module connector before quoting a full module replacement."

This directs the technician to follow a logical diagnostic path instead of immediately jumping to the most expensive conclusion.

Avoid saying:

• My ABS light is on, can you fix it?
• I think I need a new ABS module.
• Just do whatever it takes.

Questions to ask before authorizing the repair:

• Did you test the battery and charging system, and what were the results?
• Did you find 12V power and a good ground directly at the ABS module's main connector?
• What specific tests did you run to condemn the old module and rule out a wiring problem?
• Is sending my original unit out for repair an option, and does the replacement require programming?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Best used if you suspect a known TSB issue or if other shops cannot program a replacement module.
  Best for: Vehicles under warranty, Complex, brand-specific issues where Technical Service Bulletins (TSBs) are key, When you require module programming with factory-specific software
  Downsides: Highest labor rates, More likely to replace the entire ABS module assembly ($800-$2000) rather than diagnose a simple wiring fault or recommend a cheaper module repair service. (Typical cost: +60% vs. baseline)
• Independent Shop: Best choice for most owners. Find a well-reviewed local shop specializing in electrical diagnostics.
  Best for: Out-of-warranty vehicles where cost is a factor, Shops with strong electrical and diagnostic reputations, More likely to explore cost-saving options like repairing wiring or using a module rebuild service
  Downsides: Quality and diagnostic capability vary greatly., May not have the latest manufacturer-specific programming tools. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for U0121 diagnosis. They are not equipped to solve CAN bus communication failures.
  Best for: Simple, high-volume jobs like oil changes, tires, and battery replacement.
  Downsides: Technicians are not equipped or trained for complex electrical and network diagnostics., High pressure to sell parts leads to incorrect recommendations., Unable to diagnose beyond reading the code. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of your car's private-party value, sell or trade it in instead of repairing it.

• Car worth $4000, fix is $2100: Walk away. The repair cost is over 50% of the car's value. A new ABS module isn't a sound investment here.
• Car worth $12000, fix is $1500: Fix it. The repair cost is well below the 50% threshold and restores critical safety features.
• Car worth $3000, fix is $350: Fix it. This cost suggests a simpler fix like a wiring repair or a rebuilt module, which is a good value.

What Scan Tool You Need for This Code

Minimum: A scanner that reads codes from the ABS module (All System Scan). A basic engine-only code reader will NOT work for U0121.

A $20 engine code reader won't see the U0121 code. You need a tool that polls all vehicle modules, including ABS, to confirm the fault.

Professional: Autel MaxiCOM MK808Z / Launch X431 Series (~$450-900) — Provides full bidirectional control, advanced live data graphing, and module programming functions required after replacing some ABS modules.

Rent vs buy: Auto parts store 'loaner' tools may not read ABS codes. Buying a budget-tier scanner (~$100) that reads ABS codes is a safer bet and a good investment.

Most Commonly Affected Vehicles

• (2007-2018)
• (2008-2017)
• (2009-2014)

Real Owner Stories

2015 Chevrolet Silverado with intermittent ABS/StabiliTrak lights

The owner reported ABS, traction control, and 'Service StabiliTrak' warnings illuminating randomly, especially after hitting bumps. Code U0121 was present alongside U0140.

Outcome: The owner removed the 10mm nut, cleaned the ring terminals and stud with a wire brush, and re-tightened the nut. Total cost: $0. The codes cleared and did not return, restoring full functionality.

Lesson: On GM trucks and SUVs, always clean the G218 ground connection before suspecting a failed module. This is a documented issue covered by GM TSBs.

2013 Honda Accord VSA (ABS) and Check Engine lights on

At 110,000 miles, the dash lit up with ABS, VSA, and Check Engine lights. A scan showed code U0121.

Outcome: The mechanic diagnosed a failed VSA modulator-control unit. The owner sent the original module to a repair service for $250, avoiding a $1200 dealer replacement and VIN reprogramming.

Lesson: If basic power and ground checks pass, rebuild your original module. It is significantly cheaper than a new part and avoids programming hassles.

2011 Ford F-150 with U0121 after a jump start

After a jump start, the ABS and traction control lights stayed on. A scan revealed code U0121.

Outcome: The owner disconnected both battery terminals and held them together for 60 seconds to drain residual power. After reconnecting, the warning lights disappeared. The unstable voltage caused a temporary software glitch.

Lesson: Before starting expensive repairs after a voltage-related event, perform a full electrical reset by disconnecting the battery. Modules often lock up and simply need a reboot.

How to Prevent This Code From Triggering

• Clean Battery Terminals and Posts (Every 6-12 months) — Corrosion on battery terminals acts as a resistor, causing voltage drops that starve modules of stable power. Clean with a wire brush to ensure a solid connection.
• Inspect and Clean Key Chassis Grounds (Once every 2-3 years) — The ABS module ground and main engine-to-chassis ground straps corrode over time. Unbolt them, clean contact surfaces to bare metal, and re-tighten to prevent intermittent faults.
• Apply Dielectric Grease to Critical Connectors (Anytime a connector is disconnected) — Dielectric grease blocks moisture and oxygen. Apply a thin layer to rubber seals and around pins to prevent corrosion that causes communication loss.
• Ensure Regular, Longer Drives (At least once per week) — Frequent short trips prevent the alternator from fully recharging the battery. A chronically undercharged battery increases the likelihood of communication codes during startup. Drive 20-30 minutes weekly.

Frequently Asked Questions

Can I drive with a U0121 code?

Yes, but your ABS and traction control are completely disabled. Drive cautiously and leave extra braking distance. Fix the issue promptly to restore these critical safety systems.

Will a U0121 code clear itself?

If the cause was a temporary voltage drop, the code moves to 'history' after a restart. However, you must manually clear it with an ABS-capable scanner to turn off the dashboard warning lights.

How do I know if my ABS module is bad?

If the module receives 12V power and has a solid ground but still refuses to communicate with a scanner, the module has failed internally. Send it to a specialized electronics rebuilder to confirm.

Key Takeaways

• Code U0121 disables your ABS and stability control immediately, increasing accident risk on slippery roads.
• A weak battery with a resting voltage below 12.4V is the leading cause of false communication codes.
• On 2007-2018 GM trucks, cleaning the G218 ground stud under the driver's dash fixes this code for $0.
• Rebuilding your original ABS module costs $250 and avoids the $150 dealership programming fee required for new units.
