U0121 on 2007-2014 Cadillac Escalade: Lost Communication With ABS Module Causes & Fixes

What's Unique About the 2007-2014 Cadillac ESCALADE

For this specific generation of Escalade and its sister GM trucks/SUVs (Tahoe, Yukon, etc.), code U0121 is the subject of a detailed Technical Service Bulletin 🎬 Watch: A breakdown of U0121 causes and common solutions. (PIT4056H). This bulletin highlights a common misdiagnosis where the EBCM is replaced, but the fault persists. The true cause is often a short circuit in the wiring for a wheel speed sensor or the yaw/steering angle sensor. A specific chafe point for the yaw sensor's 5V reference wire (Circuit 2087) is noted to be under the passenger front seat near the rear camera module bracket. This short pulls down the EBCM's internal circuits, making it appear offline.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• StabiliTrak or Traction Control warning light is on
• "Service Brake System" or "Service StabiliTrak" message on the instrument cluster
• Transmission may not shift properly or may feel stuck in gear [Bulletin #08-07-30-021H]
• Scan tool cannot communicate with the EBCM/ABS module
• ABS pump motor may run constantly or activate at low speeds

Most Likely Causes

1. Wiring or Connector Fault 🔴 High Probability The EBCM is located on the driver's side frame rail, exposing it to road spray and debris. More importantly, GM TSBs note that the Yaw Sensor's 5V supply wire can short to ground under the passenger front seat carpet, specifically at the rear camera module bracket.
   How to confirm: Visually inspect the main connector at the EBCM for green/white corrosion or backed-out pins. Pull up the passenger front sill plate and carpet to inspect the wiring harness for chafing against metal brackets.
   Typical fix: Clean the connector pins with a specialized contact cleaner or replace the connector pigtail. Repair and re-route any broken or shorted wires, ensuring they are protected from sharp edges.
   Est. part cost: $10-$50

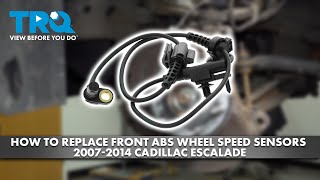

2. Shorted Wheel Speed Sensor (WSS) or Yaw/Steering Sensor 🟡 Medium Probability → Shop ABS Wheel Speed Sensor This is a known issue documented in GM TSB PIT4056H. A short circuit inside one of these sensors or their wiring can disable the entire EBCM. Aftermarket suspension lifts can strain the WSS wiring, leading to failure.
   How to confirm: Follow the TSB diagnostic procedure: with a scan tool connected and attempting to communicate with the EBCM, unplug each wheel speed sensor one at a time. If communication returns after unplugging a specific sensor, that sensor or its wiring is the fault. For the yaw sensor, disconnect circuit 2087 (Dark Green wire) at the EBCM and see if communication is restored.
   Typical fix: Replace the faulty sensor and/or repair its wiring harness.
   Est. part cost: $50-$150
3. Low Battery Voltage or Blown Fuse 🟡 Medium Probability → Shop Vehicle Battery All control modules require stable voltage (above 12.4V) to communicate properly. A weak battery is a common cause of random communication codes across all modern vehicles.
   How to confirm: Test the battery voltage with a multimeter; it should be above 12.4V with the engine off. Check the large 60A ABS fuse in the underhood fuse block, as well as other related fuses.
   Typical fix: Charge or replace the battery. Replace any blown fuses.
   Est. part cost: $5-$250
4. Failed Electronic Brake Control Module (EBCM) ⚪ Low Probability → Shop ABS Control Module While the module can fail internally (often from cracked solder joints), it is frequently misdiagnosed. The GM TSBs strongly suggest ruling out all wiring, power, ground, and external sensor issues first before condemning the module.
   How to confirm: This is confirmed by exclusion. If all power, ground, and communication wires to the EBCM are verified to be good, and there are no shorted external sensors (per the TSB diagnostic steps), the module itself is the likely culprit.
   Typical fix: Replace the EBCM. The new module must be programmed to the vehicle's VIN by a dealer or a properly equipped independent shop.
   Est. part cost: $250-$700

Rare But Worth Checking

• Corroded Main Fuse/Junction Block Connection:

Diagnosis Steps

1. Read all codes from all modules. Note if other 'U' codes are present, which indicates a wider network problem.
2. Check Battery Health: Test the battery voltage. It should be at least 12.4V with the engine off and 13.7V-14.7V when running. Clean any corrosion from the terminals.
3. Inspect Fuses: Check all fuses related to the ABS/EBCM/StabiliTrak systems in the underhood fuse box, especially the main 60A ABS fuse.
4. Inspect EBCM Connector: Disconnect the battery. Unplug the large electrical connector at the EBCM, located on the driver's side frame rail. Look for any signs of corrosion, moisture, or bent pins. Clean if necessary.
5. Follow TSB PIT4056H (WSS Test): If the scan tool cannot communicate with the EBCM, try unplugging each wheel speed sensor one by one, checking if communication is restored after each one is disconnected.
6. Follow TSB PIT4056G/H (Yaw Sensor Circuit Test): If the WSS test fails, reconnect everything. At the EBCM connector, identify and carefully back out the pin for circuit 2087 (Dark Green wire). Attempt to communicate with the EBCM again. If communication returns, the fault is in that circuit or the sensor it powers (Yaw/Steering Angle Sensor).
7. Inspect Yaw Sensor Wiring: If Step 6 points to a fault, physically inspect the wiring harness under the passenger front seat carpet for chafing, especially near the metal bracket for the rear camera module.
8. Test Power and Ground: If communication is still down, use a multimeter to verify that the EBCM connector is receiving proper battery voltage on its main power pins and has a solid connection to chassis ground (less than 0.1 ohms).
9. If all else fails, the EBCM is the likely cause and may need replacement and programming.

Parts You'll Likely Need

• Electronic Brake Control Module (EBCM) (OEM #25989531, 20896915, 25834221 (numbers may vary, verify by VIN)) — This is the module that fails or is misdiagnosed as failed. It is only replaced after all wiring, power, and external sensor faults are ruled out.
  Trusted brands: ACDelco (Genuine GM), Dorman (Remanufactured, 599-775)
  OEM price range: $400-$700
  Aftermarket price range: $250-$500
• Wheel Speed Sensor — A shorted wheel speed sensor is a common hidden cause for U0121 on this platform, as documented by GM.
  Trusted brands: ACDelco, Standard Motor Products, Delphi
  OEM price range: $80-$120
  Aftermarket price range: $40-$80
• Battery — A weak battery can cause a variety of network communication faults, including U0121.
  Trusted brands: ACDelco
  OEM price range: $200-$300
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• U0073 — This code means 'Control Module Communication Bus A Off'. It often appears with U0121 because a major network problem is preventing multiple modules from communicating. [Bulletin #08-07-30-021H]
• U0100 — Lost Communication with ECM/PCM. This can occur if the network issue is severe enough to affect communication with the main engine computer. [Bulletin #08-07-30-021H]
• U0101 — Lost Communication with TCM. This can occur alongside U0121 and explains why shifting problems may be present. [Bulletin #08-07-30-021H]
• U0140 — Lost Communication with Body Control Module. Often indicates a widespread network failure rather than an isolated module issue. [Bulletin #08-07-30-021H]

Technical Service Bulletins (TSBs) & Recalls

• PIT4056H: Unable To Communicate With The EBCM DTC U0121. Warns that a shorted Wheel Speed Sensor can mimic a failed EBCM.
• 08-07-30-021H: Lists U0121 as one of several communication DTCs that can cause multiple electrical issues and shifting problems. [Bulletin #08-07-30-021H]

Platform-Specific Known Issues

• TSB PIT4056H documents a specific diagnostic c

Mechanic-Grade Diagnostic Values

• High-Speed GMLAN (CAN Bus) Network Resistance — expected: ~60 Ohms (±5 Ohms). Failure: A reading of ~120 Ohms indicates a missing terminating resistor or an open in the circuit. A reading significantly less than 60 Ohms (e.g., 40 Ohms) suggests an extra terminating resistor or a short between the CAN High and CAN Low wires.
• EBCM Ground Circuit Resistance — expected: Less than 0.5 Ohms. Failure: High resistance (greater than 0.5-1.0 Ohms) indicates a corroded or loose ground connection at the frame, which can cause the module to drop offline intermittently.
• CAN Bus Voltage (Key On, Engine Off) — expected: CAN High: ~2.5-3.5V; CAN Low: ~1.5-2.5V. Both voltages should be steady and mirror each other.. Failure: A short to ground on either line will pull the voltage to 0V. A short to power will pull it to 5V or 12V. If one line is inactive, it can indicate an open circuit or a failed module transceiver.
• Wheel Speed Sensor Supply Voltage — expected: 12V reference voltage from the EBCM.. Failure: No voltage or low voltage points to an issue within the EBCM or the wiring between the module and the sensor.

Scan Tool Commands That Help

• GDS2/Tech2: ABS Live Data / Wheel Speed Sensor Data — To verify if the EBCM is online and reading data from all four wheel speed sensors. If one sensor reads 0 while others show speed, it points to a sensor or wiring issue. If no data is available, the module is offline.
• GDS2/Tech2: SDM Primary Key Reset — This handshake procedure is required between the Sensing and Diagnostic Module (Airbag) and the Body Control Module (BCM) after a BCM replacement. While not directly for U0121, if the BCM is replaced during diagnosis, this step is critical to restore full system functionality and prevent other communication codes.
• GDS2/Tech2: Module Software Update — GM has released software updates for the EBCM on these vehicles. A dealer or capable shop can check for and apply updates which can resolve certain software-related diagnostic trouble codes.

Wiring & Ground Locations

• EBCM Location — Bolted to the driver's side frame rail, under the vehicle, making it susceptible to corrosion.. This is the location of the module itself and its main connector, which is a primary point of failure due to corrosion and moisture intrusion.
• Main Frame Grounds — There are two key ground packs bolted to the frame under the driver's side door area.. These grounds are shared by multiple components. Corrosion at these points is a well-documented cause of bizarre electrical issues, including communication codes like U0121, as the EBCM loses its reference ground.
• G303 / G304 — Located near the base of the driver's side 'B' pillar.. These are interior ground points. While less likely to be the primary cause than the frame grounds, they can be part of the overall ground distribution circuit and should be checked if frame grounds are clean.
• Circuit 2087 (Dark Green Wire) — Runs from the EBCM connector to the Yaw/Steering Angle Sensor. A known chafe point is under the passenger front seat carpet, near the metal bracket for the rear camera module.. This is the specific circuit mentioned in GM TSB PIT4056G/H. When this 5V reference wire shorts to ground, it internally disables the EBCM, causing it to go offline and set code U0121.

Real Owner Repair Stories

• Tahoe Yukon Forum (GMT900-platform truck (Tahoe/Yukon/Escalade family)) — Vehicle was 'going nuts' with multiple, random warning lights and messages on the dash, possessed rear wiper, and poor fuel mileage.
  ❌ Tried (didn't work) Initial diagnosis was confusing due to the number of simultaneous, seemingly unrelated problems.
  ✅ What actually fixed it The owner found a ground wire had completely fallen off its stud on the frame under the driver's side door. After cleaning the rust off the frame and re-securing the ground with a new bolt, all the strange electrical problems, including communication issues, were resolved.

Model Year Variations Within This Range

• Mid-2010 and newer: Starting mid-2010, the 6.2L V8 engine in the Escalade came with Active Fuel Management (AFM). While not directly related to the U0121 code, it represents a significant powertrain change within the generation that technicians should be aware of.
