U0121 on 2007-2010 Chevy Silverado 2500: Lost ABS Communication Causes & Fixes

What's Unique About the 2007-2010 Chevrolet SILVERADO 2500

This generation of Silverado (GMT900) is well-documented by GM to have specific electrical vulnerabilities that trigger code U0121. Technical Service Bulletins (TSBs) point directly to a poor Body Control Module ground (G218) and wire harness chafing under the door sill plates as primary culprits. Another known issue on this platform is the EBCM's exposed location on the driver's side frame rail, making it and its ground connection (often G303) highly susceptible to corrosion from road salt and moisture, which is a direct cause of communication loss.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light illuminated
• Stabilitrak / Traction Control warning light 🎬 Watch: How to fix common Stabilitrak and electrical issues. illuminated
• "Service Stabilitrak" or "Service Brake System" message on the driver information center
• Transmission may not shift properly.
• Cruise control may be inoperative.
• Multiple other warning lights may appear intermittently.
• Brake lights may stay on for a few seconds after the pedal is released.
• In severe cases with multiple ground issues, the entire instrument panel may go blank 🎬 Watch: Fixing a Silverado electrical nightmare with multiple U-codes. or the truck may stall.

Most Likely Causes

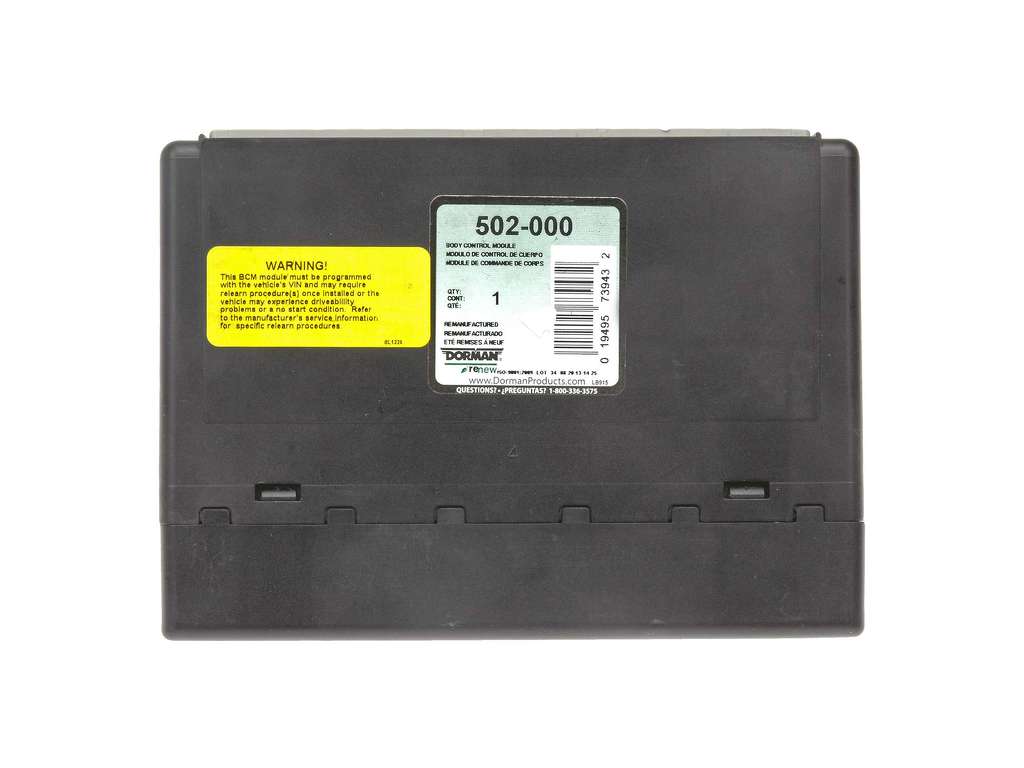

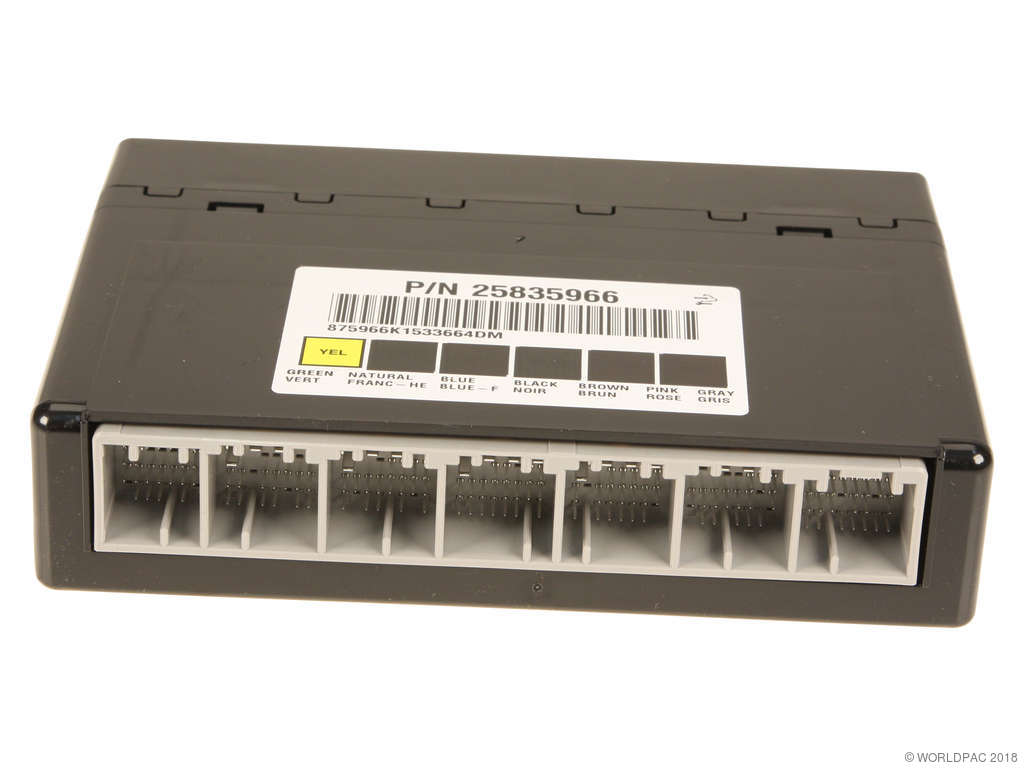

1. Poor Body Control Module (BCM) Ground at G218 🔴 High Probability → Shop Body Control Module GM TSB #PIT5405A and #PIT5405C specifically identify this ground as a common failure point for communication DTCs, including U0121. The design allows for the dash insulator mat to get trapped under the ground connection during assembly, causing high resistance and intermittent network failures.
   How to confirm: Locate ground G218, which is a stud with a 10mm nut under the driver's side A-pillar trim near the floor, often close to the speaker. Check if the nut is loose or if the black foam insulation material is caught under the terminal. A voltage drop test on the ground circuit will confirm high resistance.
   Typical fix: Remove the 10mm nut, pull the ground terminal eyelet off the stud, and trim or cut away any interfering foam insulation. Clean the terminal and the body surface to bare metal with a wire brush, then securely retighten the nut.
   Est. part cost: $0-$5
2. Chafed or Corroded Wiring Harness 🔴 High Probability TSB #PIT5457D points to wire harnesses under the driver and passenger sill plates as a common area for damage. Water can become trapped in the channels, causing corrosion. Specifically, the Communication Enable circuit (5986) is often the wire that gets damaged, preventing the EBCM from 'waking up' to communicate.
   How to confirm: Remove the plastic door sill plates and peel back the carpet to visually inspect the wiring harnesses. Carefully unwrap the factory tape and look for signs of rubbing (chafing), or green/white corrosion from water intrusion, especially on the communication enable circuit or at splice points like J365 on the passenger side.
   Typical fix: Repair the damaged section of wire. This involves cutting out the bad section, splicing in a new piece of wire using weatherproof butt connectors, and protecting the harness with high-quality electrical tape or loom to prevent future damage.
   Est. part cost: $5-$20
3. Failed Electronic Brake Control Module (EBCM) 🟡 Medium Probability → Shop ABS Control Module The EBCM is located under the truck on the driver's side frame rail, where it is exposed to moisture, road salt, and debris, which can lead to corrosion on the connector pins or internal failure of the module itself.
   How to confirm: After confirming all power, ground, and CAN bus wiring to the module are intact and correct, the module itself is the likely culprit. A professional scan tool will be unable to communicate with the module. Visually inspect the large connector on the EBCM for green or white corrosion. A malfunctioning module can also cause a parasitic battery drain.
   Typical fix: Replace the EBCM. The new or remanufactured module must be programmed to the vehicle's VIN using dealer-level software.
   Est. part cost: $250-$700
4. Low Battery Voltage or Poor Battery Connections ⚪ Low Probability → Shop Vehicle Battery
   How to confirm: Test the battery voltage with a multimeter. It should be above 12.4V with the engine off and 13.7-14.7V with the engine running. Inspect battery terminals for corrosion and ensure clamps are tight and the posts protrude 1-2mm above the clamps.
   Typical fix: Charge or replace the battery. Clean the battery terminals and cable ends thoroughly.
   Est. part cost: $0-$250

Rare But Worth Checking

• FVCM Software Anomaly: According to TSB #PIT5599, a software issue in the Fuel Vapor Control Module (FVCM) can cause a false U0121 code to be stored in history with each ignition cycle. If the code is only in history and there are no symptoms, this could be the cause.
• Shorted Wheel Speed Sensor or Wiring: → Shop ABS Wheel Speed Sensor TSB #PIT4056H notes a rare scenario where a short-to-ground in a wheel speed sensor's wiring, or an internal short in the sensor itself, can pull down the EBCM's internal circuitry, causing it to stop communicating. This would typically be diagnosed by unplugging wheel speed sensors one by one to see if communication with the EBCM returns.

Diagnosis Steps

1. Scan all vehicle modules with a professional-grade scan tool. Note all 'U' codes and which modules are not communicating.
2. Check and charge the battery. Ensure battery voltage is above 12.4V. Clean and tighten battery terminals.
3. Inspect all ABS and BCM related fuses in the underhood fuse block.
4. Locate and inspect the BCM ground G218 under the driver's side dash/A-pillar. Remove the 10mm nut, clean the connection to bare metal, ensure no insulation is trapped, and securely re-install.
5. Remove the driver and passenger door sill plates and inspect the wiring harnesses for chafing, corrosion, or breaks as per TSB #PIT5457D. Pay close attention to the Communication Enable circuit (5986).
6. If wiring and grounds are good, locate the EBCM on the driver's side frame rail. Disconnect and inspect the large connector for corrosion or backed-out pins.
7. With a multimeter and wiring diagram, verify the EBCM has good power (typically pins 1 & 38) and ground (typically pins 19 & 20) at its connector. Load test the circuits with a small bulb to ensure they can carry current.
8. Test the CAN bus wires at the EBCM connector. With the battery disconnected, resistance between the two CAN lines should be ~60 ohms. With the key on, voltage should be around 2.5V on each line, fluctuating slightly with data traffic.
9. If all wiring, grounds, and power are confirmed good, the EBCM is likely faulty and requires replacement and programming.

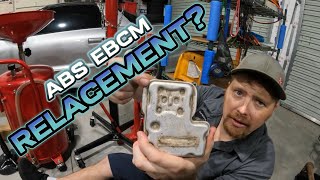

🎬 See this step-by-step walkthrough for replacing the EBCM.

Parts You'll Likely Need

• Electronic Brake Control Module (EBCM) (OEM #25802686) — If wiring and grounds are confirmed good, the module itself is the point of failure. It is exposed to the elements, making it susceptible to corrosion and internal faults.
  Trusted brands: ACDelco, Dorman
  OEM price range: $594-$627
  Aftermarket price range: $250-$450

Related Codes That Often Appear With This One

• U0100 — Lost Communication with ECM/PCM. Both codes often appear together when there is a general CAN bus network failure.
• U0101 — Lost Communication with TCM. This often accompanies U0121 when a network or ground issue is present, and can cause shifting problems.
• U0140 — Lost Communication with Body Control Module. This is very common with U0121, especially when the G218 ground is the root cause.
• U0073 — Control Module Communication Bus 'A' Off. This is a general code indicating the entire CAN bus is down, which would prevent the ABS module from communicating.

Technical Service Bulletins (TSBs) & Recalls

• PIT5457D: Points to wire harness chafing under sill plates, specifically affecting the Communication Enable circuit 5986.
• PIT5599: Mentions a false U0121 code due to a software anomaly in the FVCM.
• PIT5405A / PIT5405C: Identifies the poor BCM ground at G218 as a major cause of communication codes.
• 08-07-30-021H: Links U0121 to other communication DTCs and transmission shift issues.
• PIT4056H: Details how a shorted wheel speed sensor can cause the EBCM to go offline.

Platform-Specific Known Issues

• TSB #PIT5405A and #PIT5405C highlight a poor BCM ground at G218 as a primary cause for a host of communication codes, including U0121. The fix involves cleaning the ground and ensuring the dash insulator is not interfering.
• TSB #PIT5457D specifically calls out chafed wiring harnesses under the driver and passenger sill plates as a cause for losing communication with the EBCM and other modules. It identifies the Communication Enable circuit (5986) as a likely culprit.
• TSB #08-07-30-021H confirms that U0121 can be accompanied by transmission shifting problems and various other communication codes due to network instability.
• TSB #PIT4056H describes a scenario where a shorted wheel speed sensor or its wiring can internally disable the EBCM, causing a U0121 code even if all mai

Mechanic-Grade Diagnostic Values

• CAN Bus Resistance — expected: ~60 Ohms between CAN-H and CAN-L pins at the DLC with battery disconnected.. Failure: A reading of 120 Ohms indicates an open circuit or a faulty terminating resistor. A reading near 0 Ohms indicates a short between the CAN wires.
• CAN Bus Voltage (Key On, Engine Off) — expected: Approximately 2.5V on both CAN-H and CAN-L wires relative to a good ground.. Failure: During communication, CAN-H should pulse toward 3.5V and CAN-L toward 1.5V. Voltages stuck at 0V, 5V, or 12V indicate a short to ground or power.
• EBCM Power and Ground at Connector — expected: Battery voltage (12V+) at pins 1 and 38 (or 1 and 18 on some diagrams). Ground continuity (less than 0.1 volts resistance to chassis) at pins 19 and 20 (or 11 and 28 on some diagrams).. Failure: No voltage or high resistance on these pins indicates a wiring or fuse issue, not a failed module. A load test with a test light is recommended to confirm the circuit can carry current.
• Serial Data Enable Voltage — expected: 12V+ on the Dark Green/White wire at the Fuel System Control Module (FSCM) with the key on.. Failure: If this signal from the PCM is missing, it can indicate a break in that specific wire or a faulty PCM, which can contribute to network instability.

Scan Tool Commands That Help

• GDS2 / Tech2 or equivalent professional scanner: Automated Bleed / Solenoid Test — After restoring communication, use this bidirectional command to cycle the ABS pump and solenoids. Hearing the pump motor engage confirms that the module is now responding to commands and is likely functional.

Wiring & Ground Locations

• G303 — On the lower left 'B' pillar for extended and crew cab models.. This is a major chassis ground point. While G218 is the primary BCM ground, corrosion or looseness at G303 can contribute to intermittent network-wide communication issues that manifest as U0121.
• EBCM Connector (X183) — On the Electronic Brake Control Module, mounted to the driver's side frame rail, under the driver's door area.. This is the single point of connection for all power, ground, and CAN bus signals to the ABS module. It is highly exposed to road spray and corrosion, making it a primary failure point.
• Underhood Fuse Block Connectors — Underneath the main fuse block in the engine bay. The entire block must be unclipped and lifted to access the large multi-pin connectors below.. Corrosion can build up on the pins of these main connectors due to moisture intrusion, causing high resistance and leading to multiple, seemingly unrelated communication codes, including U0121.
• Engine Block to Chassis Ground — A braided strap typically running from the rear of the engine block (passenger side) to the firewall/chassis.. This is a main engine ground. If it becomes corroded or breaks, control modules can seek ground through other paths, creating electrical noise and unstable voltages that disrupt CAN bus communication.

Real Owner Repair Stories

• CZeroMedia on YouTube (2008 Chevrolet Silverado ('NBS' body style)) — ABS light on, multiple electrical issues, codes U0121, P0230, P1682, U0101, U0109, U0140.
  ❌ Tried (didn't work) Checking ABS fuses., Checking wheel speed sensor wiring and resistance., Checking the main ground on the driver's side frame.
  ✅ What actually fixed it The final fix involved multiple steps. The primary issue was corrosion inside the large connectors underneath the under-hood fuse block. After cleaning those connectors, communication was restored. The owner also noted corrosion on the EBCM connector itself and replaced the module as a precaution.
• AnthonyJ350 on YouTube (GMT900 Truck (2011 GMC Sierra 1500)) — General electrical issues, flickering lights, weird shifting, warning lights (symptoms common with U0121).
  ❌ Tried (didn't work) Simply cleaning battery terminals.
  ✅ What actually fixed it The owner found the main engine-to-chassis ground strap was frayed and corroded. He also identified a critical ground wire coming from the main engine harness to the block that was prone to failure. Relocating and upgrading these main grounds to ensure a solid connection to the chassis resolved the widespread electrical problems.

OEM Part Supersession History

• 15858819 → 25802686 — Standard part revision and update by the manufacturer.
  Heads up: The replacement module (25802686) requires programming to the vehicle's VIN after installation. It is not a plug-and-play part.

Model Year Variations Within This Range

• 2009-2010: Starting in 2009, the 4-speed (4L60-E) automatic transmission was largely replaced by the 6-speed (6L80) automatic transmission. TSB #08-07-30-021H specifically addresses communication issues, including U0121, on trucks with the 6-speed transmission, pointing to potential issues within the transmission harness connector as a source of network interference.
