OBD-II Code U0257: Lost Communication With Front Controls/Display Interface Module

What Does U0257 Mean?

Trouble code U0257 means your car's main computer lost its connection to the Front Controls/Display Interface Module (FCDIM). This module controls your dashboard's central screen, radio, and climate buttons. When the connection fails, these components stop working, leaving you without control over infotainment and cabin temperature.

Technical definition: The SAE/OBD-II definition is "Lost Communication With Front Controls/Display Interface Module." This indicates a control module on the vehicle's Controller Area Network (CAN) bus stopped receiving signals from the FCDIM for more than 5 seconds.

Can I Drive With U0257?

⚠️Yes, But With Caution. You can drive the vehicle, but you lose access to critical center screen functions. This disables the climate control defroster, creating a major safety hazard in cold or humid weather by severely impairing visibility. Driving with an obstructed view is illegal and dramatically increases accident risk. Repair this issue immediately to restore safe operation.

Common Causes

• Wiring or Connector Issues (Very Common) — Wires fray, short, or corrode in the harness behind the dashboard. Connector pins bend, push out, or develop moisture corrosion, physically breaking the data connection.
• Blown Fuse or Loss of Power/Ground (Common) — The display module requires a stable power supply and a solid ground. A blown fuse or a loose ground bolt prevents the module from powering on and communicating.
• Faulty Front Controls/Display Interface Module (FCDIM) (Common) — The module fails internally due to cracked solder joints on the circuit board from heat and vibration, component aging, or internal moisture damage.
• Water Intrusion into Related Modules (Less Common) — On vehicles like the 2015-2020 Ford F-150, water leaks into the taillight assembly and shorts the Blind Spot (BLIS) module. Because BLIS shares the communication network, its failure crashes the entire bus, causing the FCDIM to drop offline.
• Low or Unstable Battery Voltage (Less Common) — A dying battery or failing alternator causes voltage drops below 11.8V, disrupting sensitive data signals between modules and triggering network faults.
• Faulty Gateway or Body Control Module (BCM) (Less Common) — A defective gateway or BCM disrupts the entire communication network, preventing the FCDIM from routing messages to other modules.
• Interference from Aftermarket Accessories (Rare) — Improperly installed remote starters, alarms, or hardwired accessories introduce electrical noise onto the CAN bus, scrambling communication signals.
• Software or Configuration Glitches (Rare) — The module's software corrupts or loses its configuration after a battery replacement or voltage spike, requiring a dealer reprogramming.

Symptoms

• Blank or Intermittent Center Display Screen — The main infotainment or climate control screen is black, flickers, or works sporadically.
• Unresponsive Radio, Climate, and Dashboard Controls — Buttons and knobs for the radio, A/C, and heat do not respond. Dashboard button backlighting fails, and the radio remains silent or stuck on one station.
🎬 See how to replace a failed climate and media control module.
• Loss of Settings — The clock, saved radio presets, and customizable vehicle settings reset to default.
• Loss of Safety System Alerts — Audible alerts playing through the vehicle's speakers, such as parking sensor beeps or blind-spot warnings, stop functioning.
• Check Engine Light and Network Warnings (also visible on scanner) — The Check Engine Light illuminates alongside dashboard warning messages related to communication failures.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replacing a Blown Fuse — Parts: $1-$10, Labor: $0, ~0.1 hr book time (DIY)
• Wiring Harness or Connector Repair — Parts: $10-$50, Labor: $150-$450, ~1.5 hr book time (Professional)
• Resoldering Module Circuit Board Pins — Parts: $5, Labor: $150-$350, ~2 hr book time (Advanced)
• Replacing the Front Controls/Display Interface Module (FCDIM) — Parts: $150-$500 (Used), $500-$1200+ (New OEM), Labor: $120-$250, ~1.5 hr book time (Intermediate)
  Ford F-150 (2015-2020): OEM FL3T-18E245-CJ, GL3T-18E245-CE, JL3T-18E245-CDA (Alt: {"brand": "Dorman", "part_number": "N/A", "price_comparison": "Aftermarket solutions are rare; used OEM is the primary a)
  Ford Fiesta (2011-2017): OEM D2BT-18B955-BF (Display Screen), D2BZ-18C858-D (Control Panel) (Alt: {"brand": "Various (eBay/Amazon)", "part_number": "D2BT-19C107-AG (Radio Receiver)", "price_comparison": "Used OEM units)
• Module Reprogramming or Software Update — Parts: $0, Labor: $100-$250, ~1 hr book time (Professional)

DIY vs Professional

• Replacing a Blown Fuse 🟢 Beginner
  Tools: Owner's Manual, Fuse Puller or Pliers
• Replacing the FCDIM 🟢 Beginner
  Tools: Trim removal tools, socket set (7mm/8mm), Phillips screwdriver.
• Wiring Harness or Connector Repair 🟢 Beginner
  Tools: Multimeter, wire strippers, crimpers, heat shrink tubing, soldering iron.
• Resoldering Module Circuit Board 🟢 Beginner
  Tools: Soldering iron with fine tip, solder, flux, desoldering braid, magnification.

Used vs. New Parts: Buying Guide

When a used part is worth it: A used FCDIM makes sense for older vehicles where new OEM parts are cost-prohibitive, provided you have access to professional programming tools to sync the module to your VIN.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the part number matches your original module exactly.
• Purchase from a reputable seller offering a 30-90 day warranty.
• Visually inspect connector pins for corrosion before purchasing.
• Confirm the donor vehicle was not involved in a flood.

Decision logic:

• If The vehicle is less than 5 years old or has low mileage → Buy a new or remanufactured OEM part to ensure longevity.
• If The budget is tight and you have confirmed programming capability → A used part from a low-mileage donor is an acceptable risk.
• If The failure is a known issue with a simple fix (like cracked solder joints) → Send your original module to a circuit board repair service to avoid programming costs entirely.

Warranty tradeoff: Used parts include a 30-90 day part-only warranty. New OEM parts installed by a dealer carry a 1-2 year warranty covering both parts and labor.

Worst-case if a used part fails: $300-$600 if a used part fails, covering repeat labor, a second module, and reprogramming.

What Happens If You Wait — Timeline

1. Immediate: Code U0257 sets. The center screen goes blank, controls become unresponsive, and the defroster is disabled. (MPG impact: 0%% · Added cost: $0)
2. 1-3 months: If caused by an intermittent wiring short, it creates a parasitic battery drain. The vehicle becomes slow to crank or requires jump starts, straining the battery and alternator. (MPG impact: 0%% · Added cost: $150-$300 (Cost of a replacement battery).)
3. 3-6 months: A persistent CAN bus short or a module broadcasting bad data puts electrical stress on other modules. Intermittent warnings for ABS, airbags, or the instrument cluster appear. (MPG impact: 0-5%% · Added cost: $400-$800 (Diagnostic costs for related module failures).)
4. 6+ months: Continued electrical instability leads to the premature failure of critical modules like the Body Control Module (BCM) or Gateway. The vehicle fails to start or enters limp mode. (MPG impact: 5-10%% · Added cost: $800-$2000+ (BCM replacement and complex diagnostics).)

Cost of Not Fixing It

• Immediate: Loss of defroster function creates a critical safety hazard due to impaired visibility in cold or humid weather, increasing accident risk. (Added cost: Potential traffic citation or insurance claim deductible ($500+).)
• 1-6 Months: A CAN bus wiring short causes intermittent failure of other modules (instrument cluster, ABS) and creates a parasitic battery drain, leading to a no-start condition. (Added cost: $150-$400 (New battery and diagnosis).)
• 6+ Months: Continued electrical stress from a network fault leads to premature failure of expensive control modules like the BCM. Driving without audible safety alerts becomes normalized, increasing risk. (Added cost: $600-$1500+ (BCM replacement).)

Diagnosis Steps

1. Check for Other Codes

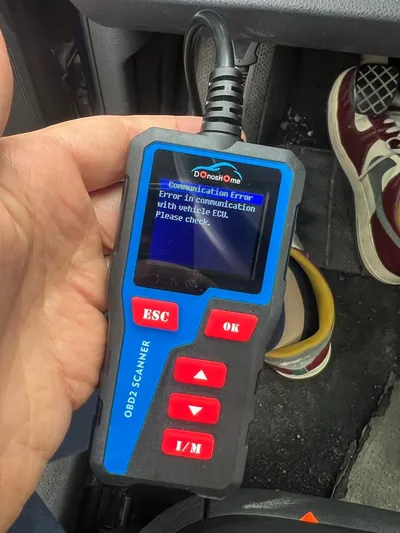

   Use a professional-grade OBD-II scanner to pull all trouble codes. U0257 often appears with other 'U' codes (like U0140 for the BCM), which pinpoints the root cause. Record all codes and freeze-frame data.
   Tools: OBD-II Scanner (Beginner)
2. Inspect Fuses
   Locate the fuse boxes using the owner's manual. Find all fuses related to the radio, infotainment, display, and instrument cluster. Visually inspect each and replace any blown fuses.
   Tools: Owner's Manual, Fuse Puller or Pliers (Beginner)
3. Perform a Hard Reset
   Disconnect the negative battery terminal for 30 minutes. This forces a full reset of all vehicle modules and clears temporary communication glitches. Reconnect the battery and check functionality.
   Tools: Wrench (usually 10mm) (Beginner)
4. Perform a Network Wiggle Test
   With the ignition ON, monitor the center display. Gently wiggle the wiring harness and connector at the back of the FCDIM, as well as harnesses at the BCM. If the display flickers or powers on, you have located a loose pin or cracked solder joint.
   Tools: None (Beginner)
5. Visually Inspect Wiring and Connectors
   Remove dashboard trim panels to access the back of the front display module. Inspect the wiring harness and main connector for frayed wires, corrosion, moisture, or pushed-out pins.
   Tools: Trim Removal Tools, Flashlight (Intermediate)
6. Test for Power and Ground at the Module
   With the key ON, use a multimeter to check for battery voltage (12.0V-14.5V) at the module connector's power pin. Check for continuity to ground on the ground pin (less than 1.0 ohm). Missing power or high ground resistance indicates an upstream wiring fault.
   Tools: Multimeter, Vehicle-Specific Wiring Diagram (Advanced)
7. Check CAN Bus Network Resistance
   With the battery disconnected, measure resistance between the CAN High and CAN Low pins at the DLC connector (pins 6 and 14). A healthy network reads 60 ohms. A reading of 120 ohms indicates a broken wire or missing termination resistor. A reading near 0 ohms indicates a short between the CAN lines.
   Tools: Multimeter, Vehicle-Specific Wiring Diagram (Advanced)
8. Test CAN Bus Voltages
   With the ignition ON, set a multimeter to DC volts. Measure between CAN High (Pin 6 at DLC) and ground; it should average 2.6V-2.7V. Measure CAN Low (Pin 14 at DLC) to ground; it should average 2.3V-2.4V. Significant deviation indicates a network short or a faulty module pulling voltage down.
   Tools: High-Impedance Multimeter, DLC Breakout Box (optional) (Advanced)
9. Analyze CAN Bus Waveform
   Connect a 2-channel oscilloscope to CAN High and CAN Low. A healthy signal shows CAN High switching from ~2.5V up to ~3.5V, and CAN Low mirroring it from ~2.5V down to ~1.5V. Distorted or missing signals pinpoint specific network faults like shorts to ground or power.
   Tools: 2-Channel Oscilloscope, DLC Breakout Box or Back-Probes (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 185-210°F (85-99°C) (The code often sets when the engine reaches normal operating temperature during a drive.)
• RPM: 1200-2500 RPM (The fault logs during steady-state cruising or light acceleration.)
• Vehicle Speed: 30-60 mph (50-100 km/h) (The communication check runs continuously, but failures are frequently captured during city or highway driving.)
• Module Voltage: 12.5-14.5V (The freeze frame shows system voltage at the moment of the fault; normal charging system voltage is expected.)

Related Codes

• U0140 — Lost Communication With Body Control Module (BCM). The BCM acts as a network gateway. If U0140 is present, the BCM is failing and preventing the FCDIM from communicating. Diagnose the BCM first.
• U0155 — Lost Communication With Instrument Panel Cluster (IPC). If both codes are present, it indicates a widespread network problem, such as a CAN bus wiring short affecting multiple modules.
• U0184 — Lost Communication With Radio (ACM). If you have no sound but the display works, suspect the ACM. If the display and buttons are dead, suspect the FCDIM (U0257). They often set together during total infotainment failure.
• U0258 — Lost Communication With Radio Transceiver Module. This module handles AM/FM/Satellite reception. If both codes are present, it points to a shared power, ground, or network connection failure.

Climate & Environmental Factors

• High Humidity / Rain: Moisture is a primary trigger in vehicles with known leak issues. On 2015-2020 Ford F-150s, rain enters poorly sealed taillights, shorting the BLIS module and crashing the MS-CAN network. Humidity also accelerates pin corrosion.
• Extreme Temperatures (Hot and Cold): Heat and vibration cause solder joints on the FCDIM circuit board to crack, a common failure on Ford Fiestas. Extreme cold causes marginal batteries to drop voltage during startup, triggering temporary communication glitches.

How to Talk to a Mechanic About This Code

Say this: "I have a U0257 code and my center screen is blank. I'd like to schedule a diagnostic. Please check for power and ground at the FCDIM connector and test the CAN bus network before recommending a module replacement."

This signals you understand the problem is often simple wiring or a network issue. It directs the technician to perform a thorough diagnosis instead of immediately quoting the most expensive part.

Avoid saying:

• 'My radio is broken, how much for a new one?'
• 'My check engine light is on, can you just fix it?'
• 'Just do whatever you think is best.'

Questions to ask before authorizing the repair:

• Did you find power and ground at the module connector?
• What was the CAN bus resistance reading? Was it 60 ohms?
• If I need a new module, does it require programming and is that included in the quote?
• Are there any other 'U' codes stored in other modules?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended if the fix requires module replacement and programming, or if independent shops cannot diagnose the network fault.
  Best for: Vehicles under warranty., Complex repairs requiring module programming (common for U0257)., Diagnosing manufacturer-specific network quirks.
  Downsides: Highest labor rates., Defaults to expensive module replacement over component-level repair. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit if you find a shop specializing in automotive electronics. They diagnose wiring faults or bad solder joints, which is cheaper than module replacement.
  Best for: Out-of-warranty vehicles., Shops with strong electrical and diagnostic reputations., Common wiring or connector repairs.
  Downsides: Quality varies greatly; must vet the shop's diagnostic capabilities., May lack expensive, manufacturer-specific programming tools. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for U0257 diagnosis. This code requires specialized electrical knowledge beyond the scope of chain shops.
  Best for: Simple jobs like battery or fuse replacement.
  Downsides: Technicians lack training for complex network diagnostics., High risk of incorrect diagnosis and unnecessary parts replacement. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of the car's private-party value, seriously consider selling or trading it in.

• Car worth $4000, fix is $2200: Walk away. The repair cost is over half the car's value.
• Car worth $15000, fix is $1200: Fix it. The repair is a small fraction of the vehicle's value and restores important safety features.
• Car worth $7000, fix is $3000: Borderline. Get a second opinion to confirm the diagnosis. Explore cheaper repair options like a used module or board-level repair.

What Scan Tool You Need for This Code

Minimum: A scanner that reads codes from ALL vehicle modules (BCM, IPC, ACM), not just the engine, and displays live network data.

A basic $20 reader only checks engine codes. U0257 is a network code. Diagnosing it requires seeing which modules are offline and checking for related codes in the Body Control Module. A basic reader cannot do this.

Budget: BlueDriver Pro (~$100) — Reads codes from all vehicle systems, providing a full network picture. Shows live data and freeze-frame data essential for diagnosis.

Mid-range: Innova 5610 or Topdon ArtiDiag Pro (~$320) — Offers bidirectional controls to command modules. Provides network topology maps visually showing which modules are not communicating.

Professional: Autel MaxiSys MS906 Pro or Launch X431 series (~$1200-1600) — Provides dealer-level diagnostics, including module programming. Required to perform the Programmable Module Installation (PMI) if replacing the FCDIM.

Rent vs buy: For a one-time diagnosis, use the AutoZone Loan-A-Tool program to borrow an advanced scanner for free. Buy a scanner only if you perform regular diagnostics.

How to Clear the Code After You Fix It

1. Fix the underlying hardware or wiring issue.
2. Use a compatible OBD-II scan tool to erase the U0257 code from all modules.
3. Perform a complete drive cycle to allow the system to verify the repair and set readiness monitors.

Drive cycle (~30 minutes): Let the vehicle sit for 8 hours for a cold start. Start the engine and idle for 3 minutes with the rear defroster on. Drive for 20 minutes with a mix of stop-and-go city driving and steady highway speeds (55-60 mph). Allow the vehicle to cool down completely.

Readiness monitors affected: Comprehensive Component Monitor, CAN Bus System Readiness

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code without fixing the root cause guarantees the code returns immediately.
• Disconnecting the battery clears the code but resets all readiness monitors, requiring an extended drive cycle before passing an emissions test.
• Basic scan tools fail to clear codes from non-engine modules, leaving the U0257 active in the BCM.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light due to a U-code is an automatic failure. A full drive cycle must be completed post-repair to set readiness monitors.
• New York: Any fault code that triggers the Malfunction Indicator Lamp results in an automatic emissions test failure.
• Texas: In emissions-testing counties, a U0257 code causes the vehicle to fail the OBD-II portion of the annual safety inspection.

Most Commonly Affected Vehicles

• Ford F-150 (2015-2020) — Prone to water leaking into taillight assemblies, shorting the Blind Spot (BLIS) module. This disrupts the MS-CAN network, causing U0257 and a dead radio/climate screen.
• Ford Fiesta (2011-2017) — Known for cracked solder joints on the display module's main circuit board connector. Resoldering the pins permanently fixes the blank screen and U0257 code.
• Ford Edge / Flex (2011-2019) — The FCDIM is a common failure point. Diagnostics require following Pinpoint Test AC to confirm the fault before replacing and programming the module.
• Chevrolet / GMC Equinox / Terrain (2010-2017) — Communication failures between the radio and info display are common. The Human Machine Interface (HMI) module frequently requires replacement and programming.
• Chevrolet Cruze (2011-2016) — The radio/media control module behind the center console fails internally. Replacement requires dealer programming to function.
• Hyundai Santa Fe / Tucson (2024-2025) — Subject to TSB 24-BE-007H-1 for a flickering screen caused by a poor coaxial cable connection. The fix involves adjusting the cable's shield width, not replacing the module.
• Nissan Rogue / Murano / Altima (2014-2020) — The AV (Audio-Visual) control unit fails internally, dropping off the CAN bus and logging U0257. Replacement is the standard repair.
• Volkswagen Jetta / Passat / Golf (2012-2018) — Experiences communication faults with the MIB (Modular Infotainment Platform) module, leading to an unresponsive center screen.

Manufacturer-Specific Notes

• Ford: On SYNC systems, replacing the FCDIM requires a Programmable Module Installation (PMI) using dealer software. Water leak repairs for the F-150 taillight issue are often denied outside the 3yr/36k warranty.
• General Motors (GM): U0257 is sometimes triggered by a software glitch in the Human Machine Interface (HMI) module. TSBs like PIT5406B address this. Check for special coverage programs (e.g., N232426310) extending the HMI warranty before paying for hardware.
• Hyundai: In 2024+ models, TSB 24-BE-007H-1 details adjusting the coaxial cable shield width to fix a flickering screen and U0257 code. This is a physical cable repair, not a module replacement.
• Nissan: Nissan's AV control units fail internally, dropping off the CAN bus and resulting in a completely dead screen. Module replacement is the standard and necessary repair.

Real Owner Stories

2011 Ford Fiesta with 110K miles

The radio and center display were completely dead. Pressing buttons did nothing. Code U0257 was present.

What they tried:

1. Checked fuses; all were good.
2. Swapped the radio (Audio Control Module) with two used units; problem remained.
3. Wiggled the wiring harness behind the display screen; the screen flickered on and off.

Outcome: The issue was cracked solder joints on the display module's main circuit board connector. A technician resoldered the pins, fixing the intermittent connection. Total cost was a diagnostic fee and 1.5 hours of labor, saving the owner from buying a new $500 module.

Lesson: If the issue is intermittent and responds to wiggling wires, it is a physical connection problem (bad wire or solder joint), not a failed module. Board-level repair is significantly cheaper than replacement.

2017 Ford F-150 at 60K miles

Radio and climate controls suddenly stopped working, and the screen went blank. U0257 appeared alongside multiple other 'U' codes and a Blind Spot System Fault warning.

What they tried:

1. Noticed moisture inside the passenger-side taillight assembly.
2. Performed a hard reset (disconnected battery); issue remained.

Outcome: Water leaked into the taillight, shorting the Blind Spot Information System (BLIS) module. Because BLIS shares the CAN bus with the display, its failure crashed the entire network. The fix required replacing the BLIS module and sealing the taillight with automotive silicone.

Lesson: A failure in one module causes symptoms in completely unrelated systems if they share a network. Multiple 'U' codes indicate a network-wide crash, often linked to known water leak points.

2014 Chevy Cruze with 85K miles

The radio worked intermittently, sometimes failing to turn on for days. The screen was black and controls were unresponsive.

What they tried:

1. Checked related fuses; all fine.
2. Replaced the negative battery cable (a known weak point); issue persisted.

Outcome: The radio/media control module failed internally. The owner bought a used replacement for $130. After installation, the screen displayed 'Locked'. The replacement module required dealer programming to sync with the car's VIN before it functioned.

Lesson: Swapping a control module is rarely plug-and-play. Replacement modules, even used ones, require professional programming to electronically pair with the vehicle.

How to Prevent This Code From Triggering

• Clean and protect electrical connectors (During any electrical repairs) — Applying dielectric grease to connectors exposed to the elements creates a moisture-proof barrier, preventing corrosion that causes high resistance and communication failures.
• Maintain battery health and connections (Annually) — Testing the battery and cleaning terminal corrosion ensures stable voltage. Low voltage is a primary cause of temporary communication 'U' codes.
• Inspect for and seal potential water leaks (Annually, especially after winter) — Known leak points, like F-150 taillights or third brake lights, allow water to short out sensitive modules. Applying clear automotive silicone prevents thousands of dollars in network damage.
• Secure wiring and check for chafing (During under-dash work) — Vibrations cause wiring harnesses to rub against sharp metal edges, wearing through insulation and causing shorts. Securing wiring in clips prevents physical damage.

Frequently Asked Questions

Can a weak battery cause a U0257 code?

Yes. A battery with voltage below 11.8V disrupts sensitive communication signals between modules, triggering U0257 and other network faults.

How much does it cost to diagnose a U0257 code?

Auto repair shops charge a diagnostic fee ranging from $95 to $180. This covers the technician's time to perform electrical tests and pinpoint the root cause.

My screen flickers and the radio works intermittently. Could it be a bad solder joint?

Yes, this is a classic symptom of cracked solder joints on the module's circuit board, common on Ford Fiestas. A technician can resolder the pins, which is much cheaper than replacing the entire module.

Will the U0257 code go away on its own?

If caused by a temporary low battery that is recharged, the code clears after several drive cycles. If caused by a persistent hardware or wiring fault, it remains until repaired.

Can a water leak cause a U0257 code?

Absolutely. On 2015-2020 Ford F-150s, water enters the taillight assembly and shorts the blind spot module. This crashes the entire communication network, triggering U0257 even though the display module is fine.

What is a TSB and how does it relate to U0257?

A Technical Service Bulletin (TSB) is a manufacturer document detailing a known problem and repair procedure. For example, Hyundai issued a TSB for a flickering screen causing U0257, providing a specific cable fix rather than a module replacement.

Can I replace the display module myself?

While physically swapping the module is straightforward, the new module must be professionally programmed with dealer-level software to sync with your VIN. Without this programming, the replacement module will not function.

Key Takeaways

• Code U0257 indicates your dashboard's central display and control panel (FCDIM) has stopped communicating with the vehicle's network.
• Check the basics first: a blown fuse or a loose wiring harness causes this code just as often as a failed $500+ display module.
• Driving is possible, but losing climate controls disables the windshield defroster, creating a critical visibility hazard in cold or wet weather.
• Expect repair costs to range from $5 for a DIY fuse replacement to $1,200+ for a dealer-programmed OEM module, though circuit board resoldering offers a $200 alternative for known defects.
